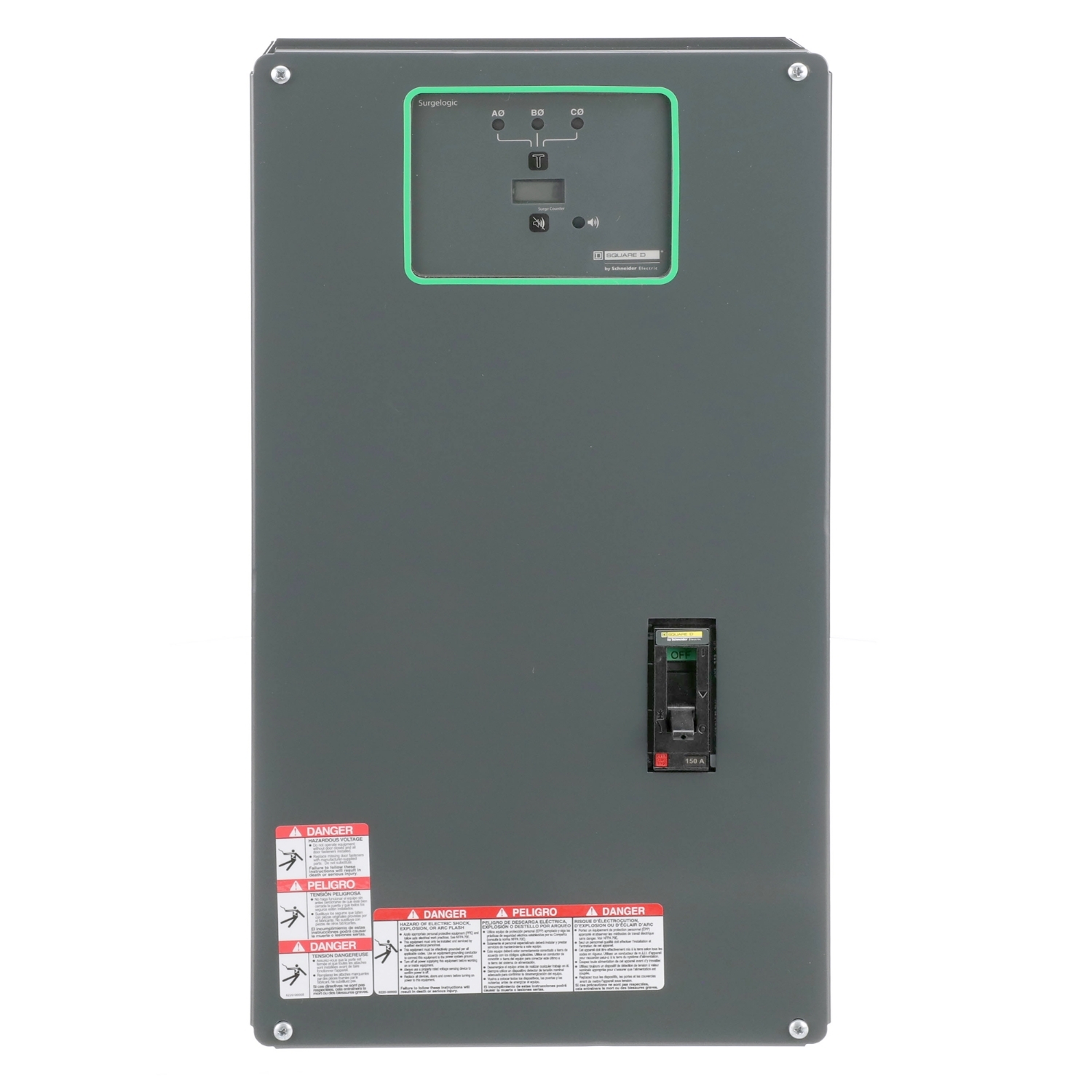

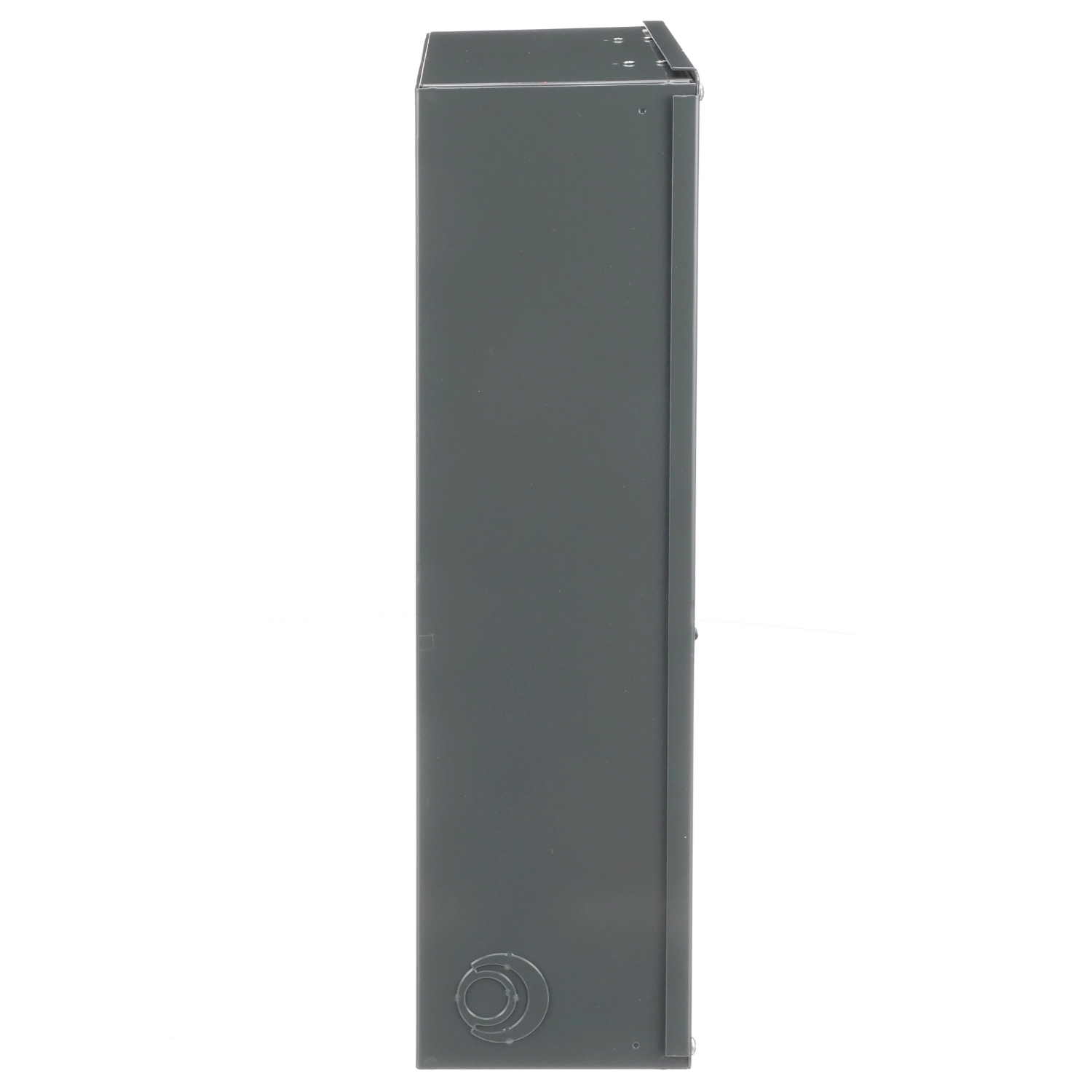

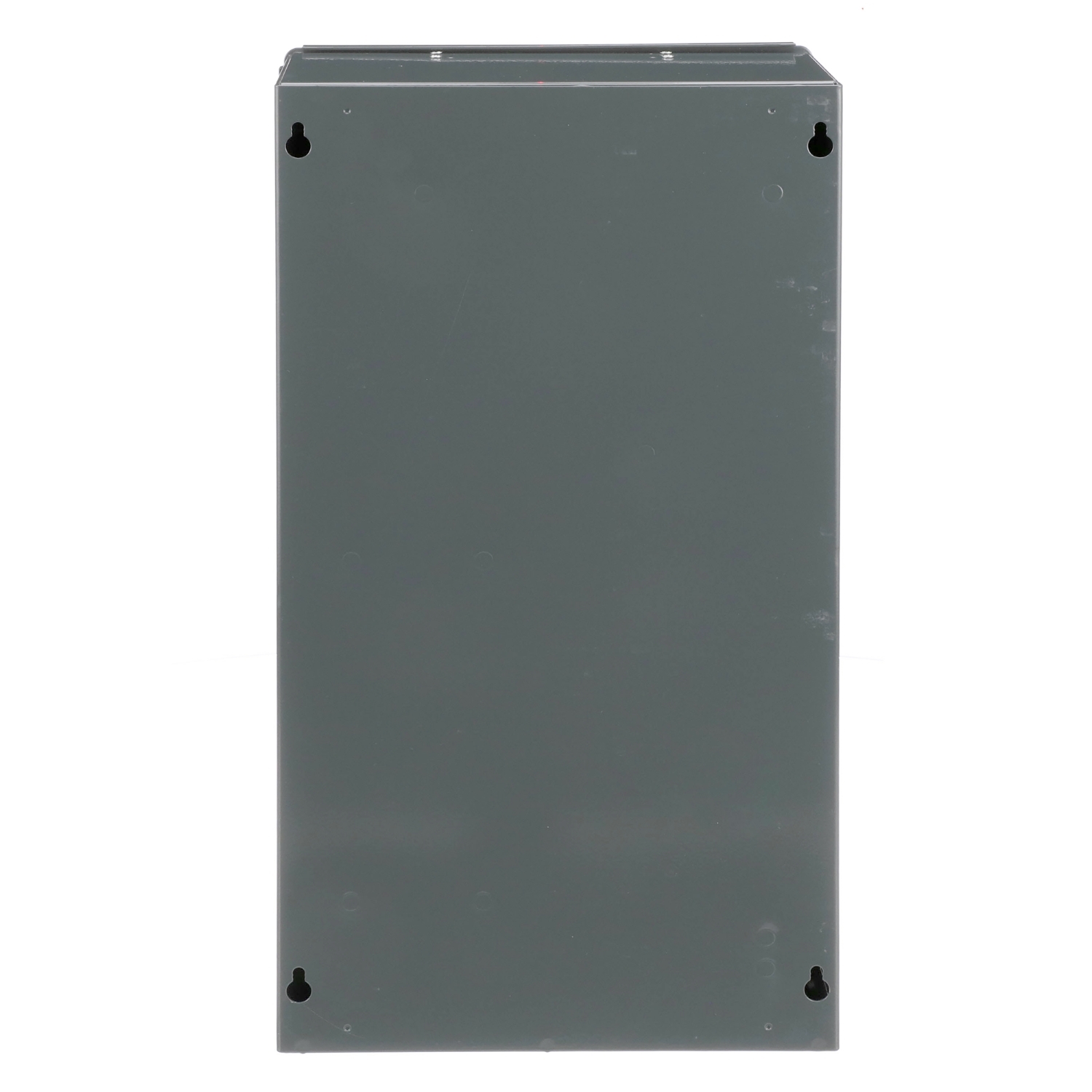

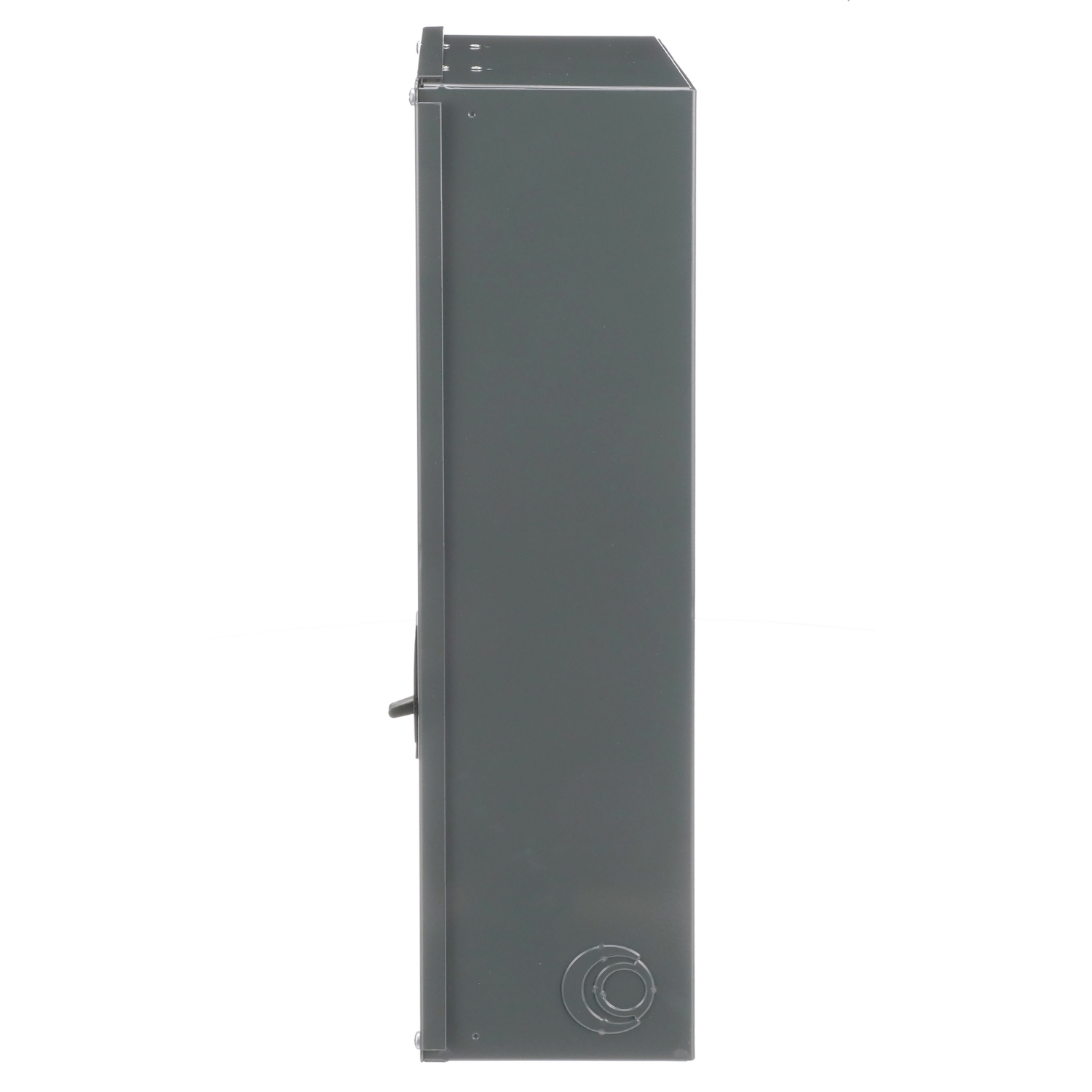

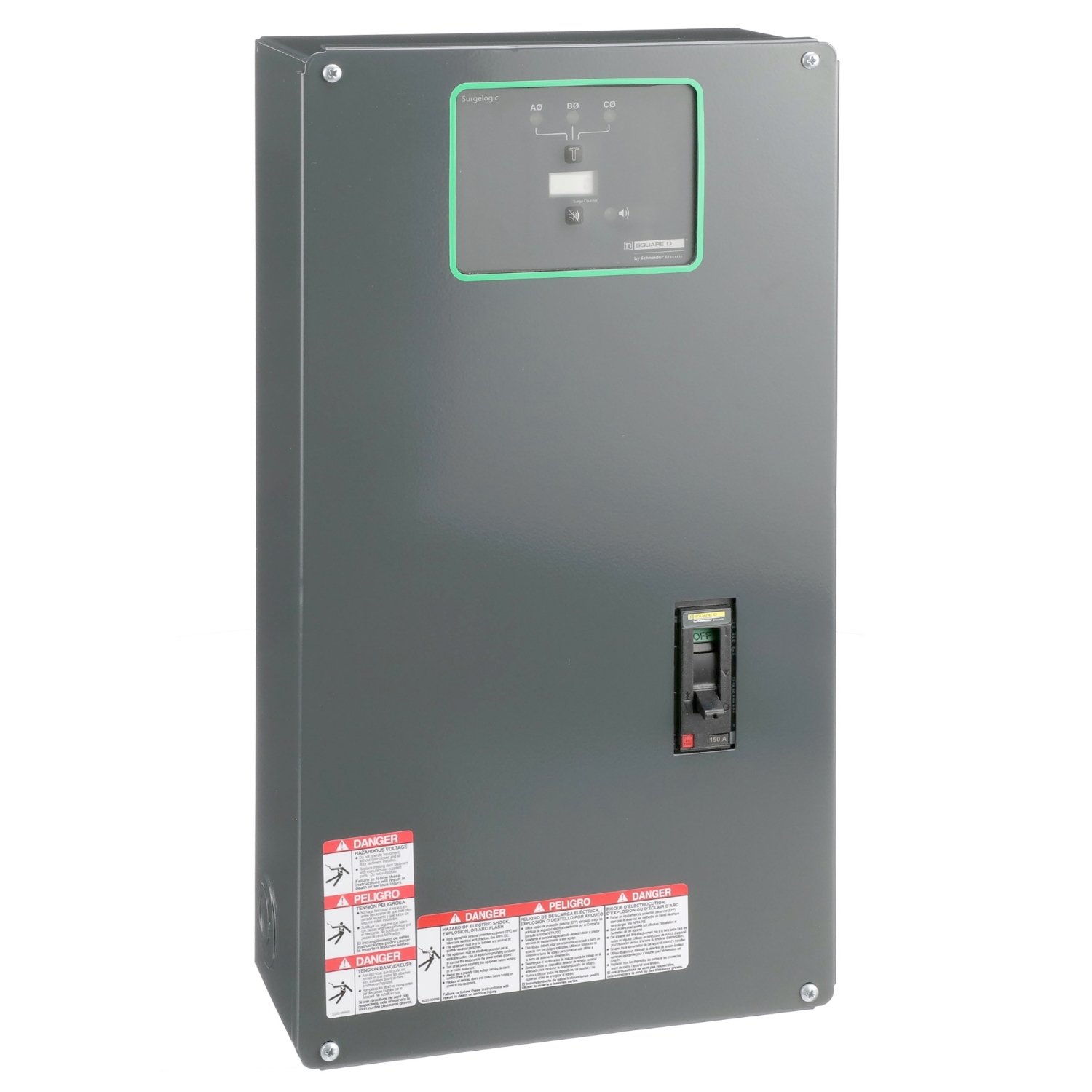

SSP02EMA32D Surgelogic EMA Surge Protective Device, 208Y/120 V AC, 3 Poles, 200 kA SCCR, 3 ph
- MFR:
- Schneider Electric
- MFR #:
- SSP02EMA32D
- UPC:
- 785901075349
- Item #:
- 625204
SSP02EMA32D Surgelogic EMA Surge Protective Device, 208Y/120 V AC, 3 Poles, 200 kA SCCR, 3 ph
- MFR #:
- SSP02EMA32D
- UPC:
- 785901075349
- Item #:
- 625204
Surgelogic Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 3 phase, 3-wire + ground, 208Y/120 V, 320 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 12 modes of protection.
Manuals & Documentation
| Catalog Number | SSP02EMA32D |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Country of Origin | Mexico |
| Made in USA | No |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455794485&lang=en-us |
| UPC | 785901075349 |
| GTIN | 00785901075349 |
