SCHNEIDER ELECTRIC

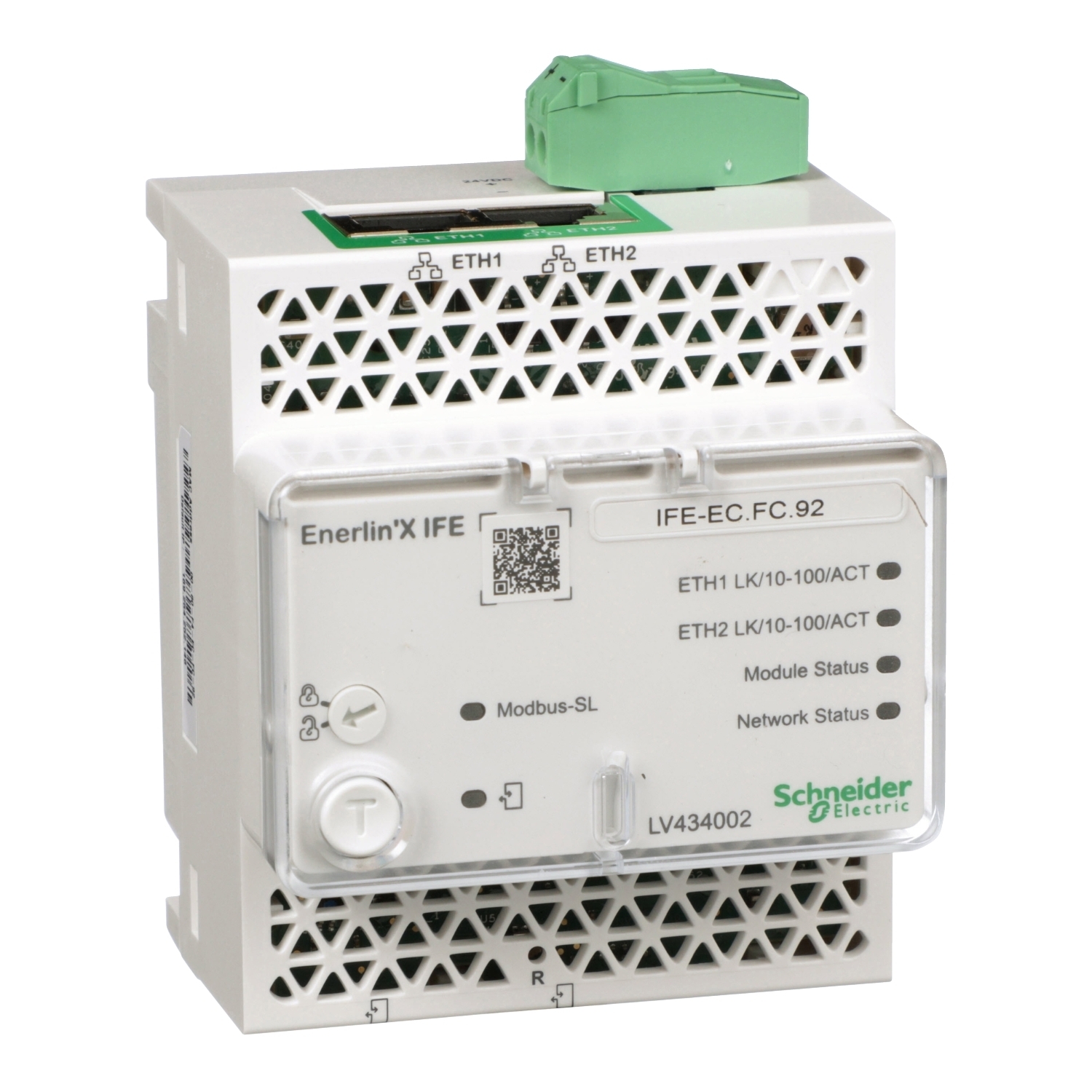

LV434002 Ethernet Switchboard Server, Interfacing Function, 24 V DC, DIN Rail Mount, -4 to 158 deg F Operating

MFR:
Schneider Electric
MFR #:
LV434002
Item #:
622050

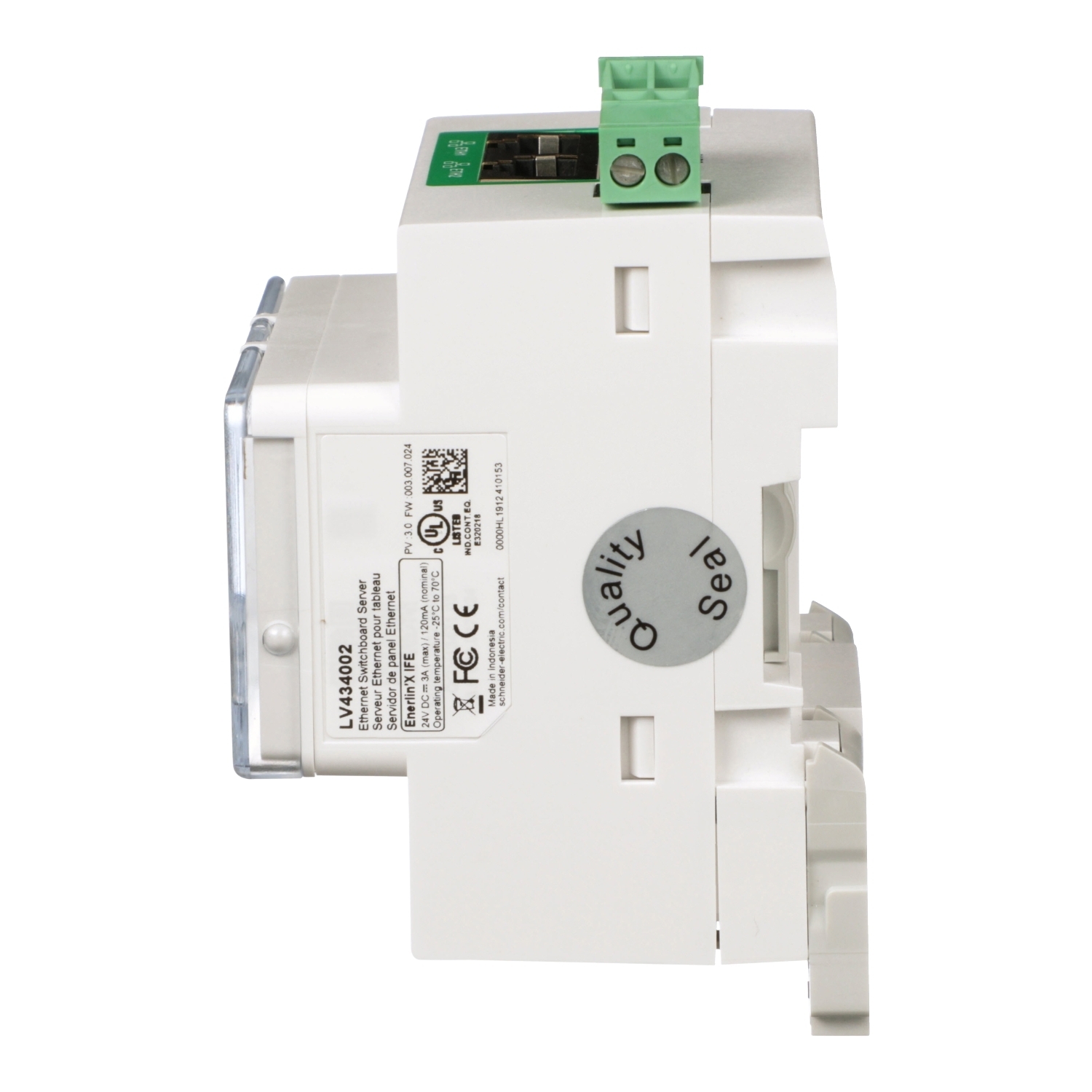

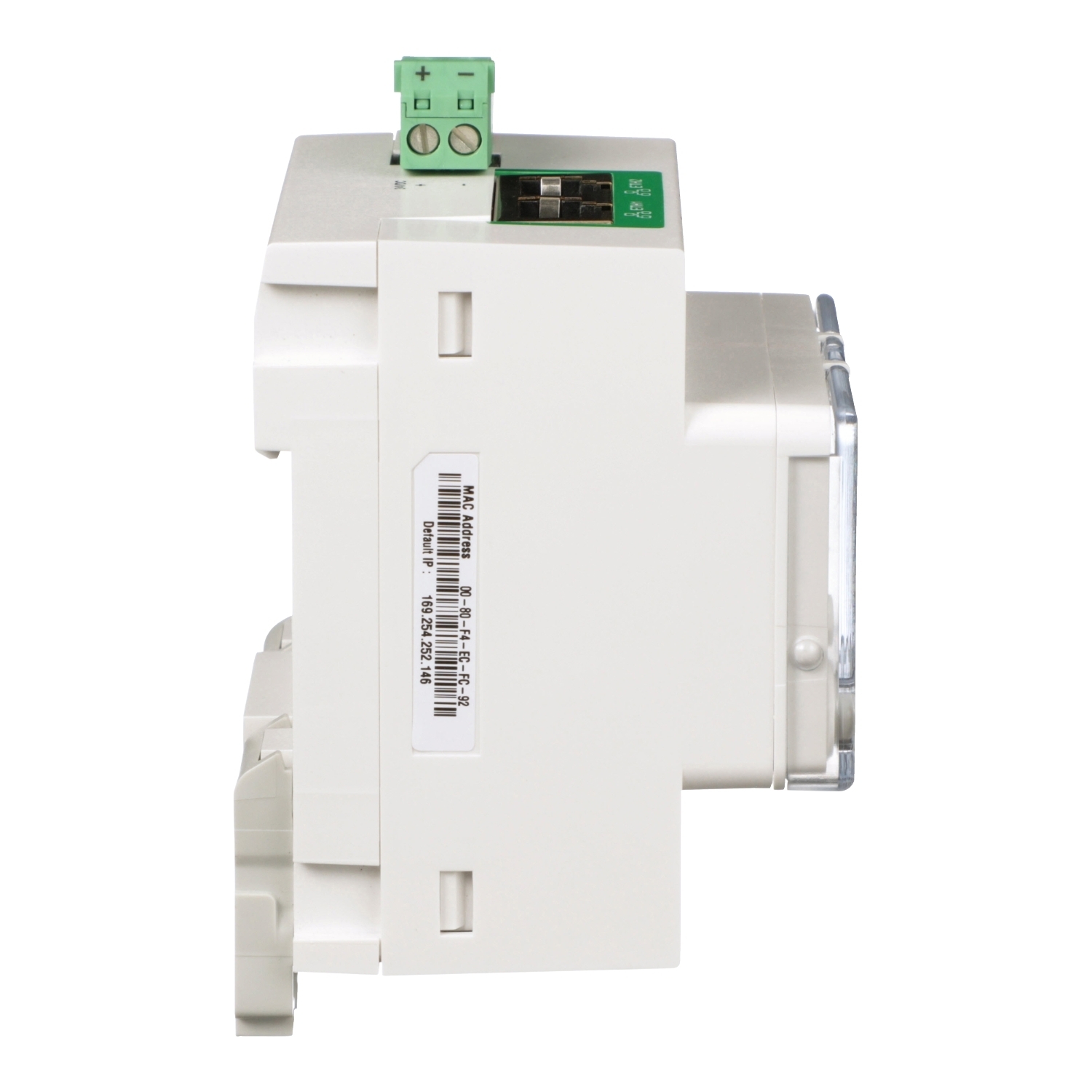

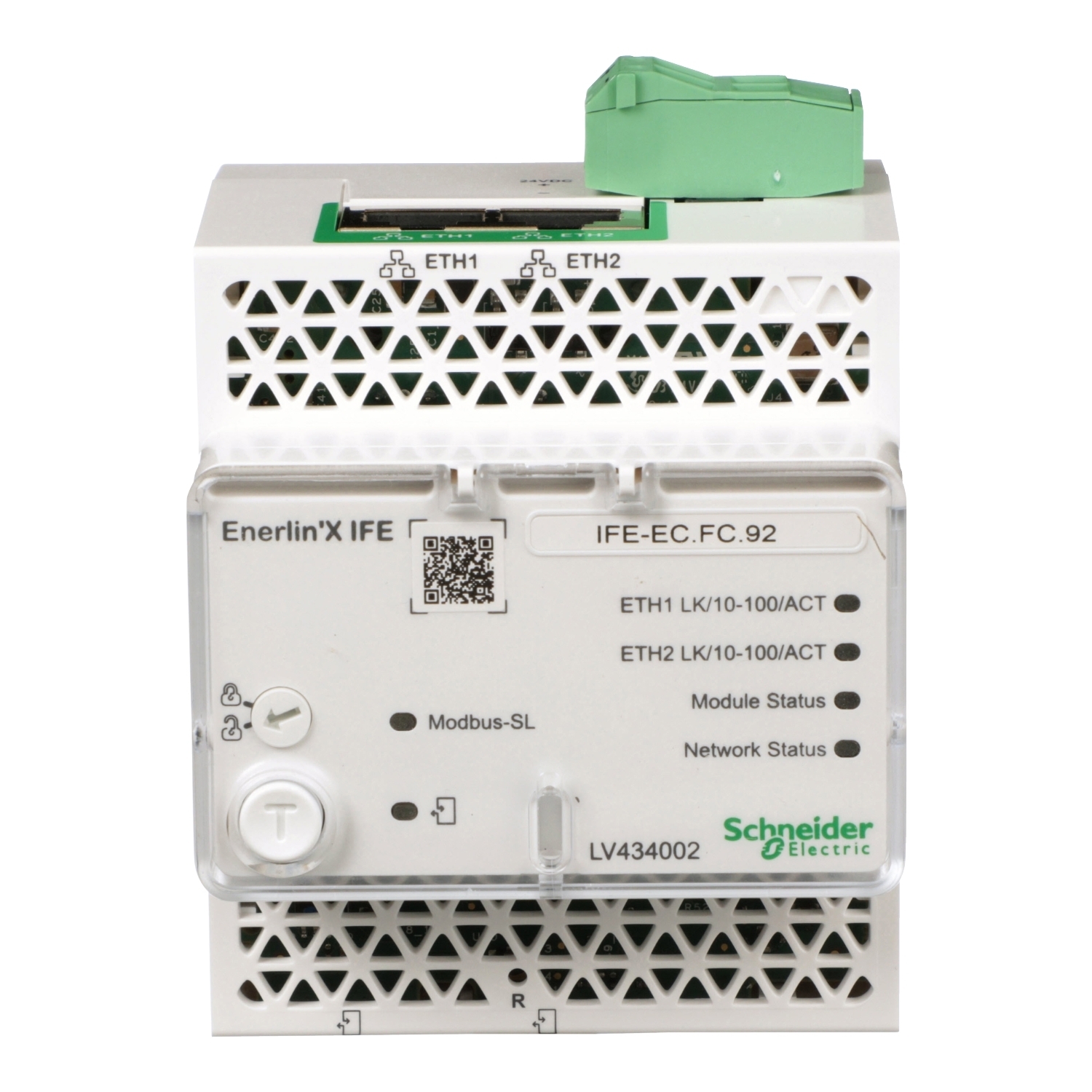

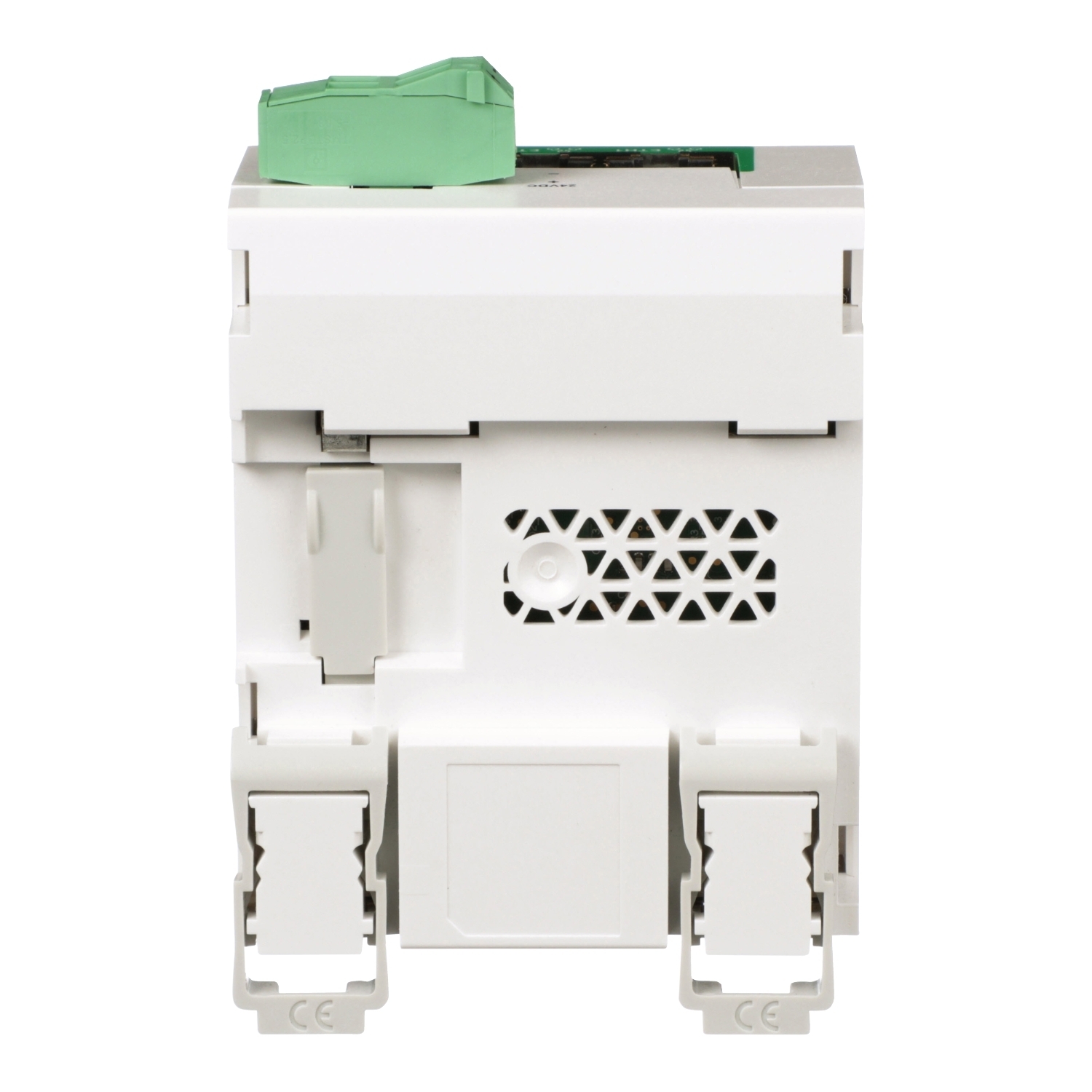

This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.

Manuals & Documentation
Catalog Number LV434002
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Mounting Clip
Standard CE;GOST;cULus;FCC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458344573&lang=en-us
GTIN 03606481283146
Item Type Interface module
