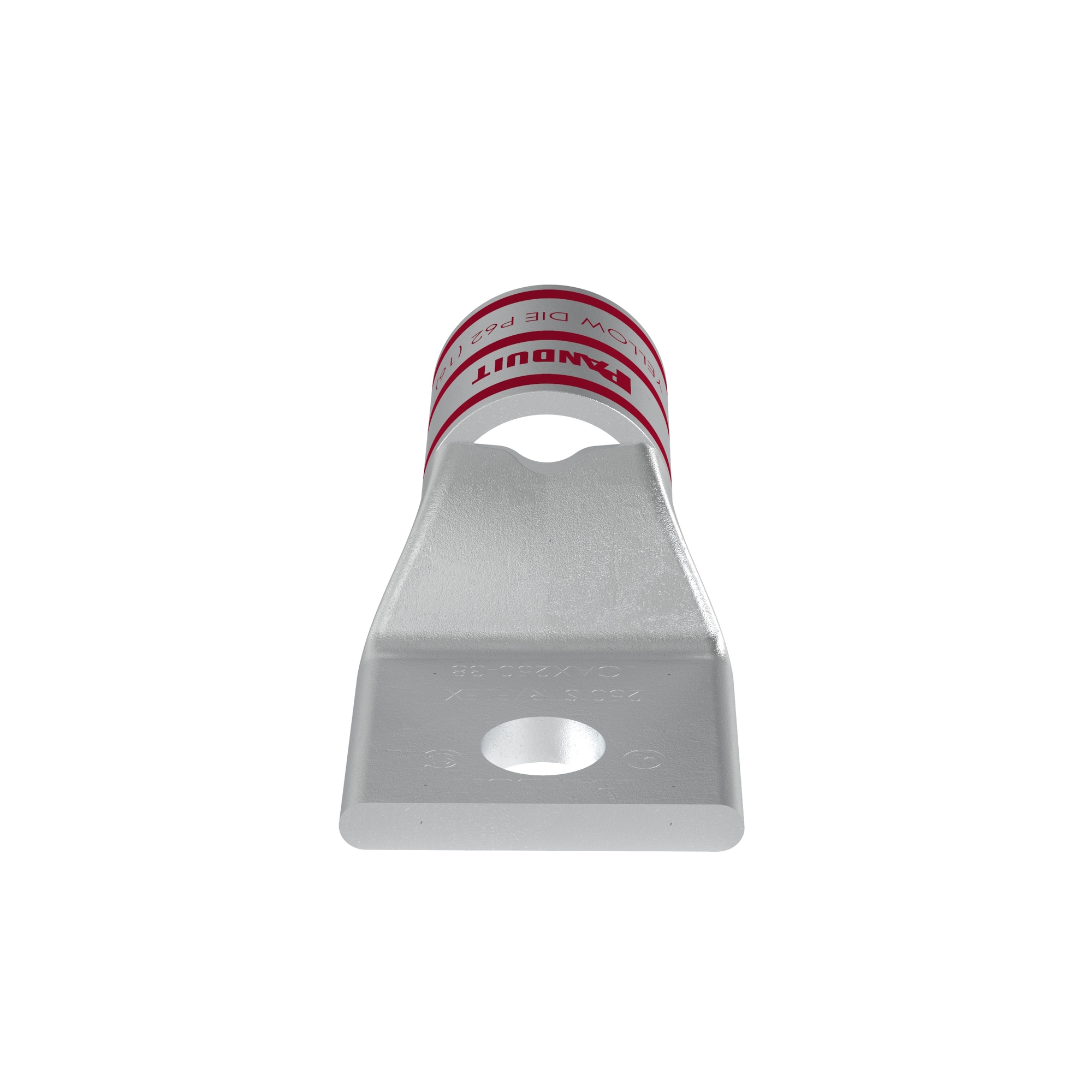

LCAX250-38-X Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil, 262.6 kcmil Flexible Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCAX250-38-X
- UPC:
- 074983435708
- Item #:
- 622002
LCAX250-38-X Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil, 262.6 kcmil Flexible Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated Copper
- MFR #:
- LCAX250-38-X
- UPC:
- 074983435708
- Item #:
- 622002
The LCAX250-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | LCAX250-38-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Material | Tin-Plated Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983435708 |
| GTIN | 00074983435708 |
| Item Type | Compression Lug |
| Size | 250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO |
| Stud Size | 3/8 IN |
