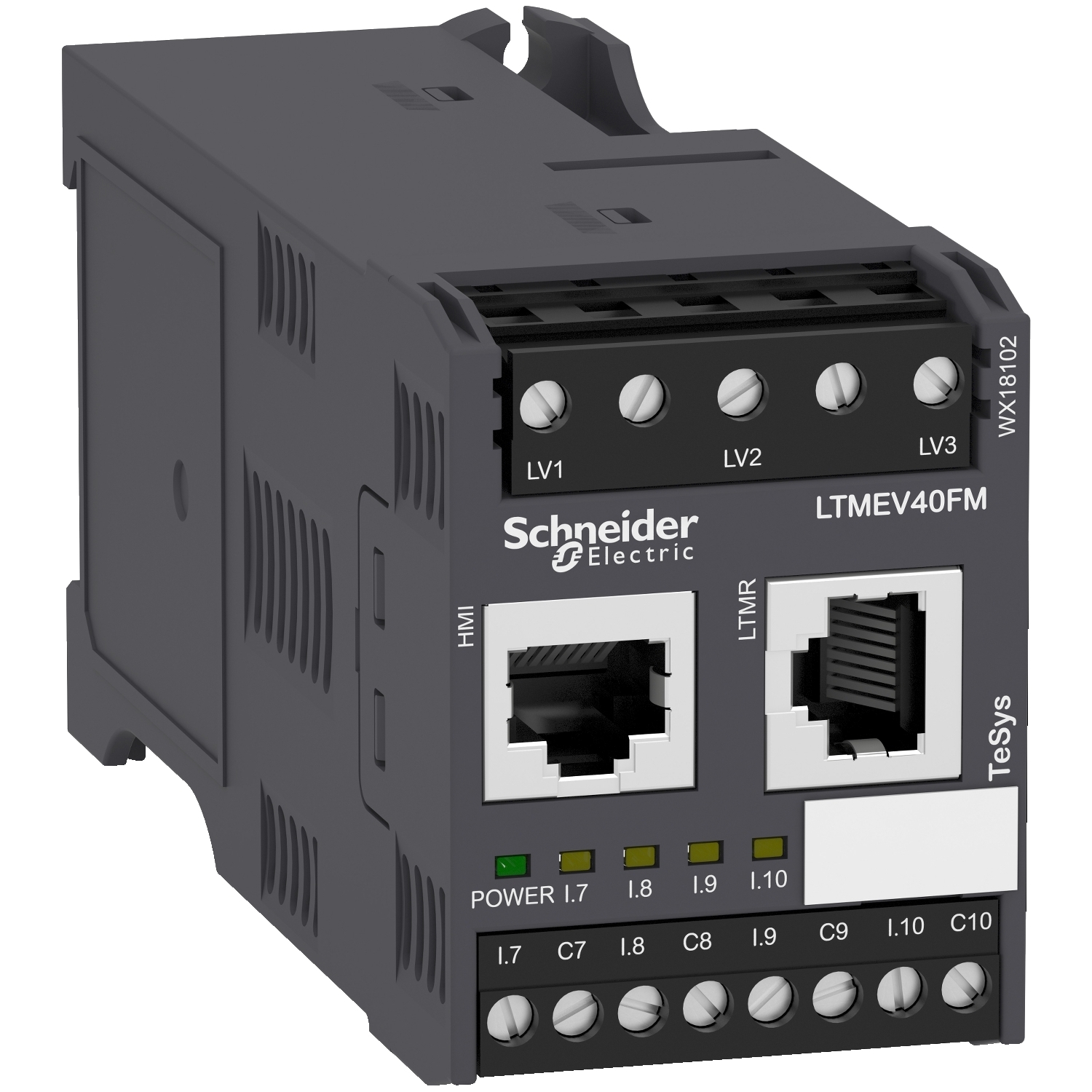

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Manuals & Documentation
Catalog Number LTMEV40FM
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Application TeSys TeSys T LTMR motor controller;Equipment monitoring and control
Connection Control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end;control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end;control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end;control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end;control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end;control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end;control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end;control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
Standard Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2;fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4;fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4;conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6;control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5;communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5;control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969421&lang=en-us
GTIN 03389119404938
Item Type Extension module
