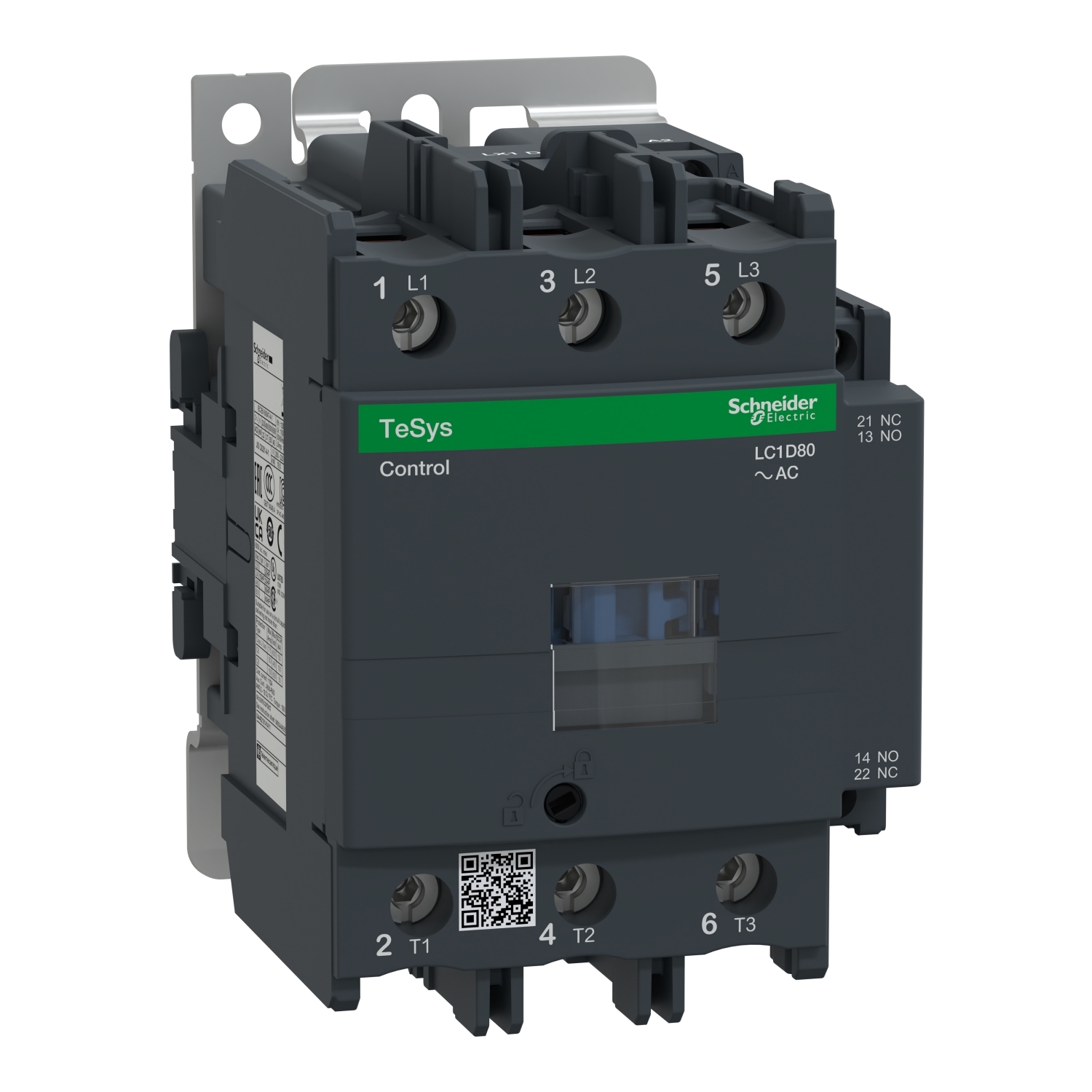

LC1D80T6 TeSys D D-Line LC1D IEC Contactor, 480/690 V AC, 300 V DC V Coil, 80/125 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1D80T6
Item #:
62116

IEC contactor, TeSys D, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 60Hz coil, open style

Manuals & Documentation
Catalog Number LC1D80T6
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load;motor control
Coil Voltage 480 V AC 60 Hz
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: solid
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=619134&lang=en-us
GTIN 03389110443042
Item Type Contactor
