7304-60-00 MC-Stat Lite Plus Type MCI-A Healthcare Facility Armored Cable, Reel Packaging, 600 V, (4) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- ATKORE - KAF-TECH
- MFR #:
- 7304-60-00
- UPC:
- 077680271006
- Item #:
- 620469
7304-60-00 MC-Stat Lite Plus Type MCI-A Healthcare Facility Armored Cable, Reel Packaging, 600 V, (4) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 7304-60-00
- UPC:
- 077680271006
- Item #:
- 620469

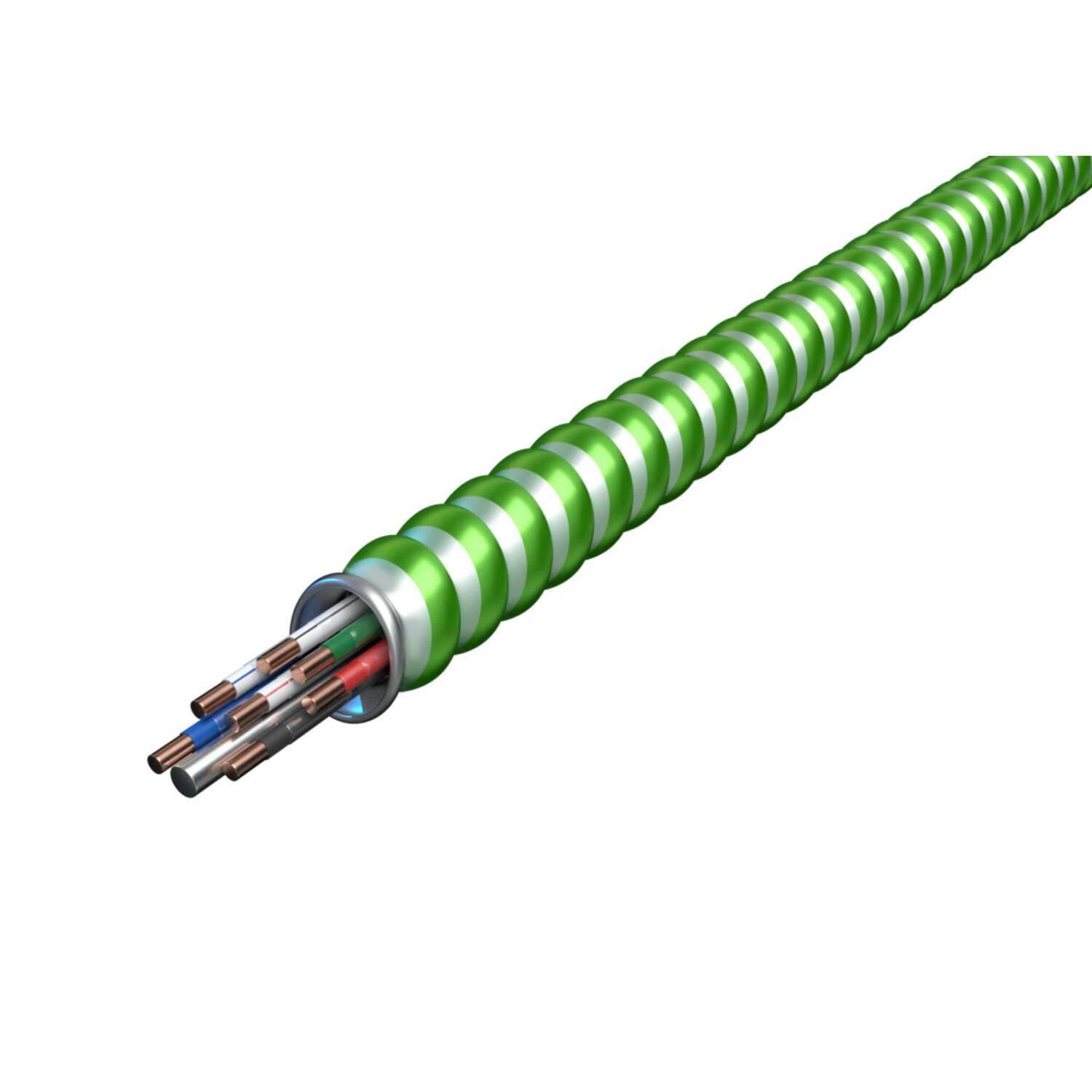

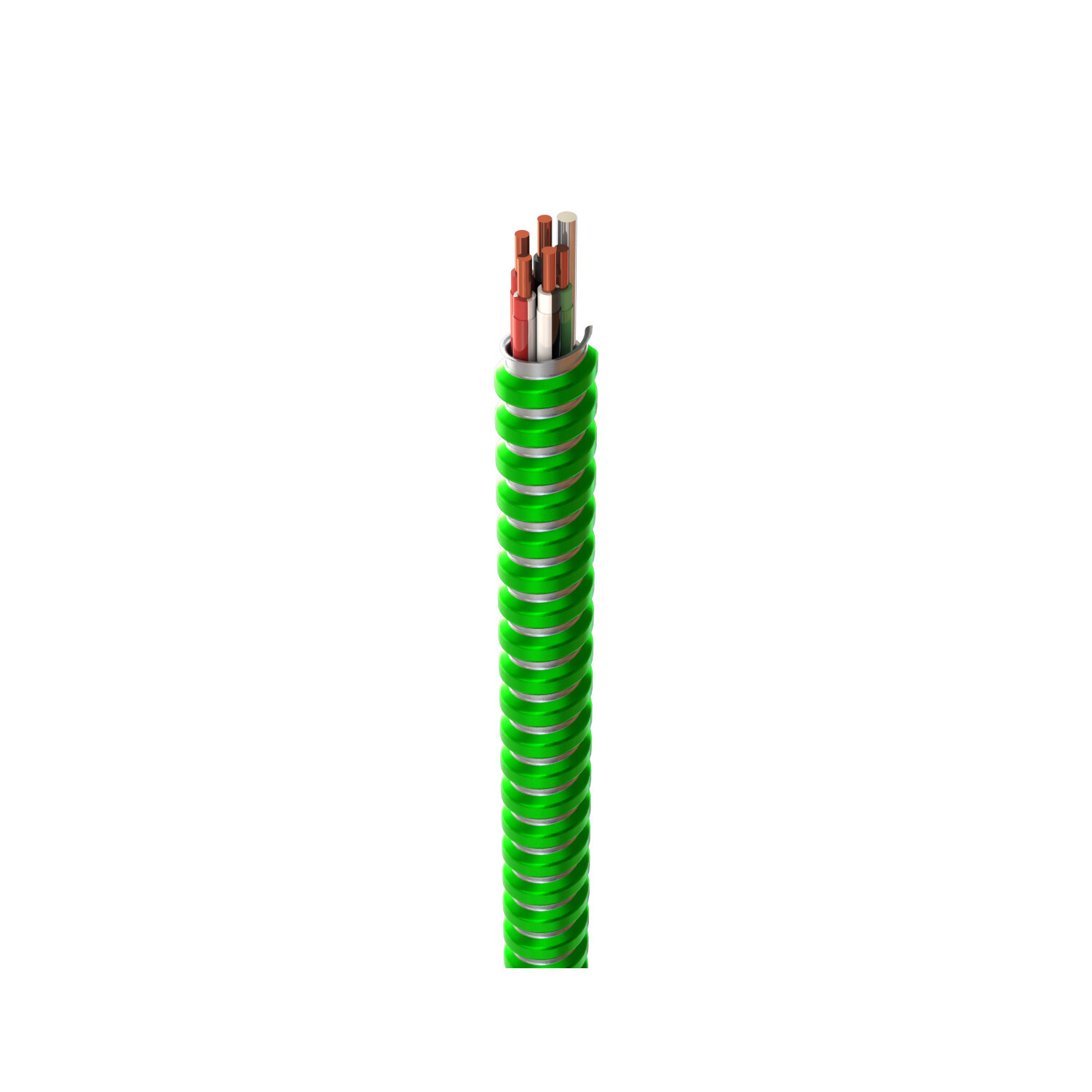

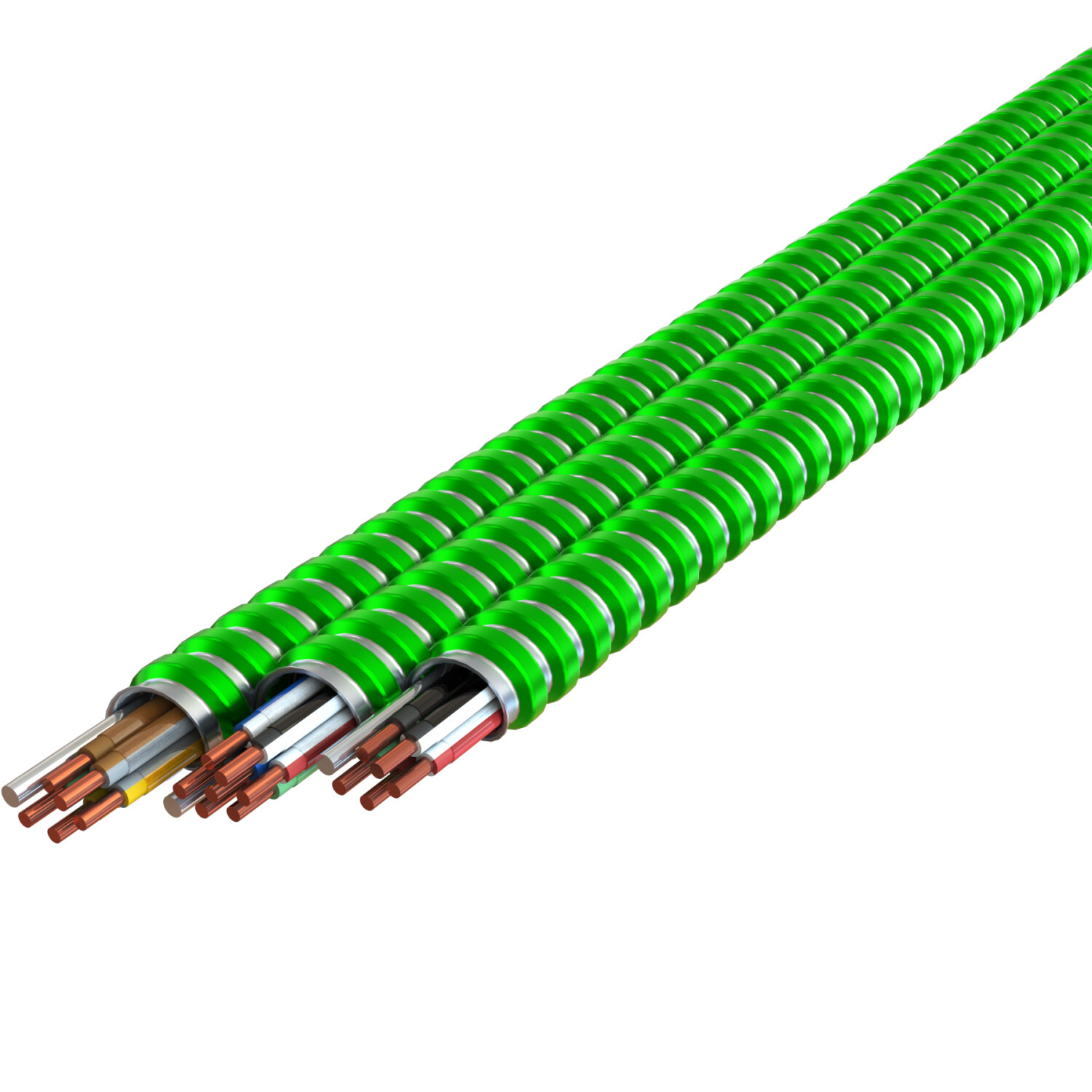

MC Stat Plus Lite is designed for healthcare settings with neutral-per-phase and redundant ground required for NEC 517.13. Its design eliminates shared neutrals and reduces the risk of overloading, helping identify faulty circuits to reduce outages. This cable offers improved safety and efficiency for a range of applications. MC Stat Plus Lite's unique features, including its ColorSpecID/ColorTrak ID, Neutral-per-phase design, wrap-free design, Patented Polypropylene covered THHN/THWN-rated conductors, make it a reliable and efficient choice for healthcare facilities.
Manuals & Documentation
| Catalog Number | 7304-60-00 |
| Manufacturer | ATKORE - KAF-TECH |
| Brand | Kaf-Tech |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Color | Green |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Number of Conductors | 6 |
| Standard | UL 1569, UL 83, UL 1479, UL 1581, UL 2556, E80042 Federal spec A-A–59544 (formerly J-C–30B) NEC® 330, 300.22(C), 230.43, 250.118, 392, 396, 503, 530, 517, 518, 520, 645 UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141 NEC® 300.22(C) Environmental Air Handling Spaces |
| UPC | 077680271006 |
| GTIN | 00077680271006 |
| Item Type | MC-Stat® Lite Plus Aluminum Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.1868 LB/FT |
| Outside Diameter | 0.663 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
