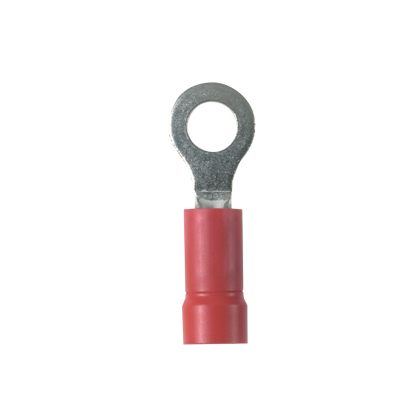

The PV18-6R-MY Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV18-6R-MY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983416974 |
| GTIN | 00074983416974 |
| Item Type | Ring Terminal |
| Size | #6 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
