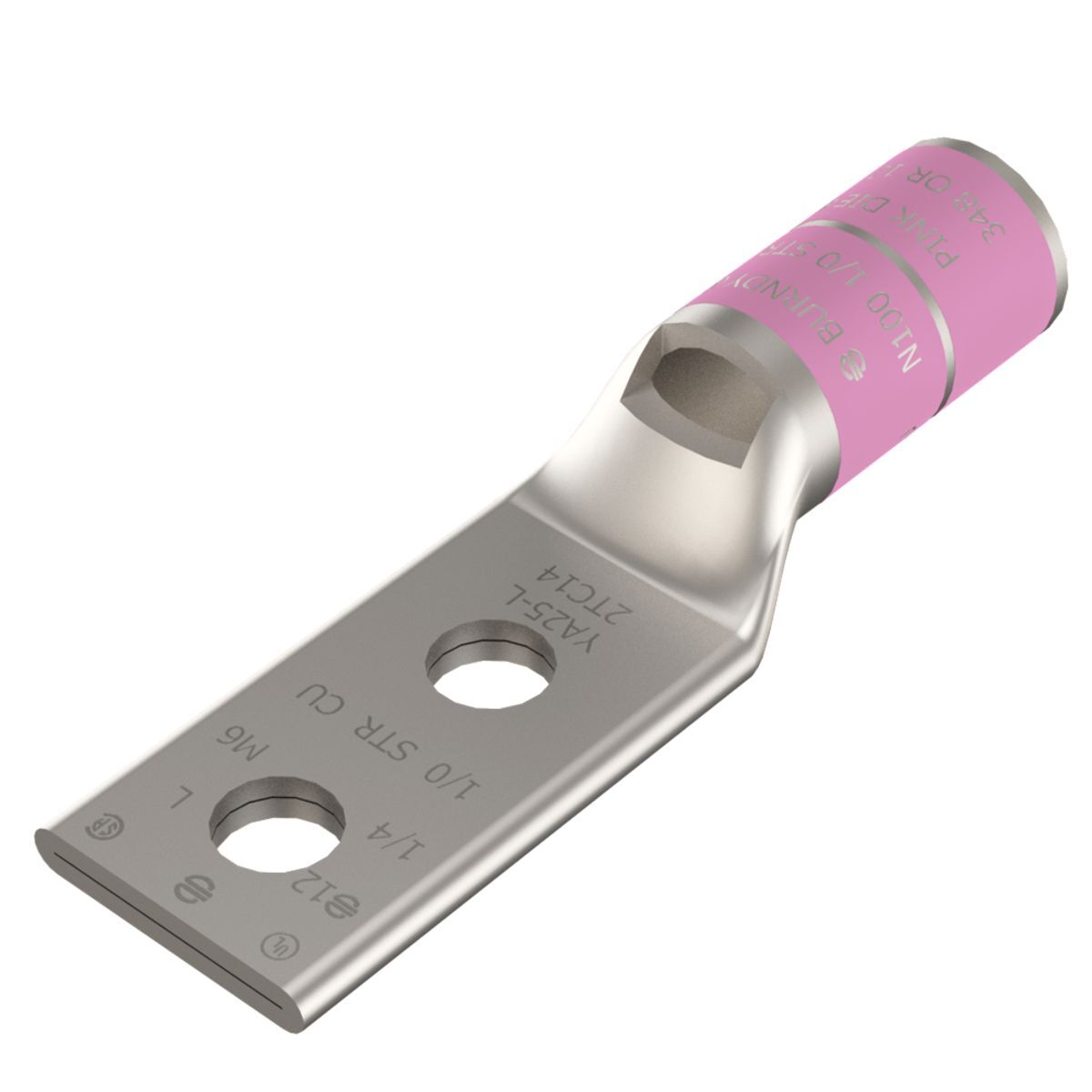

YA25L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 1/0 AWG Stranded Copper Conductor, Die Code: 12/348, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA25L2TC38
- UPC:
- 781810503621
- Item #:
- 618875
YA25L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 1/0 AWG Stranded Copper Conductor, Die Code: 12/348, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YA25L2TC38
- UPC:
- 781810503621
- Item #:
- 618875
Manuals & Documentation
| Catalog Number | YA25L2TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Die Index: 12, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U25RT, U2CABT Die, (1), Y46 Tool, U25RT, U2CABT Die With PUADP-1 Adapter, (1), Color Code: Pink, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), MRC840 Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810503621 |
| GTIN | 00781810503621 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | 54209 |
