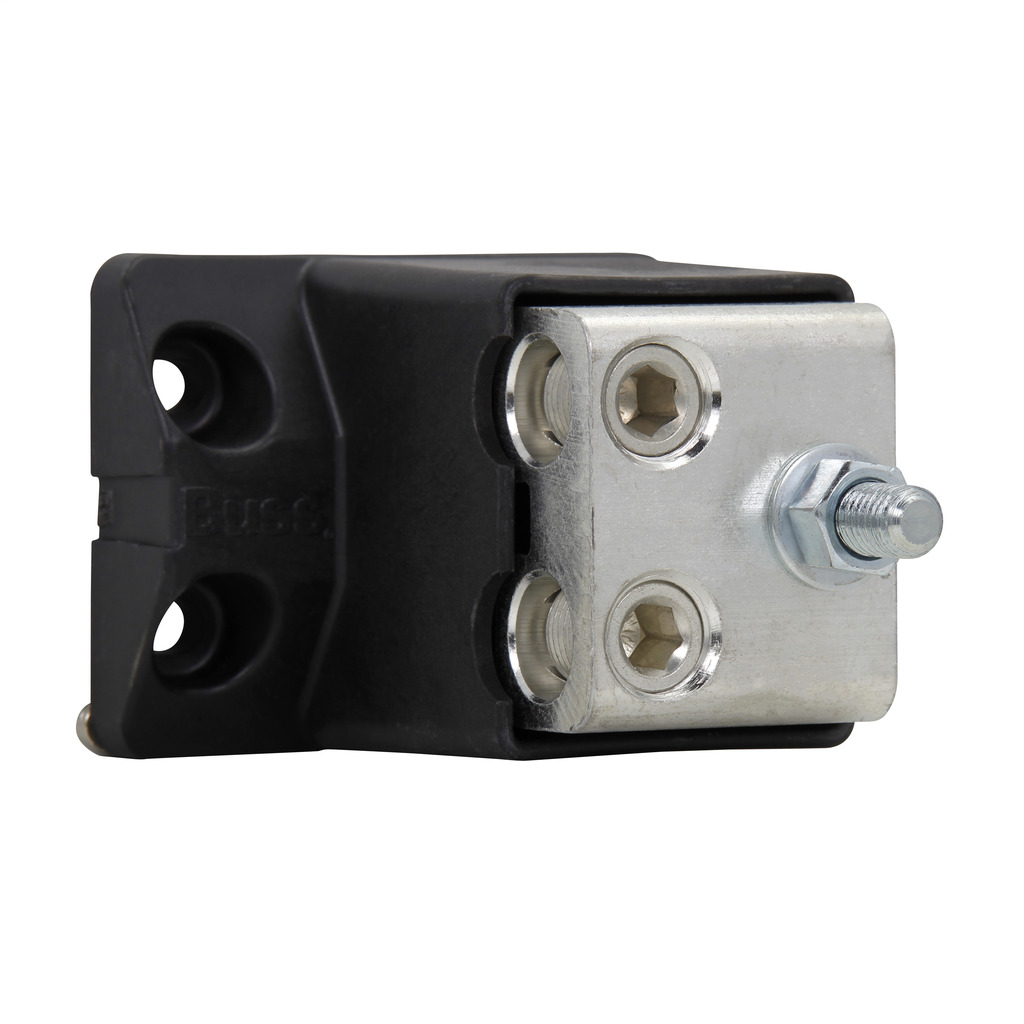

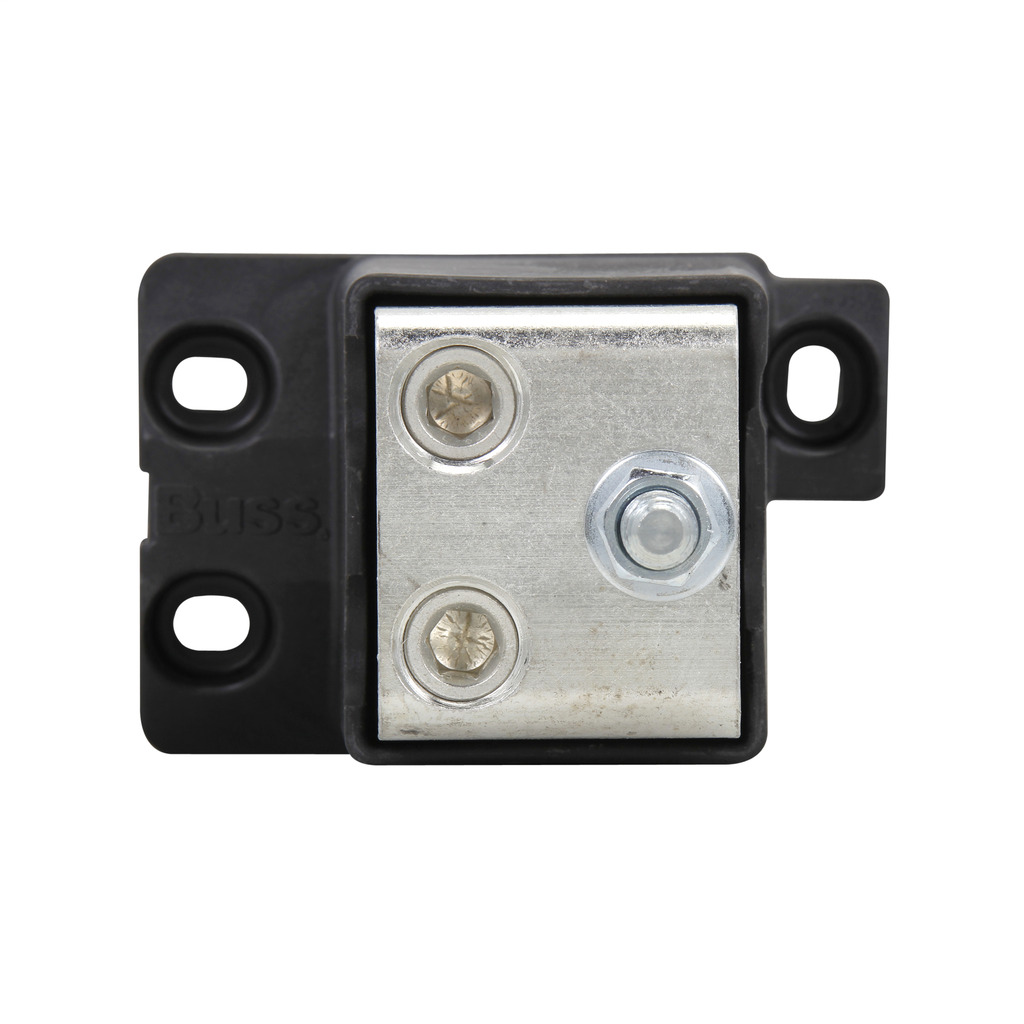

BH-1133 Modular Square High Speed Fuse Block, 2.5 kV, 400 A, 6 AWG to 250 kcmil Wire, 1 Poles
- MFR:
- Eaton Bussmann
- MFR #:
- BH-1133
- UPC:
- 051712350464
- Item #:
- 614499
BH-1133 Modular Square High Speed Fuse Block, 2.5 kV, 400 A, 6 AWG to 250 kcmil Wire, 1 Poles
- MFR #:
- BH-1133
- UPC:
- 051712350464
- Item #:
- 614499
Eatons Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.
Manuals & Documentation
| Catalog Number | BH-1133 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 400 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Connection | 6 AWG - 250 kcmil copper wire|3/8 In-16 TPI stud |
| Material | Plated Steel Mounting Studs and Nut|Spring Steel Washer|Thermoplastic base|Tin-plated aluminum connector |
| Special Features | Light Weight |
| Standard | RoHS Compliant,Contact factory |
| UPC | 051712350464 |
| GTIN | 00051712350464 |
| Item Type | High speed square body fuse |
| Weight UOM | Pounds |
| Voltage Rating | 2500 V |
