SQUARE D

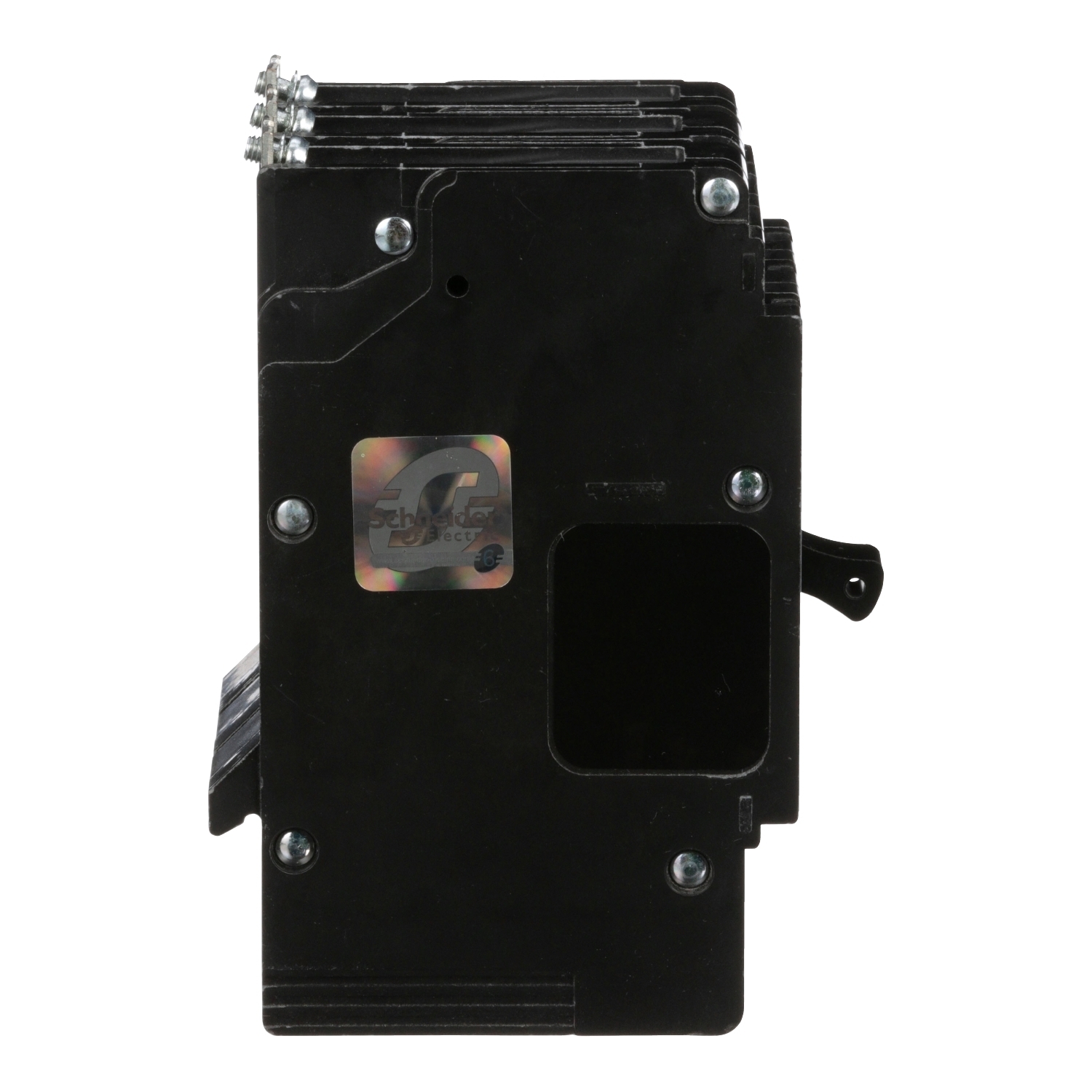

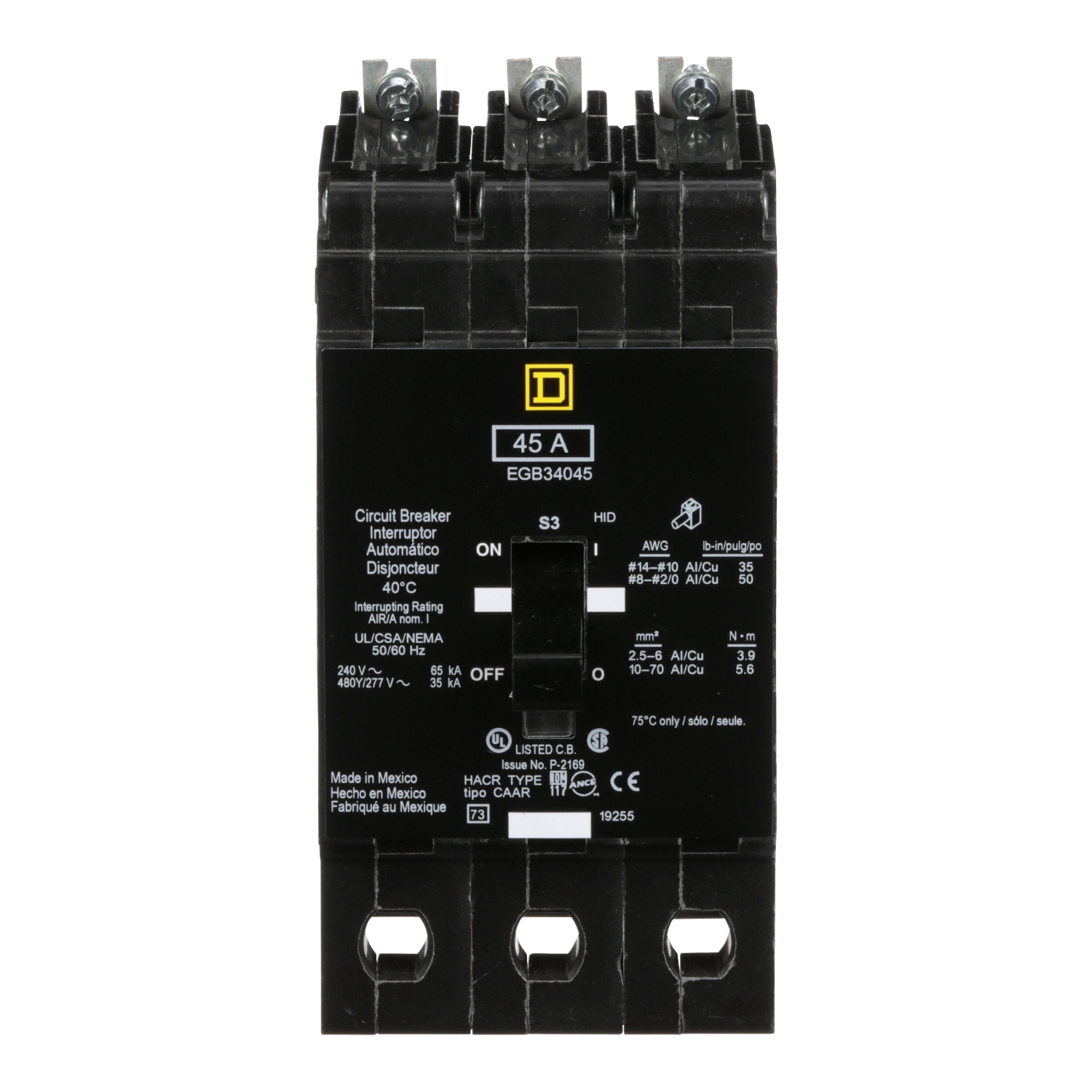

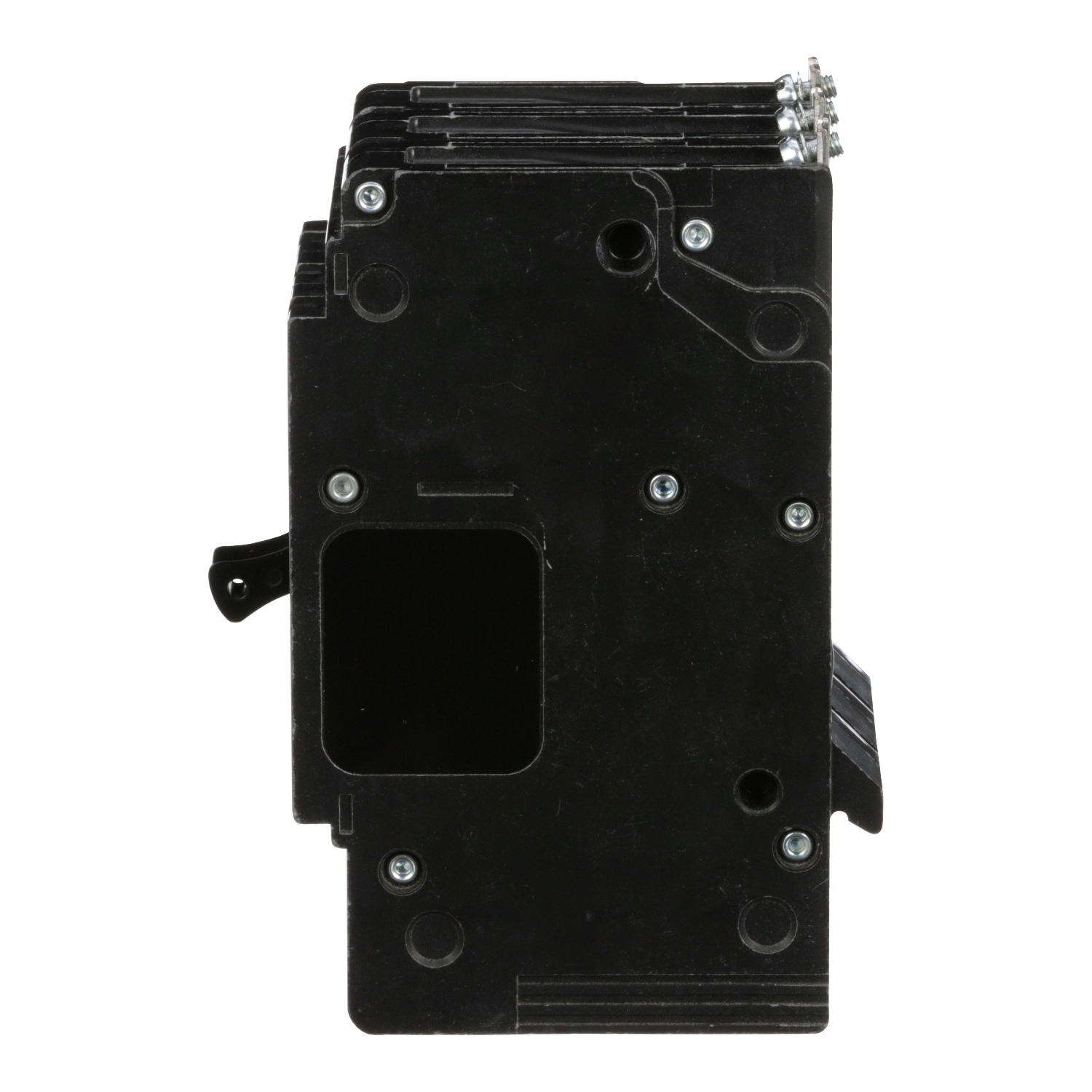

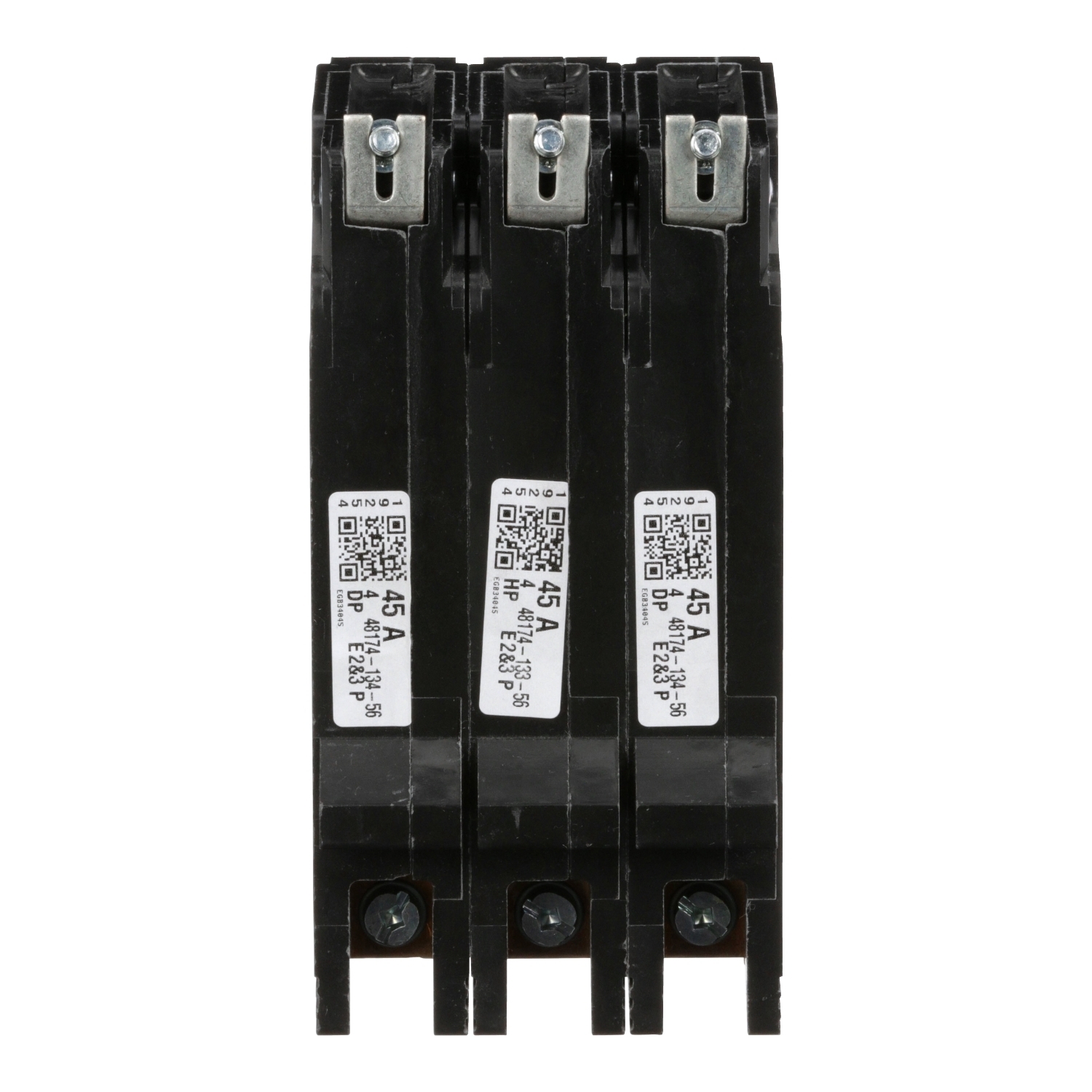

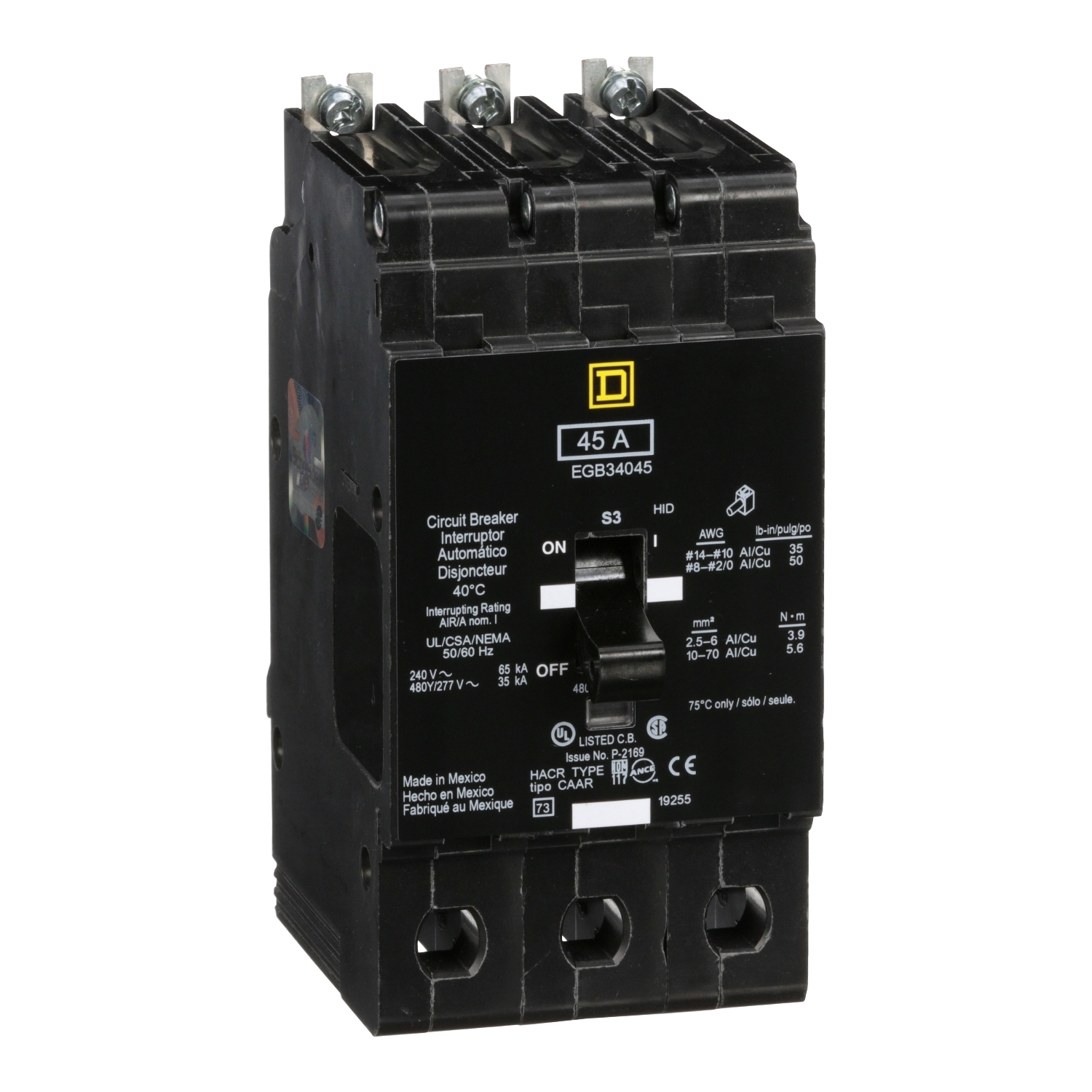

EGB34045 Type EGB Miniature Circuit Breaker, 277/480Y V AC, 45 A, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
EGB34045
UPC:
785901128625
Item #:
609

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Manuals & Documentation
Catalog Number EGB34045
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application NF panelboard;HID rated;HACR rated
Connection Lugs aluminium;AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
Special Features Trip indicator
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253879&lang=en-us
UPC 785901128625
GTIN 00785901128625
Item Type Miniature circuit-breaker
Width 2.94
Width UOM Inch
Height 5.66
Height UOM Inch
Depth 4.05 IN
Trip Type Thermal-magnetic
Voltage Rating 480Y/277 V AC
