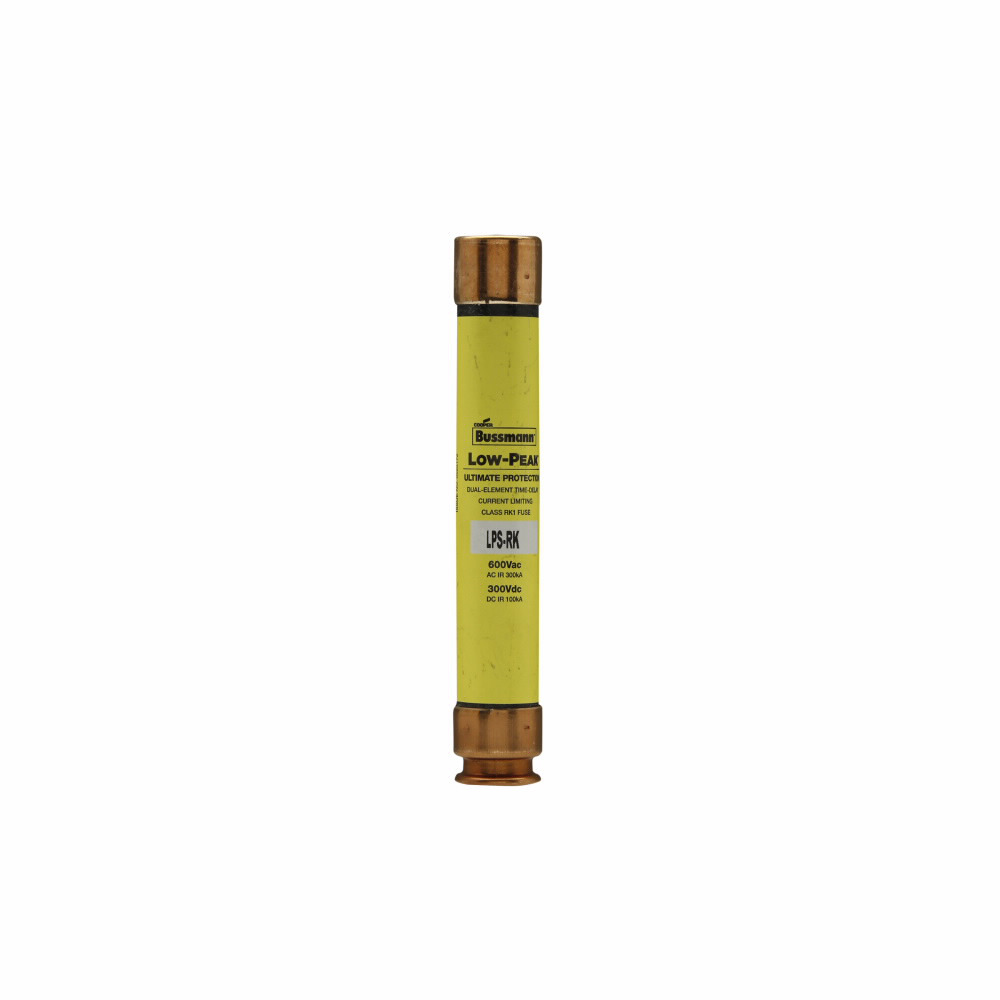

Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 20 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- LPS-RK-20SP
- UPC:
- 051712548342
- Item #:
- 60736
Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 20 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
- MFR #:
- LPS-RK-20SP
- UPC:
- 051712548342
- Item #:
- 60736
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Manuals & Documentation
| Catalog Number | LPS-RK-20SP |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 100 kAIC at 300 Vdc|300 kAIC at 600 Vac |
| Response Time | 8 S at 500% |
| Special Features | Electrically Isolated End Cap |
| Standard | CE Marked |
| UPC | 051712548342 |
| GTIN | 00051712548342 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.81 In Diameter X 5.00 In Length |
| Voltage Rating | 600 Vac, 300 Vdc |
