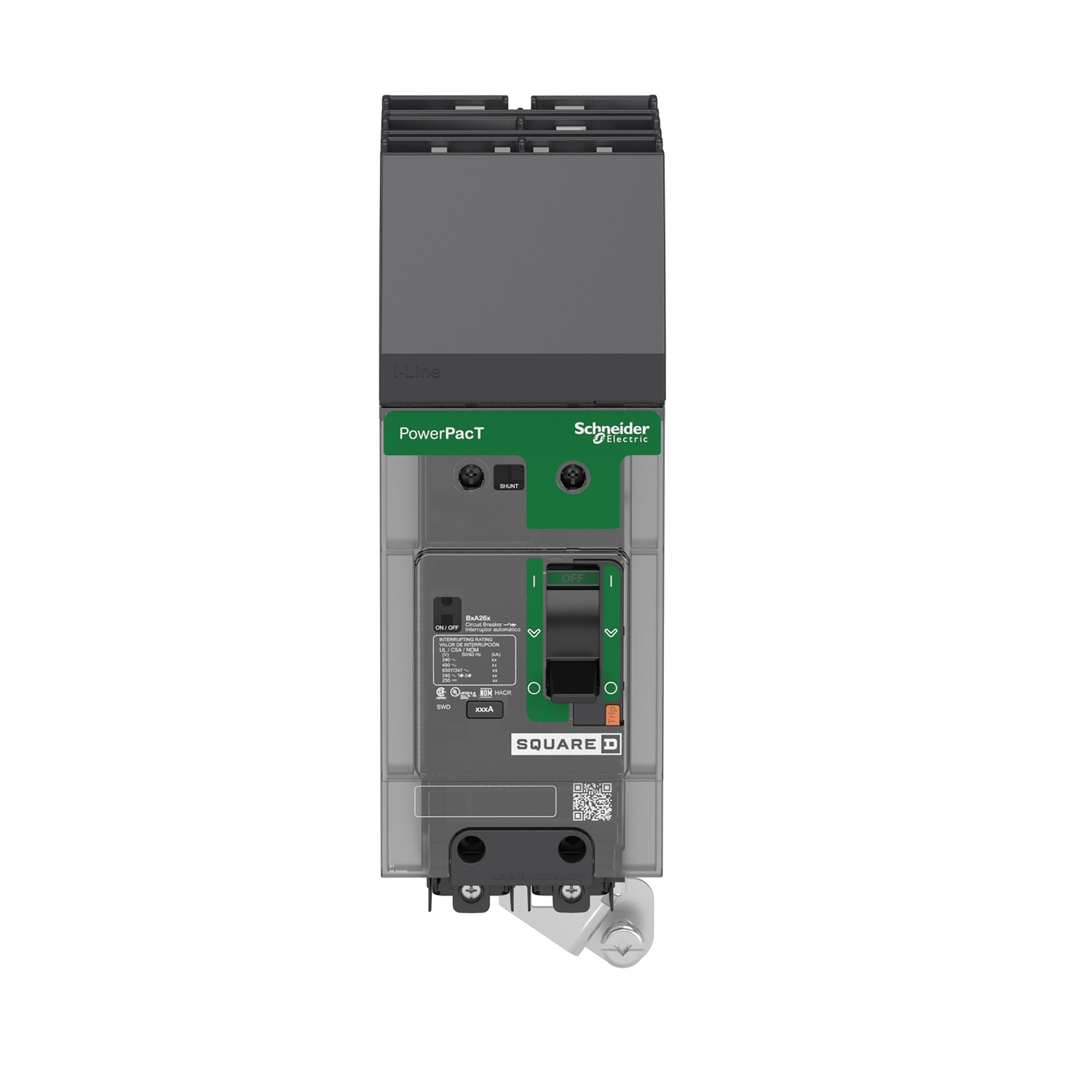

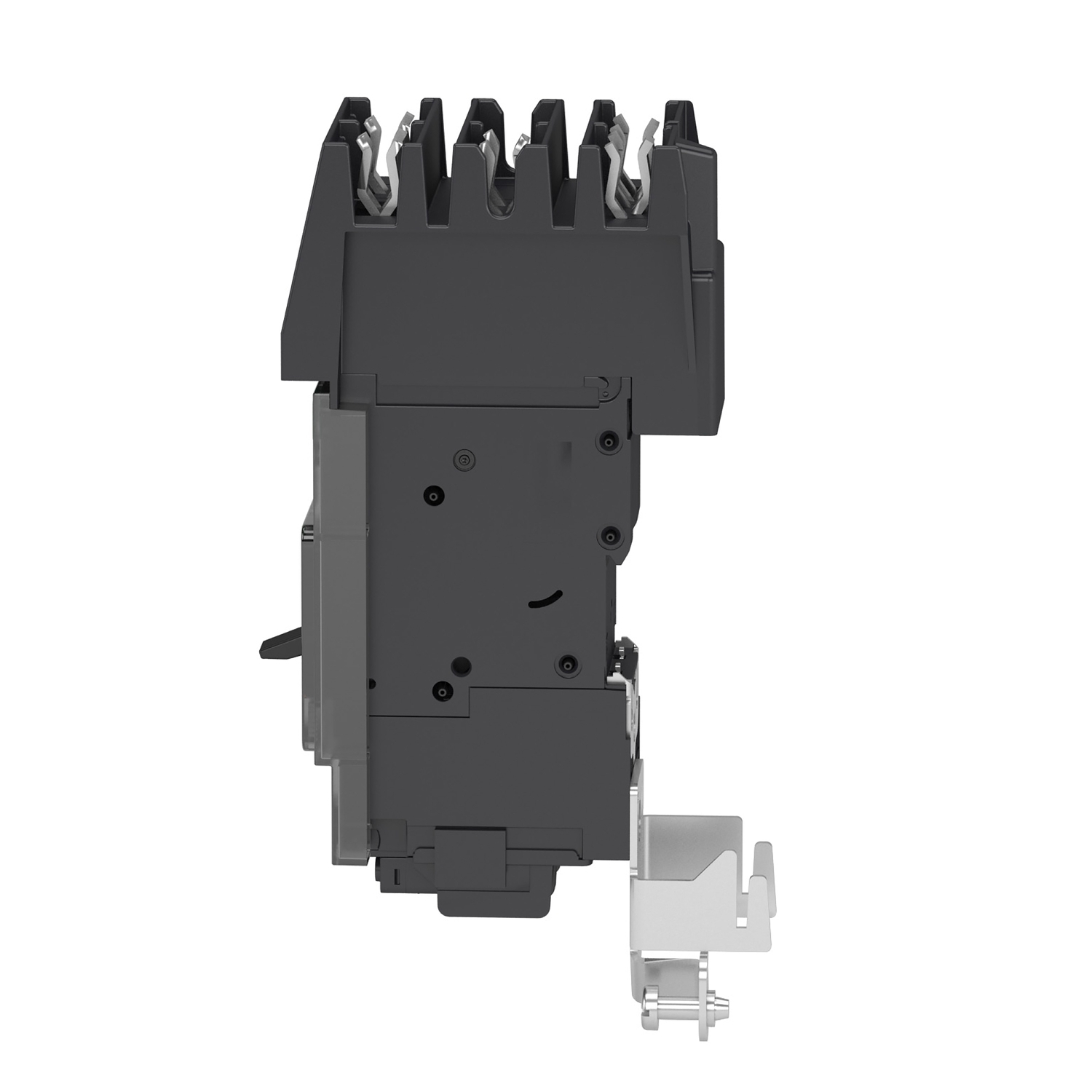

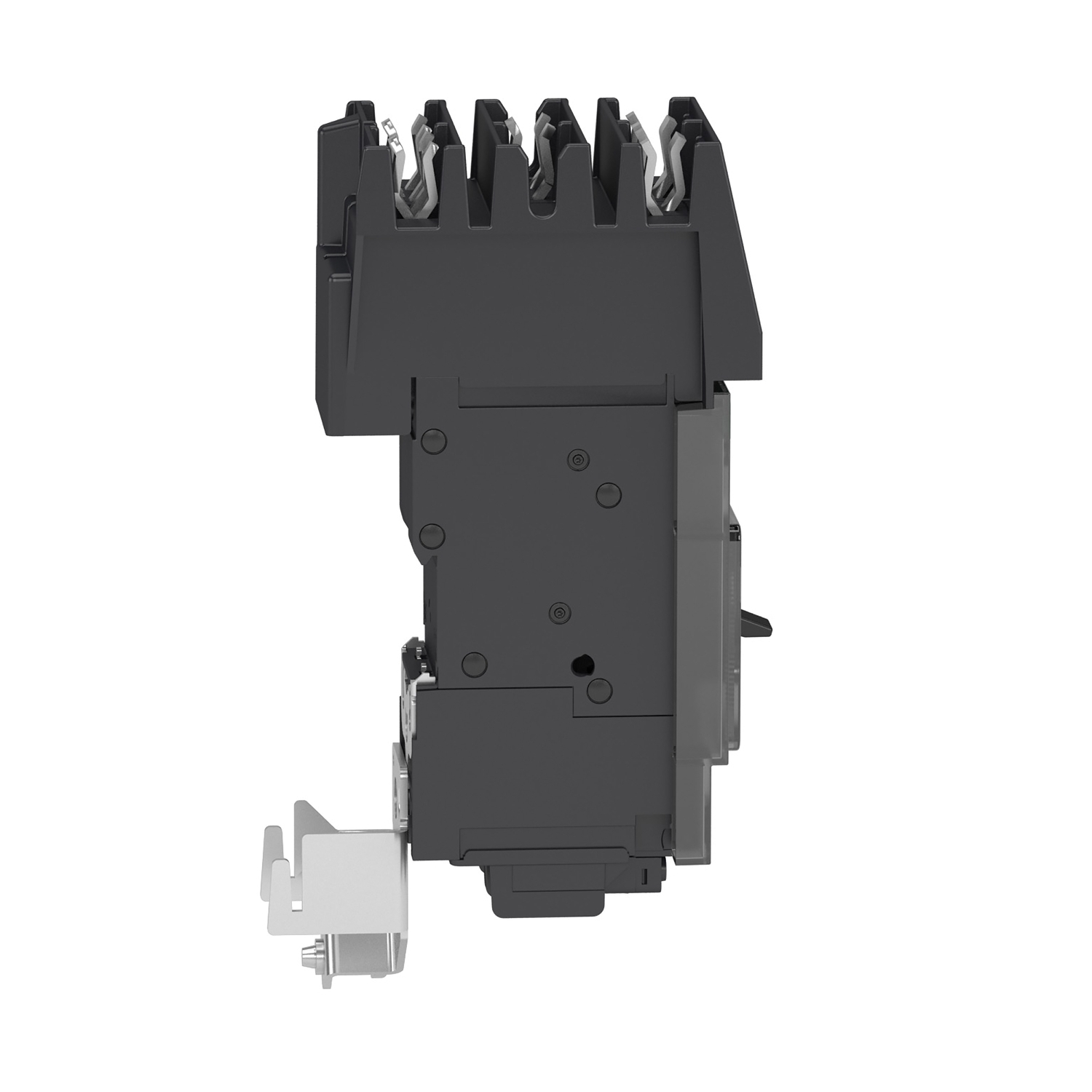

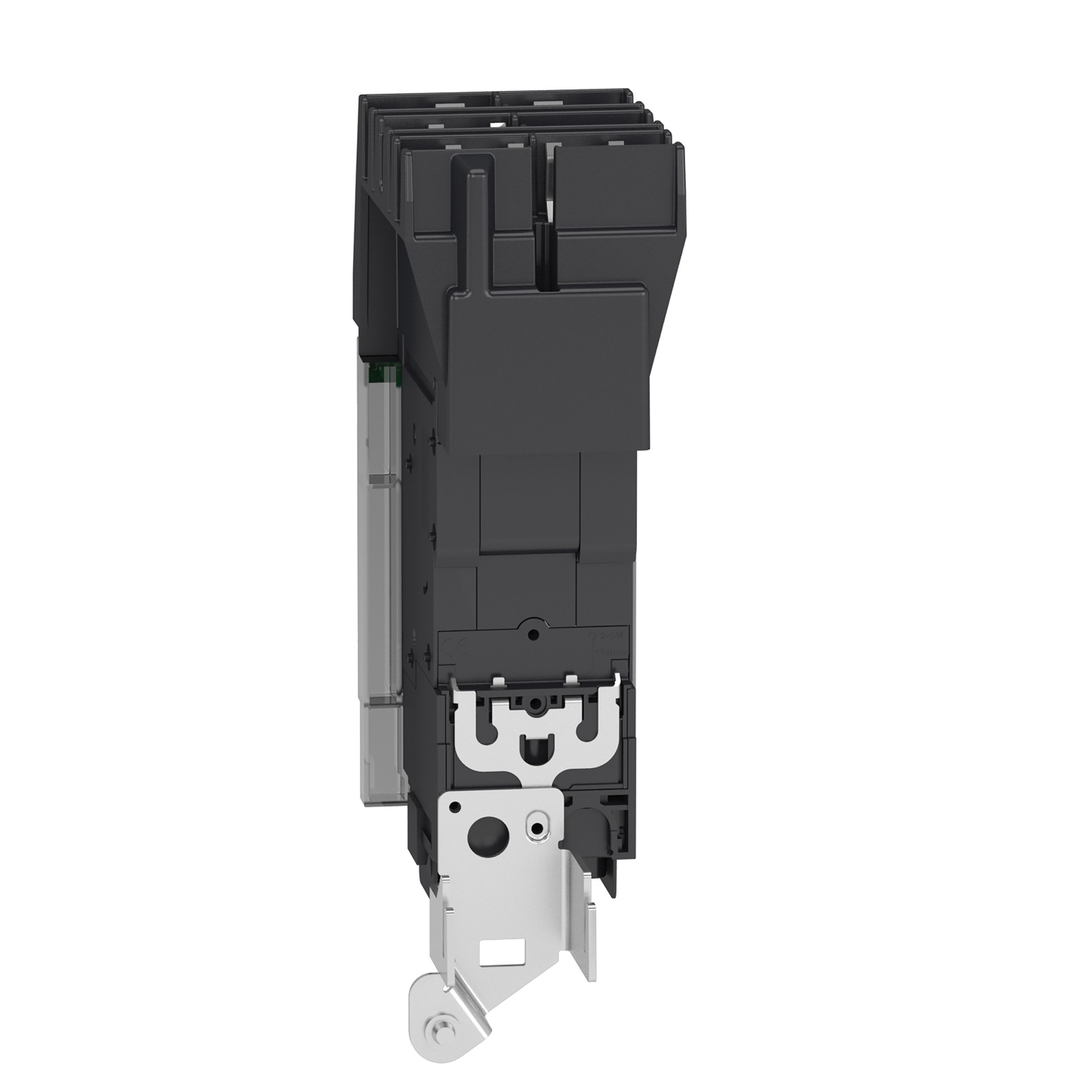

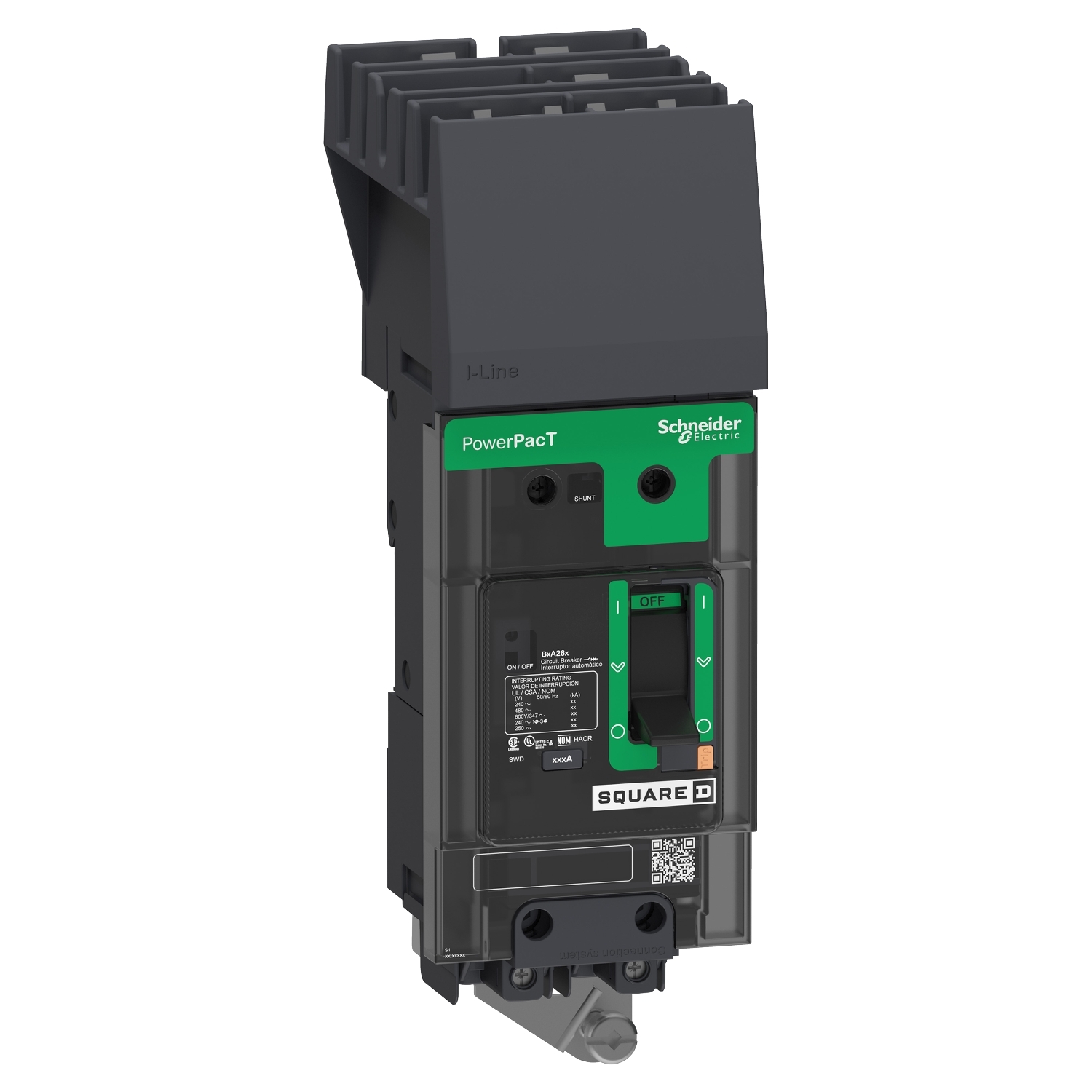

BDA260702 I-Line PowerPact Molded Case Circuit Breaker, 600Y/347 V AC, 70 A, 25 kA at 240 V AC, 18 kA at 480 V AC, 14 kA at 600Y/347 V AC Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- BDA260702
- Item #:
- 606441
BDA260702 I-Line PowerPact Molded Case Circuit Breaker, 600Y/347 V AC, 70 A, 25 kA at 240 V AC, 18 kA at 480 V AC, 14 kA at 600Y/347 V AC Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR #:
- BDA260702
- Item #:
- 606441
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 70A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | BDA260702 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589977&lang=en-us |
| GTIN | 03606481152251 |
