SCHNEIDER ELECTRIC

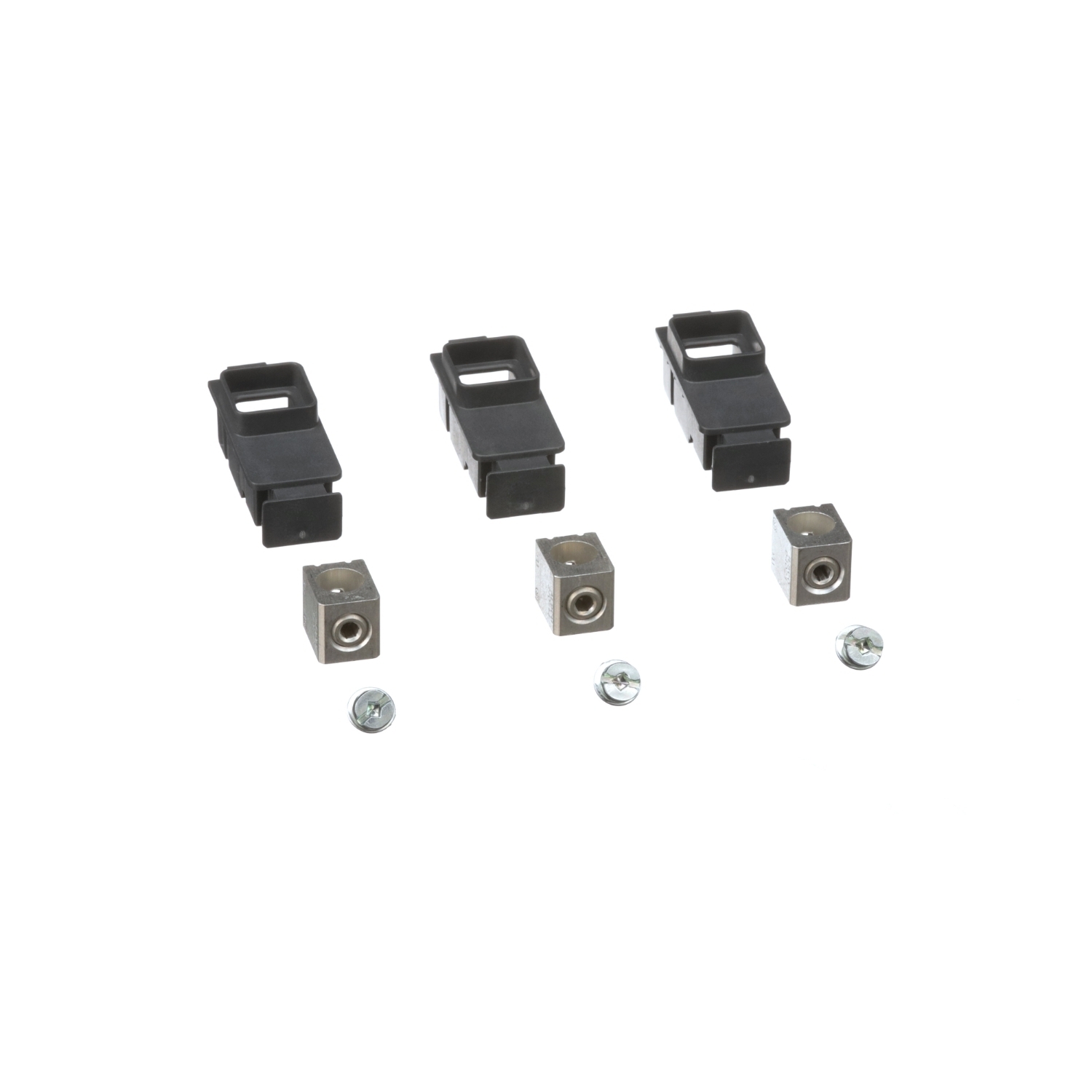

LV426967 Mechanical Lug Connector, 14 to 2/0 AWG, Fixed Mount, For Use With Compact NSXm, PowerPact B-Frame 15 to 125 A 3-Pole Molded Case Circuit Breaker

MFR:
Schneider Electric
MFR #:
LV426967
Item #:
606248

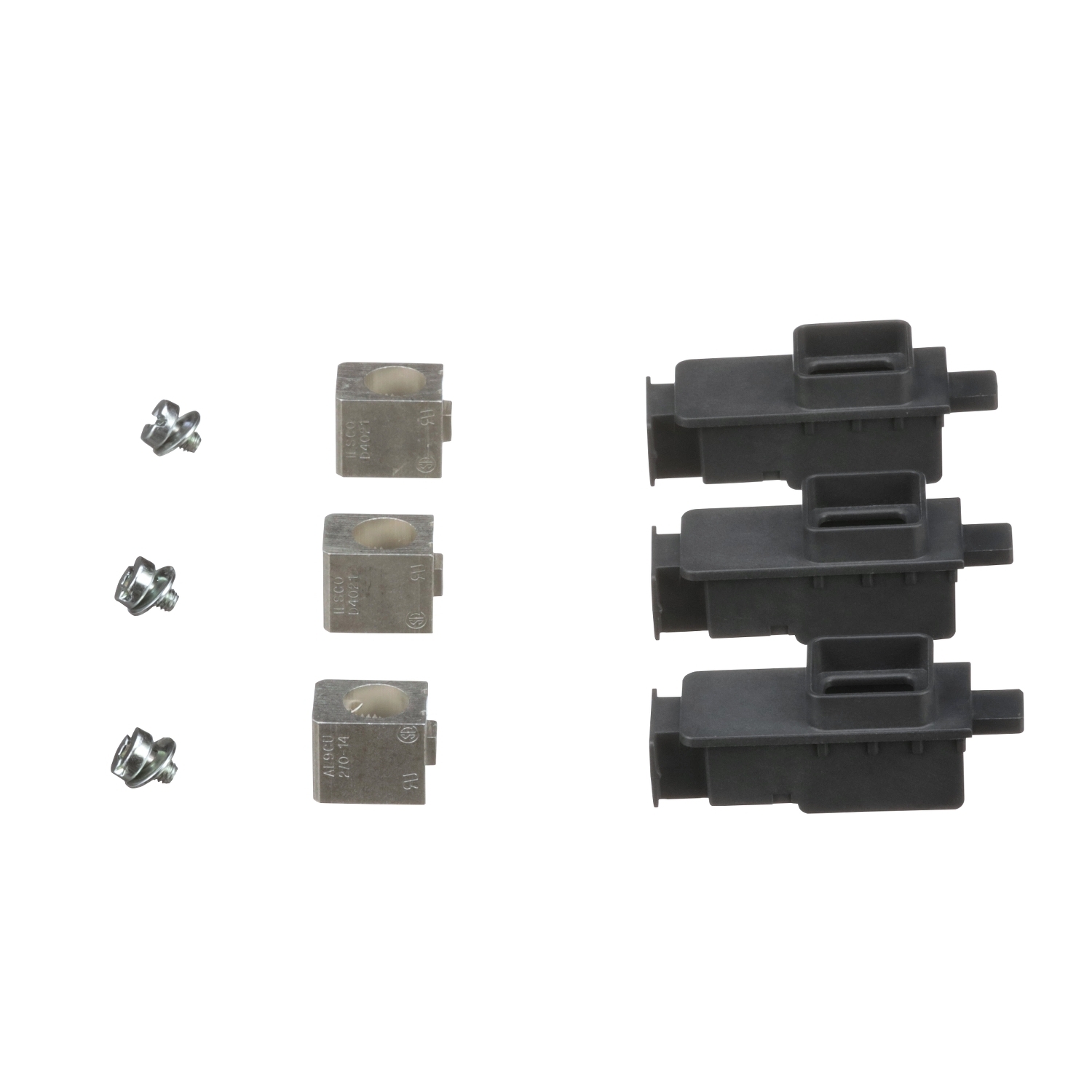

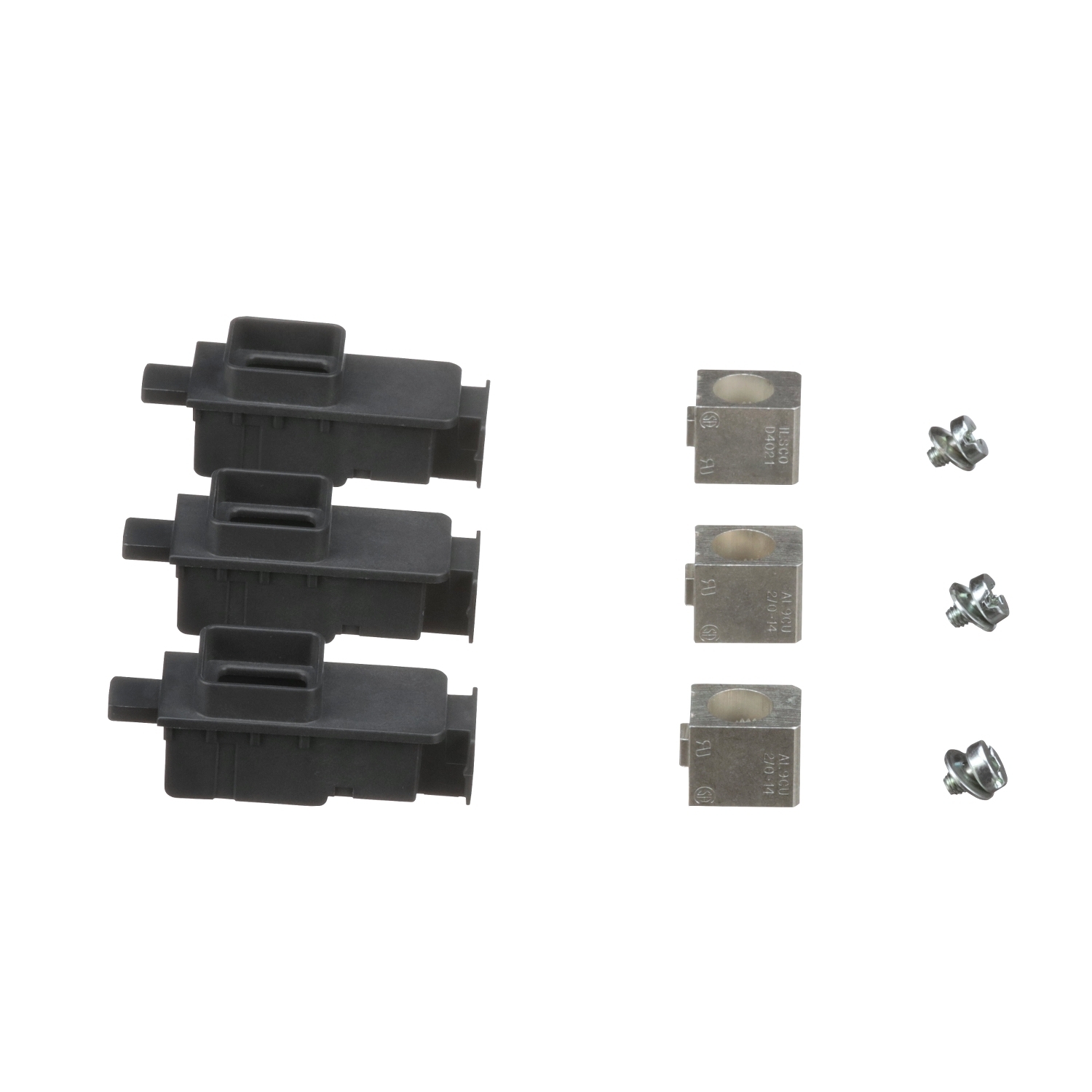

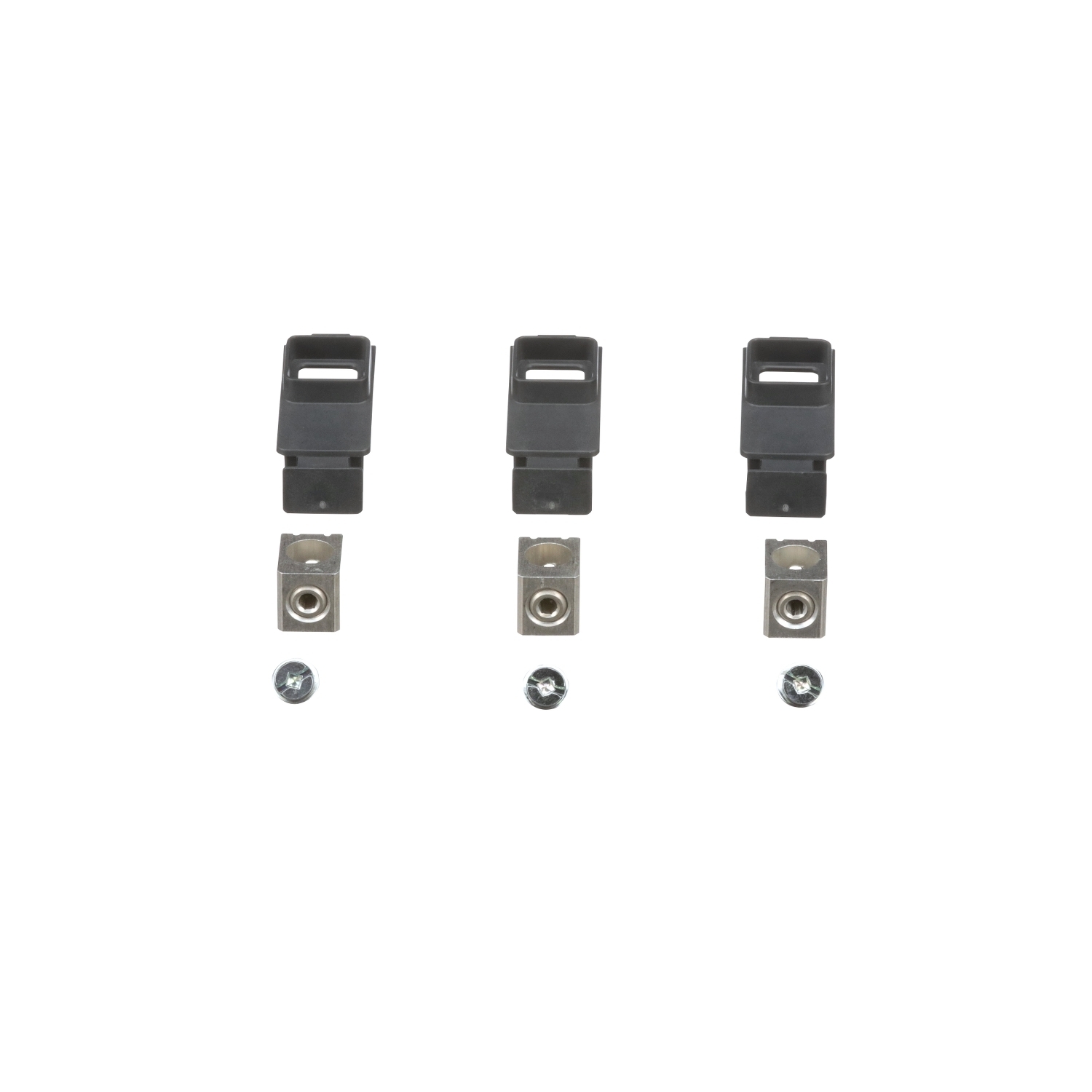

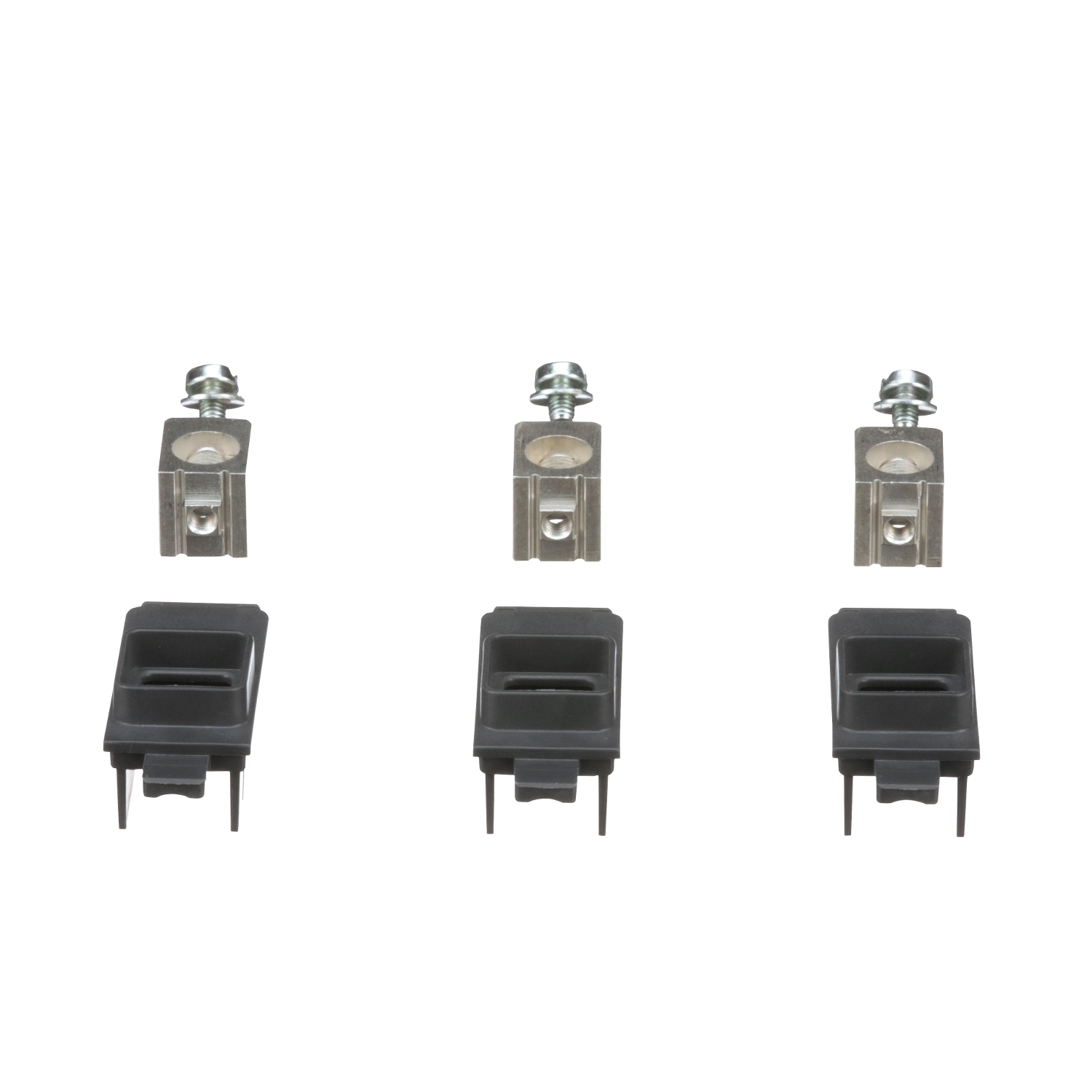

It is a set of 3 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm), and the torque is 5.6 N.m +/- 0.6.

Manuals & Documentation
Catalog Number LV426967
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin China
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442340082&lang=en-us
GTIN 03606481154460
