Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Manuals & Documentation
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount

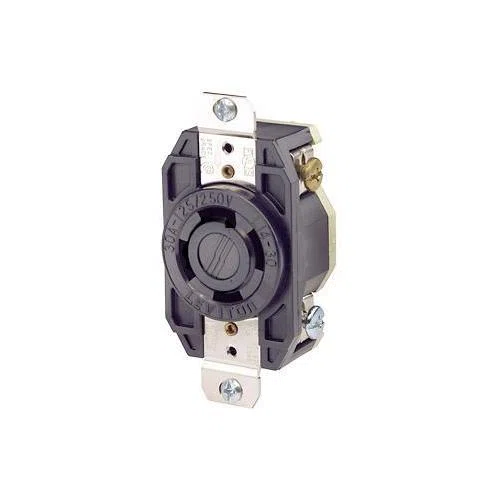

| Manufacturer Part Number | 2710-B |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477131176 |
| Country Of Origin | MX |
| Amperage Rating | 30 A |
| Color | Black |
| Dimensions | 3.63 in H x 1.69 in W x 1.31 in D |
| Horsepower | 2 hp |
| Material | Polybutylene Terephthalate |
| Temperature Rating | -40 to 60 deg C |
| Type | Grounding |
| Voltage Rating | 125/250 V AC |
| Alternative Part Number | 7349999 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42/LR406 | Federal Specification WC596/E13399 | UL 498 File No. E13399 | UL94 V-0/V-2 Flammability Rating |
| Application | Commercial Applications |
| Grade | Industrial |
| Nema Rating | NEMA L14-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Back/Side Wire |
