Telemecanique

XZCP1164L5 OsiSense XZ High Performance Screw-On Pre-Wired Connector, 60 VAC, 75 VDC, 5-Pin M12 Jack End Connection, 5 m L, 0.34 sq-mm Conductor, PUR

MFR:
Telemecanique Sensors
MFR #:
XZCP1164L5
UPC:
785901642268
Item #:
600020

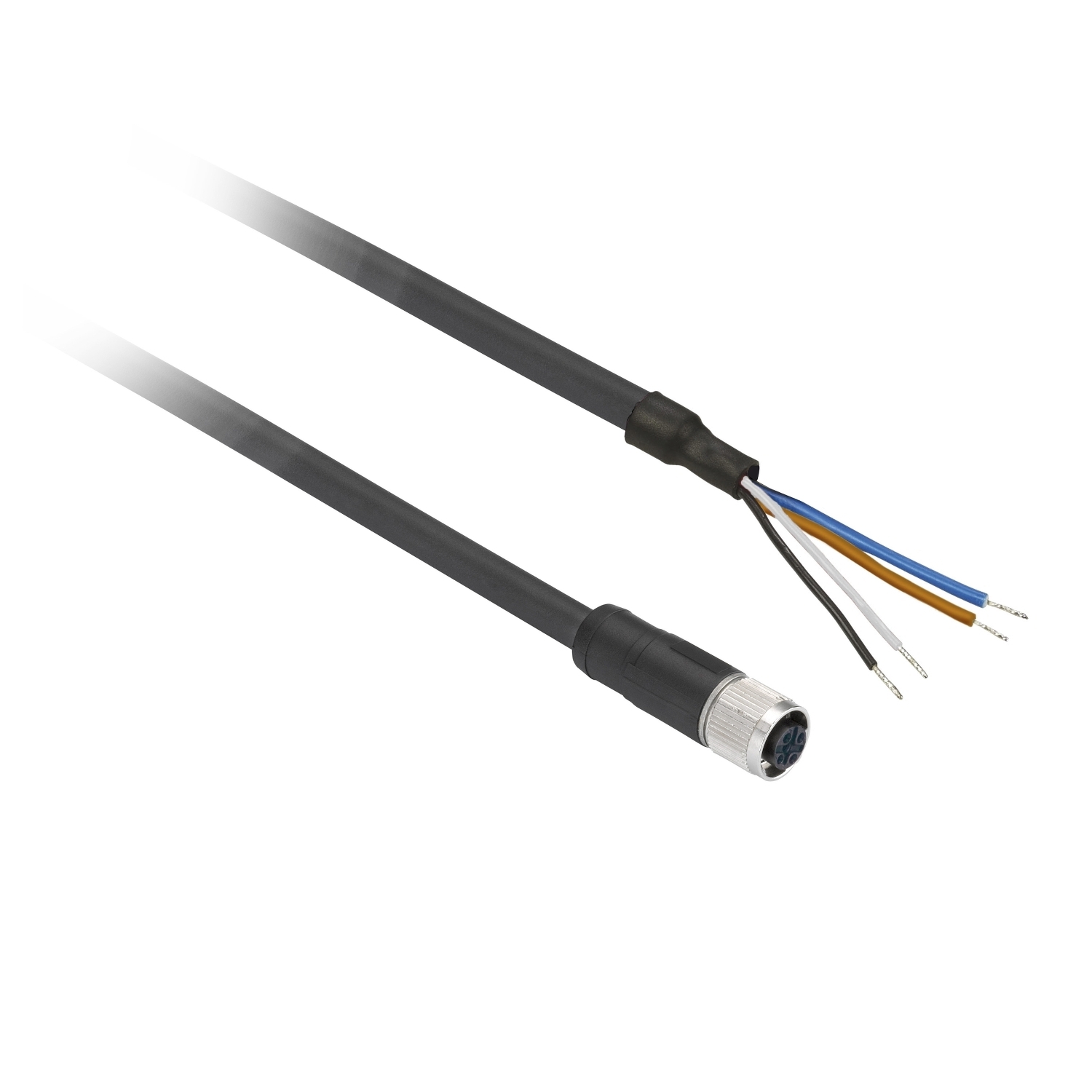

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 5 wires and has a 5 pins M12 straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 60V/AC or 75V/DC and its nominal current is 4A. Its contact resistance is 5000Ohm and its minimum insulating resistance is 1G. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 5m and a diameter of 5.9mm. It is made up of 5 wires, each section of which is 0.34 mm. Its color is black and its weight is 0.27kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35C to +90C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Manuals & Documentation
Catalog Number XZCP1164L5
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Cabling accessory
Connector Straight female connector M12, 5 pins (included earth pin)
Enclosure IP65IP67IP69K
Indicator Without
Mounting Screw
Standard IP67-IP65-IP69K,CULUS
Supply Voltage 60 V AC-75 V DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=877836&lang=en-us
UPC 785901642268
GTIN 03389110763119
Item Type Pre-wired connectors
Operating Temperature -40...80 A Degrees C (STATIC)-5...80 A Degrees C (FLEXING)
