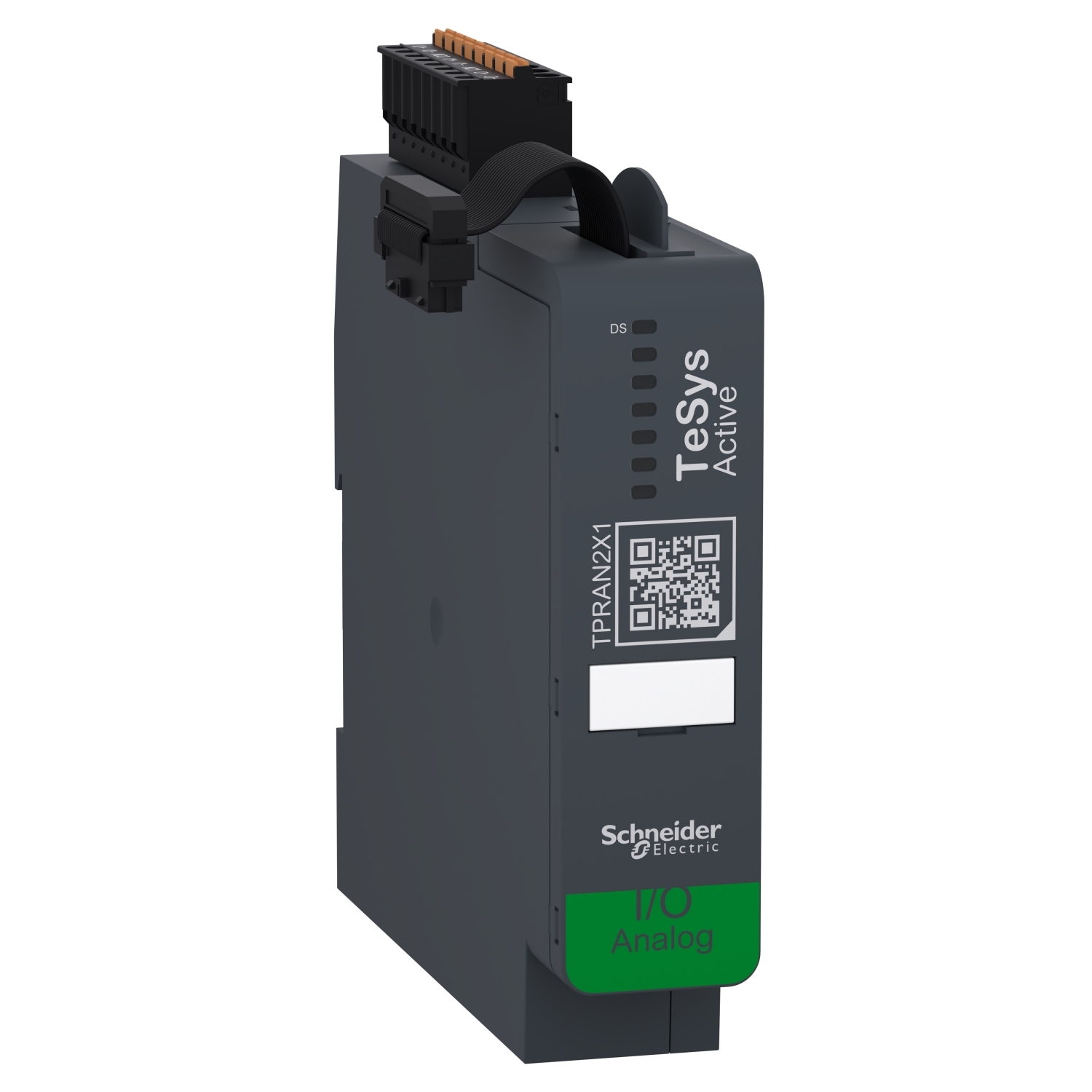

TPRAN2X1 TESYS Series TeSys Island, 2 inputs, 1 outputs, 15 bit resolution, +/- 0.1 % of full scale/+/- 0.1 % of full scale in positive temperature range/+/- 0.4 % of full scale in negative temperature range accuracy
- MFR:
- Schneider Electric
- MFR #:
- TPRAN2X1
- Item #:
- 598755
TPRAN2X1 TESYS Series TeSys Island, 2 inputs, 1 outputs, 15 bit resolution, +/- 0.1 % of full scale/+/- 0.1 % of full scale in positive temperature range/+/- 0.4 % of full scale in negative temperature range accuracy
- MFR #:
- TPRAN2X1
- Item #:
- 598755
TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals & Documentation
| Catalog Number | TPRAN2X1 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471609923&lang=en-us |
| GTIN | 03606489832902 |
