Telemecanique

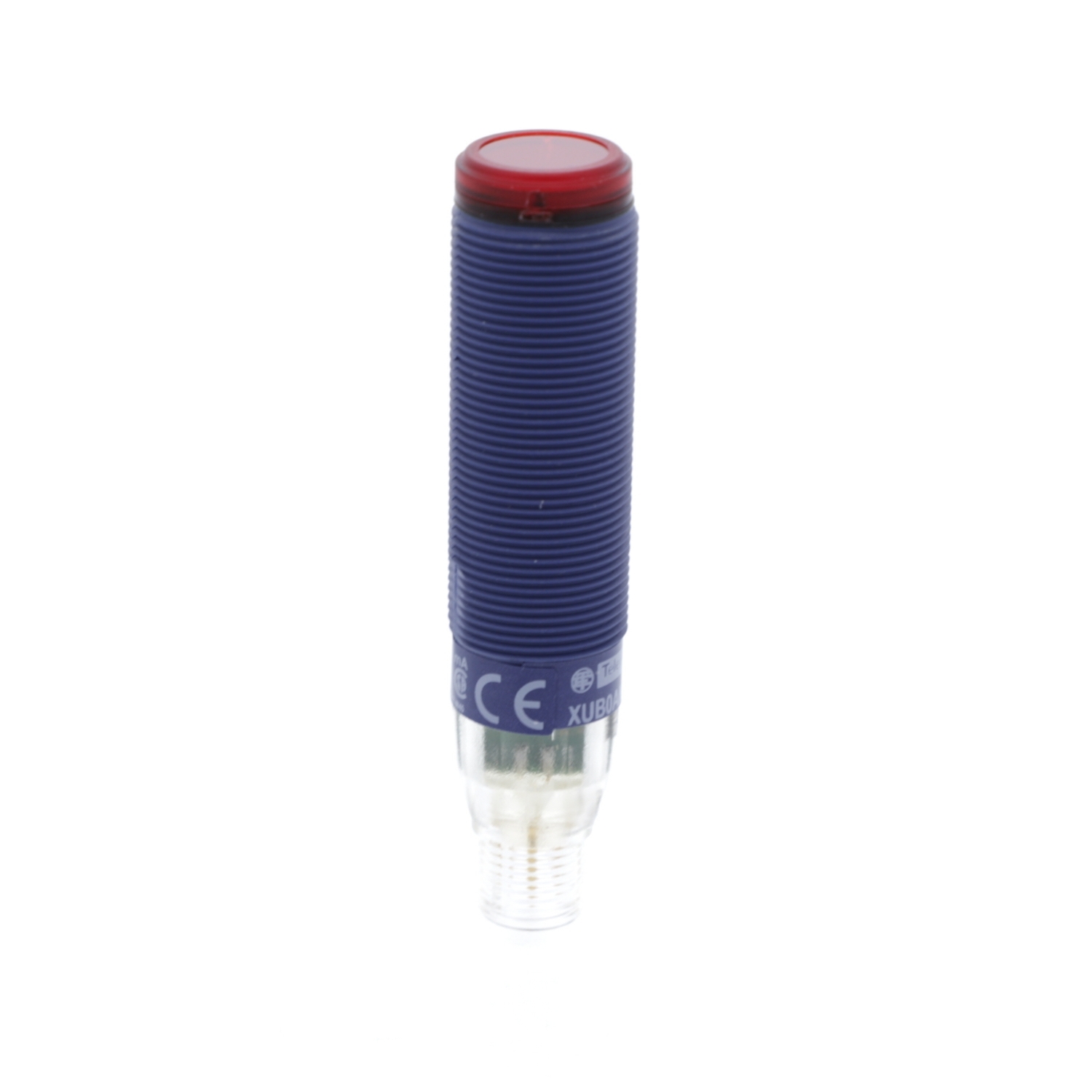

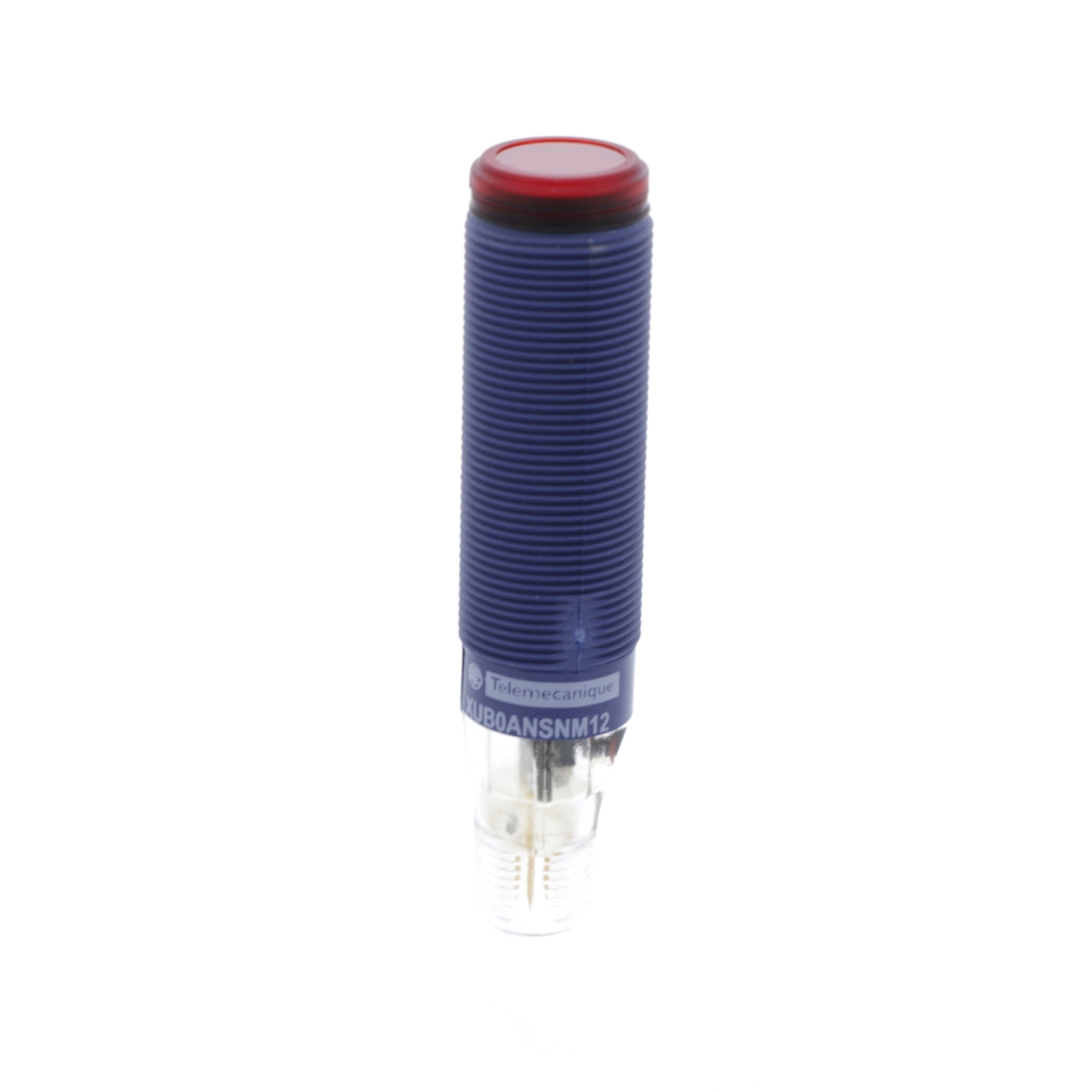

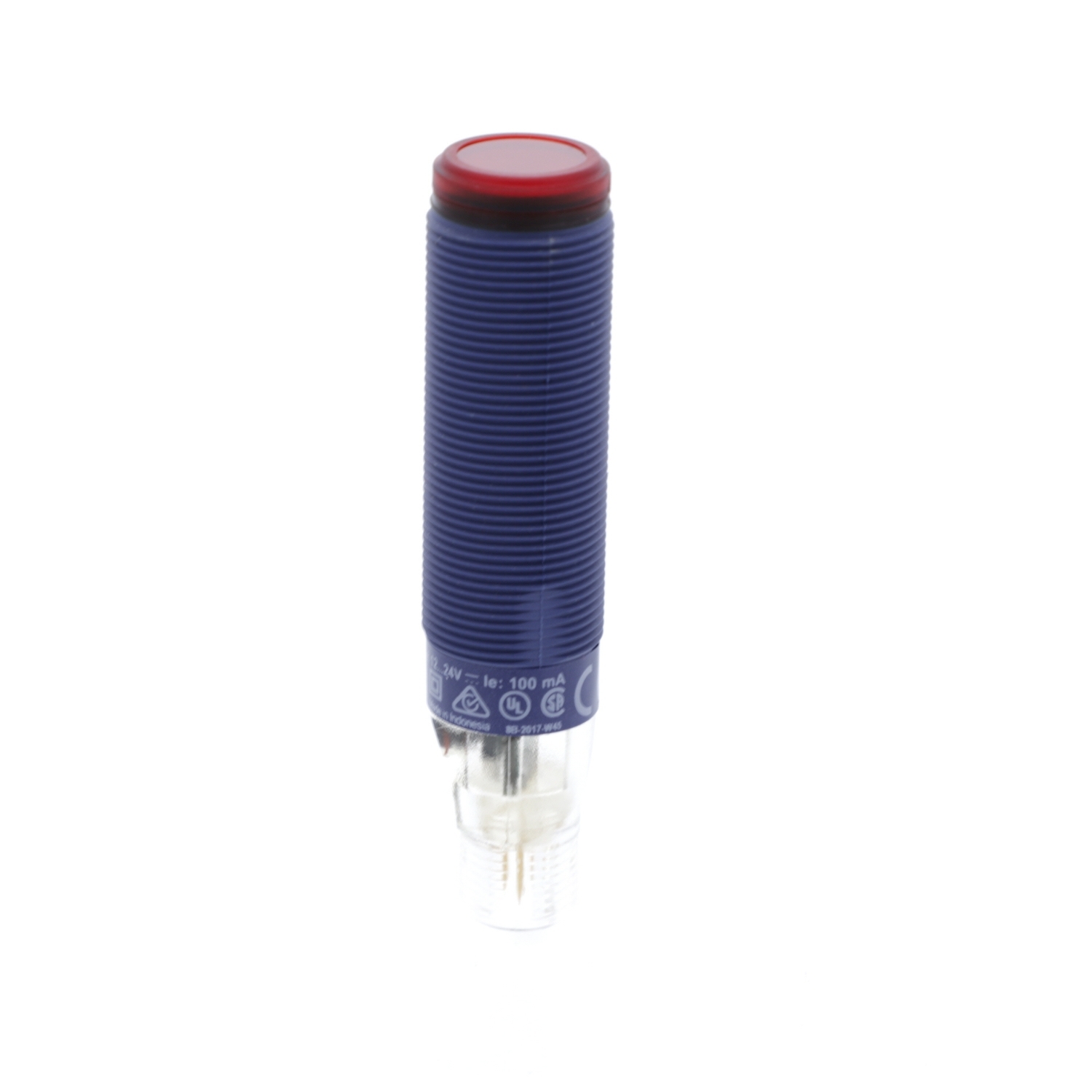

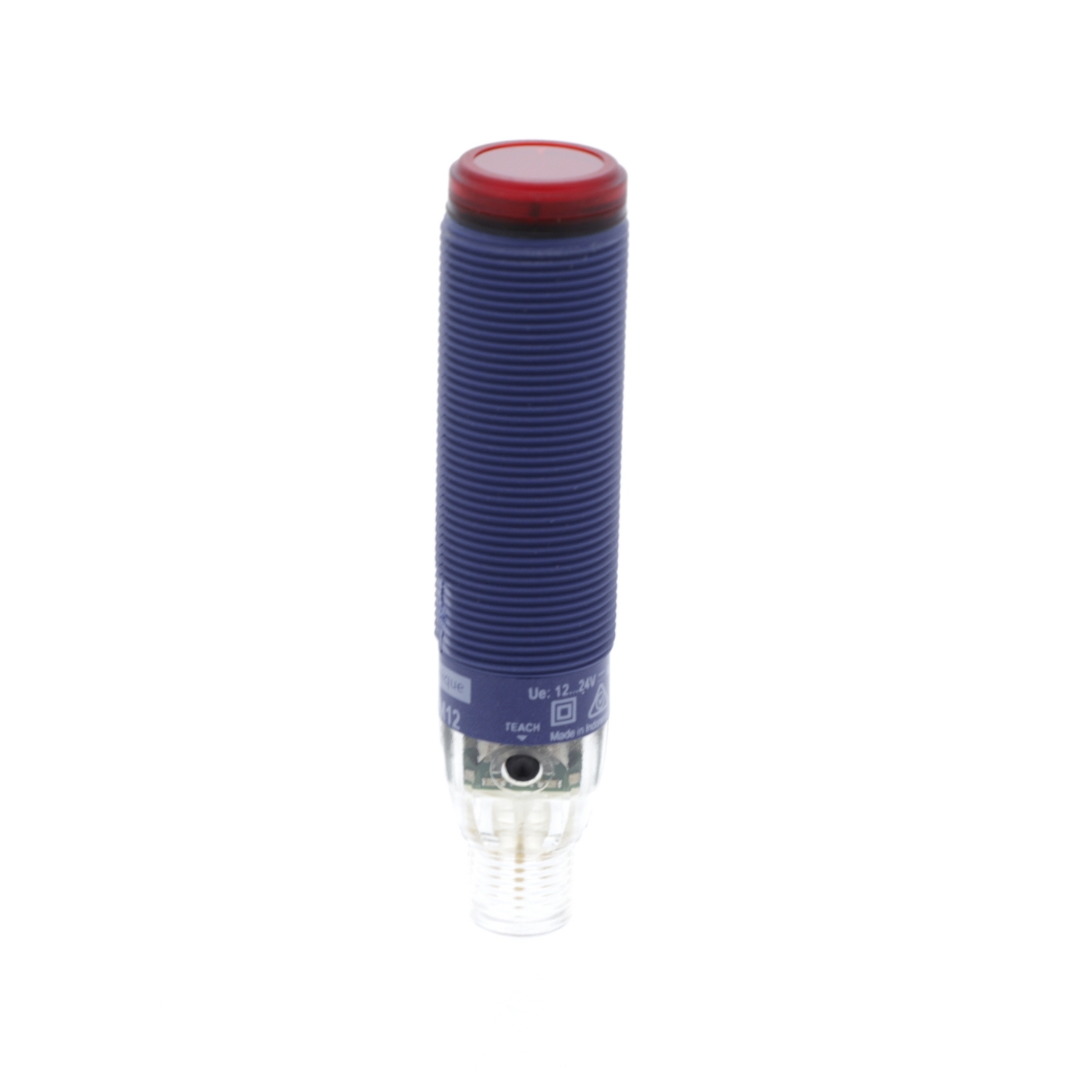

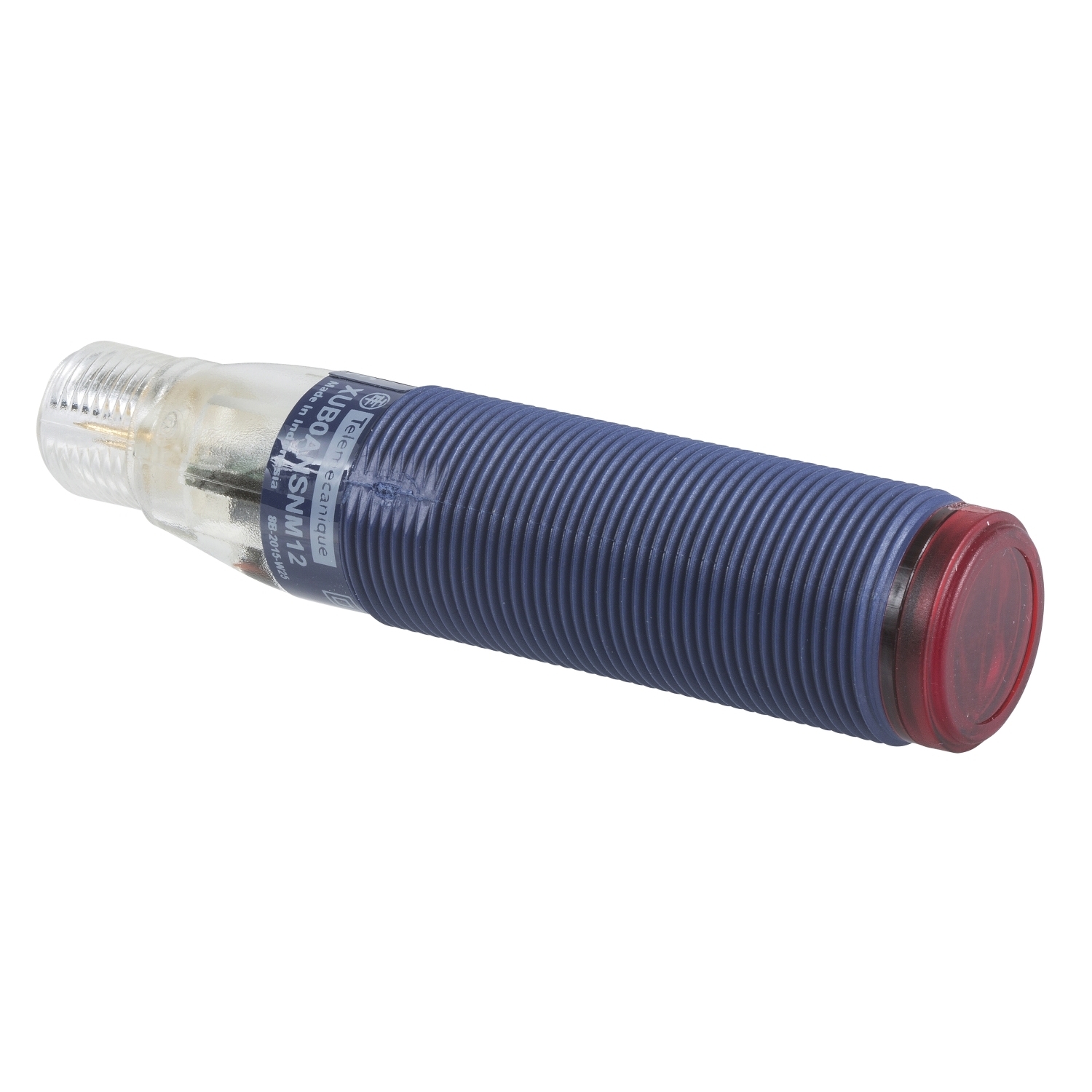

XUB0APSNM12 XU Series Multi-Mode Photo Electric Sensor, Cylindrical Shape, 98.43 ft, <2 ms Response, Solid State Output

MFR:
Telemecanique Sensors
MFR #:
XUB0APSNM12
UPC:
785901678700
Item #:
59772

This design 18 multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals & Documentation
Catalog Number XUB0APSNM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT
Operating Cycles <= 250 Hz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-20-20 M THRU BEAM NEED A TRANSMITTER XUB0AKSNM12T-0.12-0.12 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.3-0.3 M DIFFUSE,> 0...65.62 FT (> 0...20 M)
Special Features 1 LED green)supply;1 LED red)instability;1 LED yellow)output state
Standard CSA-UL-CE,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872576&lang=en-us
UPC 785901678700
GTIN 03389110148343
Item Type General purpose multimode;Multimode;Cylindrical M18;Photo-electric sensor
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
