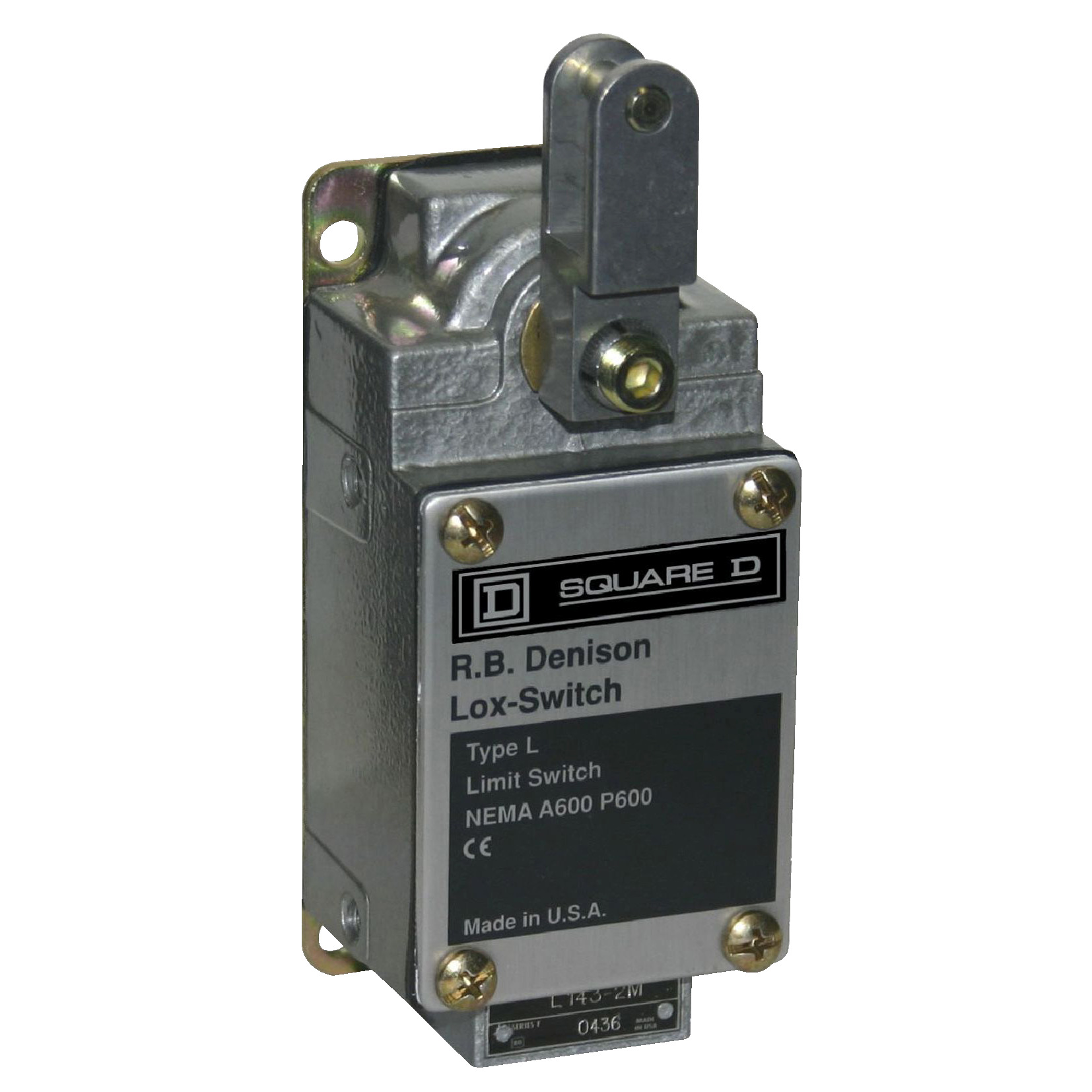

L1442M Severe Duty Mill Fixed Rotary Head Cable Pull Switch, 600 VAC, 20 A, 2 Poles, 1NO-1NC DPDT-DB Contact
- MFR:
- Schneider Electric
- MFR #:
- L1442M
- UPC:
- 785901169796
- Item #:
- 597667
L1442M Severe Duty Mill Fixed Rotary Head Cable Pull Switch, 600 VAC, 20 A, 2 Poles, 1NO-1NC DPDT-DB Contact
- MFR #:
- L1442M
- UPC:
- 785901169796
- Item #:
- 597667
CABLE SWITCH 600VAC 10A T-L
Manuals & Documentation
| Catalog Number | L1442M |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | CCW;from right;Vertical approach;Snap action |
| Actuator | spring return without operating lever |
| Amperage Rating | 20 |
| Application | Cable pull switch |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Contact Configuration | 1 NC + 1 NO;Form Zb |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | -,FIXED |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901169796 |
| GTIN | 00785901169796 |
| Item Type | Limit switch |
| Size | 3.41 |
| Operating Temperature | -20-120 A Degrees F |
