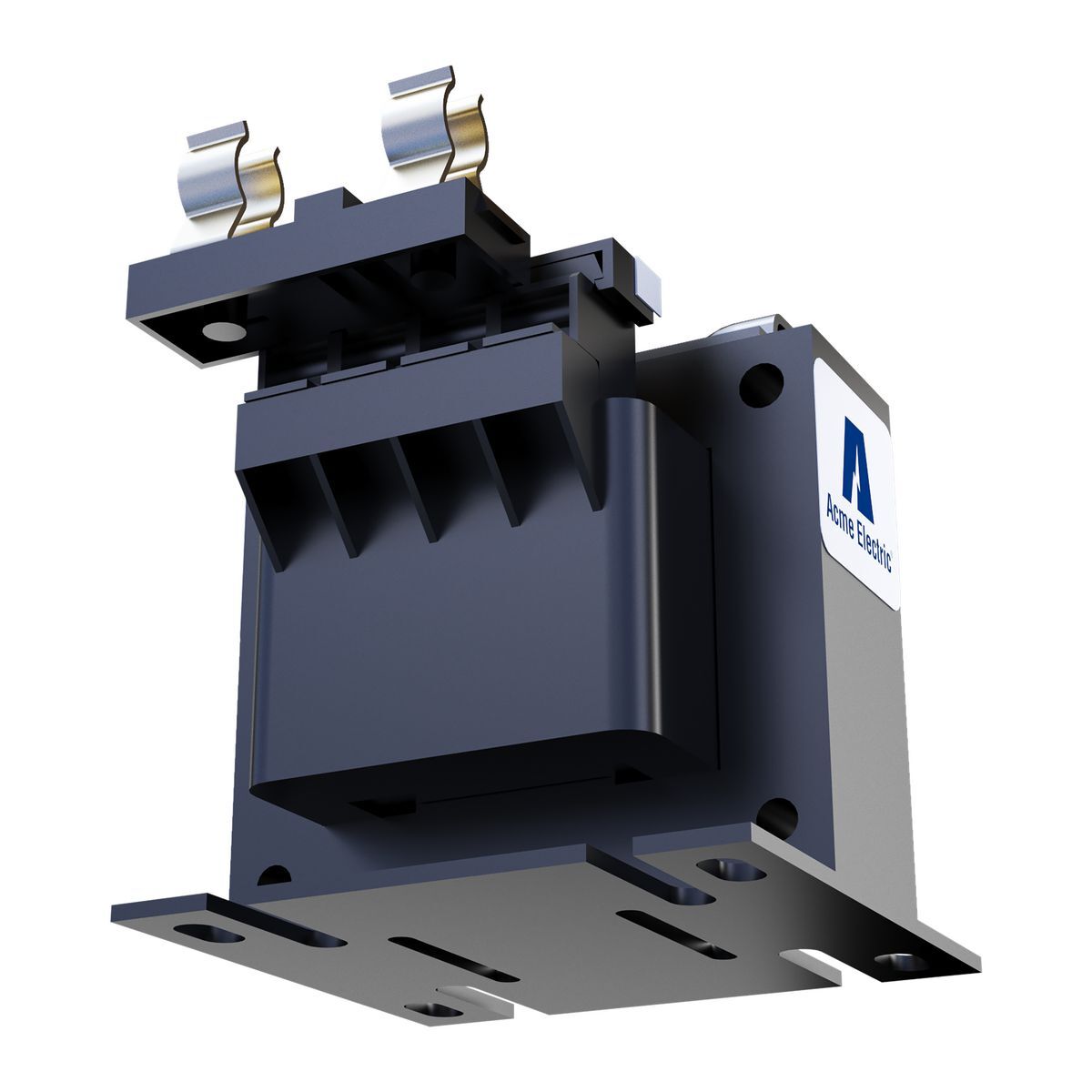

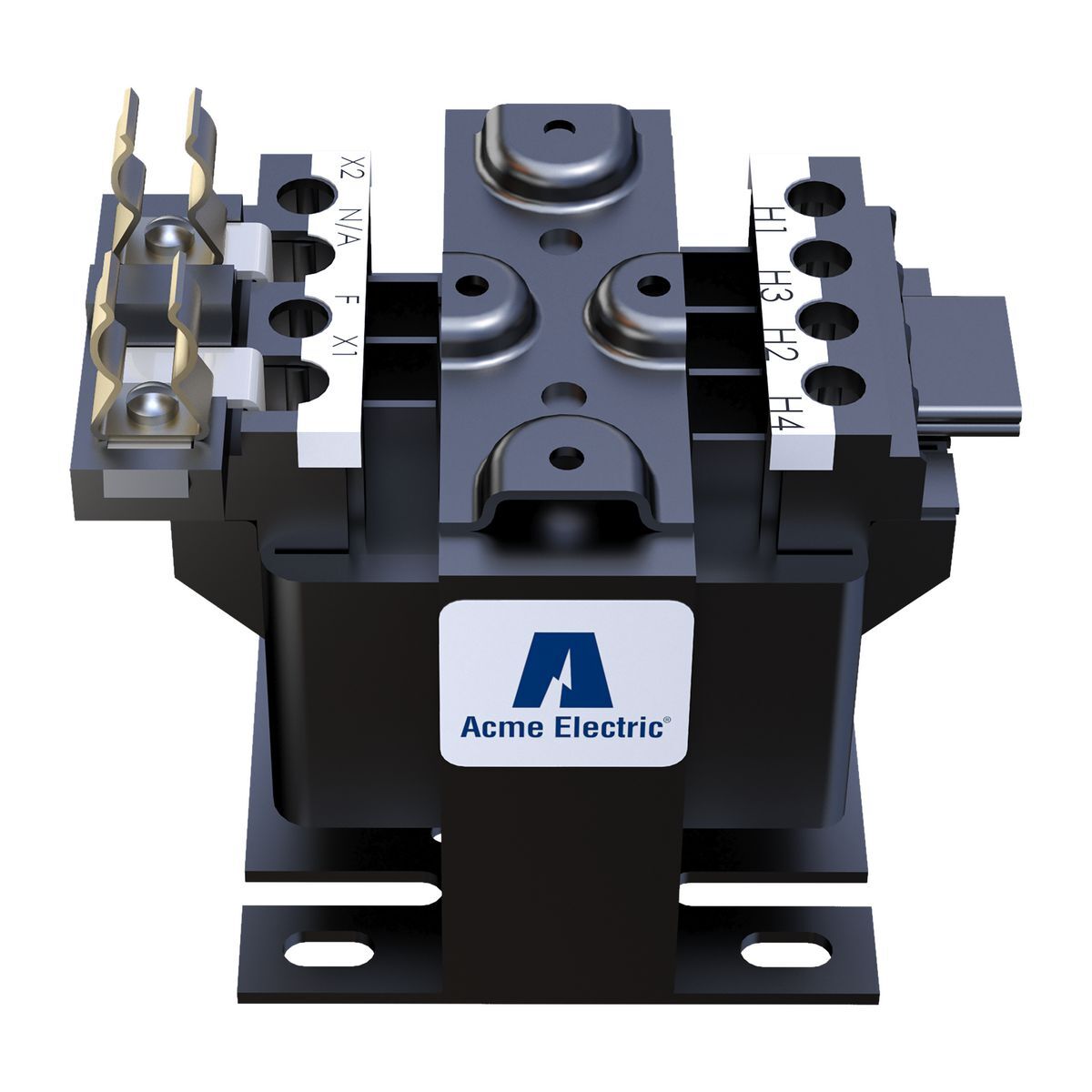

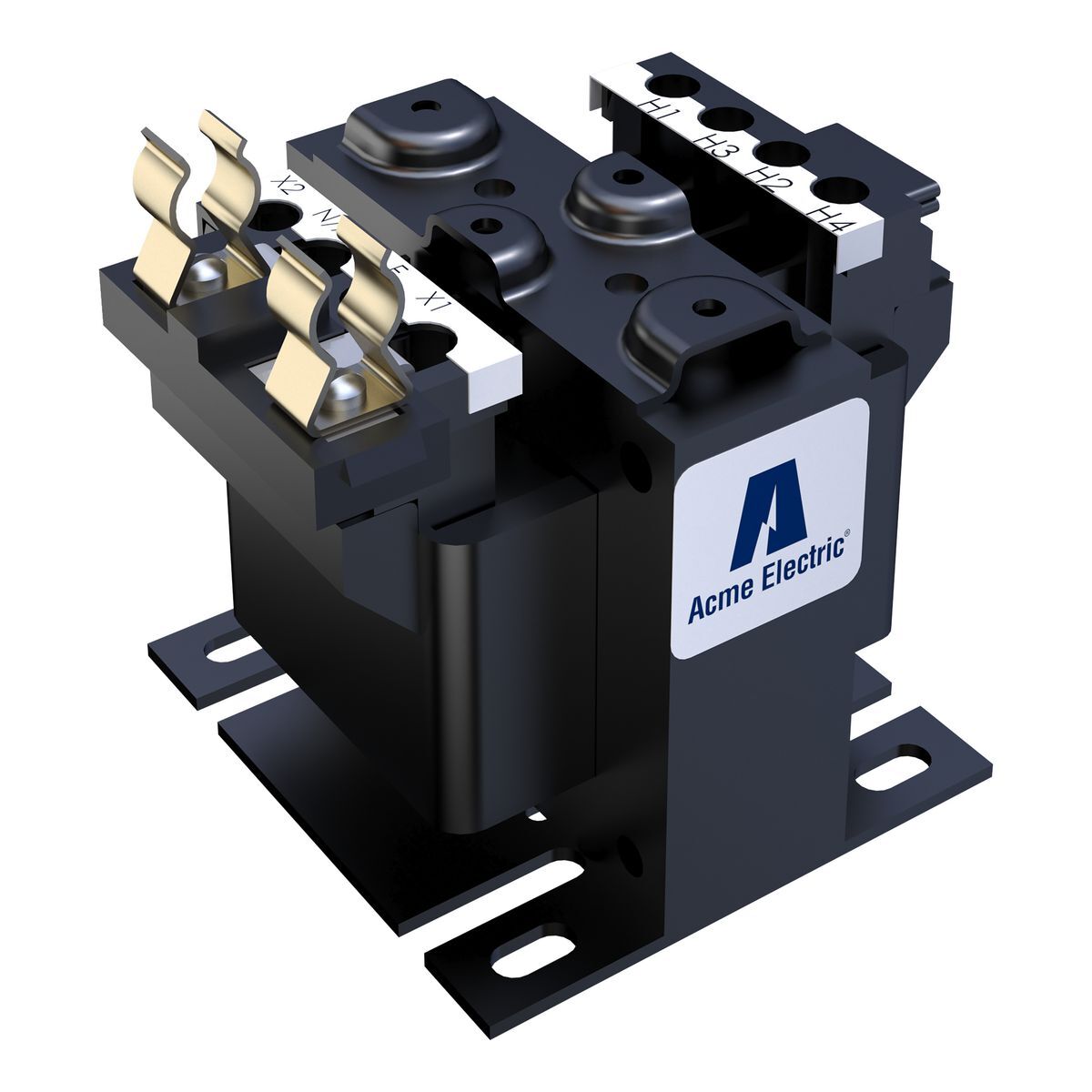

TB50N008F0 TB Industrial Control Transformer, 240 x 480 V AC Primary, 120 VAC Secondary, 0.05 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Acme Electric, a Hubbell affiliate
- MFR #:
- TB50N008F0
- UPC:
- 047503010709
- Item #:
- 596867
TB50N008F0 TB Industrial Control Transformer, 240 x 480 V AC Primary, 120 VAC Secondary, 0.05 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- TB50N008F0
- UPC:
- 047503010709
- Item #:
- 596867
Manuals & Documentation
| Catalog Number | TB50N008F0 |
| Manufacturer | Acme Electric, a Hubbell affiliate |
| Brand | ACME ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Frequency Rating | 50/60 HZ |
| Primary Voltage | 240 X 480 V |
| Secondary Voltage | 120 V |
| Standard | UL Listed;cUL Listed |
| UPC | 047503010709 |
| GTIN | 00047503010709 |
| Length | 3.32 |
| Length UOM | Inch |
| Width | 3 |
| Width UOM | Inch |
| Height | 4.0397 |
| Height UOM | Inch |
