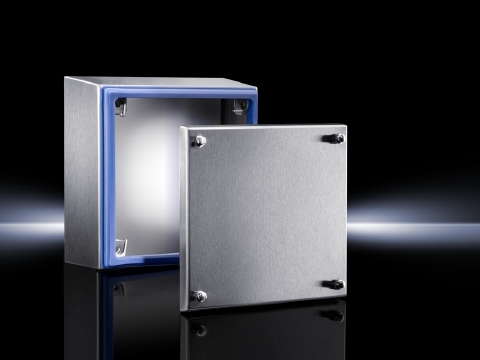

1674600 HD Series Terminal Box, 13 in W x 4.7 in D, NEMA 13/3R/4X NEMA Rating, Stainless Steel

MFR:
Rittal
MFR #:
1674600
UPC:
639889856394
Item #:
594815

Hygienic Design, Terminal boxes HD, material: Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm, Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm, Quick-release fasteners: Stainless steel, Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600, surface: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 m, Seal: Blue, dyed (RAL 5010), supply includes: Enclosure of all-round solid construction, Cover, Mounting bracket (pre-assembled), Seal and quick-release locks (supplied loose), description: Enclosure with 3 deg all-round tilt on the enclosure sides and 10 deg on the cover. All-round gap-free silicone seal incl. hygiene-compliant hexagon quick-release fasteners.

Catalog Number 1674600
Manufacturer Rittal
Brand Rittal Corp
Country of Origin Germany
Made in USA No
Color RAL 5010
Construction Hygienic Design
Insulation Silicone Seal
Material Stainless Steel
Mounting Bracket Mount
NEMA Rating 3R, 4X, 13
Standard UL Listed, cULus Listed, DGUV Certificated
RoHS Indicator Yes
UPC 639889856394
GTIN 00639889856394
Item Type HD Terminal Box
Length 9.2520
Length UOM Inch
Width 5.9060
Width UOM Inch
Height 13.0710
Height UOM Inch
Weight 8.818
Weight UOM Pounds
Size 8.9 (H) (Rear) x 13 (W) x 4.7 (D), 7.9 (H) (Front) x 13 (W) x 4.7 (D)
