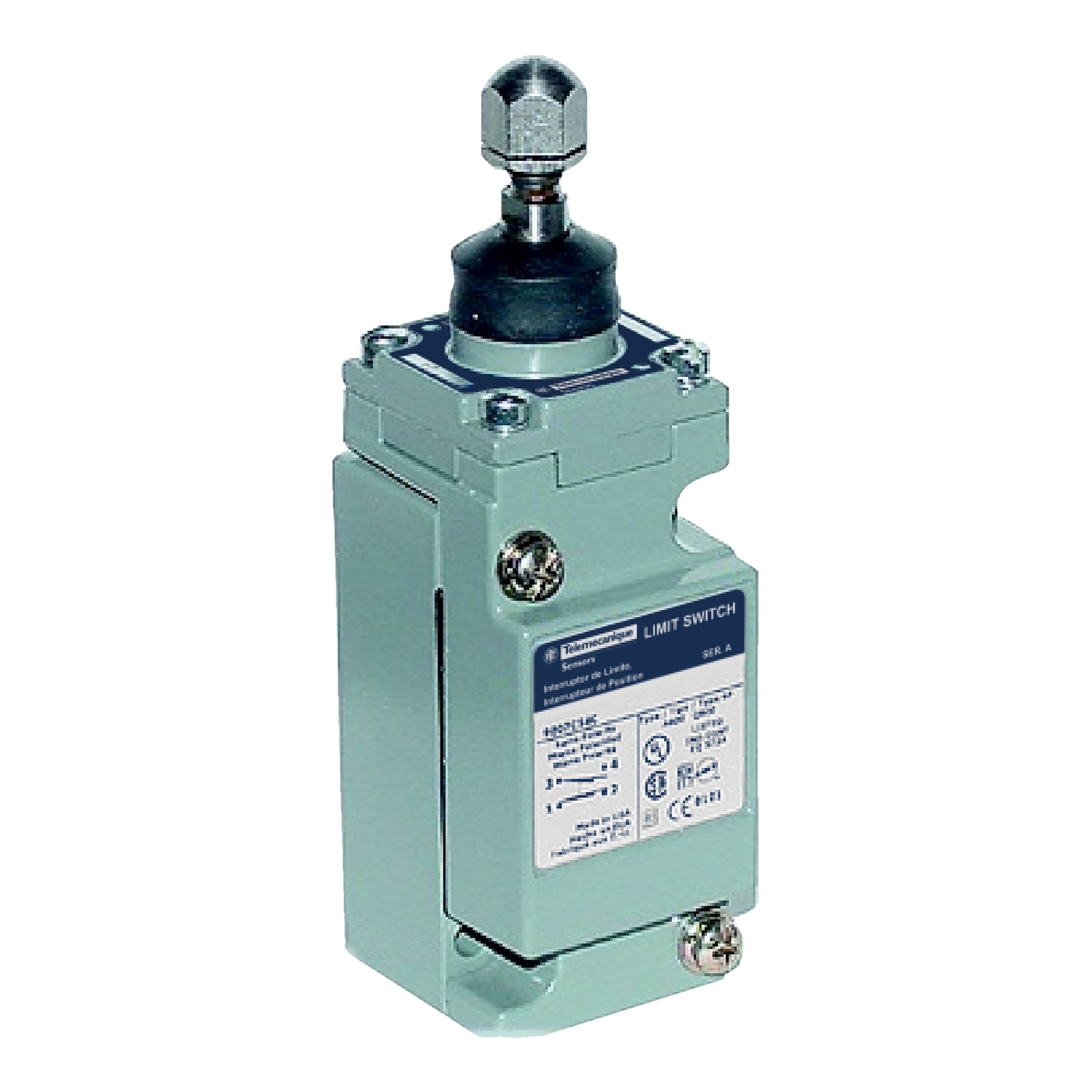

LIMIT SWITCH 600V 10AMP C +OPTIONS

Manuals & Documentation
Catalog Number 9007C62ED
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action On end;Vertical approach, 1 direction;Snap action
Actuator Stainless steel spring return plunger adjustable)
Amperage Rating 10
Application Standard box
Connection Screw-clamp terminals AWG 22...AWG 12), 1-2
Contact Configuration 2(NC-NO);Form ZZ
Contact Rating NEMA A600/R300
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Number of Poles 2
Operating Cycles 1000000 CYCLES
Special Features without
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901540564
GTIN 00785901540564
Item Type Limit switch
Size 1.79
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F STANDARD ENVIRONMENT
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA
