Buchanan

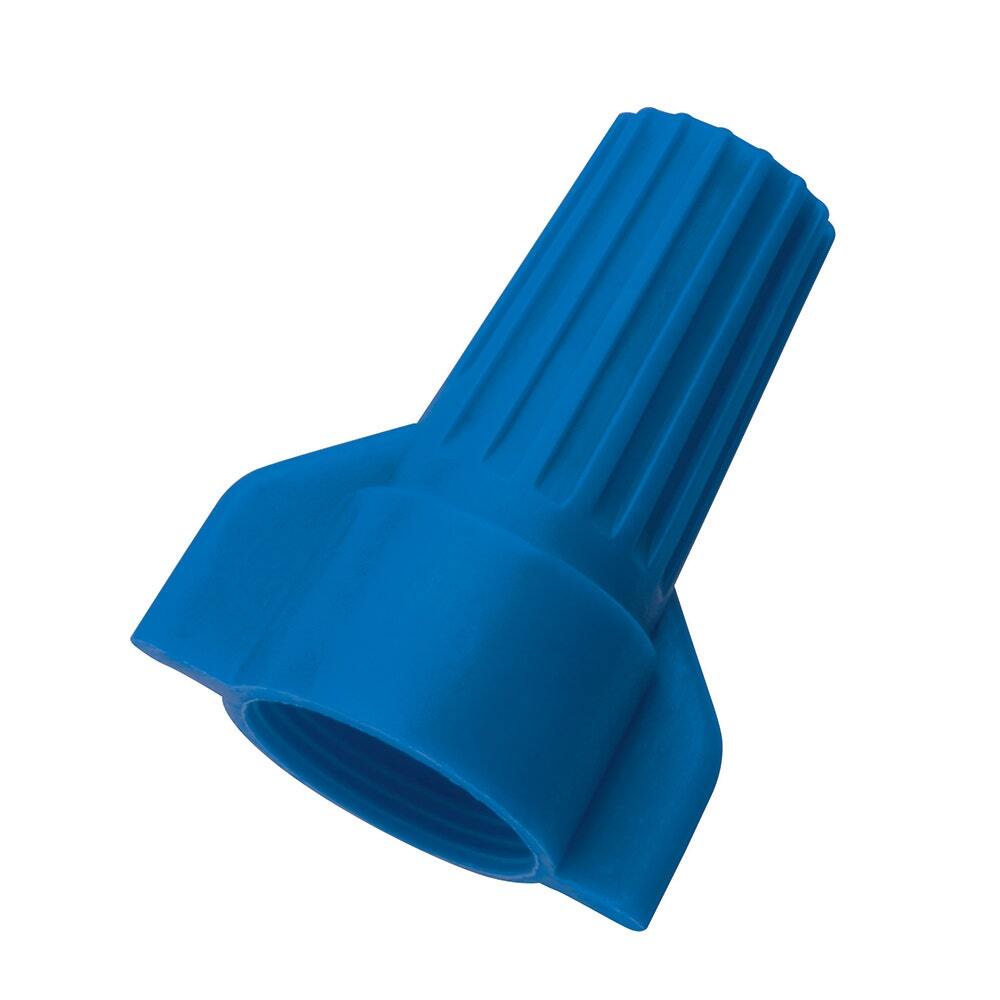

WT54-1 WingTwist Wire Connector, Model WT54, Blue, Box of 50

MFR:
Ideal Industries
MFR #:
WT54-1
UPC:
781789611068
Item #:
59316

With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value.The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections.With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right.

Manuals & Documentation
Catalog Number WT54-1
Manufacturer Ideal Industries
Brand Buchanan
Country of Origin Canada
Made in USA No
Application Insulating or Joining 1 or more conductors
Color Blue
Conductor Range 14 - 6 AWG, 3/12 AWG Min, 2/6 AWG MAX
Material Flame-retardant Polypropelene
Number of Conductors 1 to 6
Special Features Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Green Model Designed For Ground Connections; Unique Contoured Wing Design Acts As Built-In Wrench Providing Maximum Torque With Minimum Effort; Fixed, Square-Wire Spring Threads Itself Creating Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; UL 486C Listed (WGR UL 467 Listed) And CSA C22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT54
Standard CSA C22.2 #188, UL 486C Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 781789611068
GTIN 00781789611068
Environmental Conditions Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Voltage Rating 600
