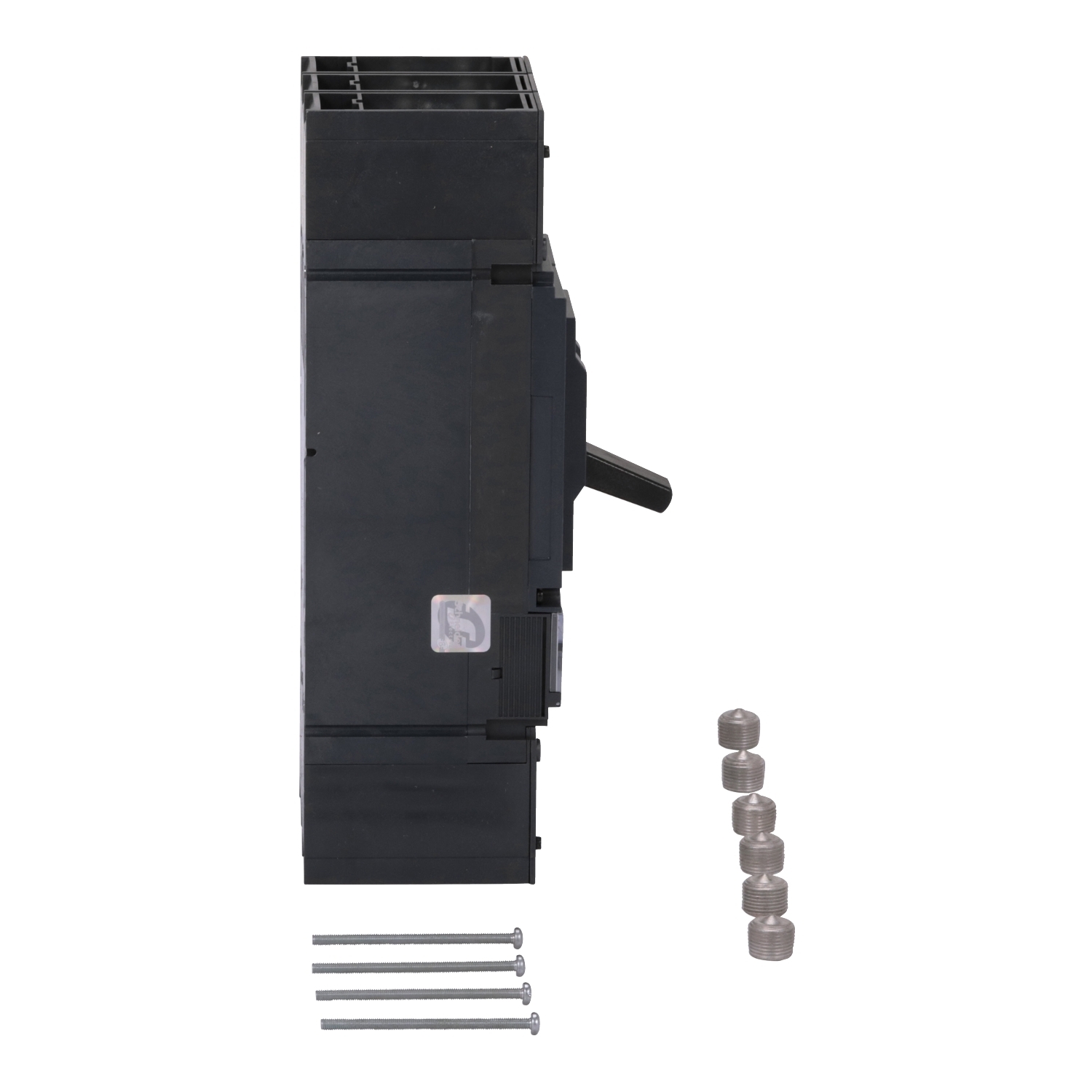

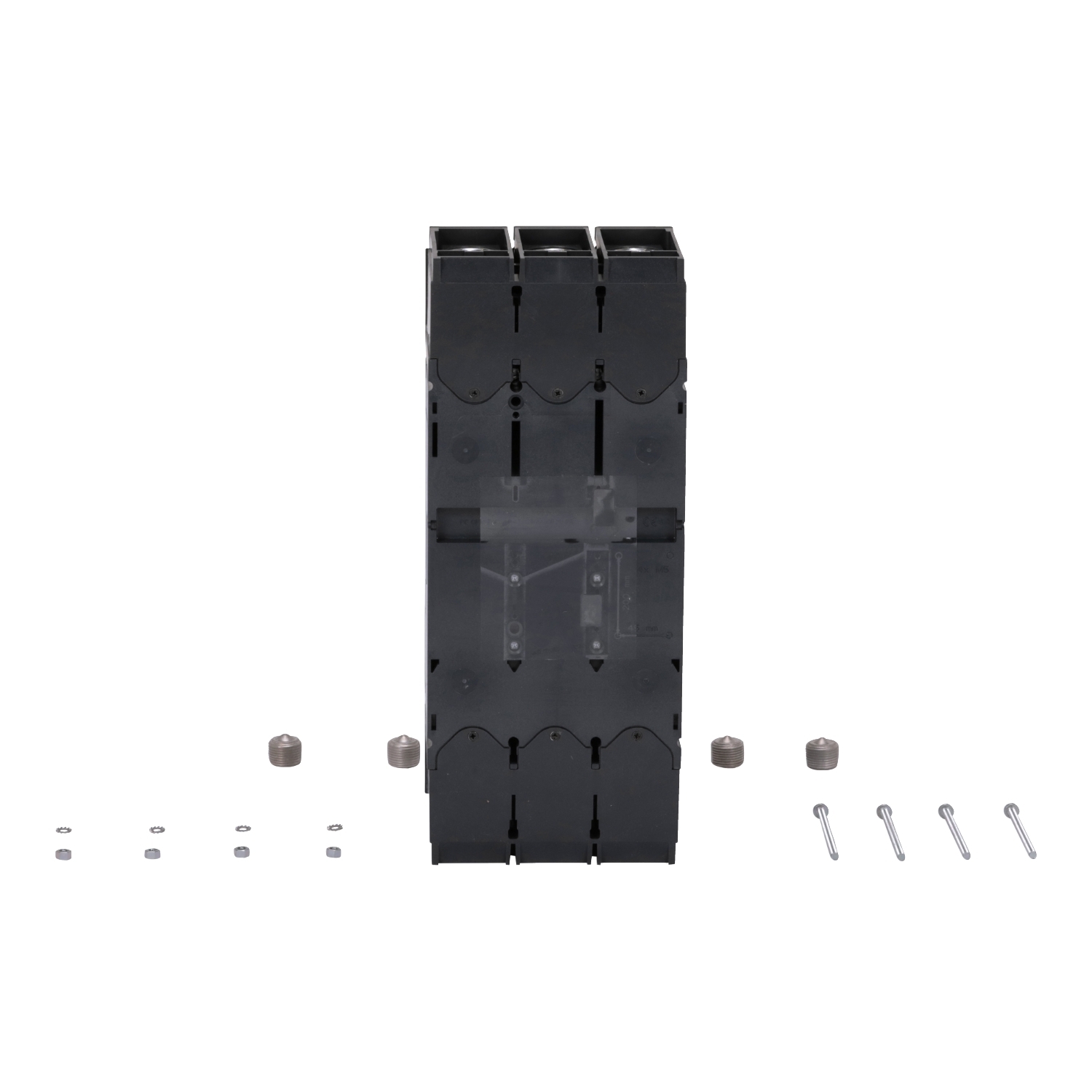

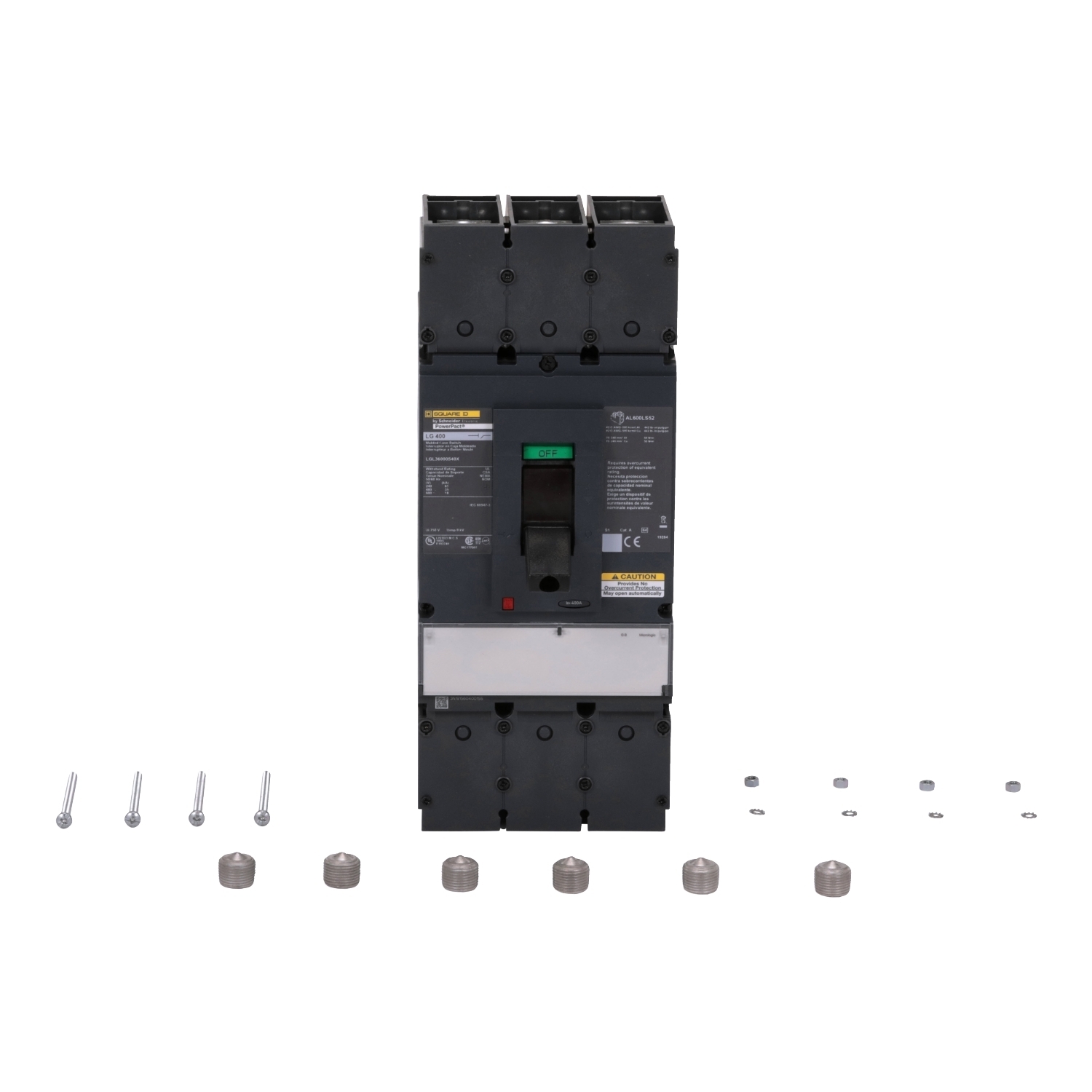

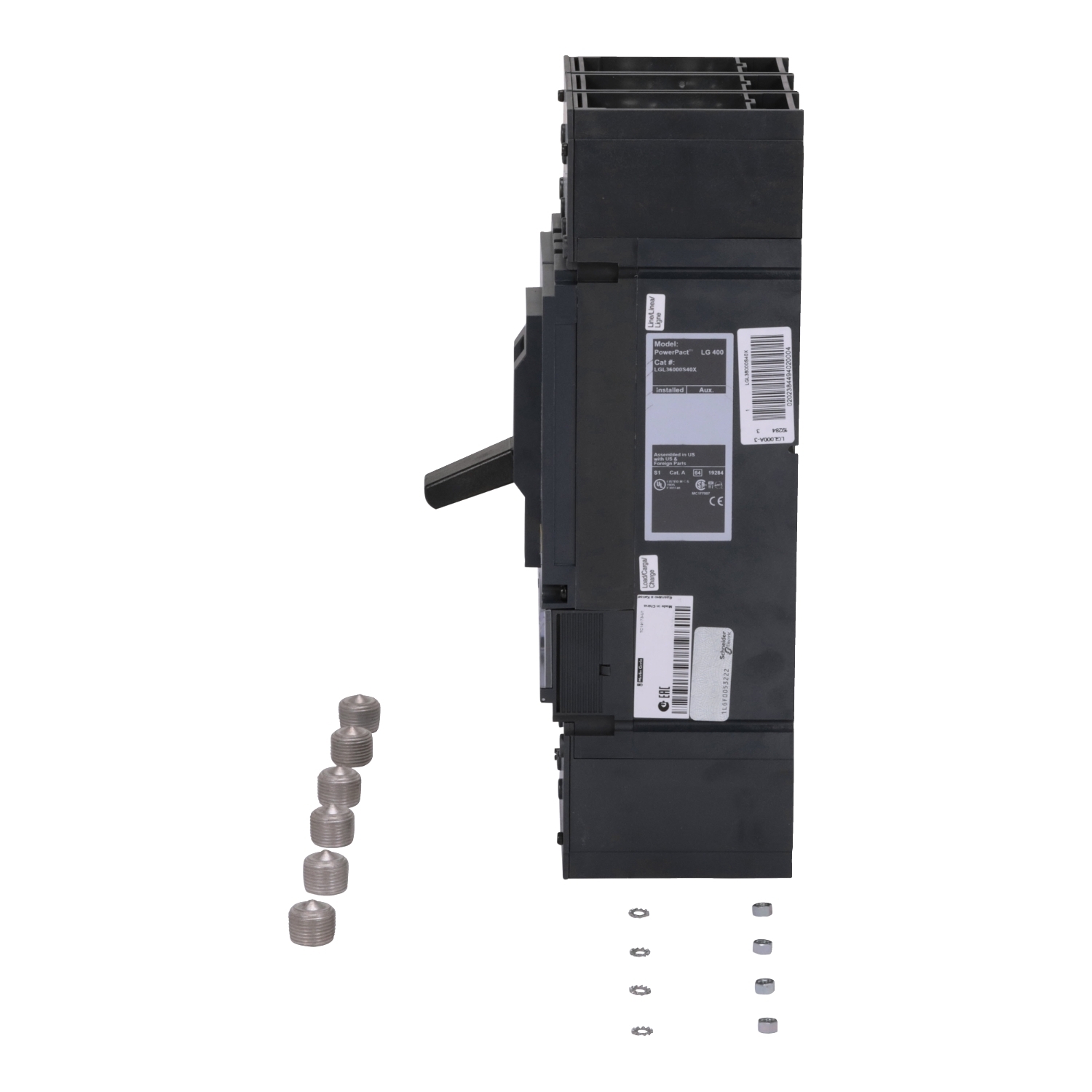

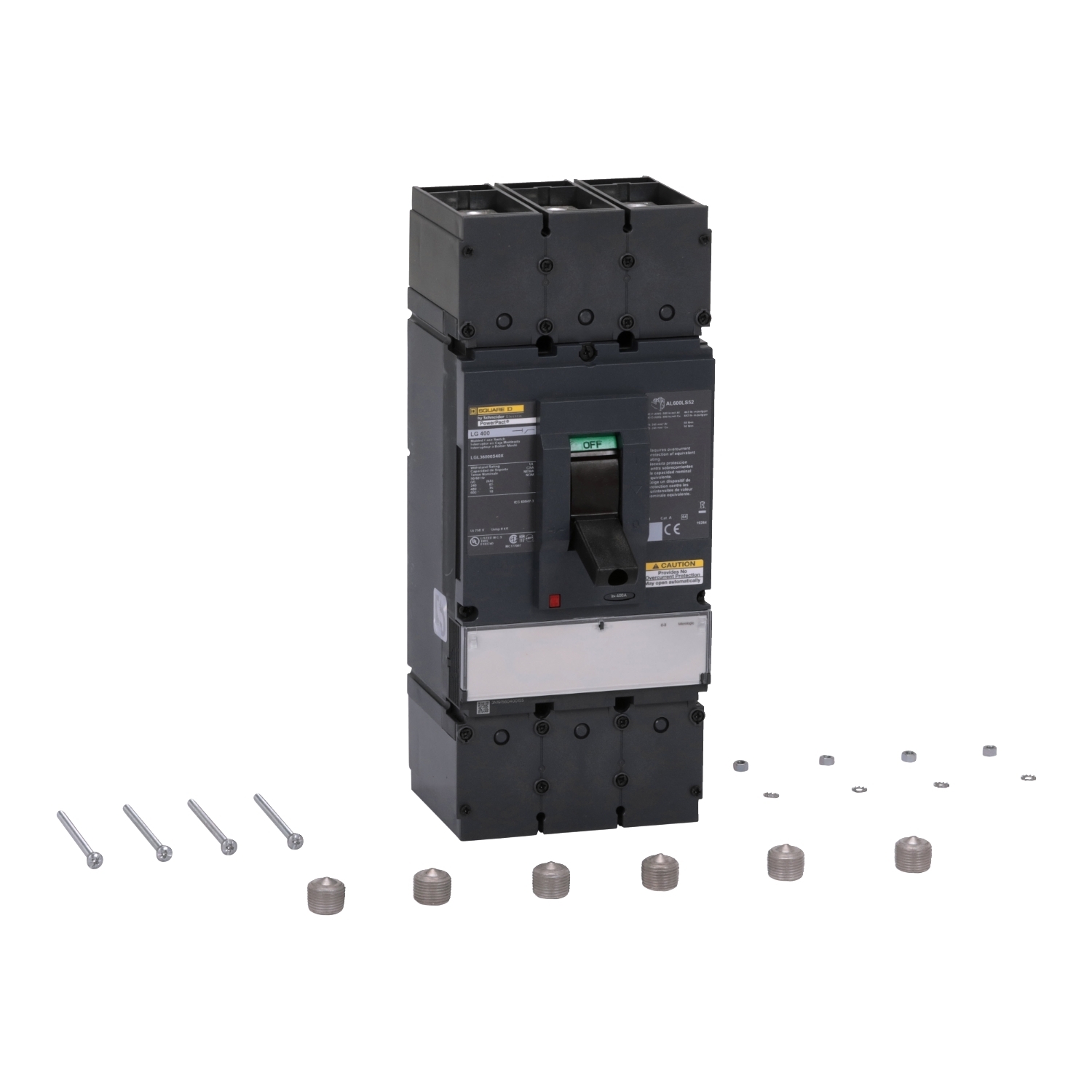

LGL36000S40X Molded Case Circuit Breaker, 400 Amp, 3 Pole, 600V
- MFR:
- Schneider Electric
- MFR #:
- LGL36000S40X
- UPC:
- 785901076728
- Item #:
- 592904
LGL36000S40X Molded Case Circuit Breaker, 400 Amp, 3 Pole, 600V
- MFR #:
- LGL36000S40X
- UPC:
- 785901076728
- Item #:
- 592904
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
Manuals & Documentation
| Catalog Number | LGL36000S40X |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Lugs, line;lugs, load; x AWG 2/0...500 kcmil ( aluminium/copper ) |
| Number of Poles | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980676&lang=en-us |
| UPC | 785901076728 |
| GTIN | 00785901076728 |
| Item Type | Automatic switch |
| Width | 5.51 |
| Width UOM | Inch |
| Height | 13.38 |
| Height UOM | Inch |
| Depth | 6.61 IN |
| Trip Type | Magnetic |
