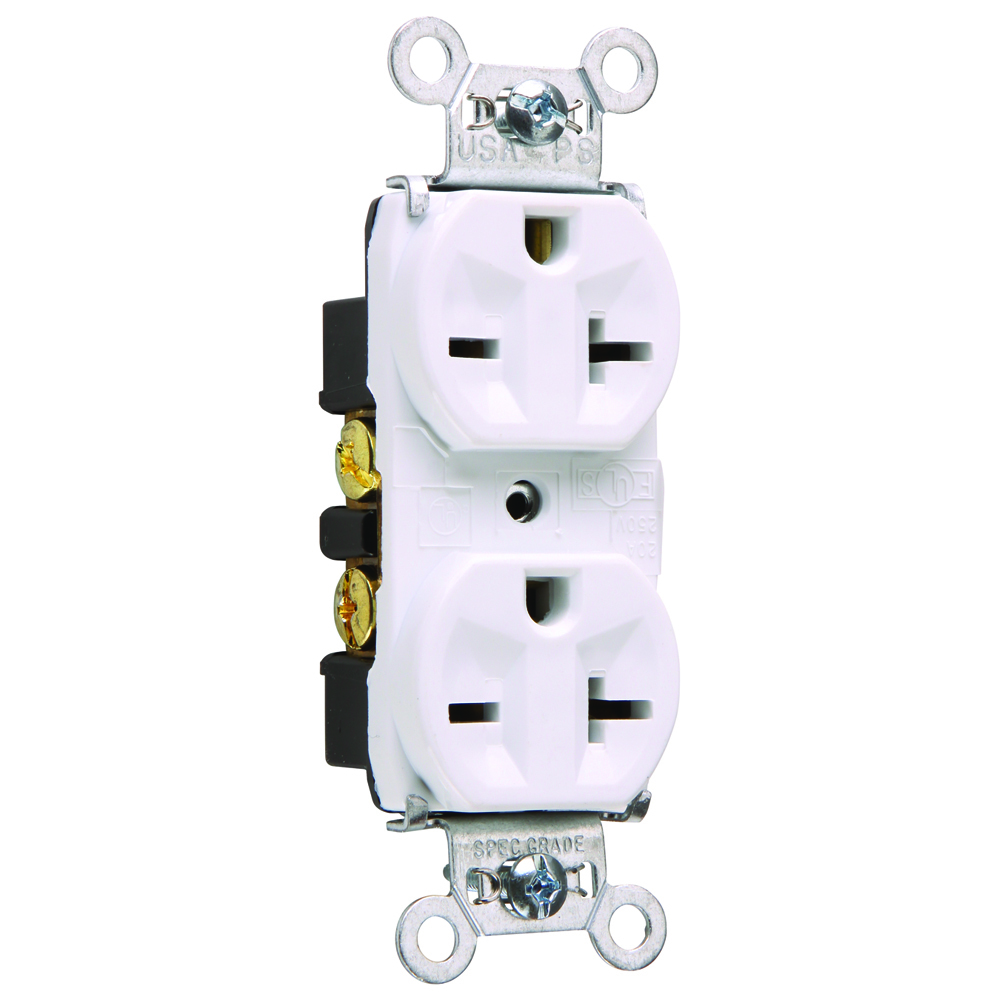

Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 250V

Catalog Number 5862W
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color White
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 6
Number of Poles 2
Number of Wires 3
Special Features Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.
Standard cULus UL498, CSA C22.2 No. 42
UPC 785007998405
GTIN 00785007998405
Item Type Spec Grade Receptacle, Heavy-Duty
Size 1.322 L x .780 W x 3.281 H
Temperature Rating -40° - 60° C
Voltage Rating 250
Wire Size 14 - 10 AWG
