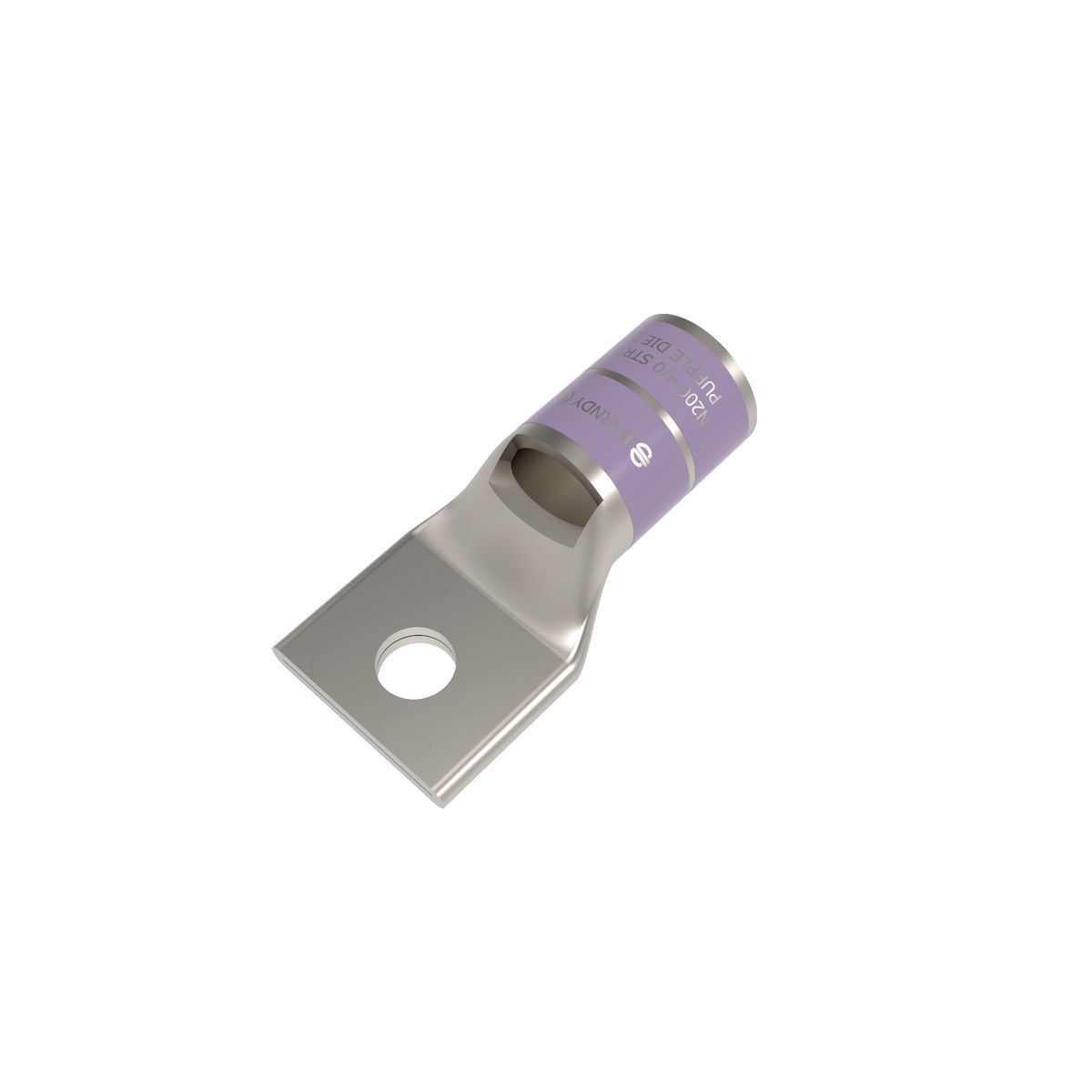

YA28L2 YA-L 1-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/4 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA28L2
- UPC:
- 781810554111
- Item #:
- 591996
YA28L2 YA-L 1-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/4 in Stud, Copper
- MFR #:
- YA28L2
- UPC:
- 781810554111
- Item #:
- 591996
Manuals & Documentation
| Catalog Number | YA28L2 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 1-1/8 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 15, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, MY29-3, MY29-11 Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MRC840 Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810554111 |
| GTIN | 00781810554111 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CSWS-4/0-14 |
