BURNDY

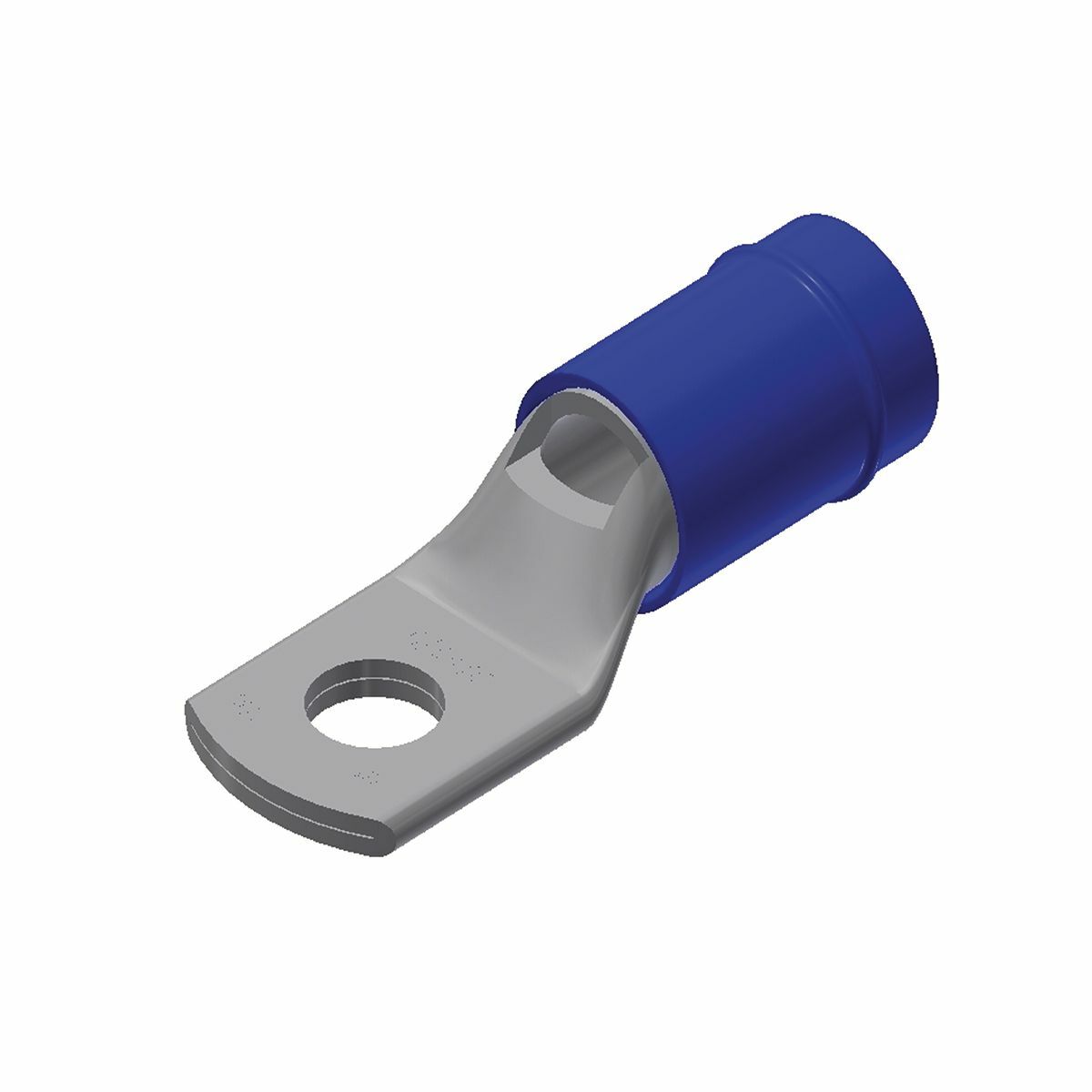

YAEV14T5 Type YAEV Terminal With Nylon Insulation, 16 to 14 AWG Conductor, Shrouded/Standard Barrel, Copper, Blue

MFR:
Burndy, a Hubbell affiliate
MFR #:
YAEV14T5
UPC:
781810027356
Item #:
591984
Manuals & Documentation
Catalog Number YAEV14T5
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Material Copper
Special Features Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Conductor Type: Commercial/Military Stranded Copper, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 105 DEG C Maximum
Standard UL486;Military Specified (Mil-Spec)
UPC 781810027356
GTIN 00781810027356
Item Type YAEV
