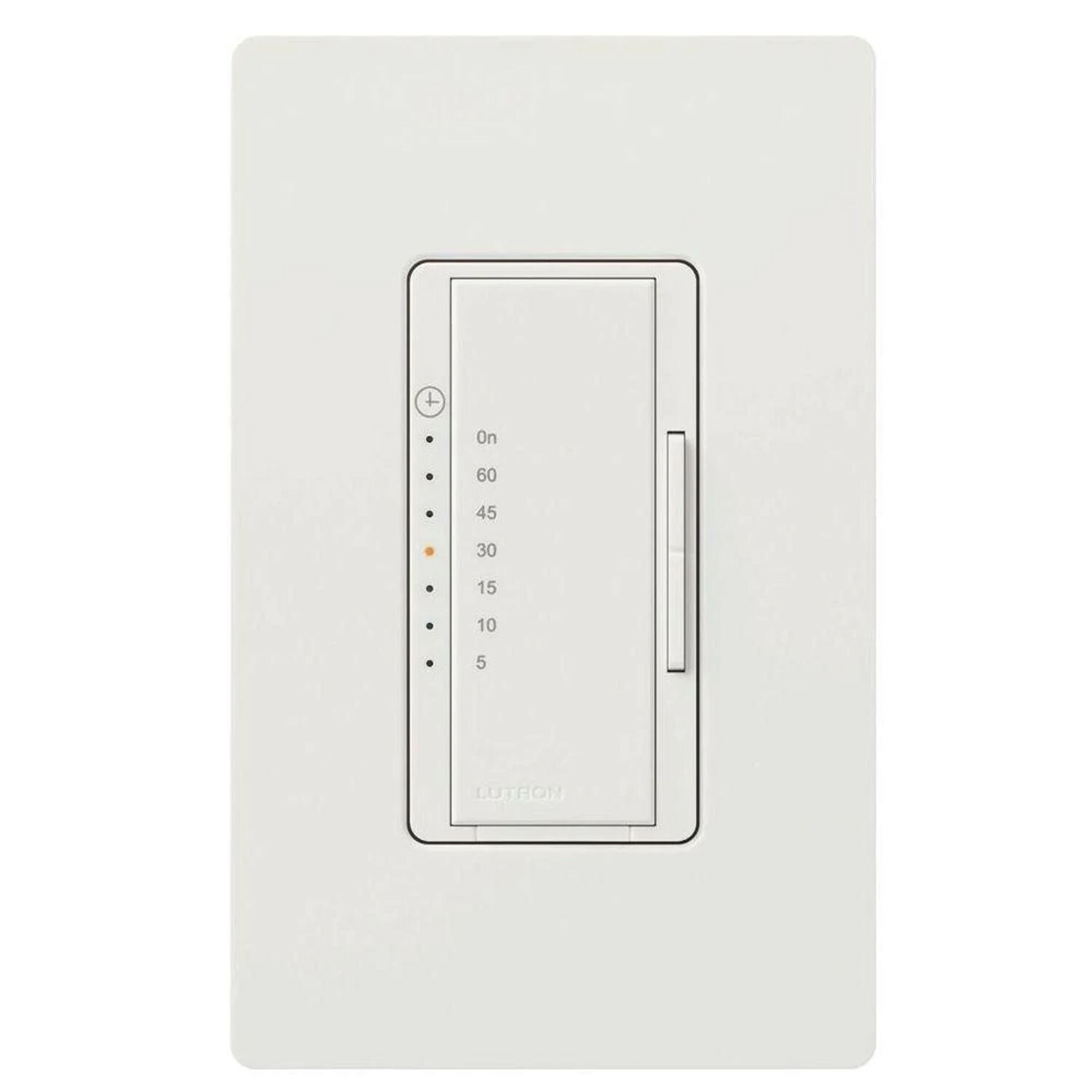

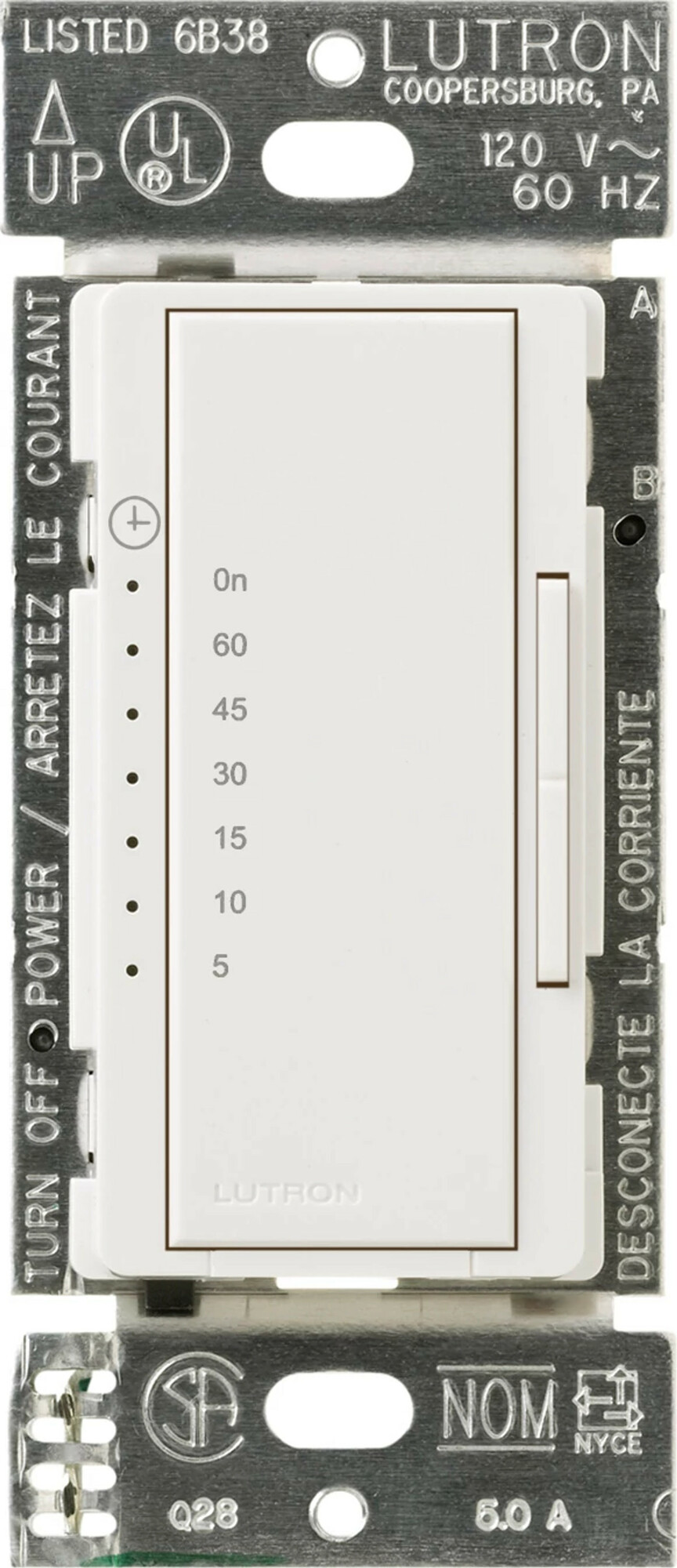

MA-T51MN-SW Maestro Countdown Timer Switch for Fans and Lights, Neutral Required, 150W LED, 3 Amp Fan, 1 Pole/Multi-Location, Snow
- MFR:
- Lutron Electronics
- MFR #:
- MA-T51MN-SW
- UPC:
- 027557290913
- Item #:
- 59078
MA-T51MN-SW Maestro Countdown Timer Switch for Fans and Lights, Neutral Required, 150W LED, 3 Amp Fan, 1 Pole/Multi-Location, Snow
- MFR #:
- MA-T51MN-SW
- UPC:
- 027557290913
- Item #:
- 59078

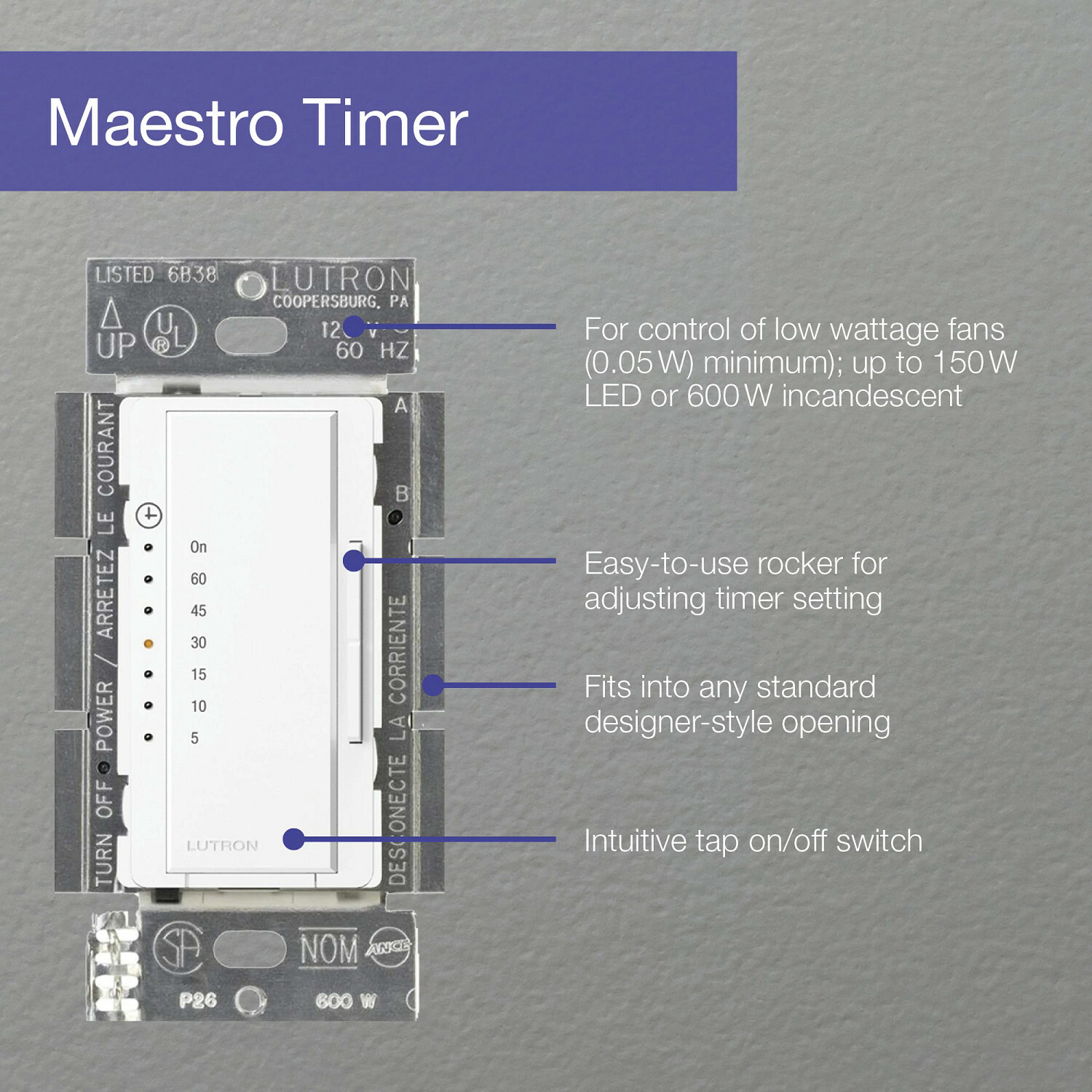

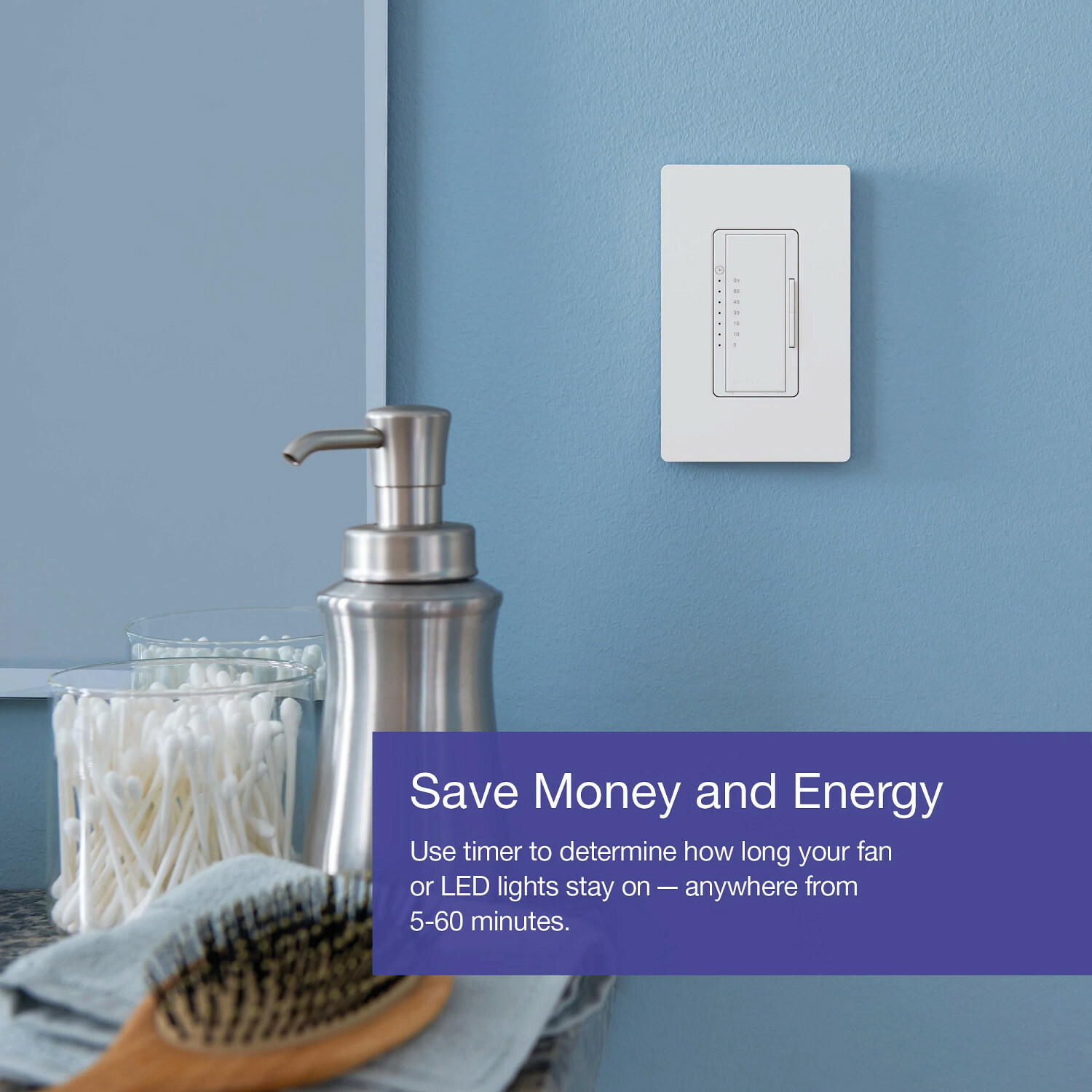

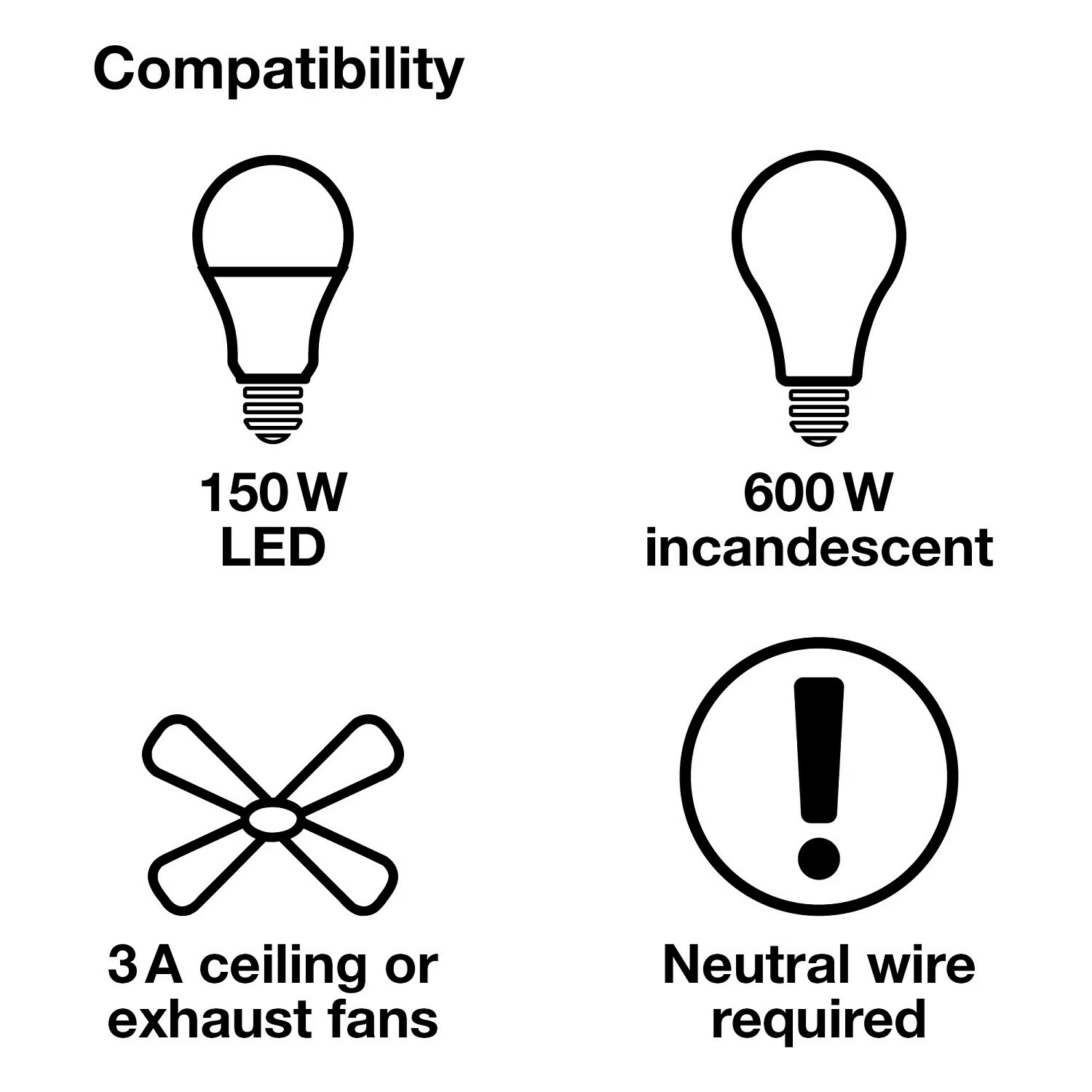

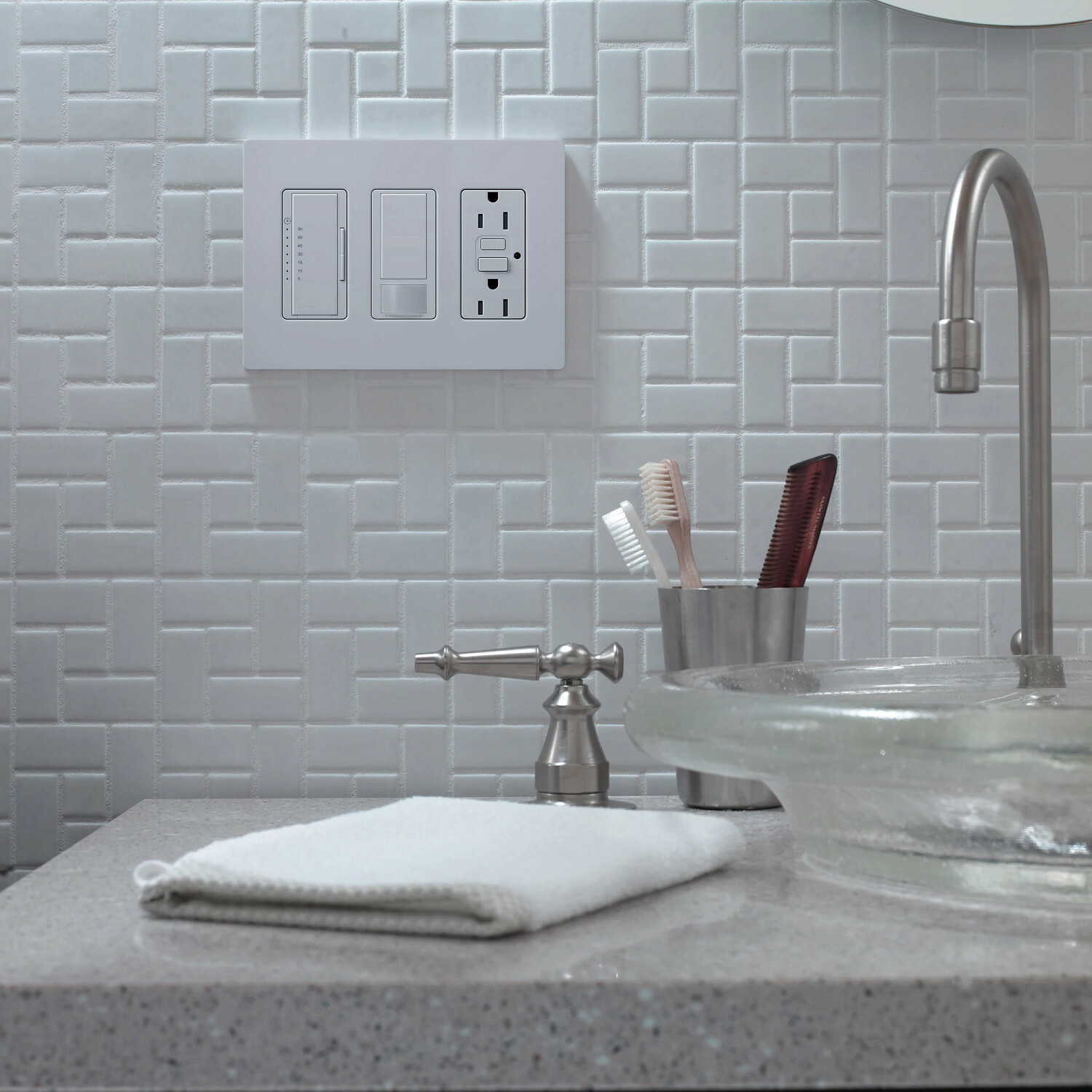

The Lutron Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. The Maestro Timer Switch is compatible with 3-way/multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Timer Switch; existing 3-way switches are not compatible. The Maestro Timer switch completes any project and matches the Maestro aesthetic for areas that dont require a Maestro dimmer or sensor. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas to ensure a light or fan is never left on for a long time. Use the large tap switch to turn the timer on, or double tap for always on; use the raise/lower buttons on the side to adjust to the desired time-out option ranging from 5-60 minutes. Softly lit orange lights indicate the time remaining before turn-off. Top green LED indicator light labeled ON, has no time limit. The bottom LED blinks rapidly to indicate one minute of time remaining. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
| Catalog Number | MA-T51MN-SW |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Amperage Rating | 5 |
| Application | Lighting Control |
| Connection | Screw terminal |
| Contact Configuration | N-O |
| Contact Rating | 5 AMPS |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans. Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms. Use with lighting. Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Timer advanced programming features available. |
| Standard | UL, cUL, IEC, ANSI/IEEE |
| UPC | 027557290913 |
| GTIN | 00027557290913 |
| Item Type | Countdown timer control switch, multi-location/single-pole |

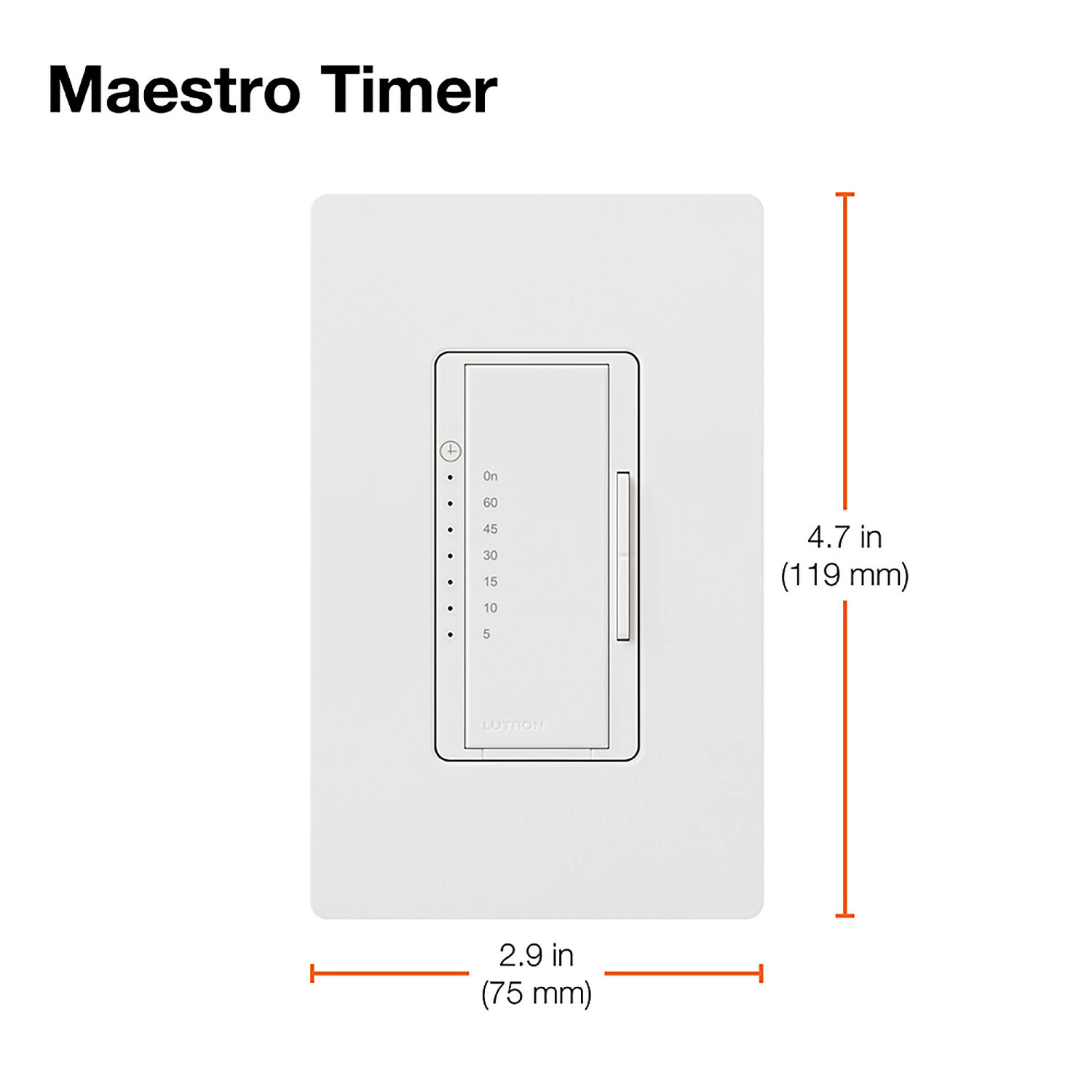

| Size | 4.69 x 2.94 |
| Timing Range | 5 - 60 min |
| Voltage Rating | 120 |
| Wattage | 600 W |
