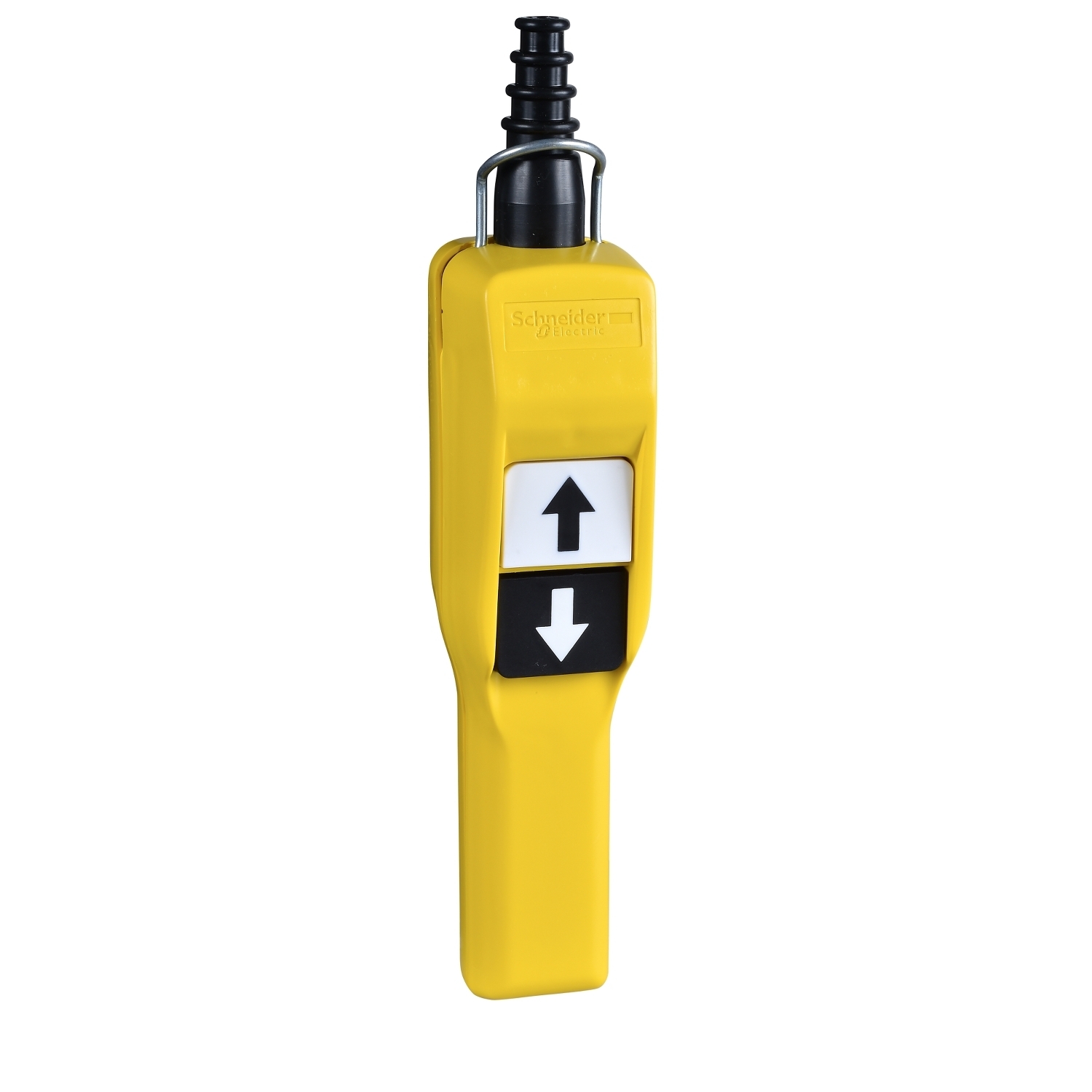

XACA205 XAC Type XACA Pistol Grip Pendant Control Station, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 4/4X NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- XACA205
- Item #:
- 59038
XACA205 XAC Type XACA Pistol Grip Pendant Control Station, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 4/4X NEMA Rating
- MFR #:
- XACA205
- Item #:
- 59038

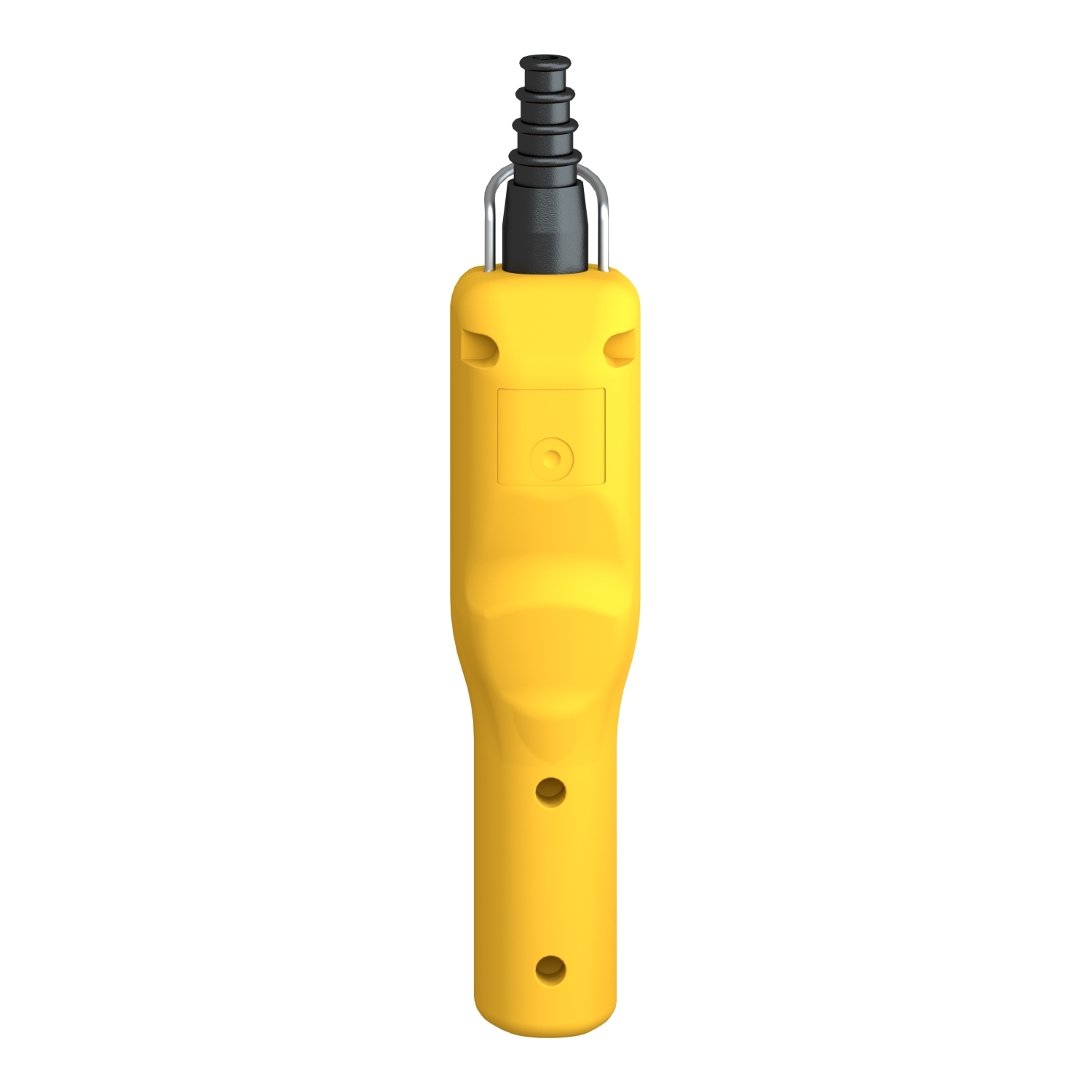

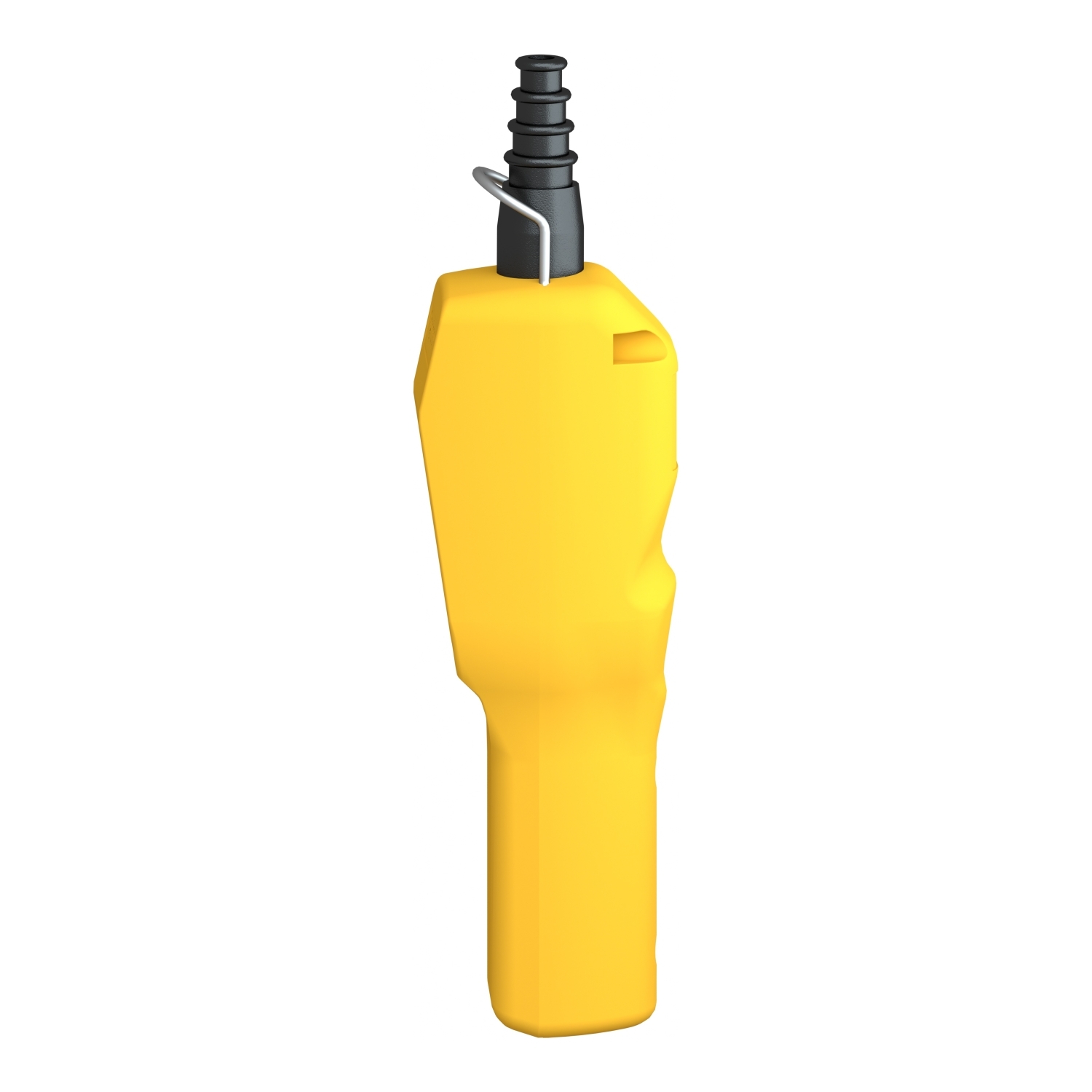

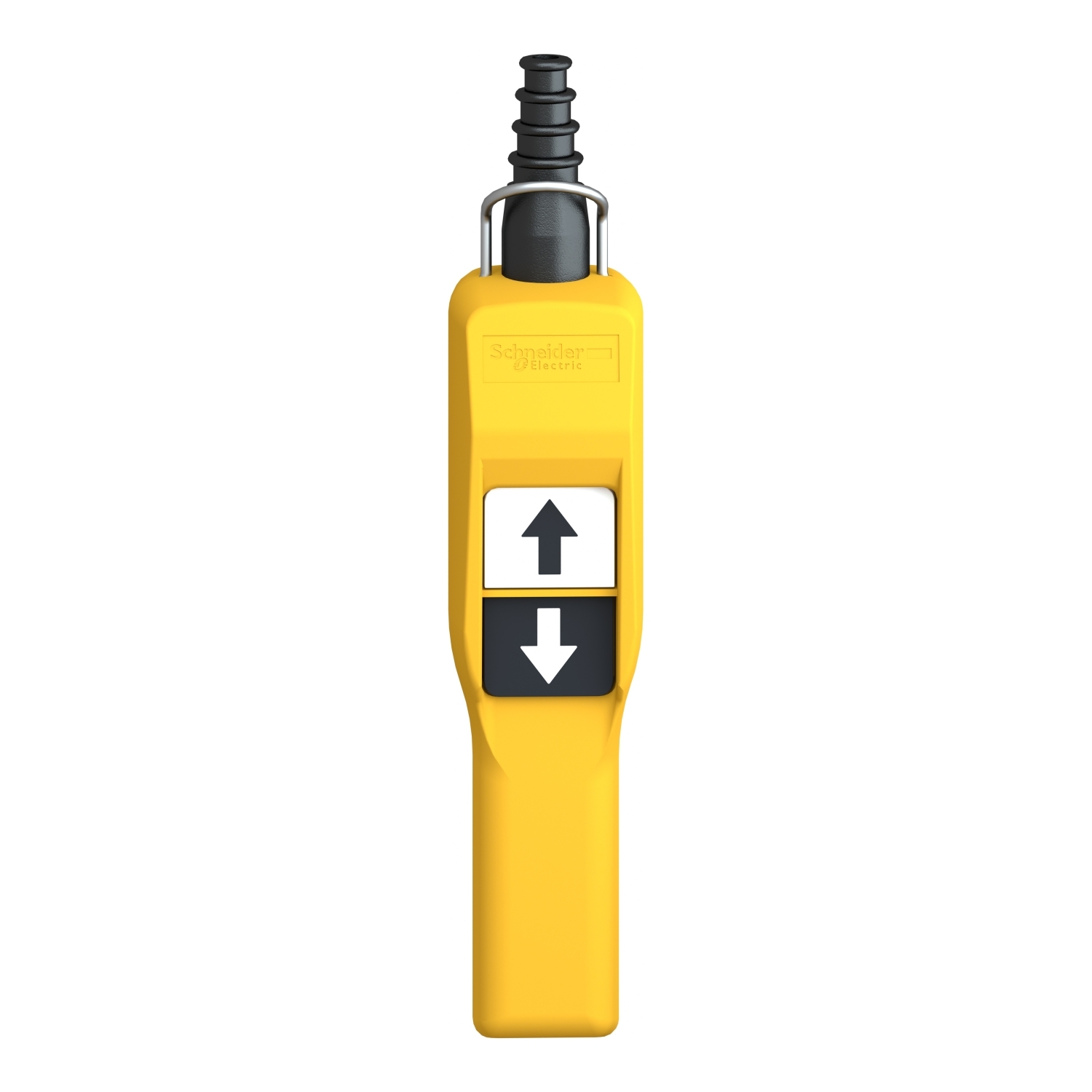

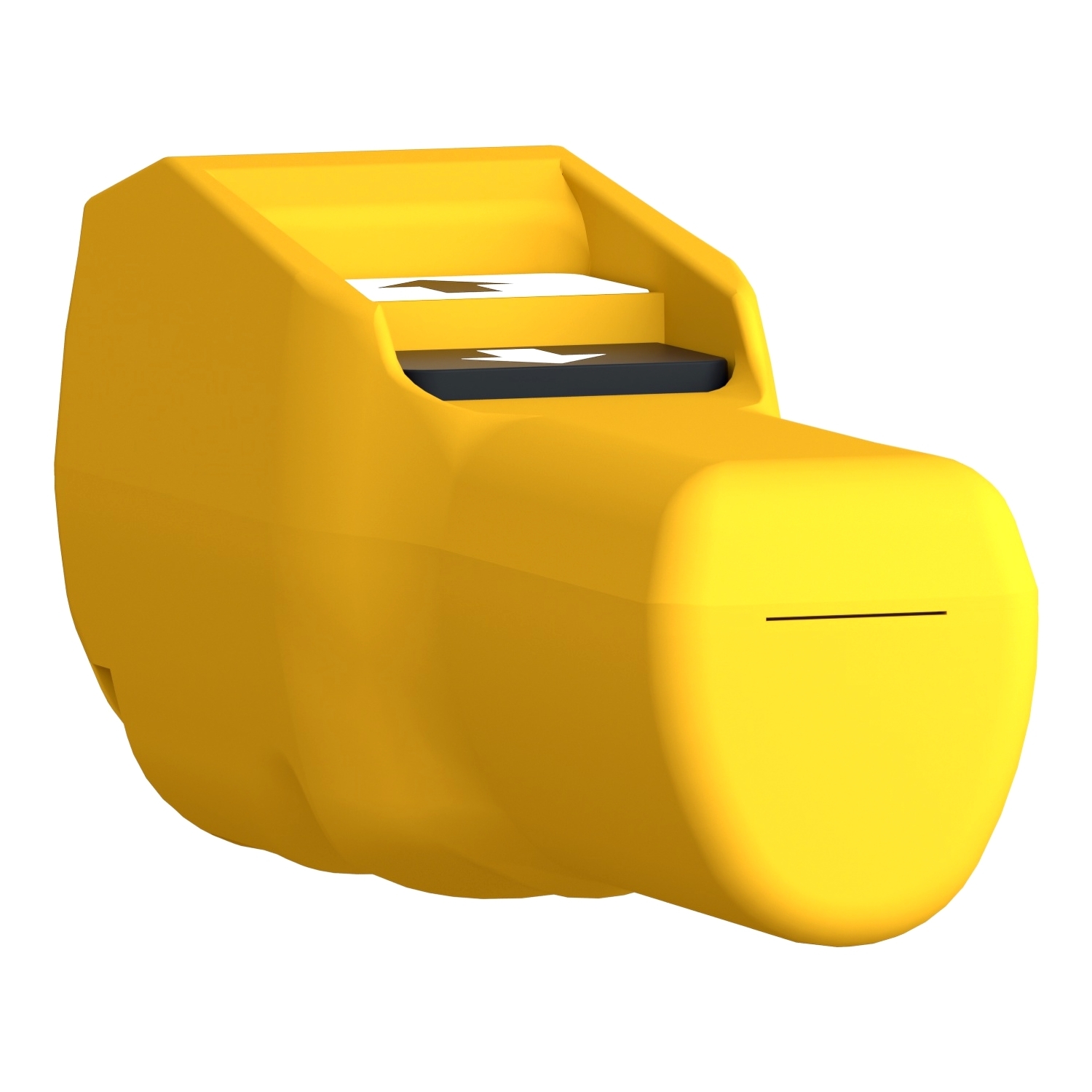

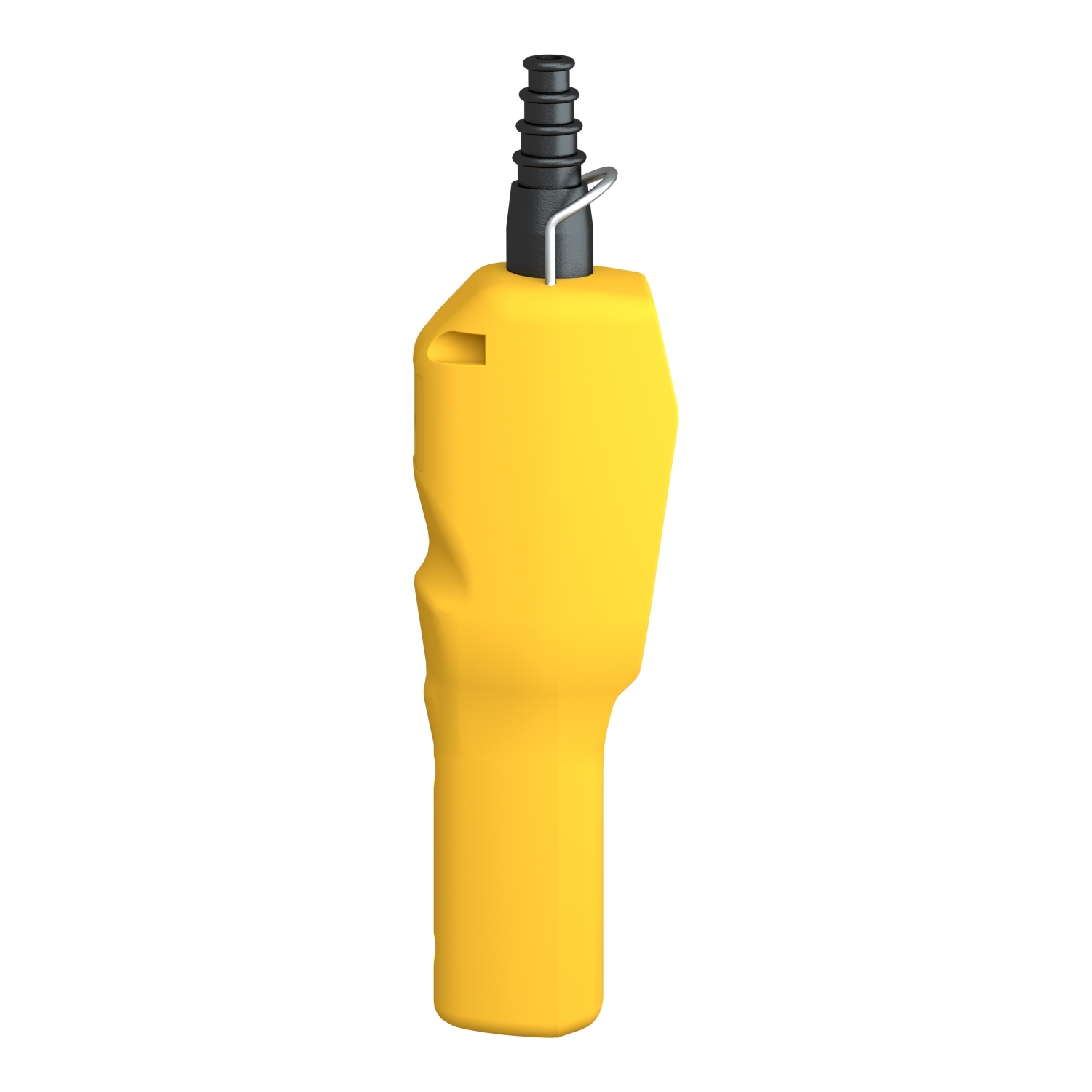

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylne enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Manuals & Documentation
| Catalog Number | XACA205 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Control of single speed hoist motor;ZB2BE102 + ZB2BE101 for each direction;Control circuit |

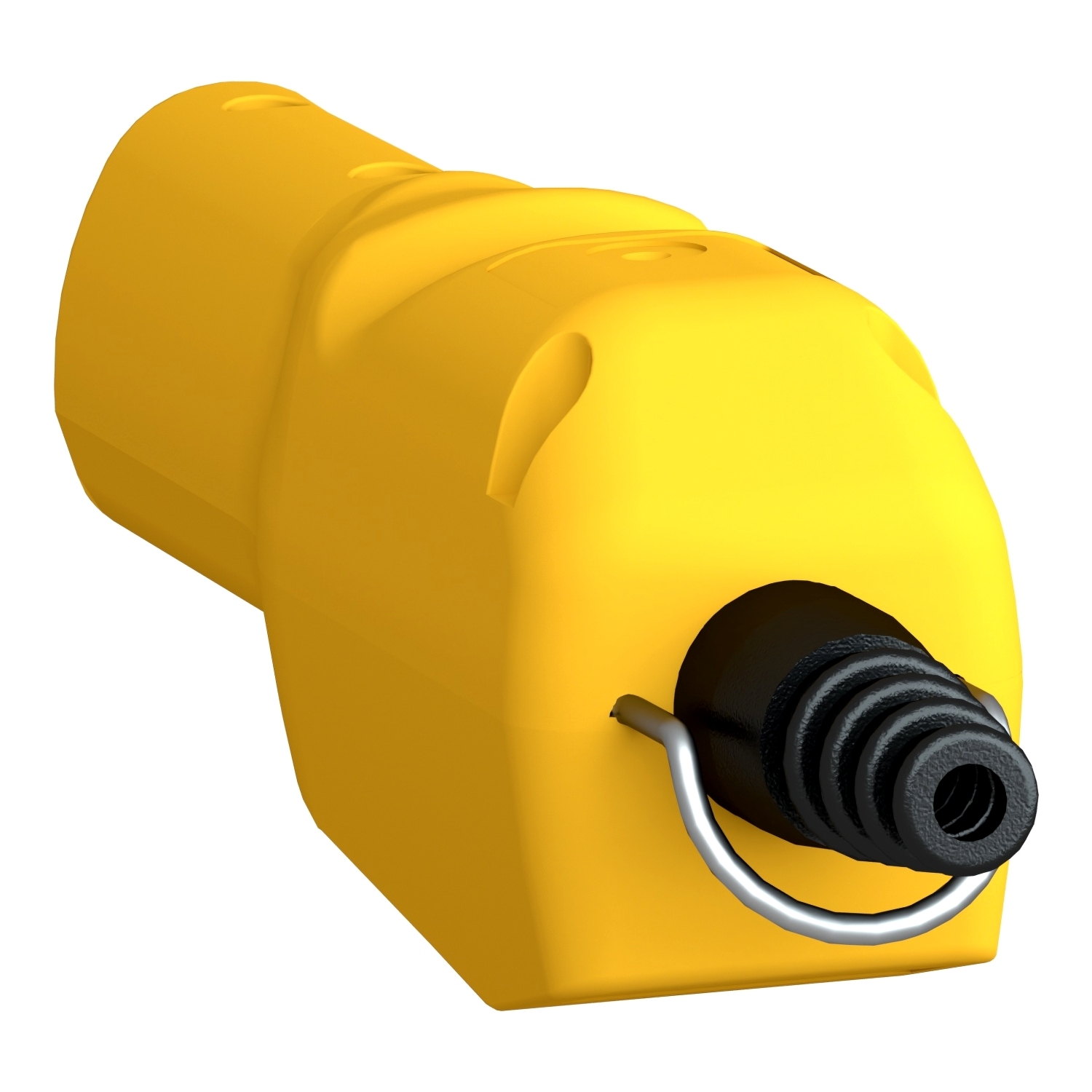

| Cable Entry | Rubber sleeve with stepped entry 7-15 mm |
| Connection | Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Contact Rating | Slow-break |
| Enclosure | Polypropylene |
| Special Features | Complete ready for use;With mechanical interlocking |
| Standard | UL;CSA;IK08 conforming to EN 50102;UL 508;EN/IEC 60947-5-1;CSA C22.2 No 14;EN/IEC 60204-32;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674350&lang=en-us |
| GTIN | 03389110645026 |
| Item Type | Pendant control station;Double insulated;Intuitive |
