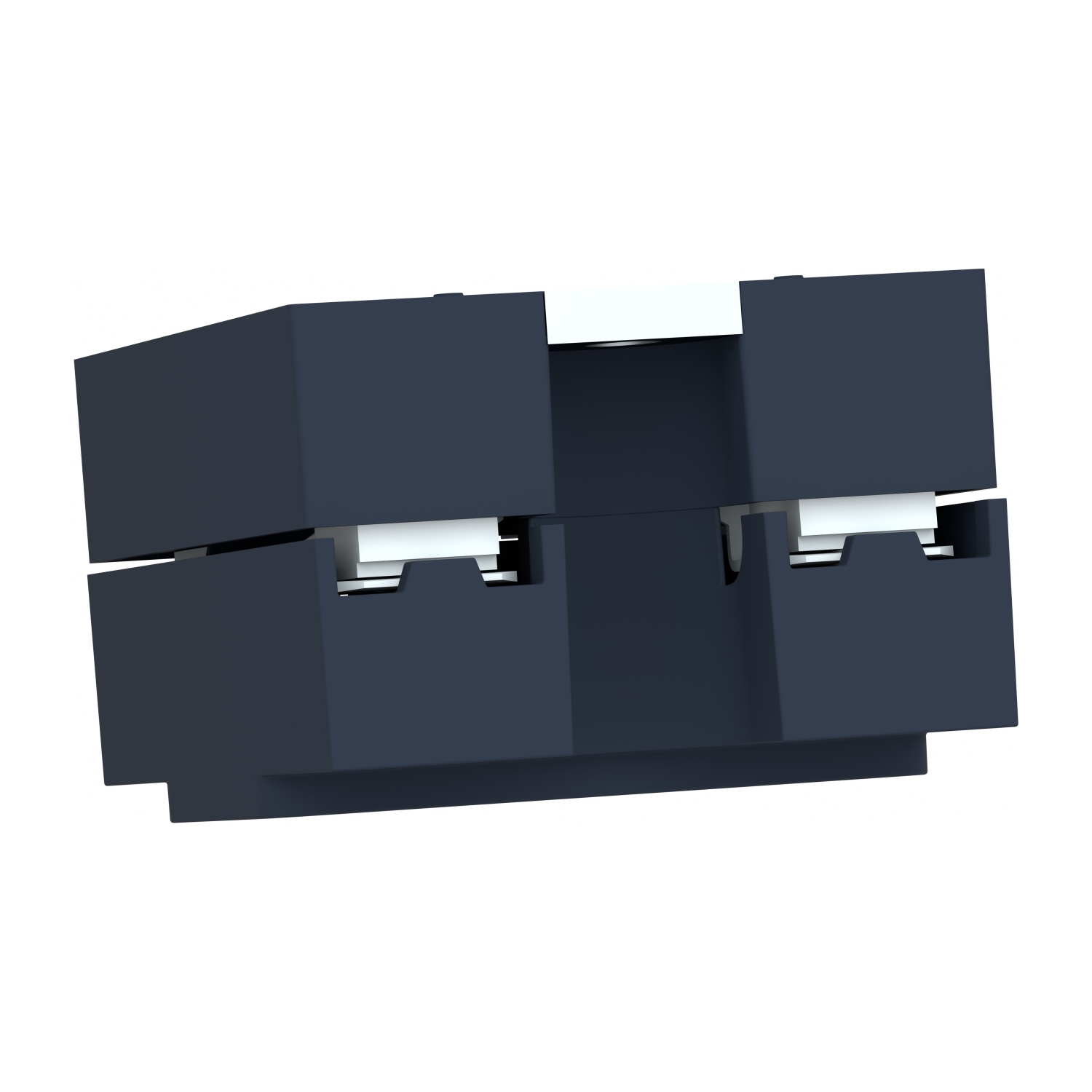

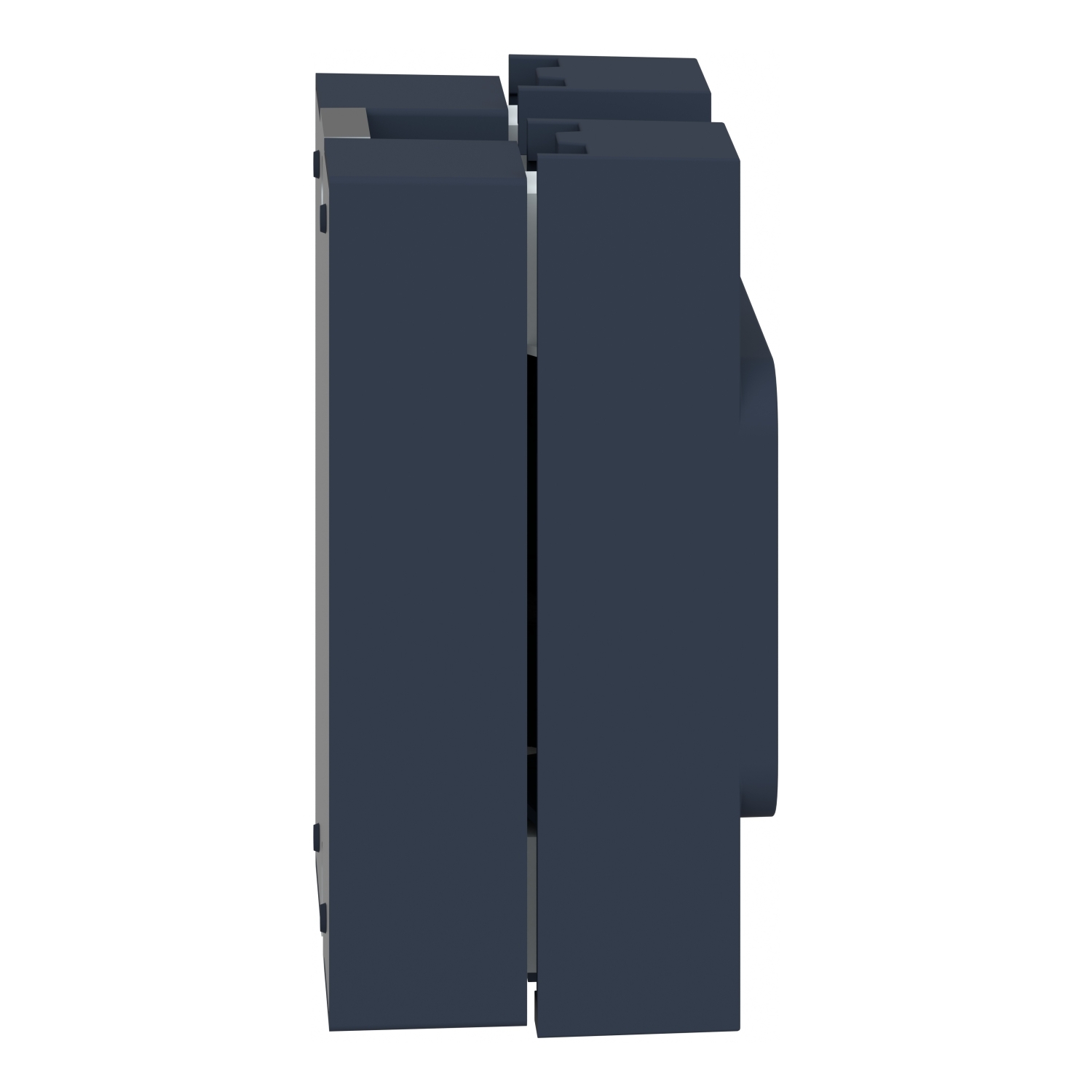

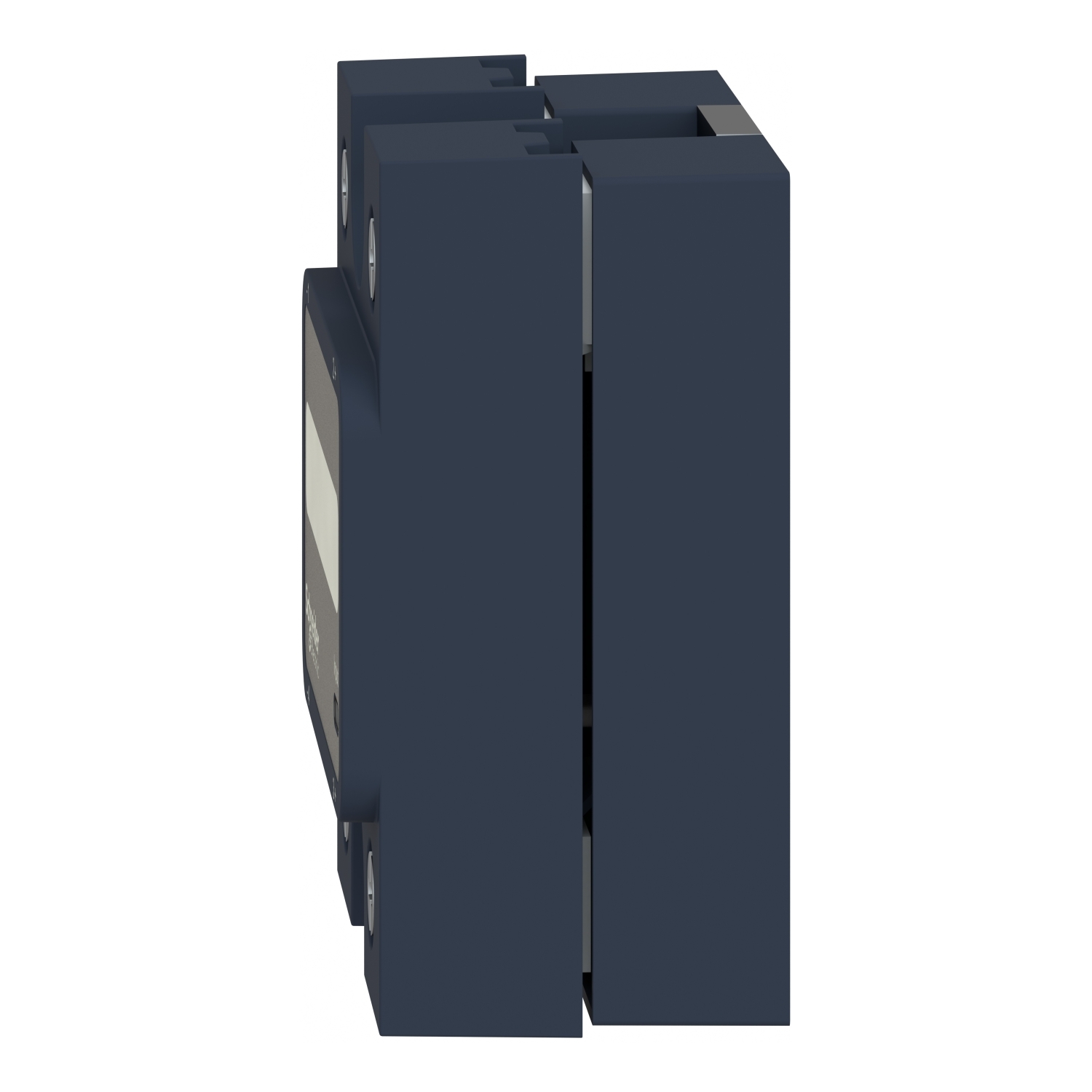

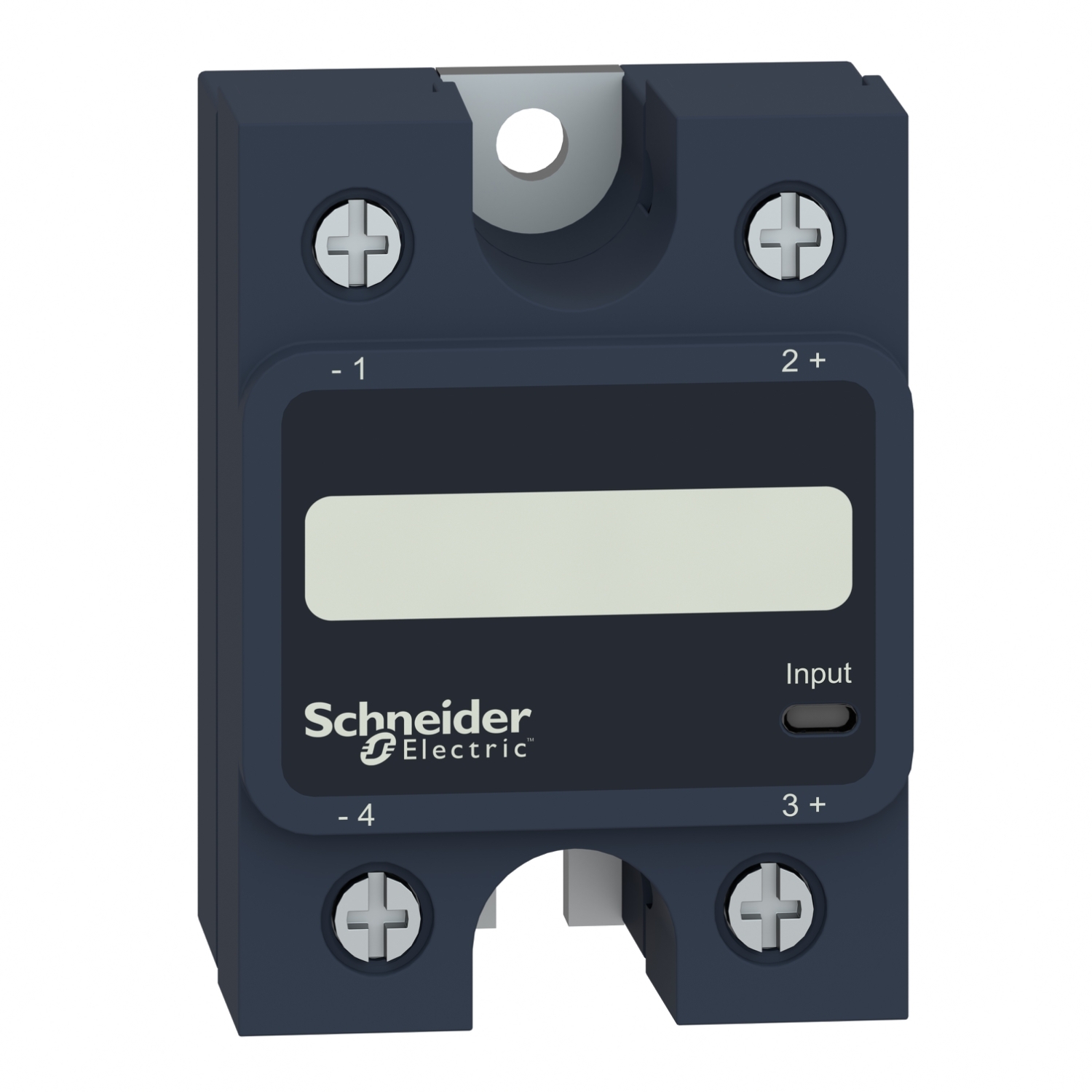

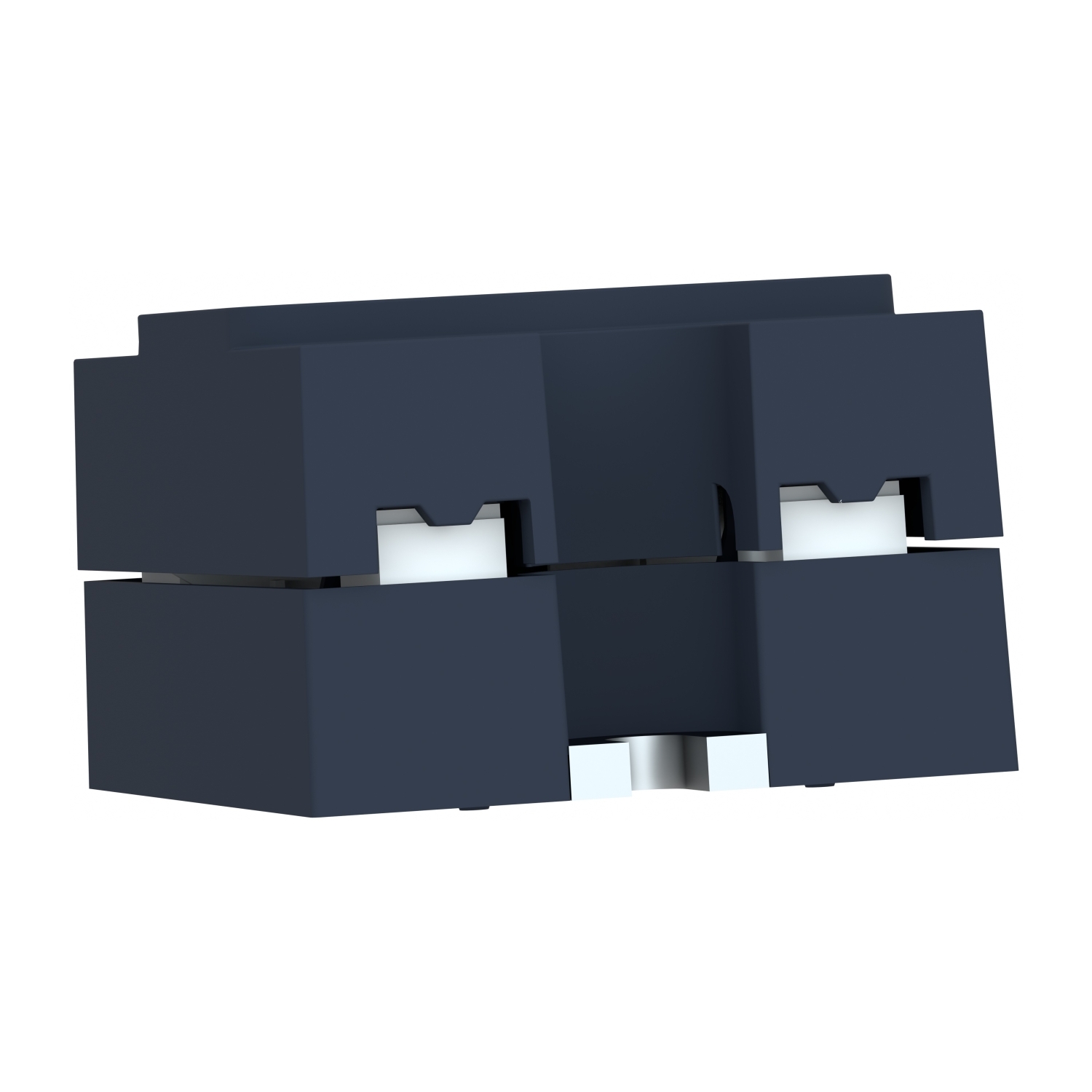

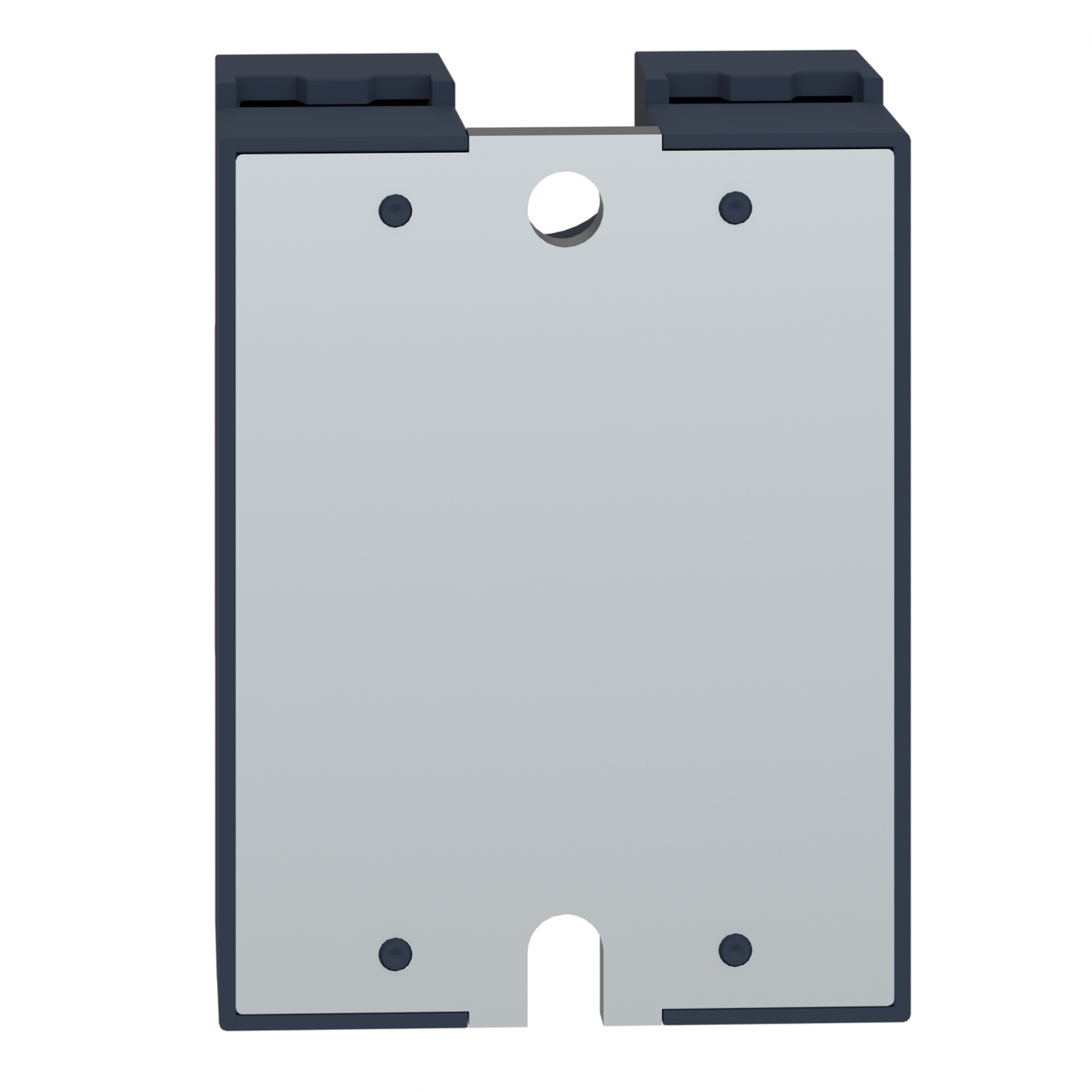

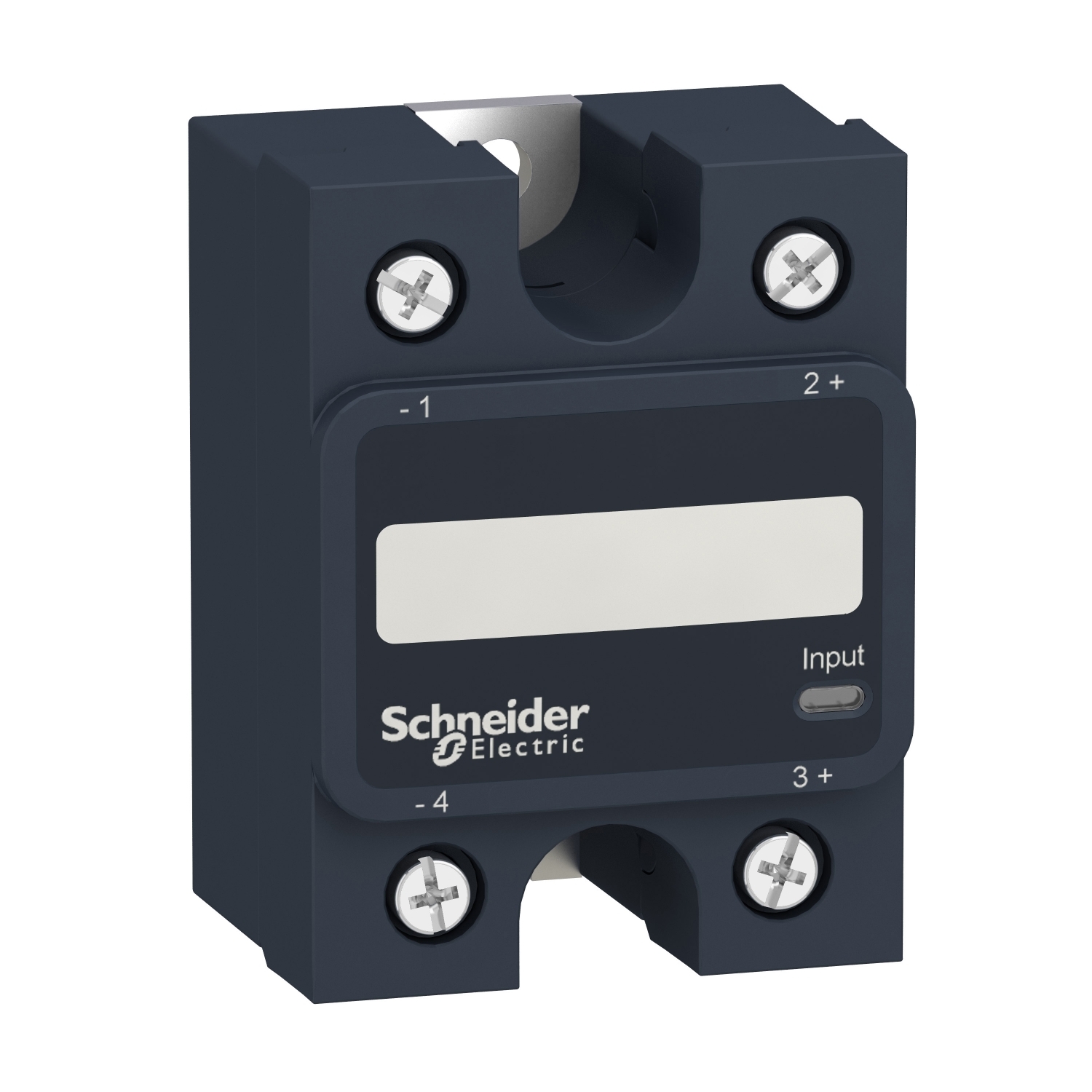

SSP1A125M7T Zelio 1-Phase SCR Output Zero Voltage Switching Solid State Relay With Green LED, Test Button, 25 A, 1NO 1 Form A Contact, 90 to 280 V AC Control/24 to 300 V AC Load V Coil
- MFR:
- Schneider Electric
- MFR #:
- SSP1A125M7T
- Item #:
- 588971
SSP1A125M7T Zelio 1-Phase SCR Output Zero Voltage Switching Solid State Relay With Green LED, Test Button, 25 A, 1NO 1 Form A Contact, 90 to 280 V AC Control/24 to 300 V AC Load V Coil
- MFR #:
- SSP1A125M7T
- Item #:
- 588971
This Harmony SSP solid state panel mount single-phase relay is rated 25A, is controlled with a 90V to 280V AC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Manuals & Documentation
| Catalog Number | SSP1A125M7T |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output |
| Mounting | Panel Mount |
| Phase | 1 |
| Response Time | 30 ms (turn-off);25 ms (turn-on) |
| Special Features | LED, green input |
| Standard | IP20 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419646&lang=en-us |
| GTIN | 03606485442129 |
| Item Type | Panel mount relay |
