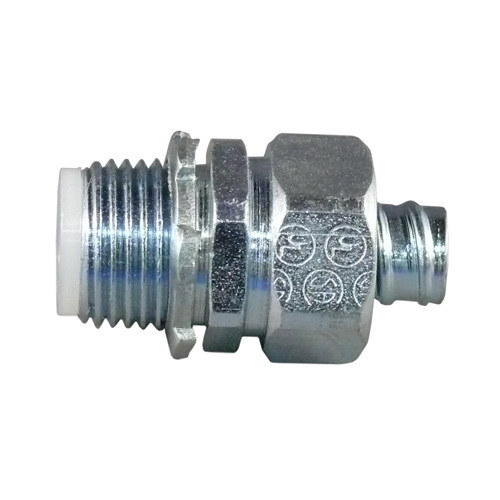

Insulated Throat Straight Liquidtight Connector; 1 Inch, Steel Body and Compression Nut, Polypropylene Sealing Ring, Zinc Electroplate
- MFR:
- Appleton Electric
- MFR #:
- STB-100
- UPC:
- 781381681056
- Item #:
- 587657
Insulated Throat Straight Liquidtight Connector; 1 Inch, Steel Body and Compression Nut, Polypropylene Sealing Ring, Zinc Electroplate
- MFR #:
- STB-100
- UPC:
- 781381681056
- Item #:
- 587657
STB Series Straight Liquidtight Connector With Insulated Throat, Size: 1 IN, Connection: Threaded X Compression, Material: Steel, Finish: Zinc Electroplate, Dimensions: 1.63 IN Length X 1.81 IN Height, Thread Length: 3/4 IN, Standard: Cla
Manuals & Documentation
| Catalog Number | STB-100 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Connection | Threaded X Compression |
| Finish | Zinc Electroplate |
| Material | Steel |
| Special Features | Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381681056 |
| GTIN | 00781381681056 |
| Item Type | STB Series Straight Liquidtight Connector With Insulated Throat |
| Size | 1 |
