Appleton

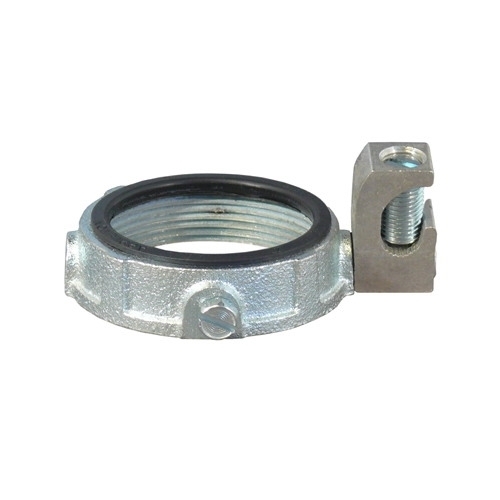

GIB-100L-20AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 14 to 2/0 AWG AC Cable, 1 in Trade, Malleable Iron, Zinc Electroplated

MFR:
Appleton Electric
MFR #:
GIB-100L-20AC
UPC:
781381091114
Item #:
587581

Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 0.56 IN Height X 1-3/4 IN

Manuals & Documentation

Features

  • Self extinguishing
  • Resists corrosion
  • UL listed
  • CSA certified
Catalog Number GIB-100L-20AC
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Connection Threaded
Finish Zinc Electroplated Body, Tin Plated Lug
Material Malleable Iron
Special Features Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381091114
GTIN 00781381091114
Item Type Insulated Grounding Bushing With Aluminum Lay-In-Lug
Length 7.5000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 0.1600
Height UOM Inch
Weight 0.190
Weight UOM Pounds
Size 1
Temperature Rating 150 DEG C
