SQUARE D

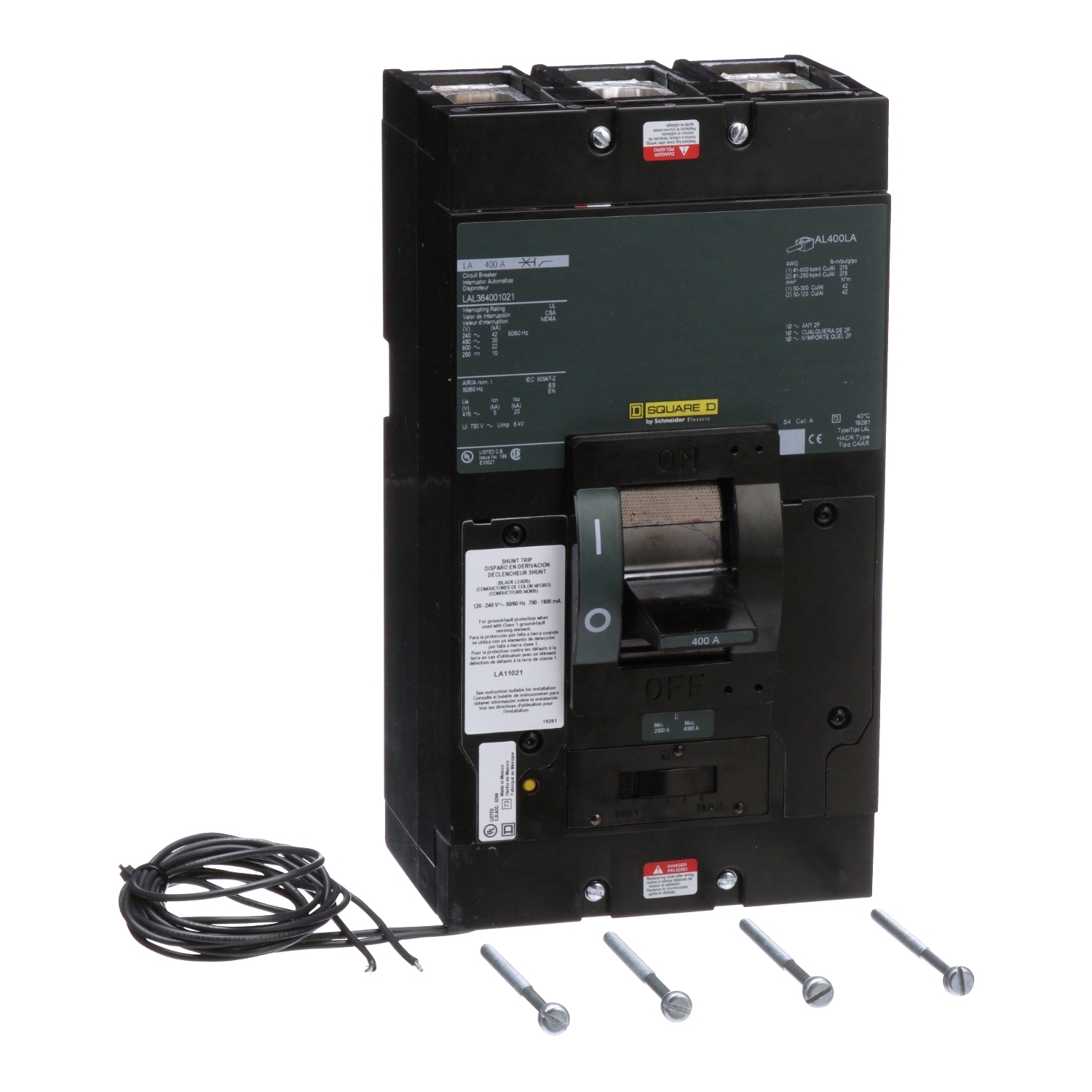

LAL364001021 I-Line PowerPact Standard Molded Case Circuit Breaker, 600 VAC, 250 VDC, 400 A, 10/22/30/42 kA Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
LAL364001021
UPC:
785901339496
Item #:
586833

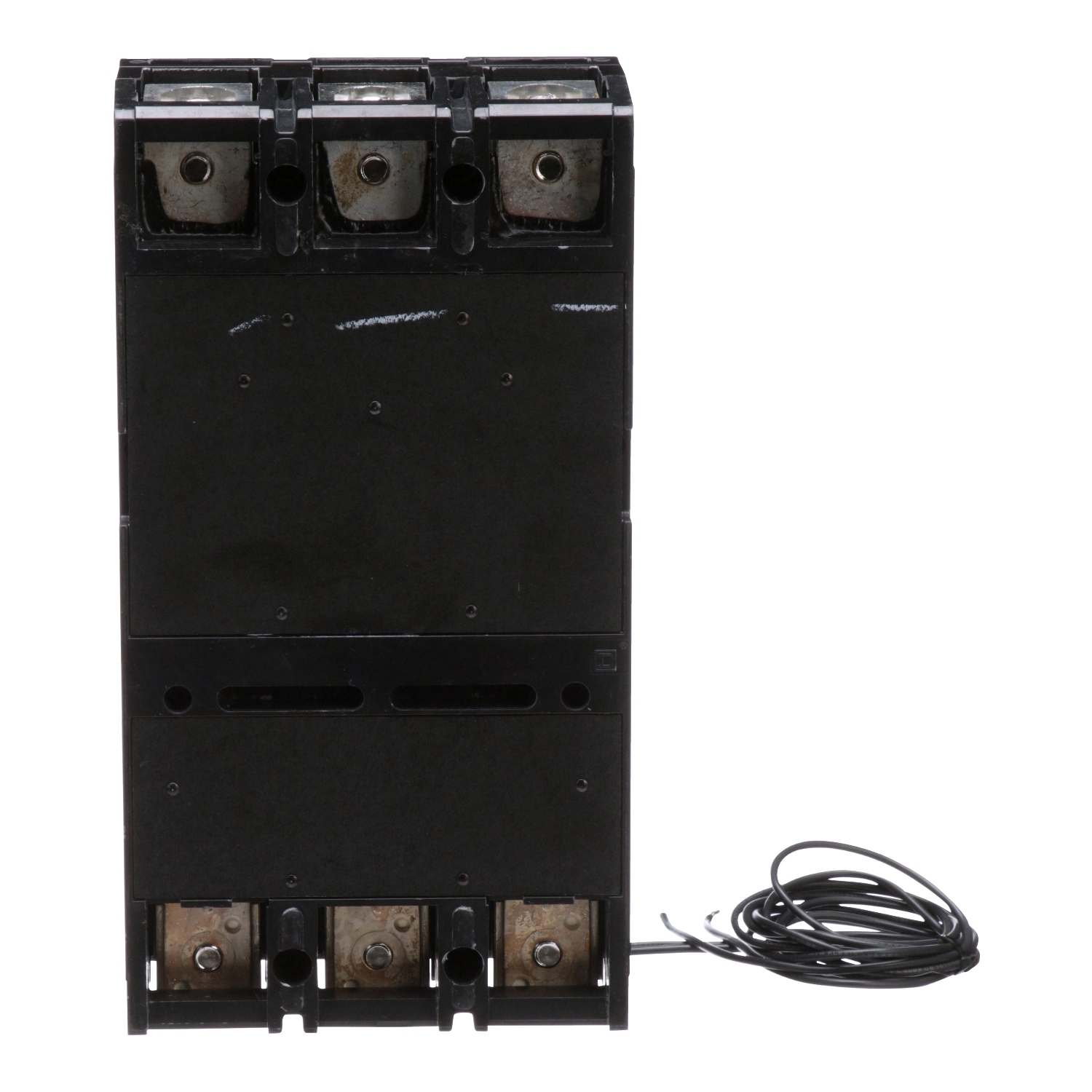

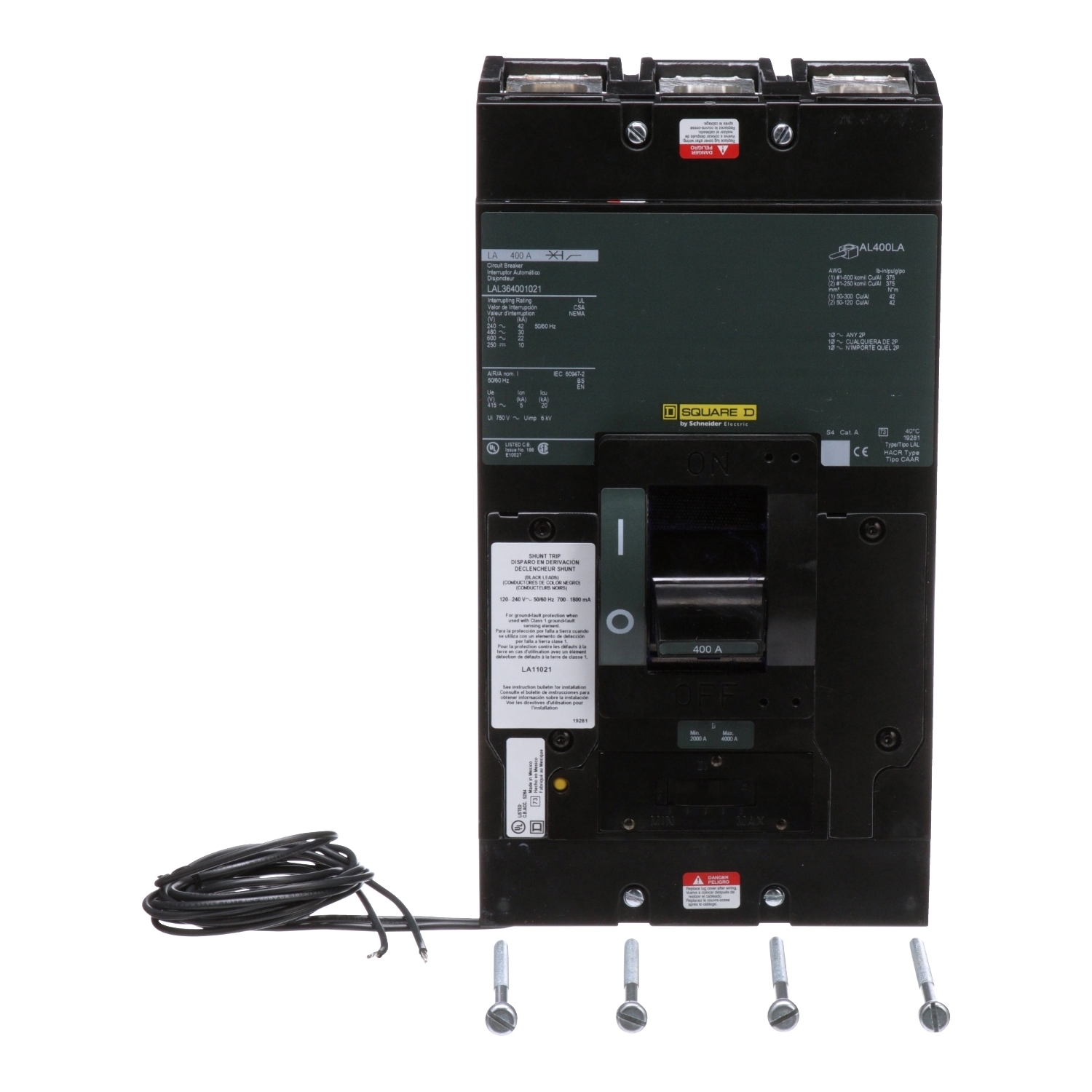

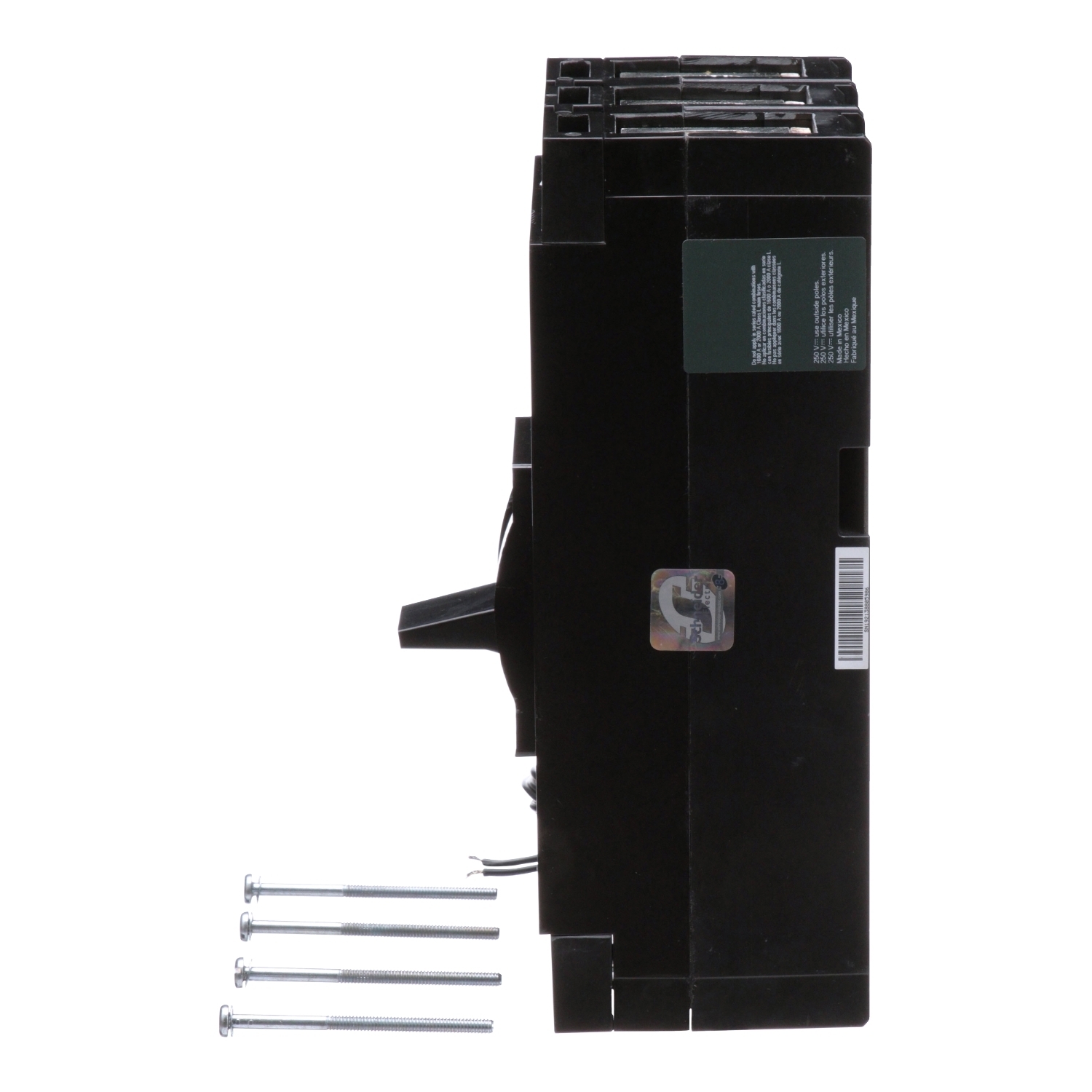

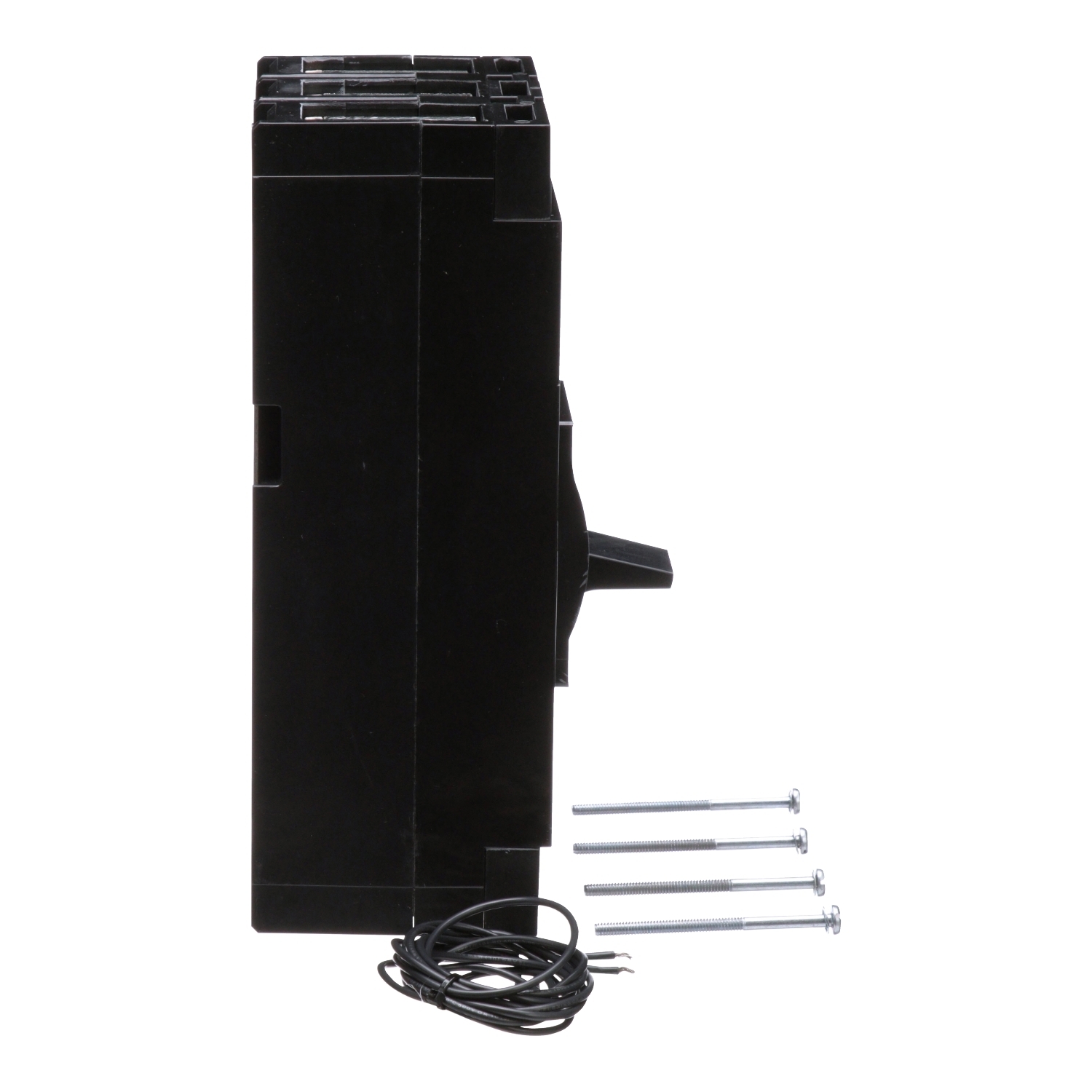

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed 120/240VAC shunt trip. LA breakers are UL 489, CSA, IEC certified.

Manuals & Documentation
Catalog Number LAL364001021
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Connection Lugs, load;lugs, line
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428505&lang=en-us
UPC 785901339496
GTIN 00785901339496
Item Type Circuit breaker
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
Trip Type Thermal-magnetic
