Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery High performance: International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X) Wide range of operating temperatures from -40�C to 70�C allows versatility in usage of product Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine

Manuals & Documentation
Catalog Number XB5AVG4
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Color Red
Connection Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1;screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Shape Round
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=669792&lang=en-us
GTIN 03389110903829

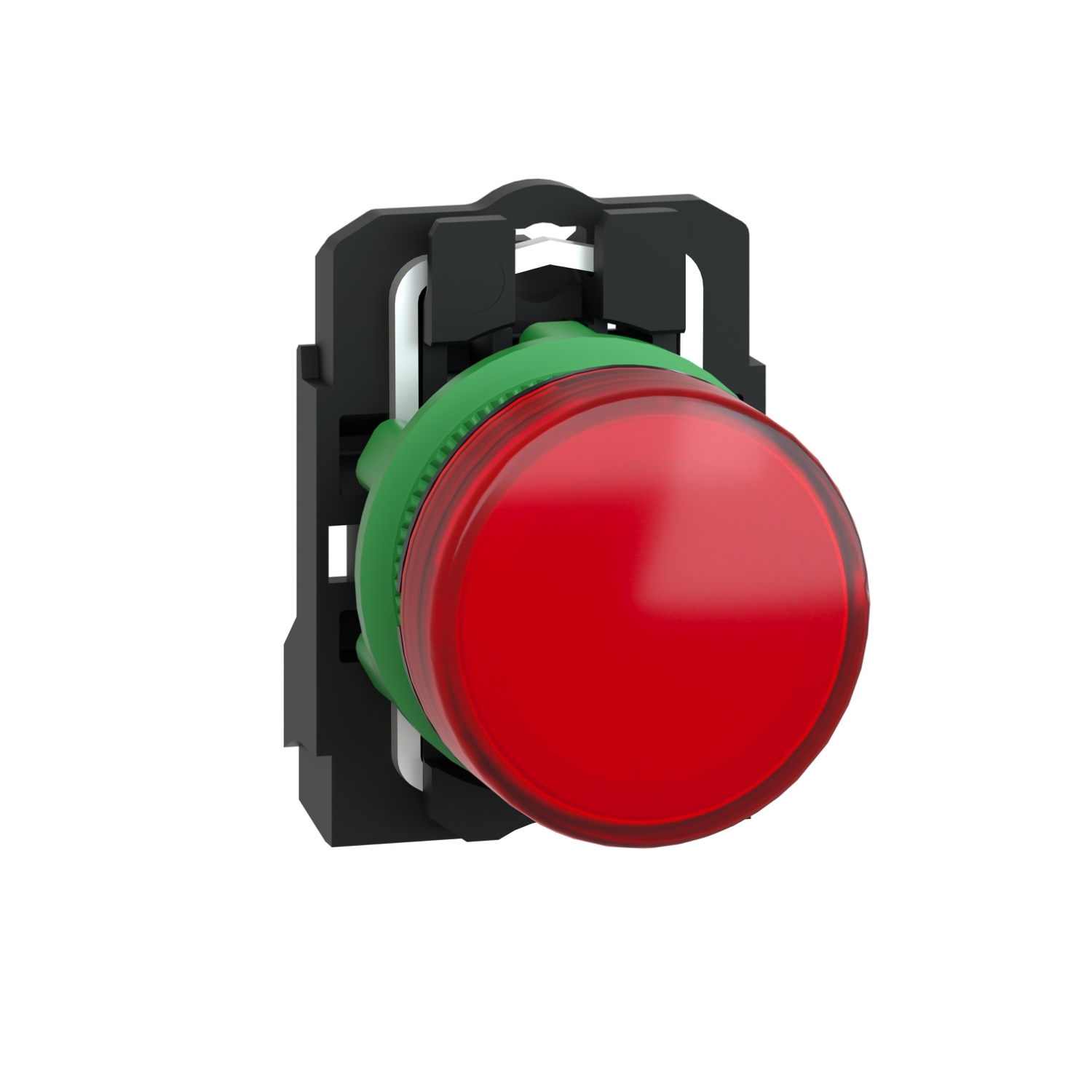

Item Type Pilot light
Voltage Rating 110...120 V AC 50/60 Hz
