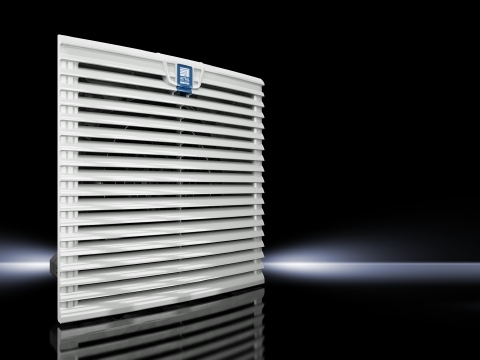

3245500 TopTherm 1-Phase Fan and Filter Unit With EC Technology, 200 to 240 V AC, 1.33 A, 4 W Power Rating, 529.7 cfm Air Flow, NEMA 1/3/3R/12/IP51/52/56 Enclosure
- MFR:
- Rittal
- MFR #:
- 3245500
- UPC:
- 639889869028
- Item #:
- 584548
3245500 TopTherm 1-Phase Fan and Filter Unit With EC Technology, 200 to 240 V AC, 1.33 A, 4 W Power Rating, 529.7 cfm Air Flow, NEMA 1/3/3R/12/IP51/52/56 Enclosure
- MFR #:
- 3245500
- UPC:
- 639889869028
- Item #:
- 584548
TopTherm fan-and-filter units, with EC technology, color: RAL 7035, supply includes: Complete unit ready to install, including filter mat, description: Energy-efficient version of the RTT fan-and-filter units with EC technology. From 180 m/h with integral control interface (0-10 V / PWM input and tachosignal output) to regulate and monitor the fan.
| Catalog Number | 3245500 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Climate Control Solutions |
| Frequency Rating | 50/60 HZ |
| Mounting | Surface |
| Phase | 1 |
| Special Features | Features: Control Interface with Tacho Signal Output Integrated As Standard, Allowing The Fan to Be Controlled and Its Speed Monitored, Diagonal EC Motor |
| Standard | UL Certified 20130211-E76083, CSA C22.2 No. 14, CAN/CSA C22.2 No. 94, UL508A, UL Recognized, cUL Recognized |
| UPC | 639889869028 |
| GTIN | 00639889869028 |
| Item Type | Filter Fan Units with EC Technology |
| Size | 13 (H) x 13 (W) x 0.98 (D) |
| Voltage Rating | 200 to 240 |
