Square D

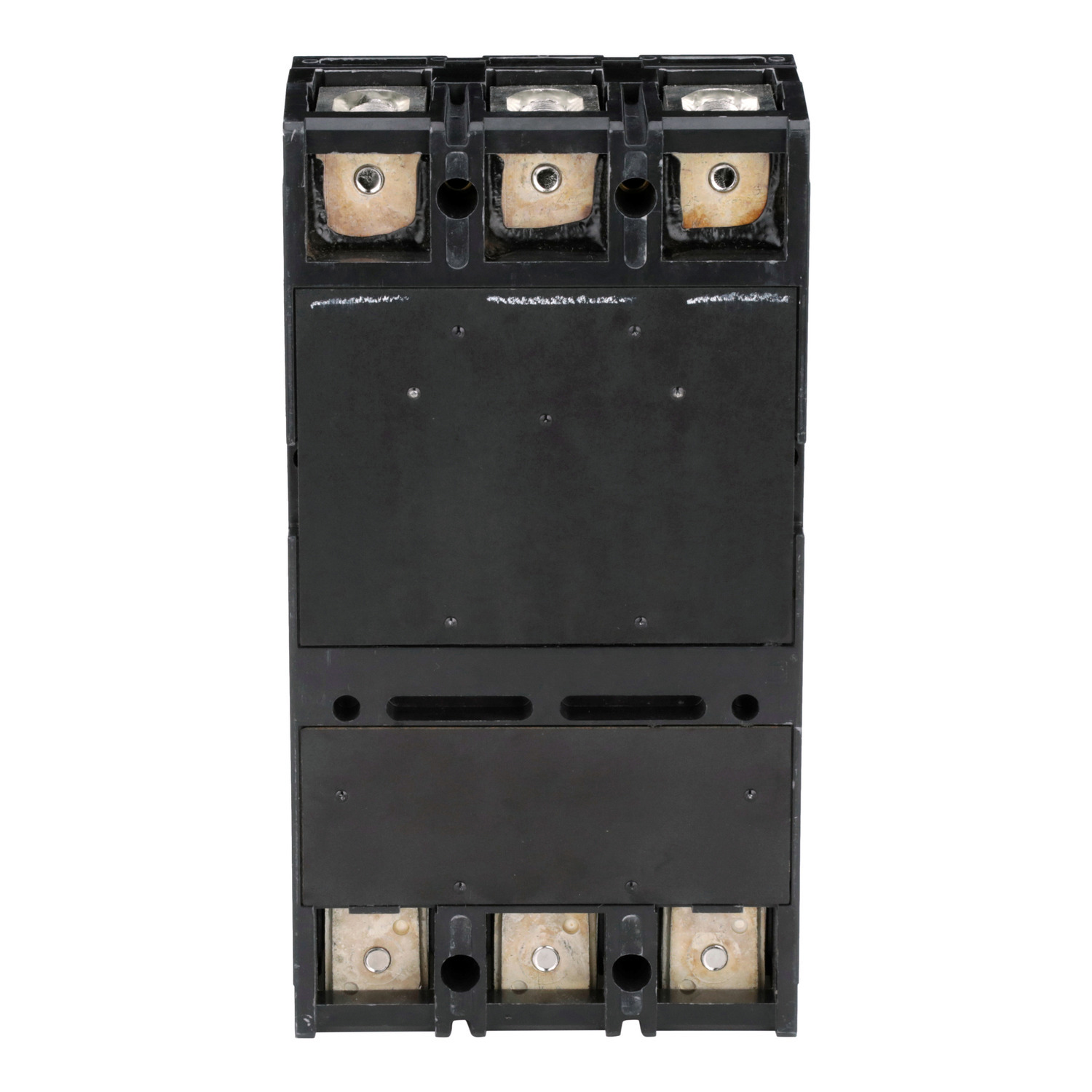

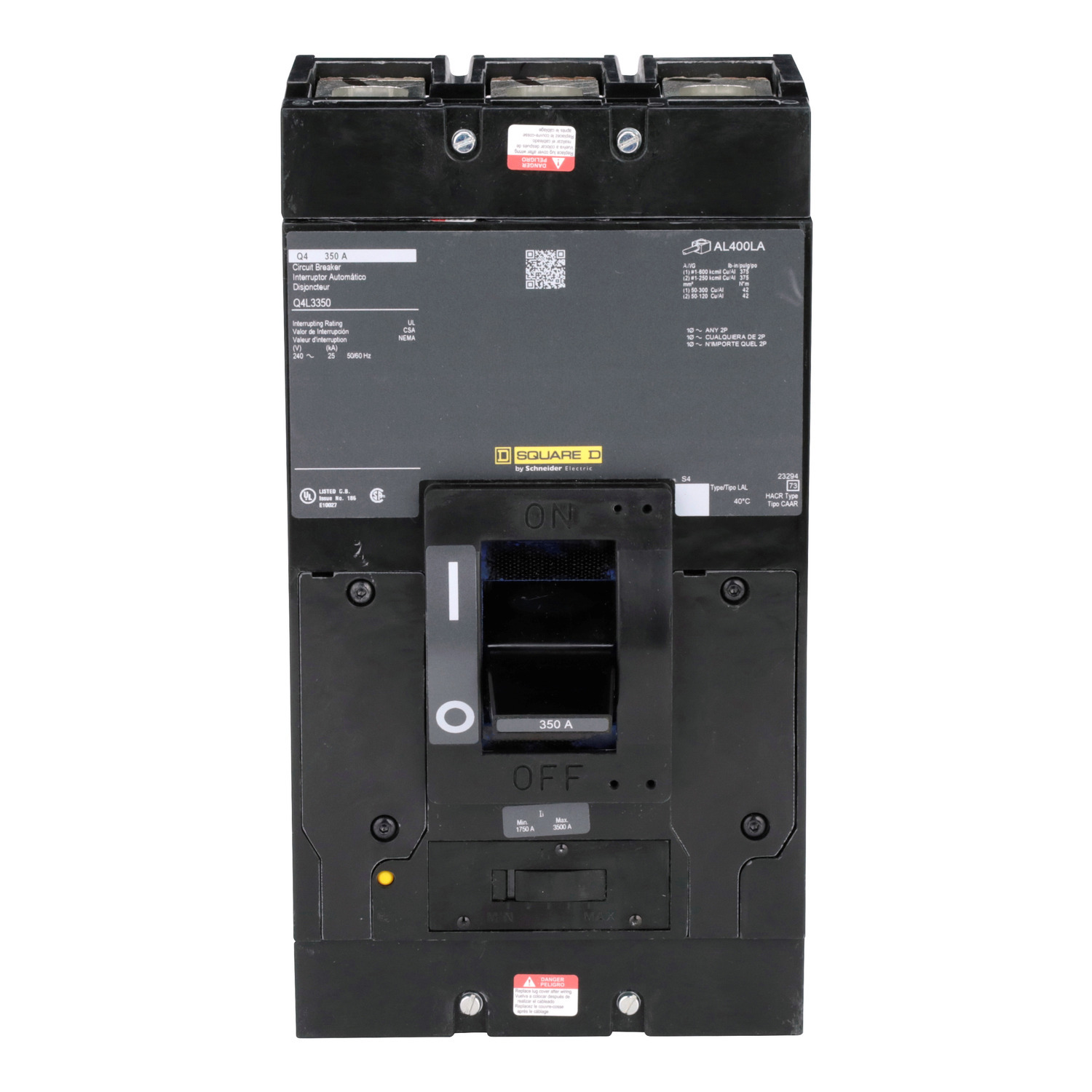

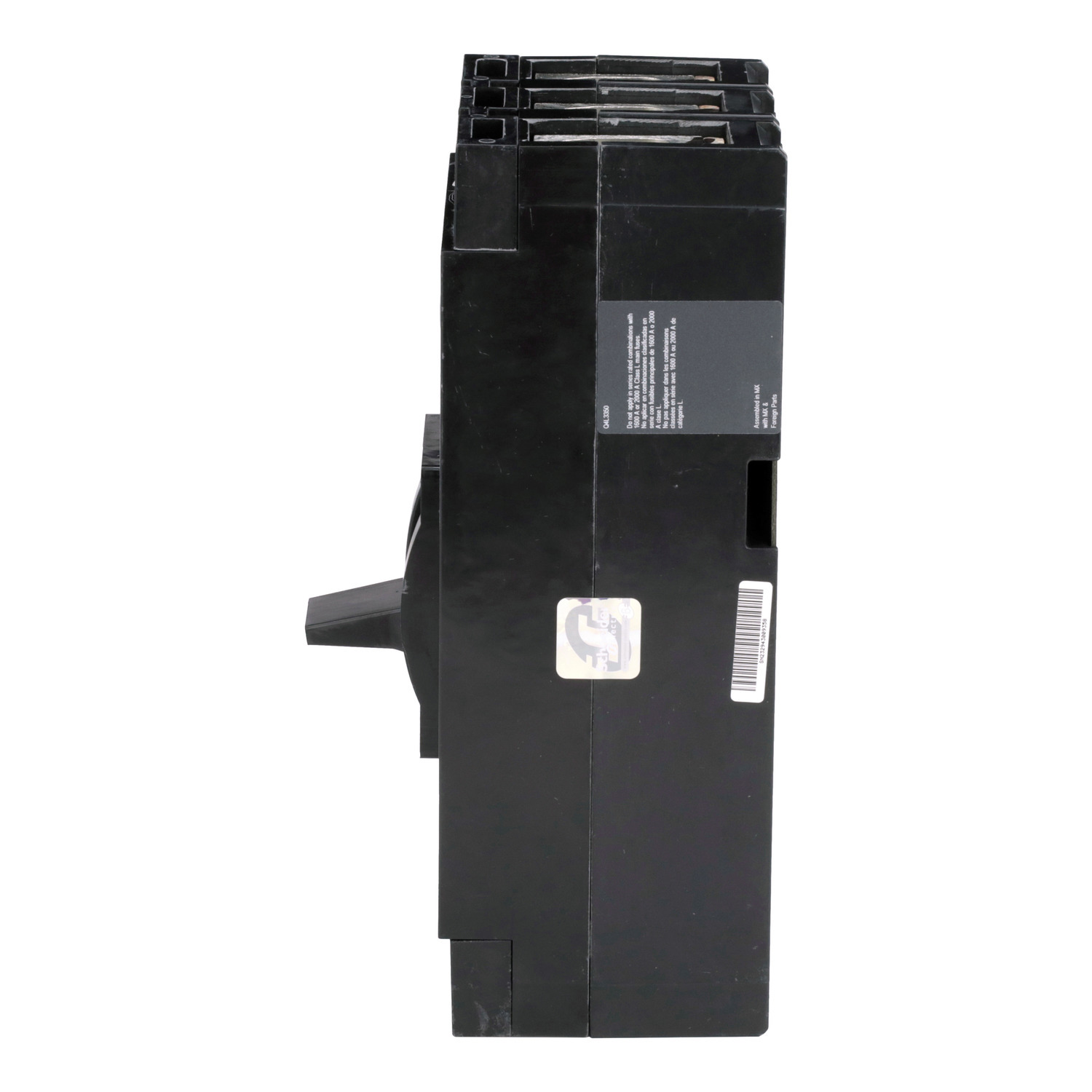

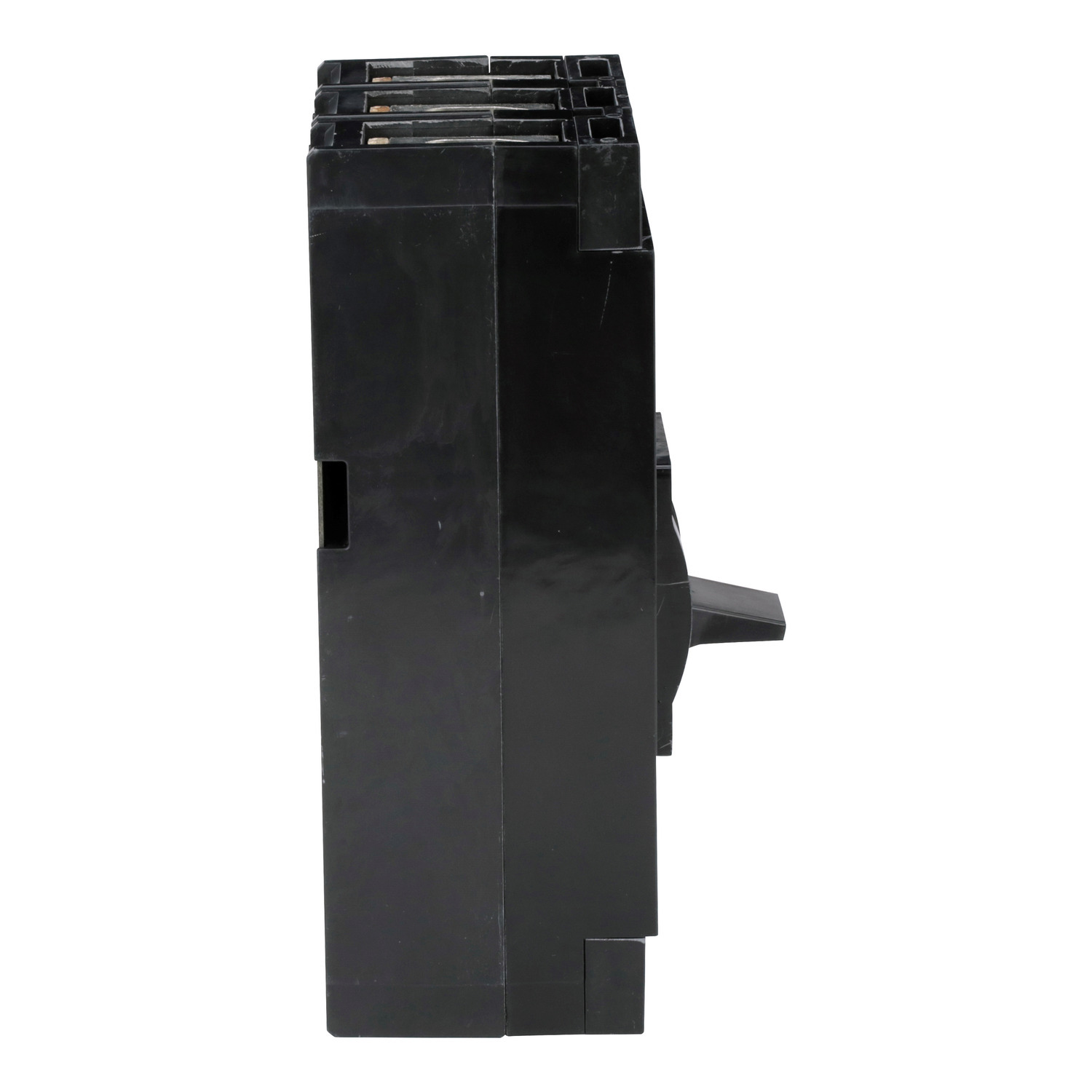

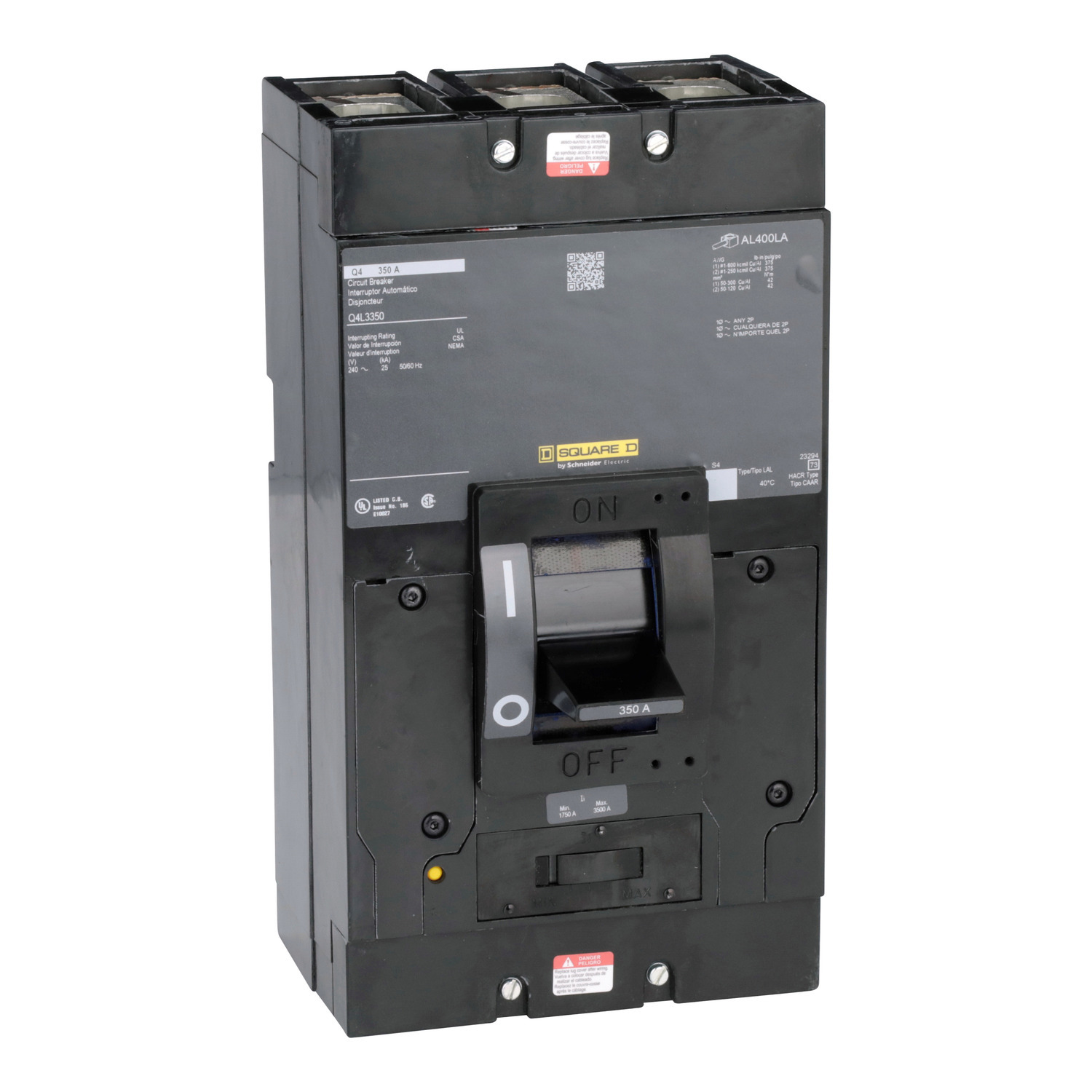

Q4L3350 Molded Case Circuit Breaker, 350 Amp, 3 Pole, 240V

MFR:
Schneider Electric
MFR #:
Q4L3350
UPC:
785901649274
Item #:
583928

Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D Q4 molded case circuit breaker is a 3 pole unit mount breaker, 350A and 240VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA at 240VAC. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.

Manuals & Documentation
Catalog Number Q4L3350
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Connection Lugs, load;lugs, line
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434405&lang=en-us
UPC 785901649274
GTIN 00785901649274
Item Type Circuit breaker
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
Trip Type Thermal-magnetic
