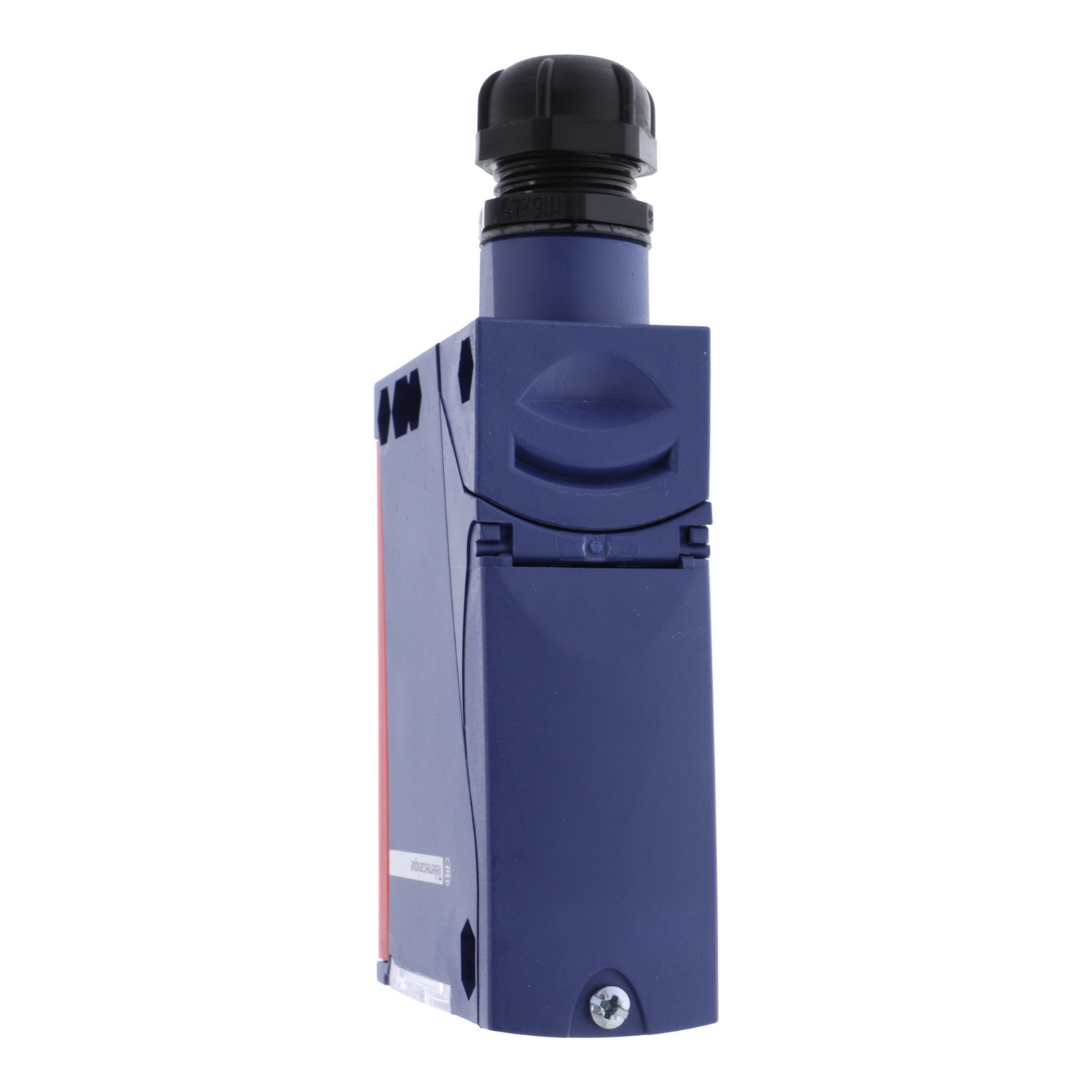

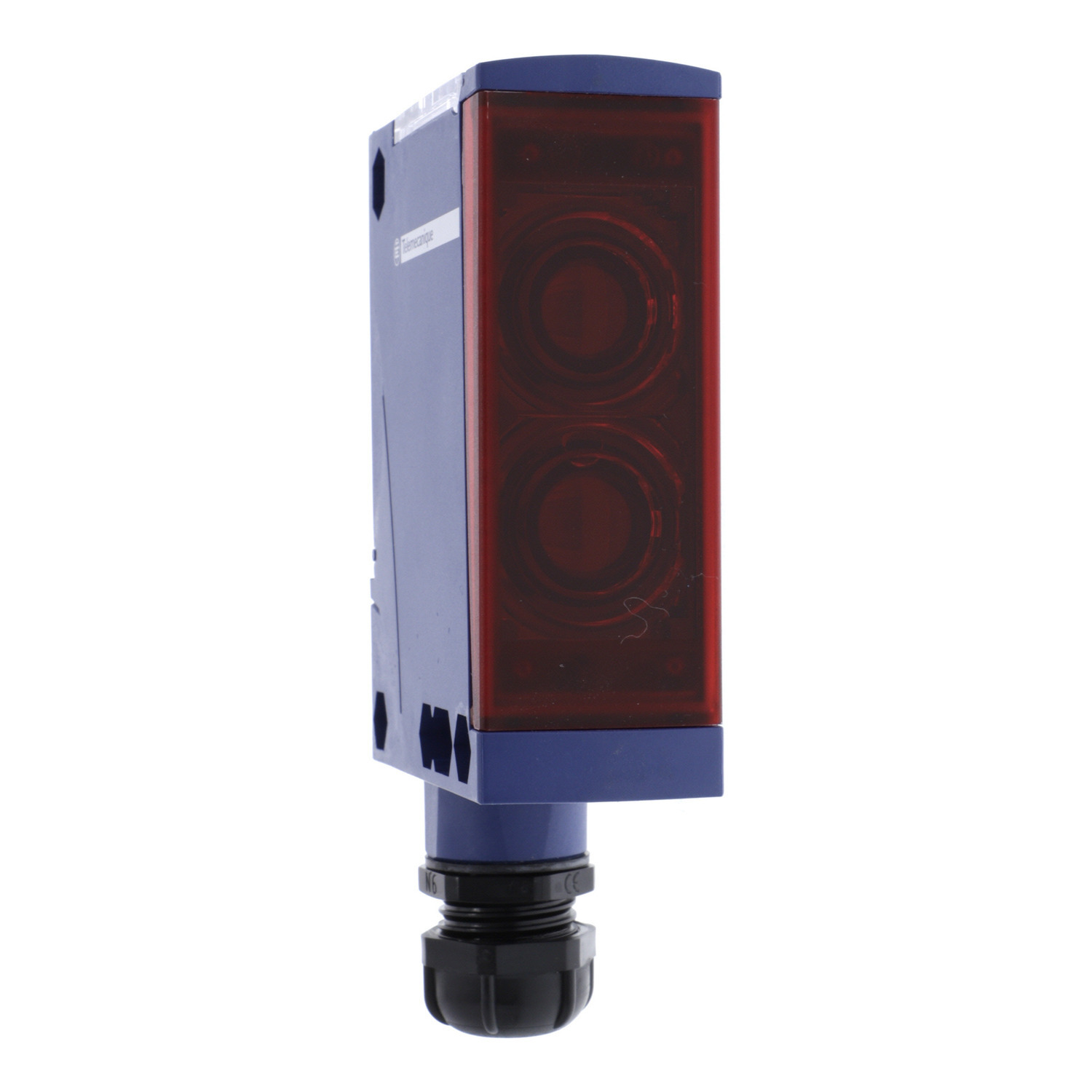

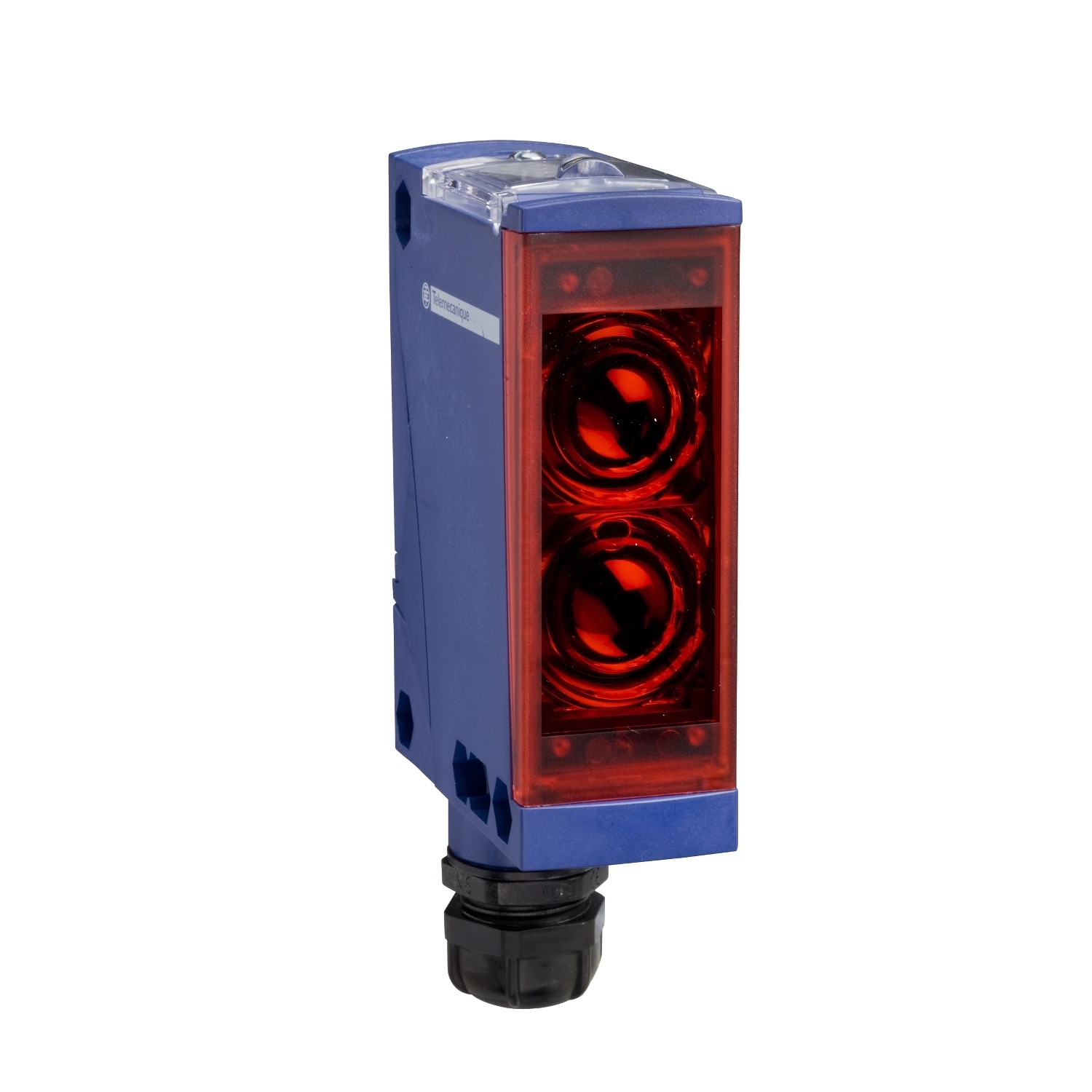

XUX5ARCNT16 OsiSense XU Simply Easy 5-Wire Compact Corrosion-Resistant Dusttight/Oiltight/Watertight Proximity Photoelectric Sensor, Rectangle Shape, 3 m, Infrared Sensing Beam, <25 ms Response, Relay/1CO Output

MFR:
Telemecanique Sensors
MFR #:
XUX5ARCNT16
UPC:
785901500957
Item #:
582178

This compact design single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals & Documentation
Catalog Number XUX5ARCNT16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connection Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Operating Cycles <= 20 Hz
Output 1 C/O;Discrete;Relay
Sensing Range 2.1-2.1 M DIFFUSE,> 3.28...16.4 FT (> 1...5 M)
Special Features 1 LED yellow)output state;1 LED green)supply
Standard IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529,UL-CSA-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876206&lang=en-us
UPC 785901500957
GTIN 03389110171105
Item Type General purpose single mode;Diffuse;Compact 92 x 71;Photo-electric sensor
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 24...240 V AC/DC
Wattage 2 W AC/DC
