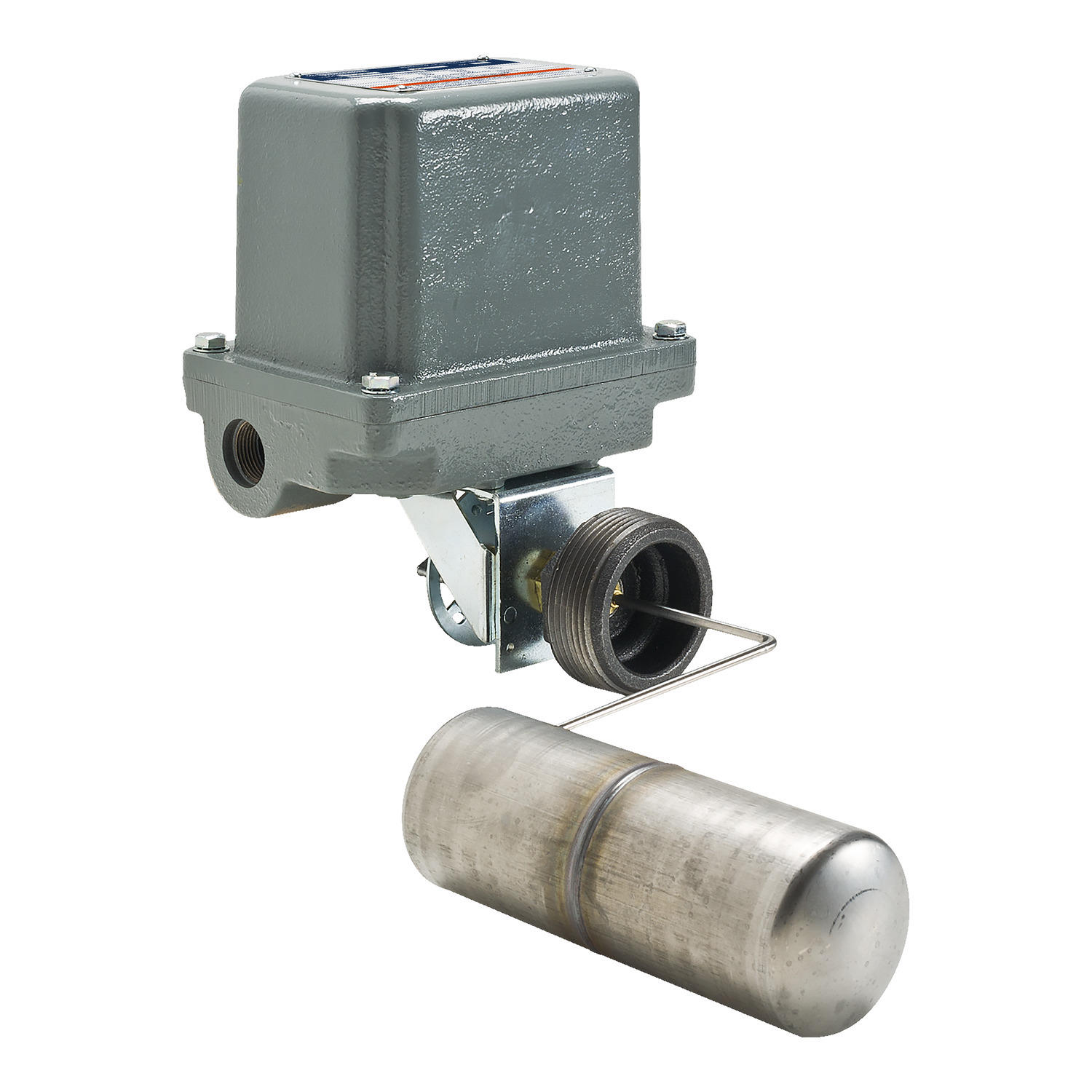

9038CW31 2-Pole Type C Float Switch, 575 V AC
- MFR:
- Telemecanique Sensors
- MFR #:
- 9038CW31
- UPC:
- 785901064404
- Item #:
- 580892
9038CW31 2-Pole Type C Float Switch, 575 V AC
- MFR #:
- 9038CW31
- UPC:
- 785901064404
- Item #:
- 580892
mech alternator-closed tank - NEMA 4 - screw-in bushing - 4 NC DPST-DB contacts
Manuals & Documentation
| Catalog Number | 9038CW31 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Contacts close on liquid rise |
| Application | Mechanically alternating the operation of two pumps or motors;Power circuit;Closed tank with bushing;For closed tank |
| Connection | Screw-clamp terminals 10 AWG;8 terminals |
| Enclosure | NEMA 4 |
| Mounting | Screw |
| Number of Poles | 2 |
| Special Features | Set of 1;Without |
| Standard | CE-UL 508,NEMA 4 UL 50,UL LISTED FILE E12158-CSA FILE LR25490 |
| UPC | 785901064404 |
| GTIN | 00785901064404 |
| Item Type | Mechanical alternator |
| Temperature Rating | -22-220 A Degrees F |
| Voltage Rating | 575VAC |
