Telemecanique

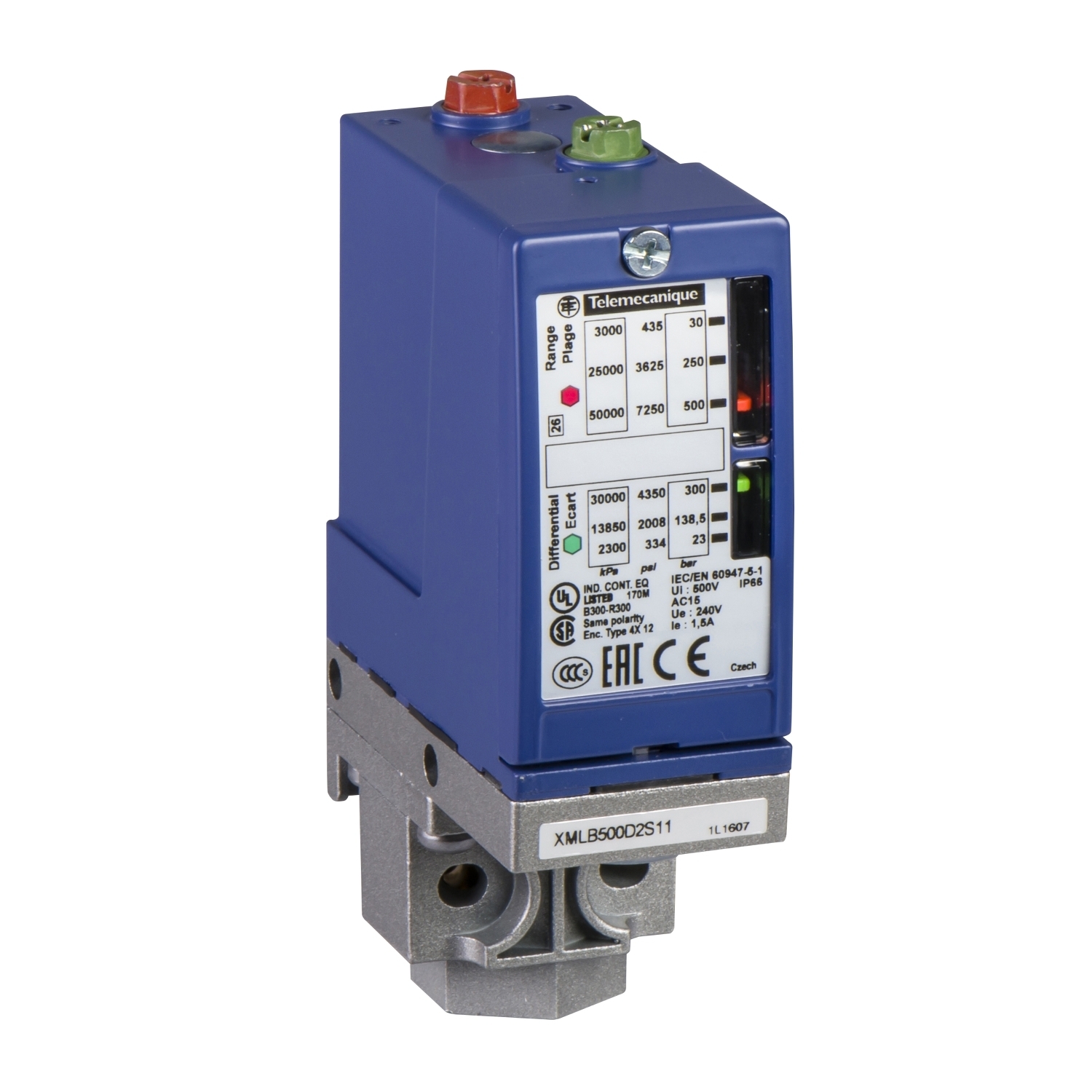

XMLB300D2S11 OsiSense XM Adjustable Differential Electromechanical Pressure Switch, 300 bar Pressure, 200 bar Differential, 1CO Contact, Screw Clamp/Cable Gland Connection, 3 A at 120 V AC/1.5 A at 240 V AC/0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
XMLB300D2S11
UPC:
785901876977
Item #:
580453

This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 300bar, this makes it ideal for hydraulic presses, water jet cutting machines.

Manuals & Documentation
Catalog Number XMLB300D2S11
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Application Regulation between 2 thresholds;-;Control circuit
Contact Configuration 1 C/O
Enclosure Zinc alloy
Operating Cycles 60 CYC/MN
Process Connection G 1/4 (FEMALE) ISO 228
Special Features IP66 CONFORMING TO EN/IEC 60529,SCREW-CLAMPS TERMINALS 1 X 0.5...2 X 2.5 MM²-1 CONNECTOR PG 13
Standard CSA C22.2 NO 14-EN/IEC 60947-5-1-CE-UL 508,CSA-BV-EAC-LROS (LLOYDS REGISTER OF SHIPPING)-CCC-UL,IP66 EN/IEC 60529,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=862494&lang=en-us
UPC 785901876977
GTIN 03389110714388
Item Type Electromechanical pressure sensor;Electromechanical pressure sensor;Adjustable differential
Operating Temperature -25-70 A Degrees C
System Pressure 4351.13
