Appleton

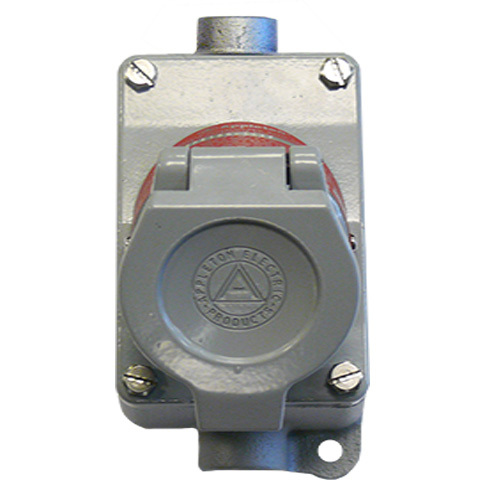

CPC12375 CPS 1-Gang Feed Through Explosionproof Receptacle Assembly With EFD Mounting Boxes, 120 to 240 V AC/24 V DC, 20 A, 3 Poles, 2 Wires

MFR:
Appleton Electric
MFR #:
CPC12375
UPC:
781381196109
Item #:
580237

Appleton CPS Series 1-Gang Receptacle With EFD Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 120 - 240 VAC, 24 VDC, Material: Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover, Malleable Iron Mou

Manuals & Documentation
Catalog Number CPC12375
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For CPP-2023 Plug
Connection Pressure Wire Terminal
Material Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover, Malleable Iron Mounting Box
Mounting Surface
NEMA Rating 3R
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dead-front safety construction; Factory sealed: external seals not required; CPS series receptacles are supplied with pressure terminal connectors; Captive stainless steel hex head slotted screws; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass reinforced thermoset polyester insulating blocks; Energizes receptacle terminals deeply recessed to prevent accidental touching
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203) UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
UPC 781381196109
GTIN 00781381196109
Item Type CPS Series 1-Gang Receptacle With EFD Mounting Box
Voltage Rating 120 - 240 VAC, 24 VDC
