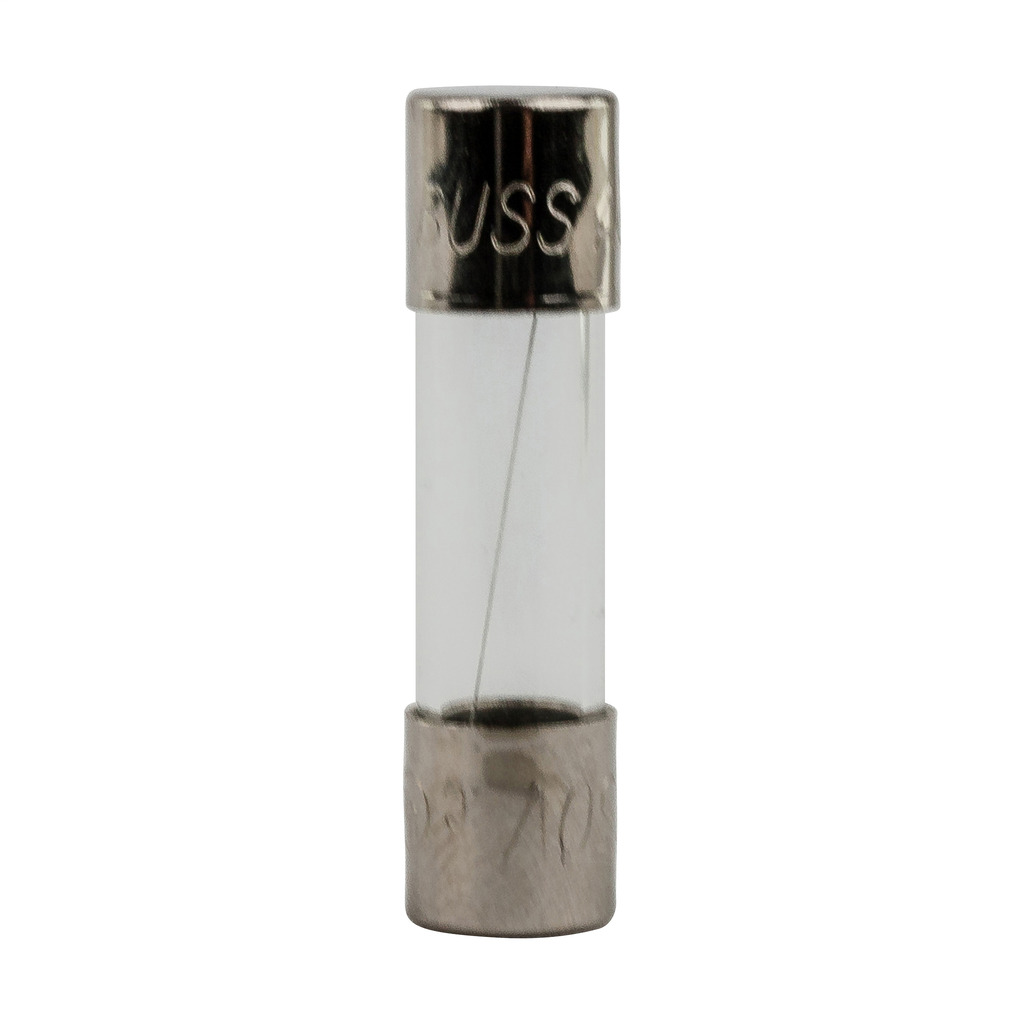

AGX-1/2 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 0.5 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- AGX-1/2
- UPC:
- 051712704724
- Item #:
- 578547
AGX-1/2 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 0.5 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR #:
- AGX-1/2
- UPC:
- 051712704724
- Item #:
- 578547

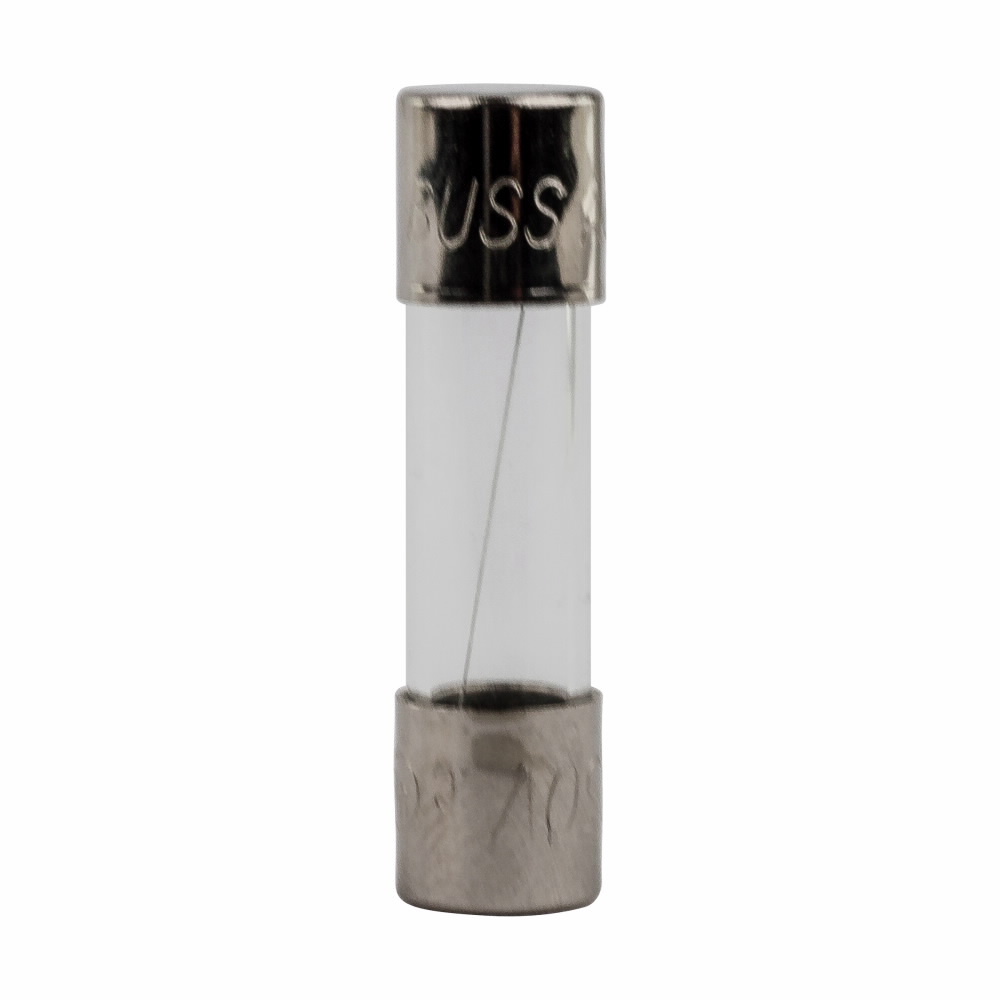

Fast-acting, glass tube 1/4" x 1" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Eatons AGX fast-acting, glass tube 1/4" x 1" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip.
Manuals & Documentation
| Catalog Number | AGX-1/2 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 10 kAIC at 125 Vac|35 AIC at 250 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 4 hr at 110%, 60 min at 135%, 5 sec at 200% |
| Special Features | Glass tube |
| Standard | Not Applicable |
| UPC | 051712704724 |
| GTIN | 00051712704724 |
| Item Type | Fast-acting fuse |
| Weight UOM | Pounds |
| Size | 0.25 In Diameter X 1.00 In Length |
| Voltage Rating | 250 Vac, 32 Vdc |
