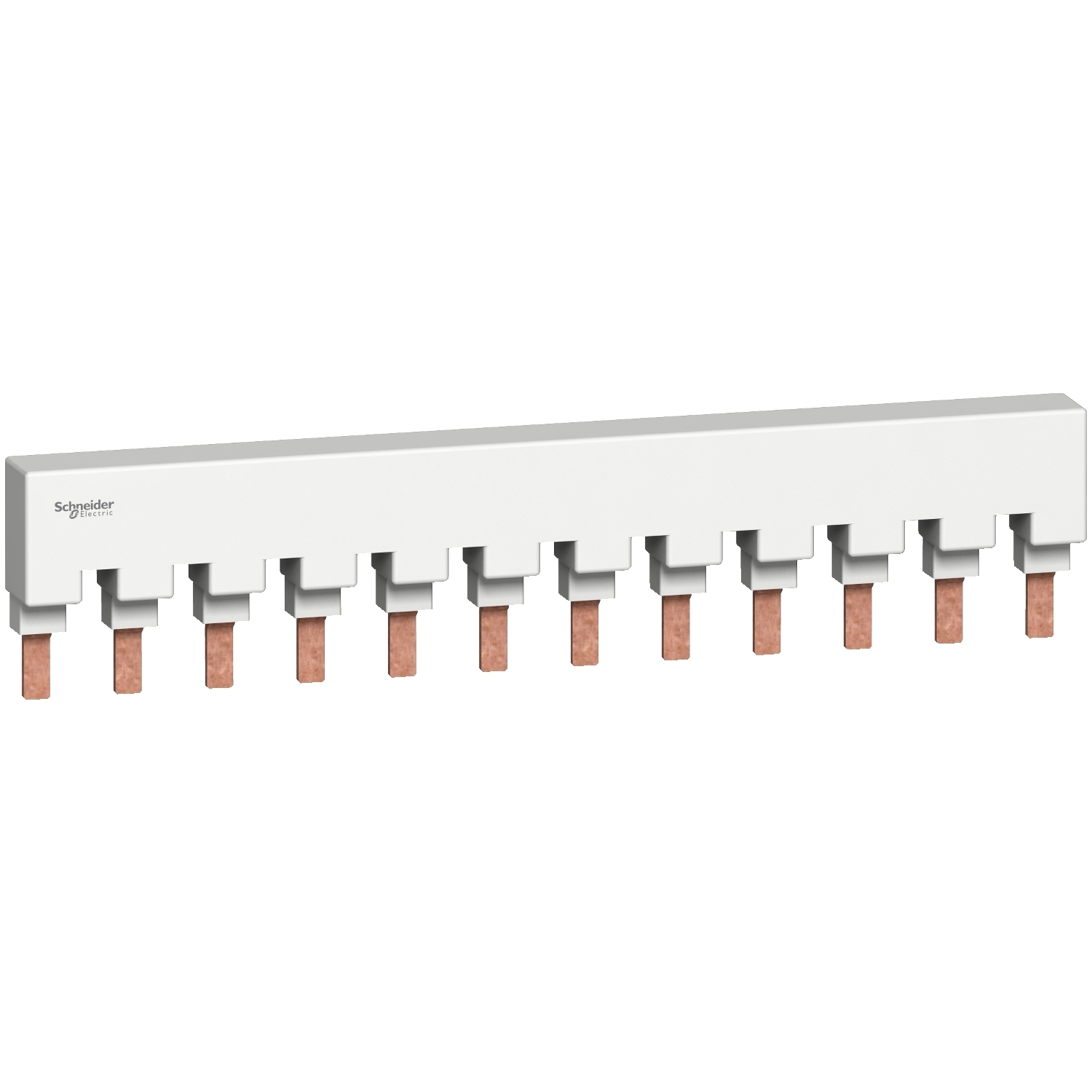

M9XUP312 Combination Busbar, For Use With Multi9 C60BP M9XU Series 115 A 277/480 V AC Miniature Circuit Breaker, 12 Modules, 18 mm Pitch, 3 Lines Description, Light Gray
- MFR:
- Schneider Electric
- MFR #:
- M9XUP312
- Item #:
- 578458
M9XUP312 Combination Busbar, For Use With Multi9 C60BP M9XU Series 115 A 277/480 V AC Miniature Circuit Breaker, 12 Modules, 18 mm Pitch, 3 Lines Description, Light Gray
- MFR #:
- M9XUP312
- Item #:
- 578458
This Multi9 product is an uncuttable horizontal comb busbar 12 modules for Multi9 C60BP. It is dedicated to (Line) installations. The distribution type is 3L. It is a set of 1device. The length is 216mm. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 1000VAC. The color is light grey (RAL 7035). The degree of protection is IP20 with end-pieces and tooth covers. The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960C within 30s conforming to IEC 60695-2-1. It complies with UL 508 standard.
Manuals & Documentation
| Catalog Number | M9XUP312 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Germany |
| Made in USA | No |
| Connector Type | tooth |
| Insulation | Insulated |
| Standard | UL 508;UL 489;EN/IEC 61439-1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459718394&lang=en-us |
| GTIN | 03606481192844 |
| Item Type | Comb busbar |
| Width | 8.50390 |
| Width UOM | Inch |
| Voltage Rating | 480 V AC 50/60 Hz Ph/Ph;277 V AC 50/60 Hz Ph/N |
