Appleton

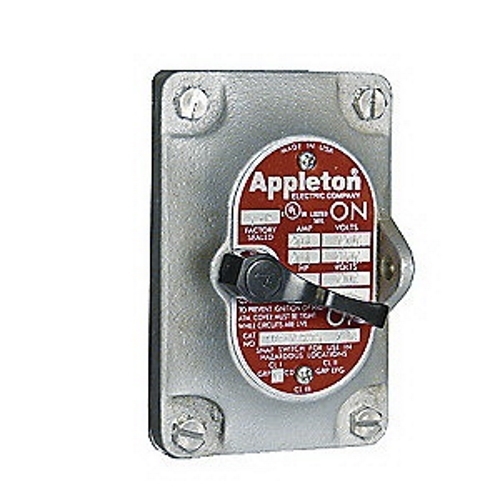

1-Gang Front Operated Switch Cover; Aluminum, For EDS Series Tumbler Switches

MFR:
Appleton Electric
MFR #:
EDKF21AQ
UPC:
781381795319
Item #:
576842

1-Gang Front Operated Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Material: Aluminum, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For EDS Series Tumbler Switches

Manuals & Documentation
Catalog Number EDKF21AQ
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For EDS Series Tumbler Switches
Enclosure NEMA 7CD, 9EFG
Special Features Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models); Tumbler switch devices are approved for installation without additional external sealing fittings; Sealing chamber has prewired factory sealed pigtail leads to switch; Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction; Threaded stainless steel operating handle provides positive Corrosion resistant operation; For installation in: Chemical plants, petrochemical plants, Refineries and process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of light
Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381795319
GTIN 00781381795319
Item Type 1-Gang Front Operated Switch Assembly
Voltage Rating 120 - 277
