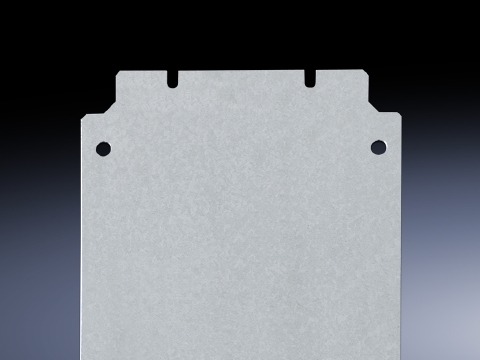

1569700 Mounting Plate, For Use With KL, KL-HD Series 12 in H x 20 in W Enclosure, NEMA 4/IP66 Degree of Protection, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 1569700
- UPC:
- 639889161559
- Item #:
- 576739
1569700 Mounting Plate, For Use With KL, KL-HD Series 12 in H x 20 in W Enclosure, NEMA 4/IP66 Degree of Protection, Sheet Steel
- MFR #:
- 1569700
- UPC:
- 639889161559
- Item #:
- 576739
Mounting plates, for KL and KL-HD, material: Sheet steel, 2.0 mm, surface: Zinc-plated, description: Mounting plates for component installation outside of the enclosure.
Features
- Size: 500 mm Width x 300 mm Height
| Catalog Number | 1569700 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Finish | Zinc-Plated |
| Material | Sheet Steel |
| NEMA Rating | 4 |
| Special Features | Features: For Component Installation Outside of the Enclosure, Assembly Screws Included as Accessories with the Enclosure |
| Standard | UL Listed, CSA Certified, TUV, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas, VDE |
| RoHS Indicator | Yes |
| UPC | 639889161559 |
| GTIN | 00639889161559 |
| Item Type | Mounting Plate |
| Length | 19.2910 |
| Length UOM | Inch |
| Width | 11.2200 |
| Width UOM | Inch |
| Height | 1.1810 |
| Height UOM | Inch |
| Weight | 5.511 |
| Weight UOM | Pounds |
| Size | 485 (H) x 275 (W) |
