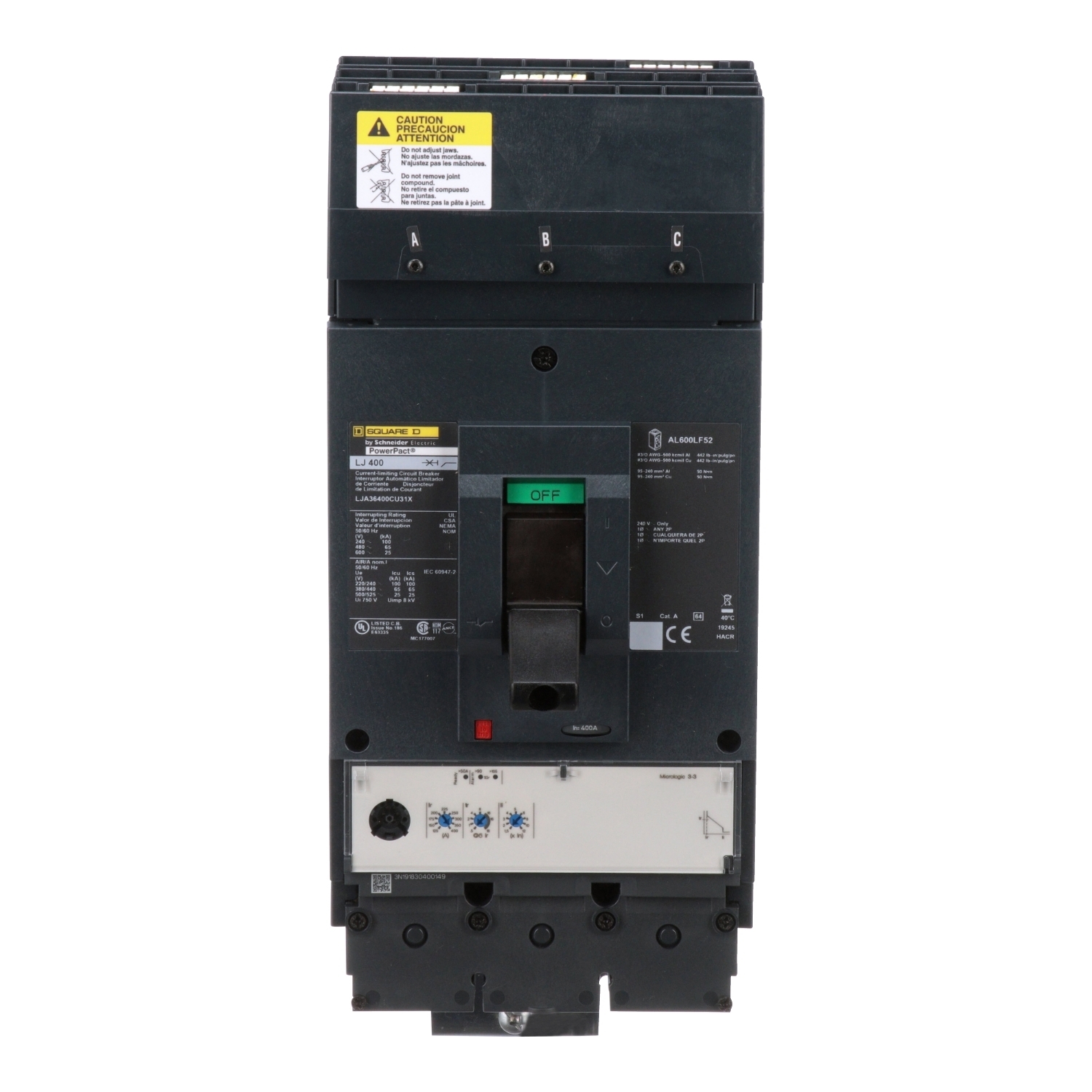

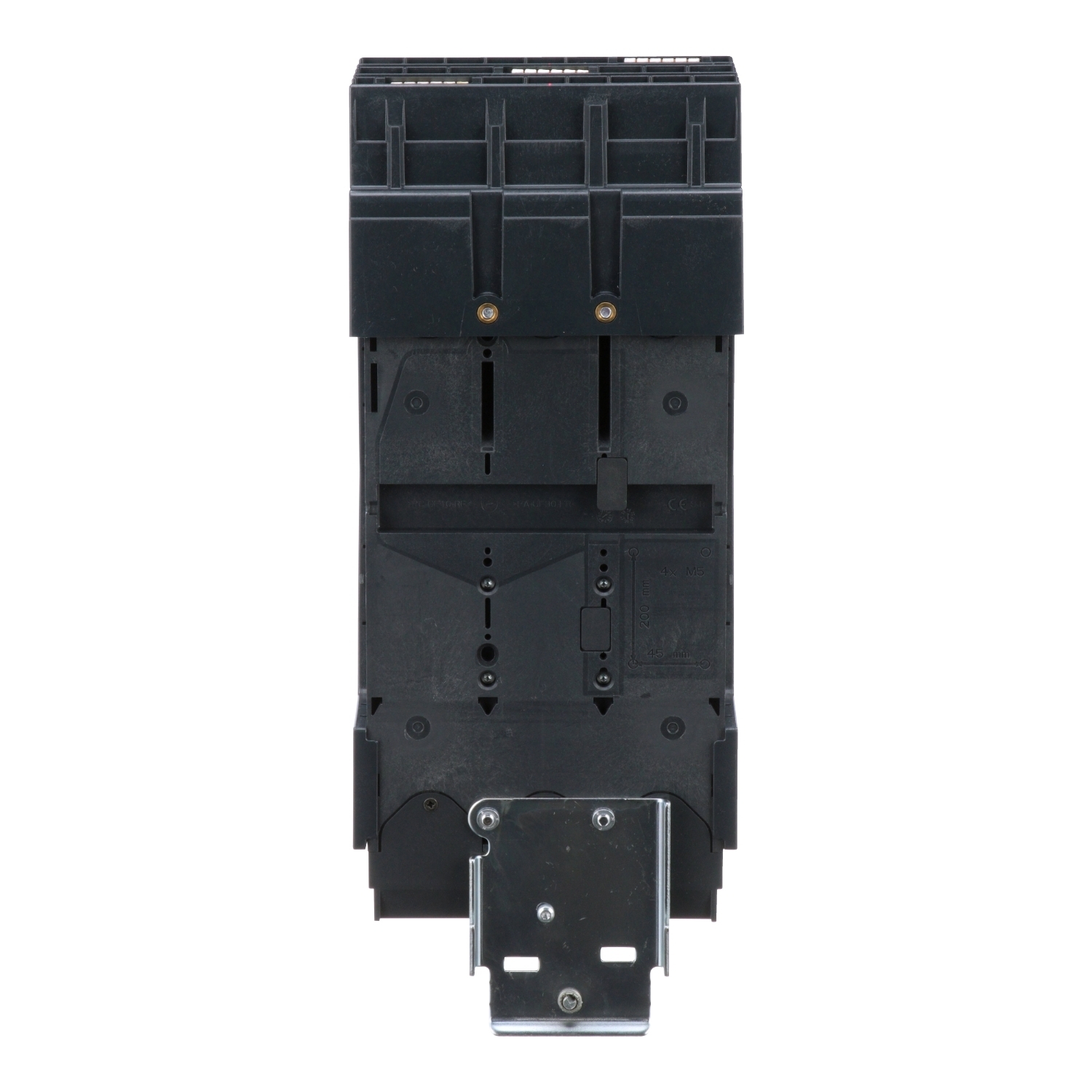

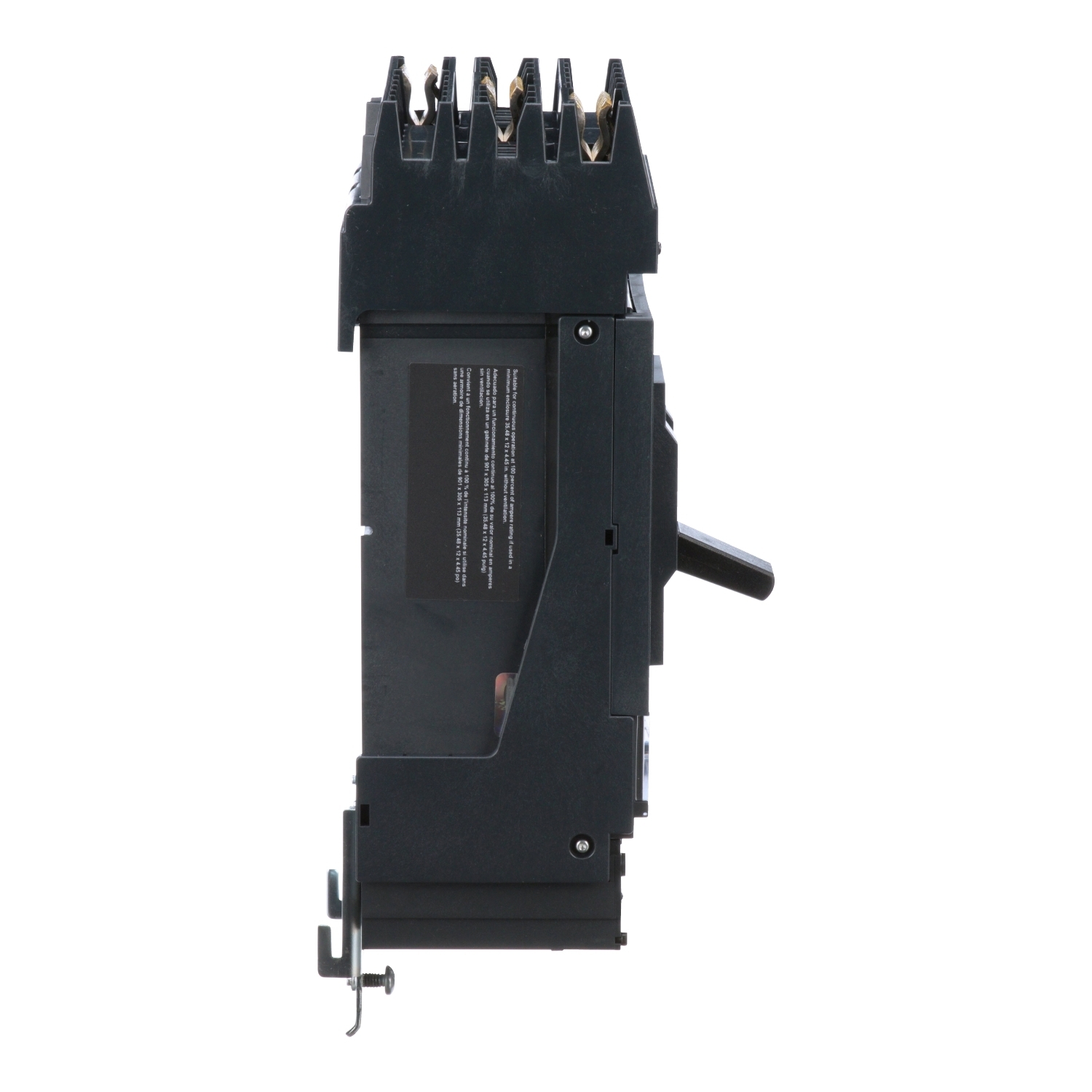

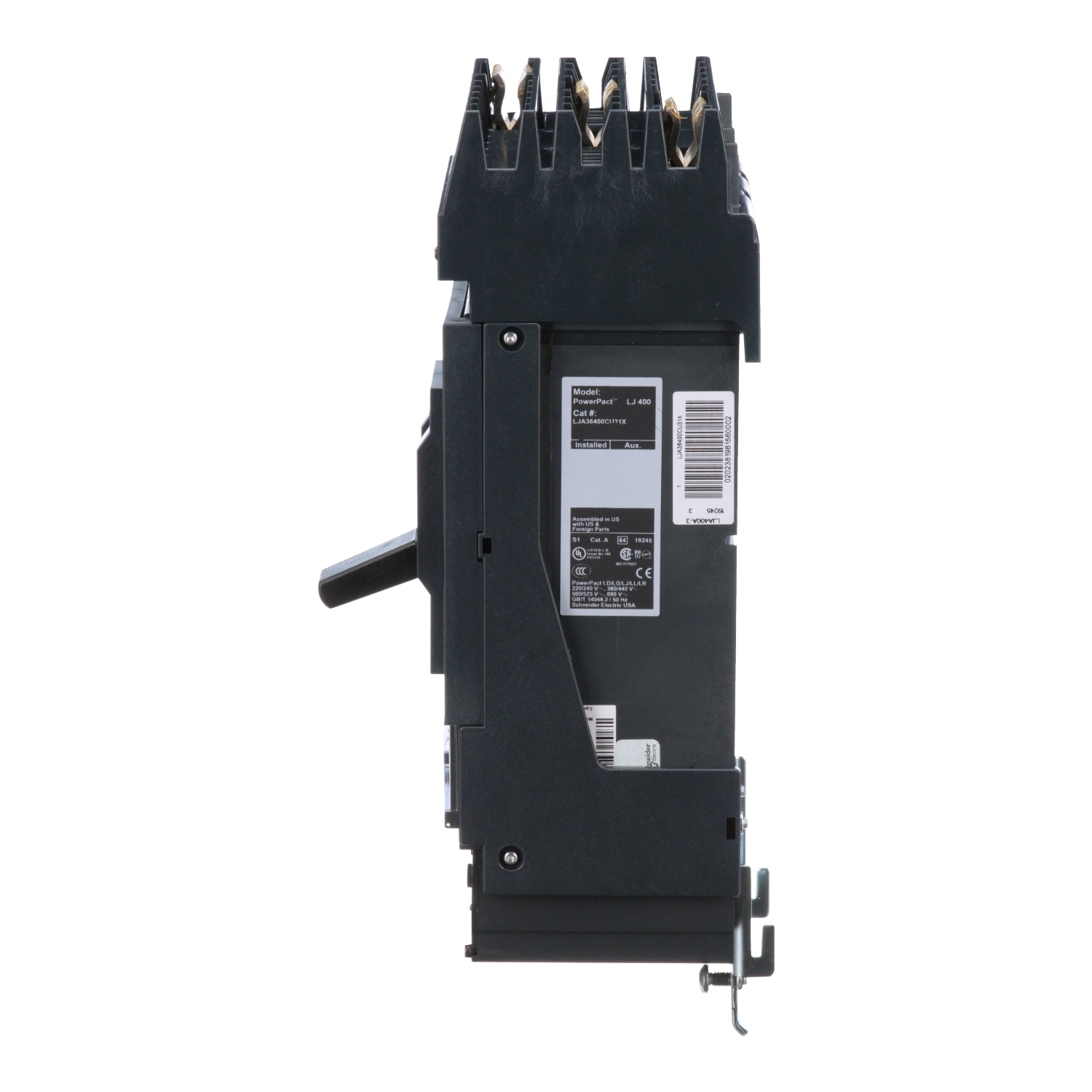

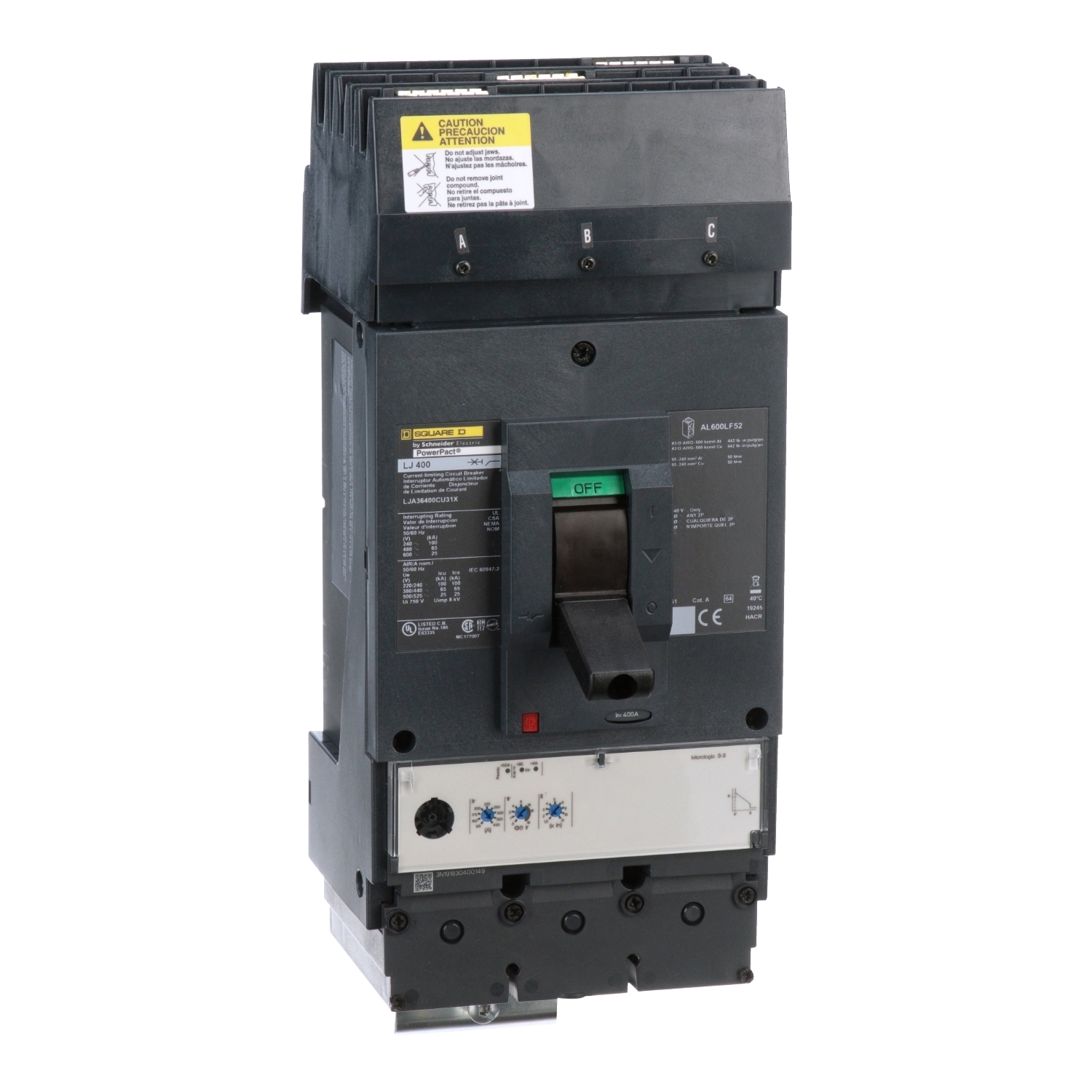

LJA36400CU31X I-Line PowerPact Standard L Molded Case Circuit Breaker, 600 V AC, 400 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- LJA36400CU31X
- UPC:
- 785901395430
- Item #:
- 575855
LJA36400CU31X I-Line PowerPact Standard L Molded Case Circuit Breaker, 600 V AC, 400 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- LJA36400CU31X
- UPC:
- 785901395430
- Item #:
- 575855
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | LJA36400CU31X |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Black |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667930&lang=en-us |
| UPC | 785901395430 |
| GTIN | 00785901395430 |
