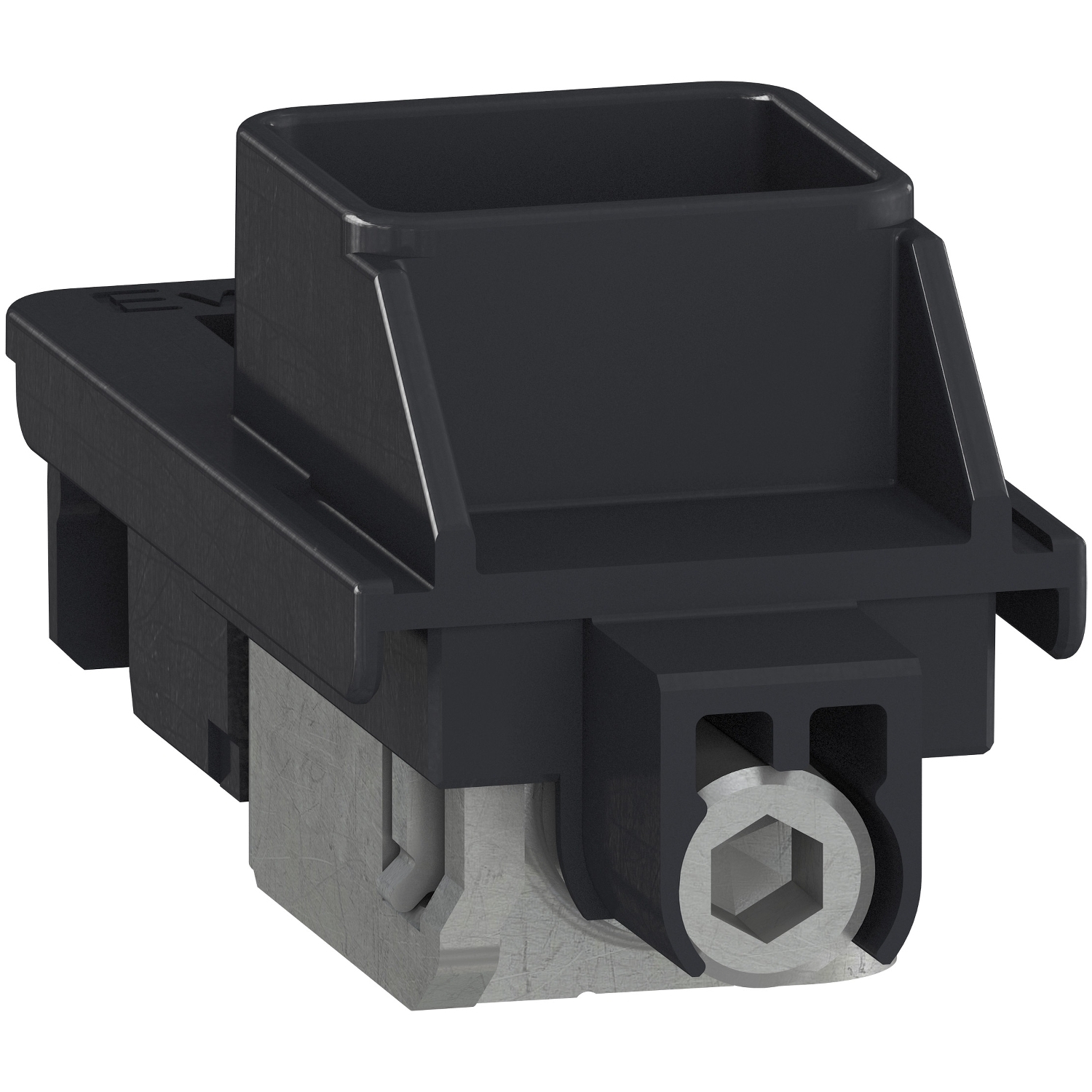

LV426972 EverLink Lug Connector Kit, 14 to 3/0 AWG Solid Stranded/6 to 2/0 AWG Fine Stranded, For Use With PowerPact B Frame 15 to 125 A 1-Pole Molded Case Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- LV426972
- Item #:
- 575562
LV426972 EverLink Lug Connector Kit, 14 to 3/0 AWG Solid Stranded/6 to 2/0 AWG Fine Stranded, For Use With PowerPact B Frame 15 to 125 A 1-Pole Molded Case Circuit Breaker
- MFR #:
- LV426972
- Item #:
- 575562
PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for one pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream.
Manuals & Documentation
| Catalog Number | LV426972 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | PowerPact PowerPact B |
| Connection | Screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid;screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded;screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded |
| Material | Steel |
| Number of Poles | 1 |
| Special Features | Set of 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442340083&lang=en-us |
| GTIN | 03606481154477 |
| Item Type | Cable connector;Connection accessories |
