Lutron

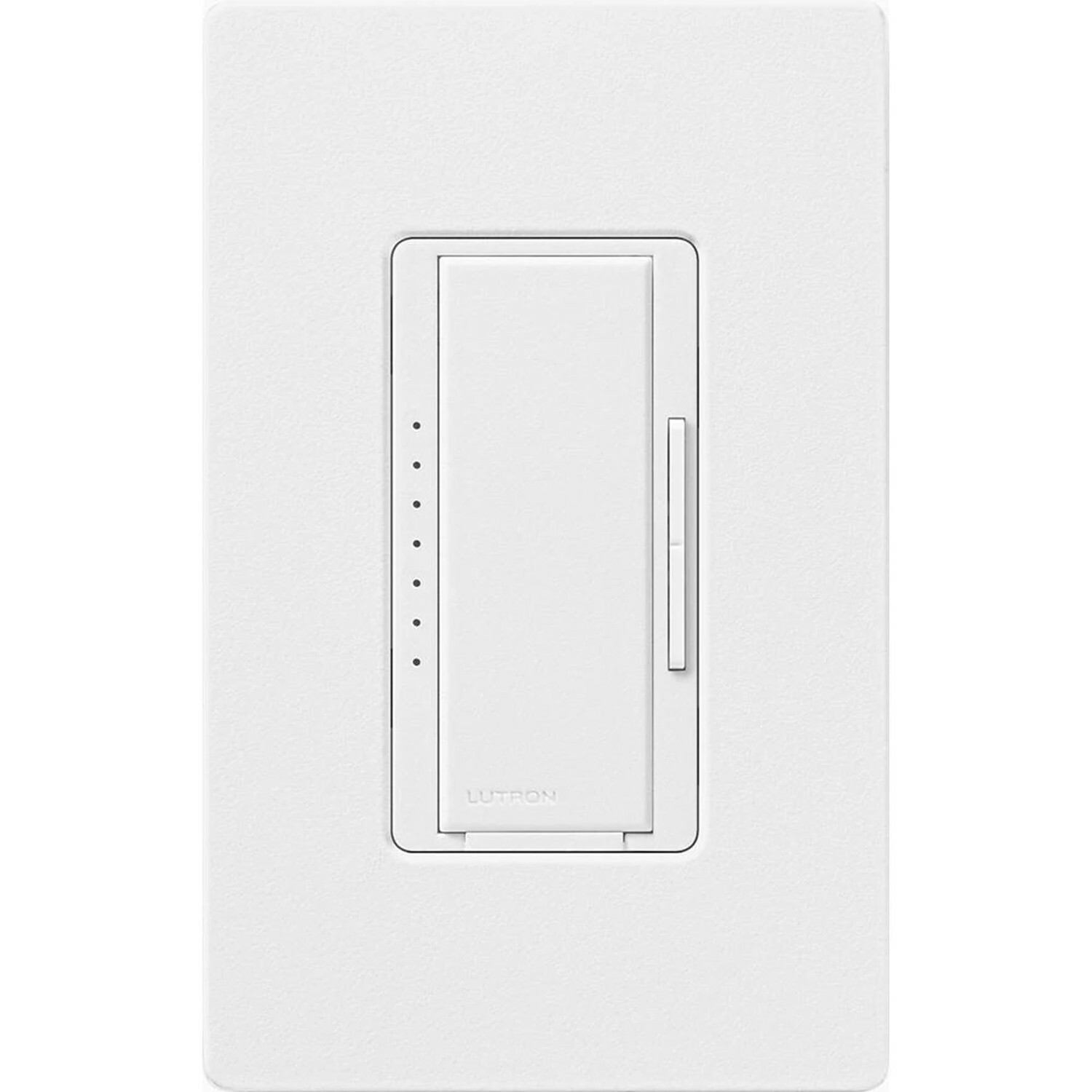

MA-PRO-SW Maestro PRO LED+ Dimmer Switch, 250W LED/500W ELV/400VA MLV, Neutral Optional, 1 Pole/Multi-Location, 120V, Snow

MFR:
Lutron Electronics
MFR #:
MA-PRO-SW
UPC:
784276261722
Item #:
575460

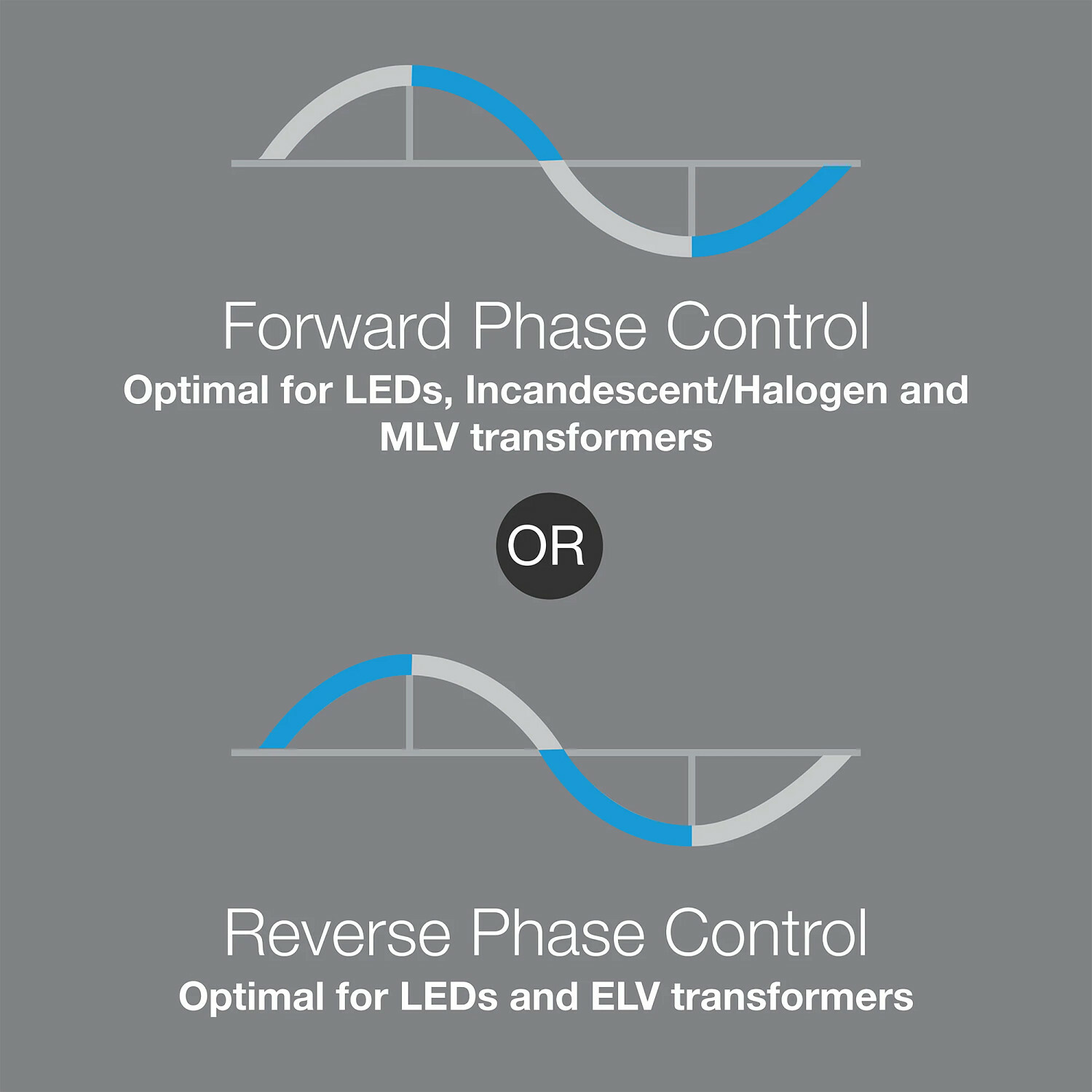

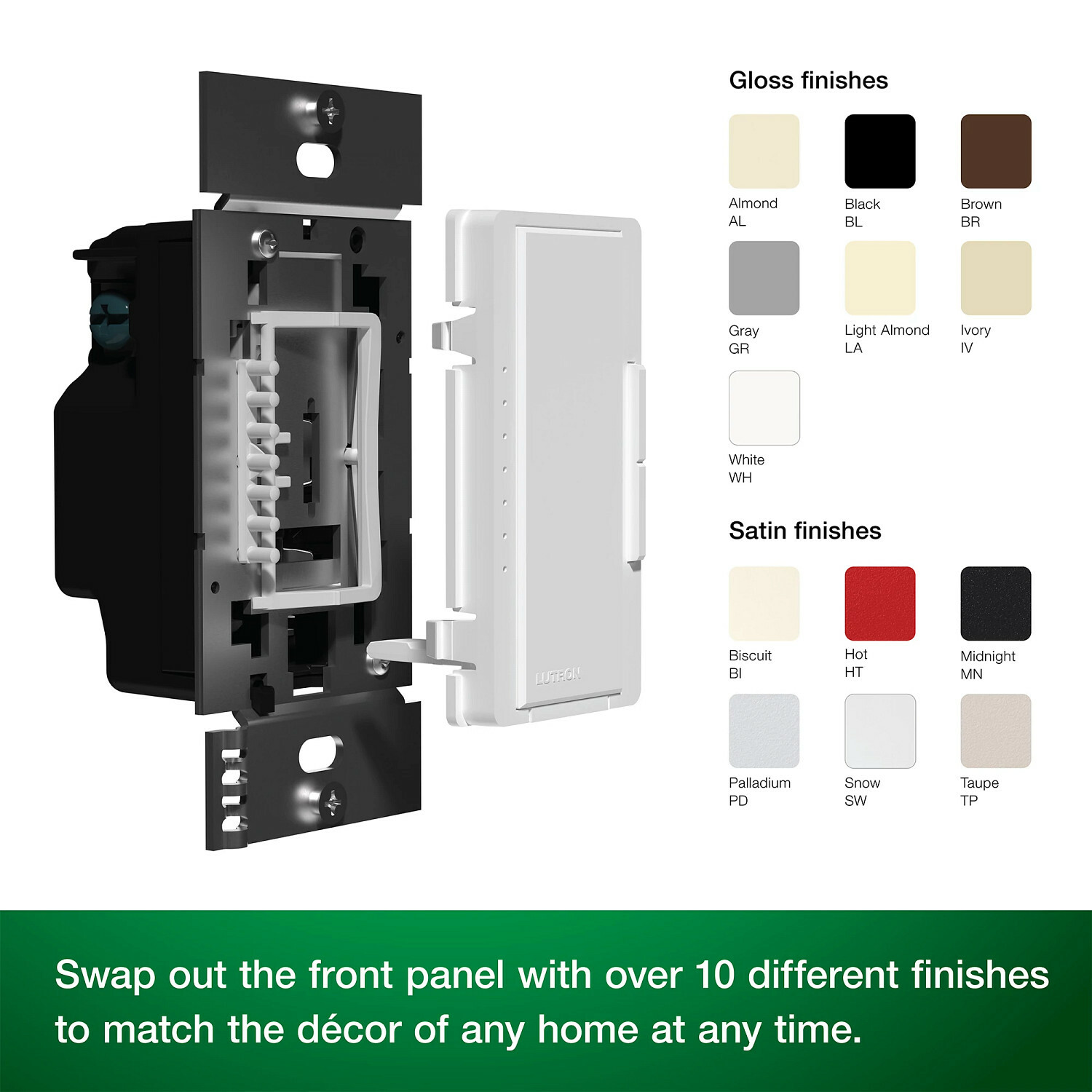

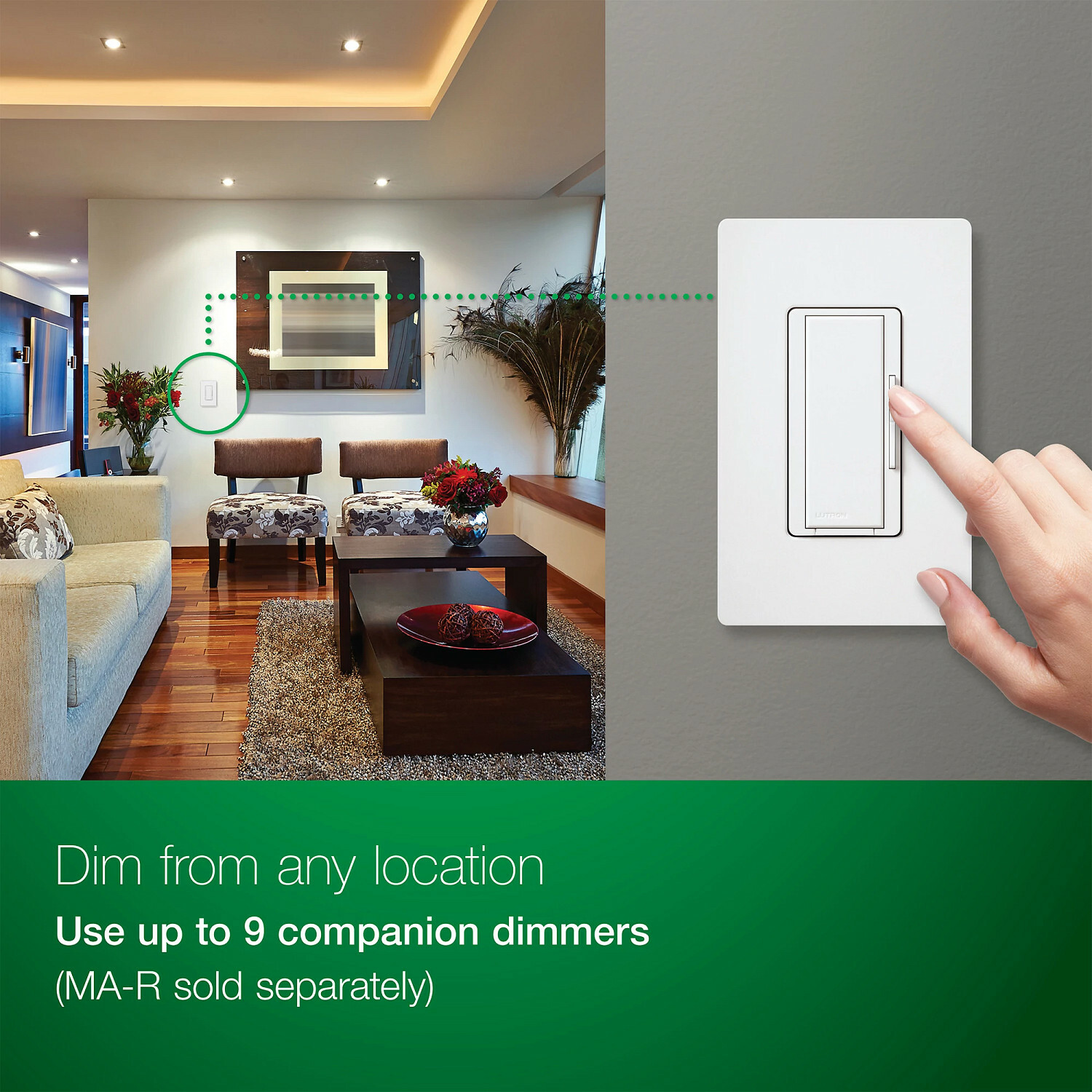

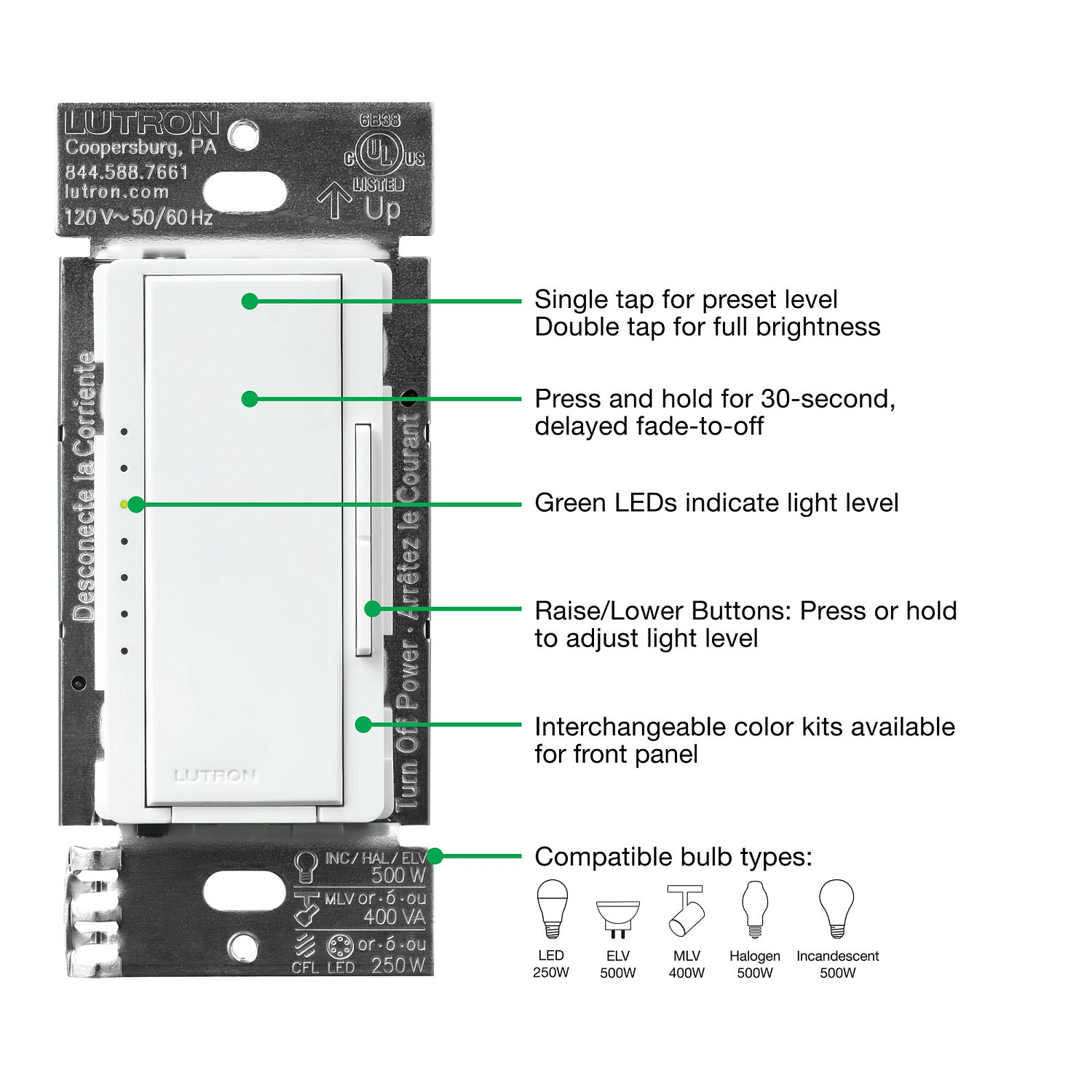

The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10 ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MSC-AD-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Manuals & Documentation
Catalog Number MA-PRO-SW
Manufacturer Lutron Electronics
Brand Lutron
Actuator Tapswitch
Application Lighting Control
Color Snow
Connection Screw terminal
Enclosure Plastic
Frequency Rating 50 to 60 HZ
Insulation Plastic
Material Plastic/Metal
Mounting Wall
Number of Poles 1
Special Features Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Standard UL, CSA, NOM
UPC 784276261722
GTIN 00784276261722
Item Type Digital fade dimmer, multi-location/3-way/single-pole

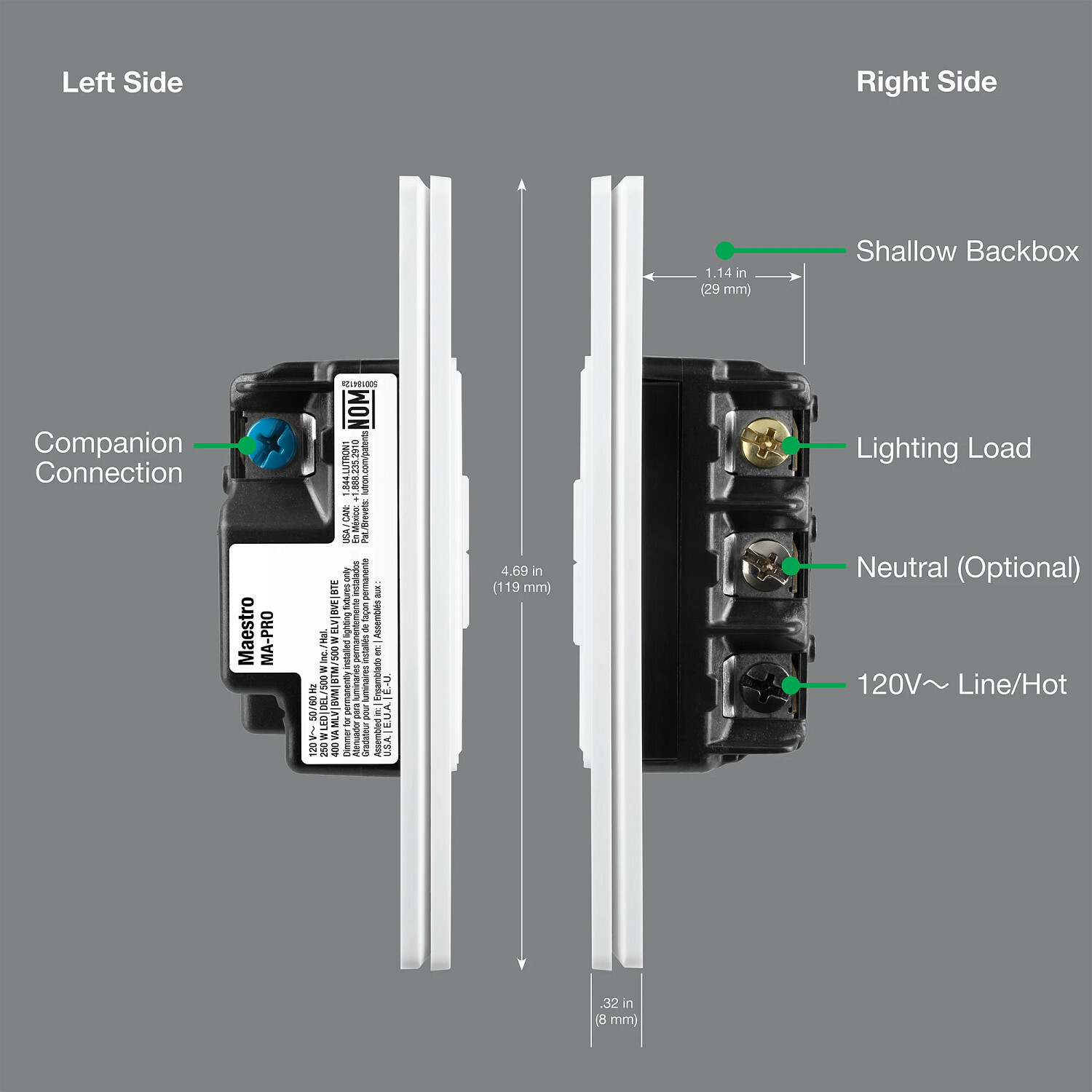

Size 4.69 x 2.94
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Operating Temperature 32 to 104 F
Voltage Rating 120
Wattage 600 W
