Discontinued
M9A26927 Auxiliary Contact, 240 to 415 VAC/24 to 130 VDC, 3/6 A, 1 Contacts, For Use With Multi 9 GFP, C60bP, C60bPR, C60SP, C60H-DC Miniature Circuit Breaker, Clamp Terminal Connection
- MFR:
- Schneider Electric
- MFR #:
- M9A26927
- Item #:
- 573409
Discontinued
M9A26927 Auxiliary Contact, 240 to 415 VAC/24 to 130 VDC, 3/6 A, 1 Contacts, For Use With Multi 9 GFP, C60bP, C60bPR, C60SP, C60H-DC Miniature Circuit Breaker, Clamp Terminal Connection
- MFR #:
- M9A26927
- Item #:
- 573409

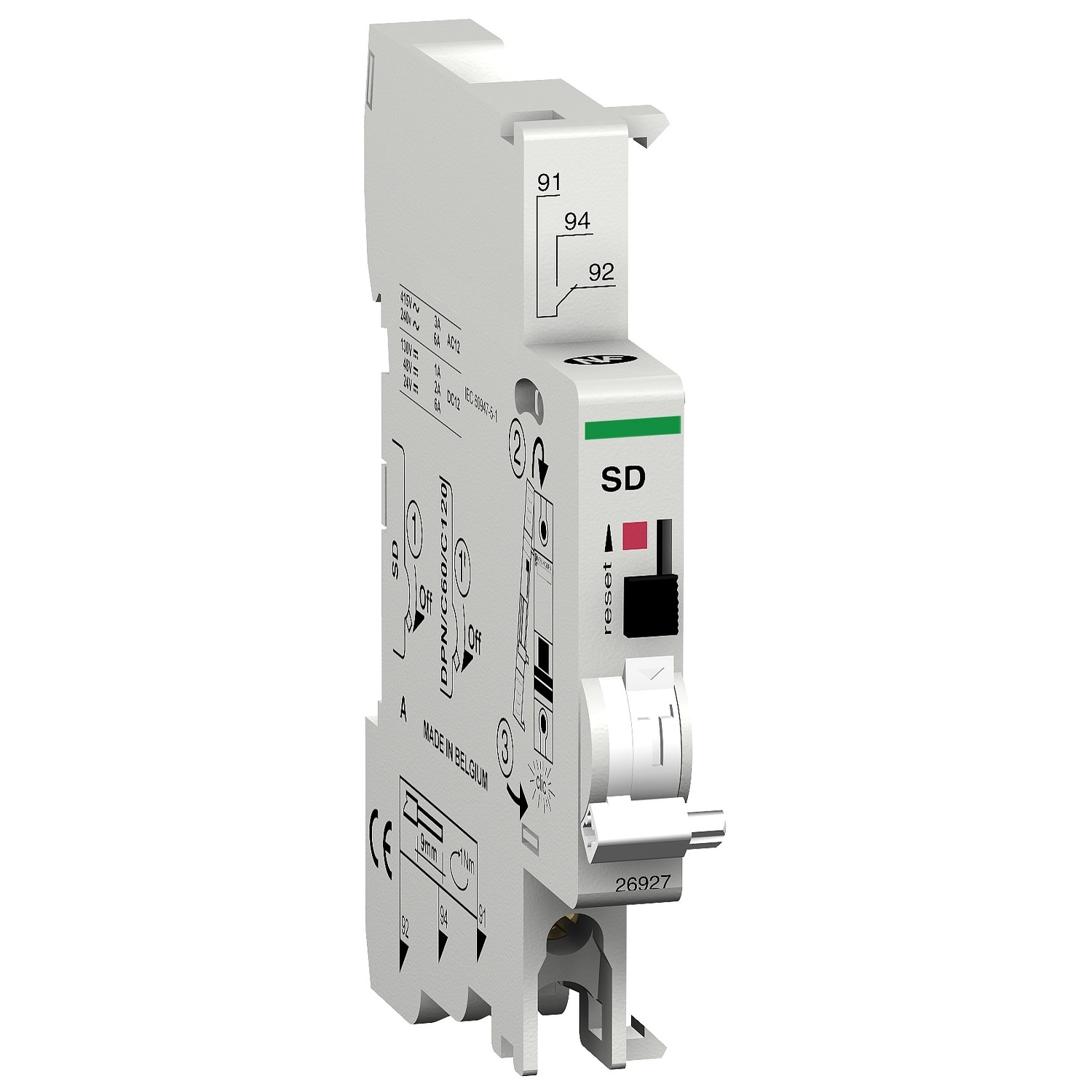

This Multi9 SD electric auxiliary is a remote fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85mm x (D) 73.5mm. Product weight is 30g. The operating temperature is -25C to + 50C. The storage temperature is -40C to + 85C.
Manuals & Documentation
| Catalog Number | M9A26927 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465813181&lang=en-us |
| GTIN | 03606480639050 |
