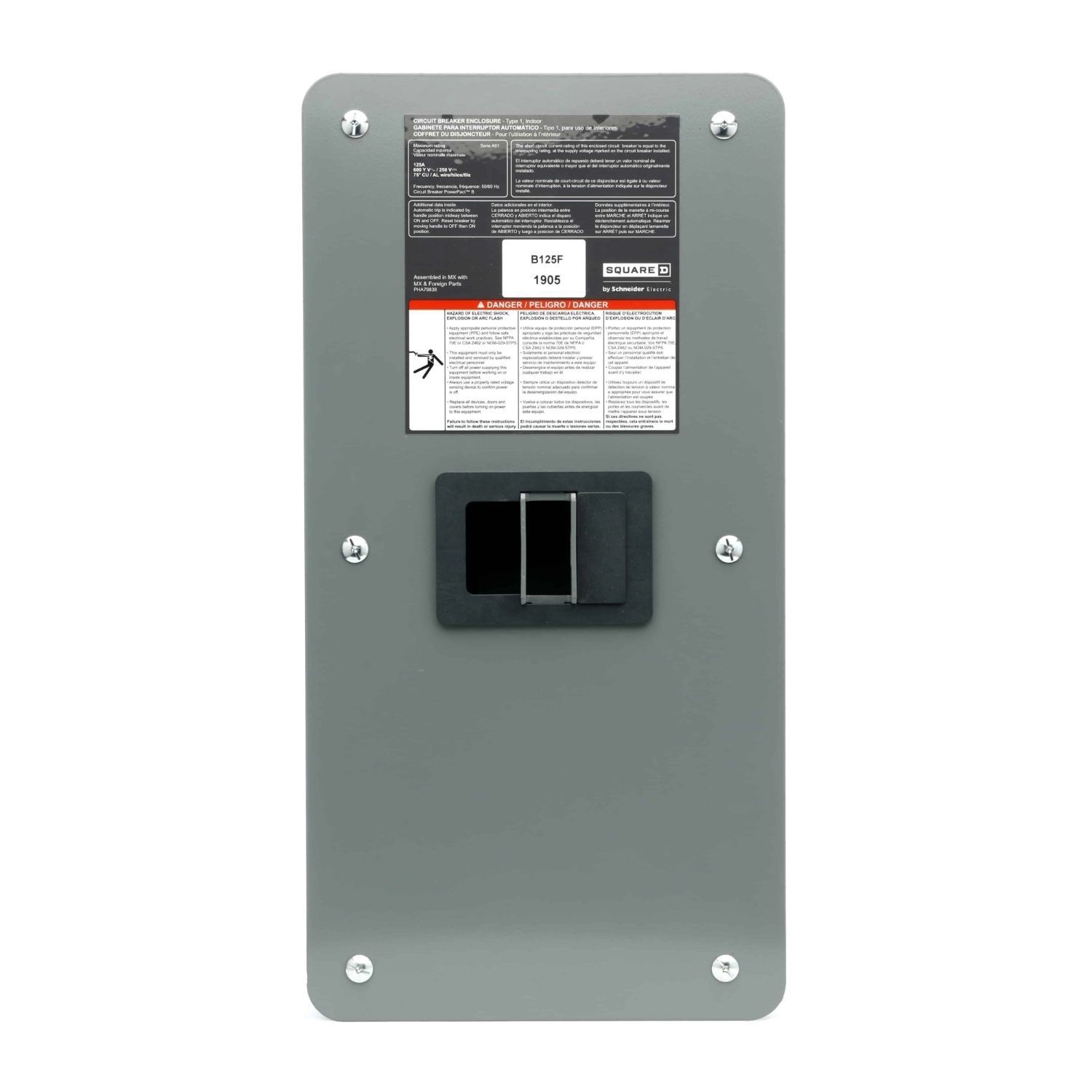

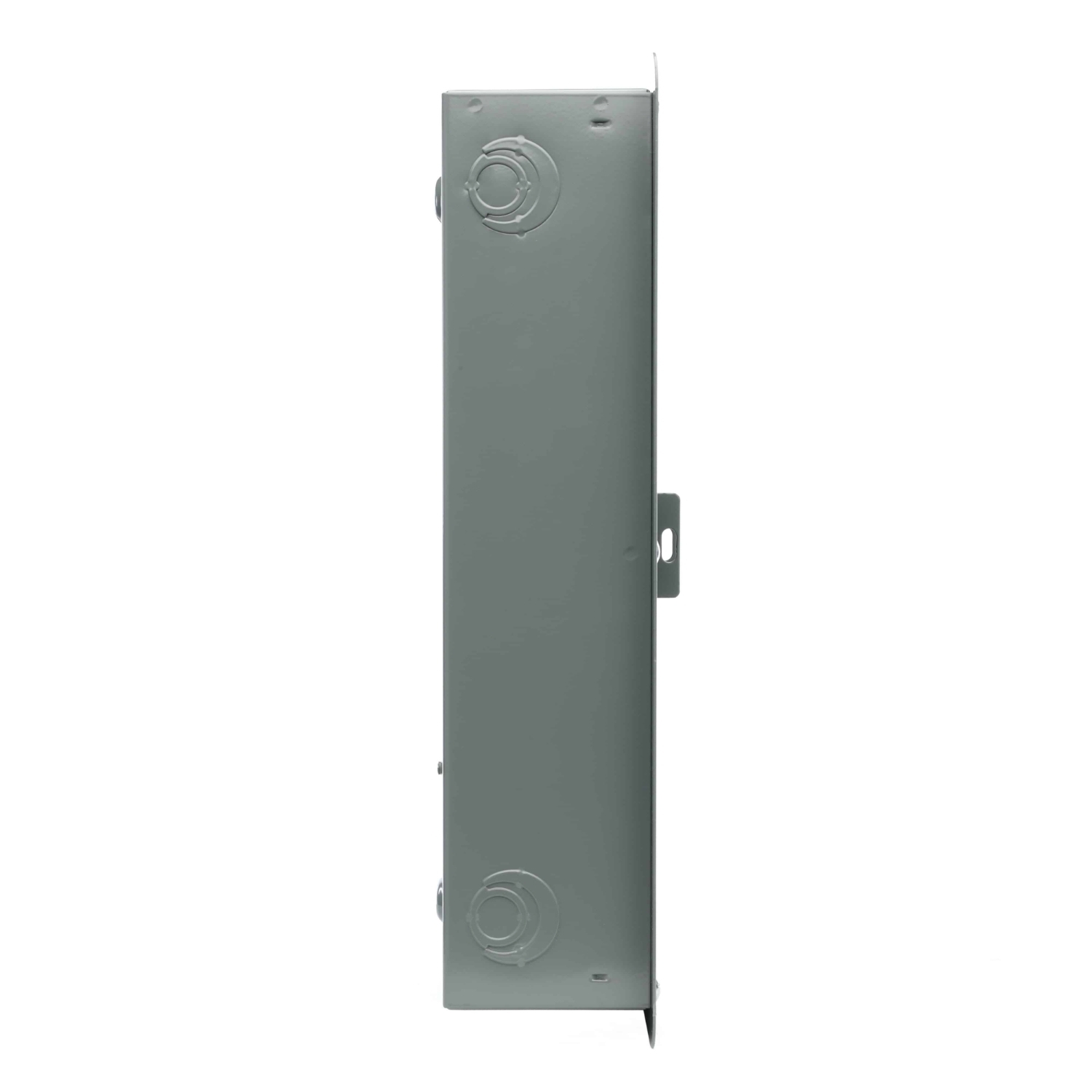

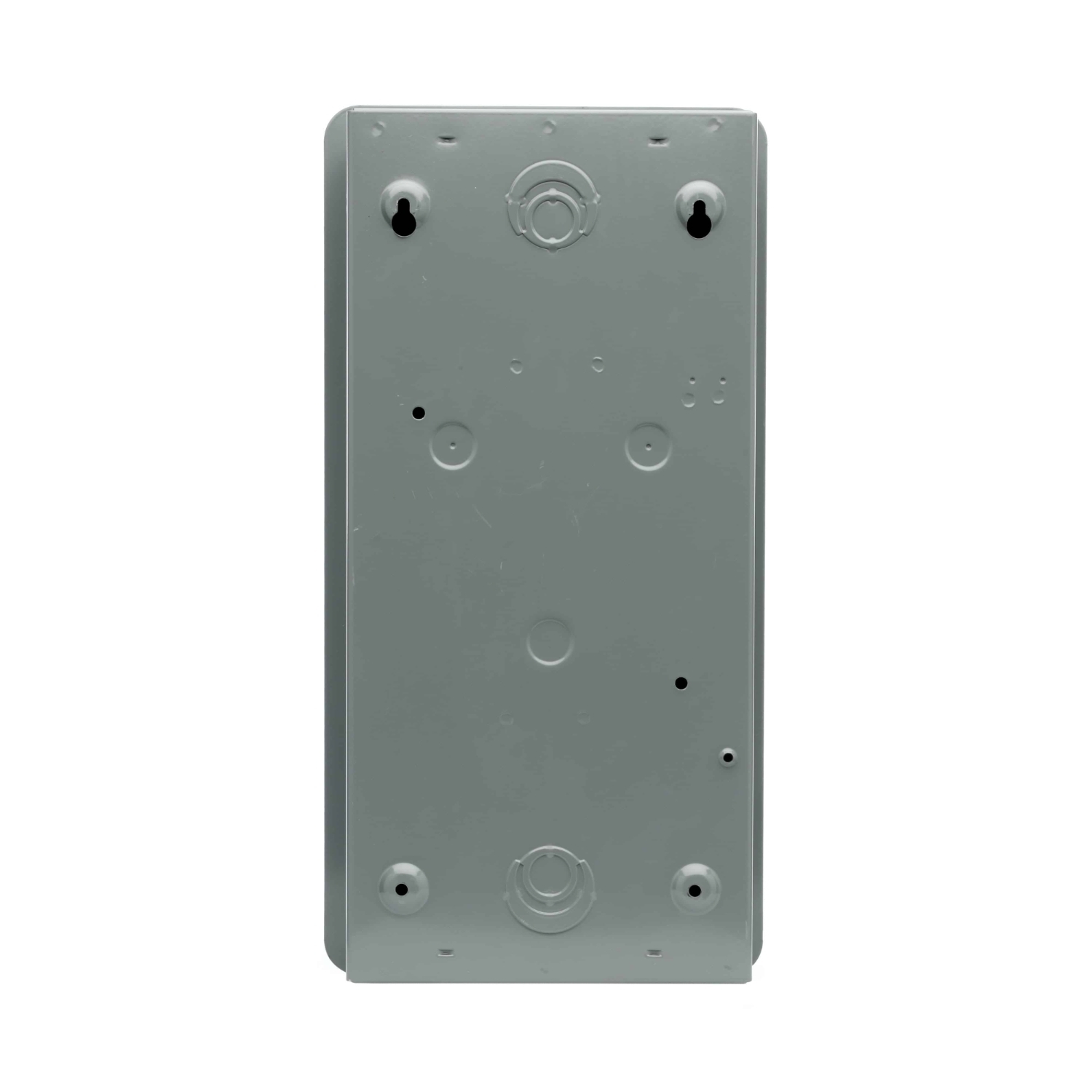

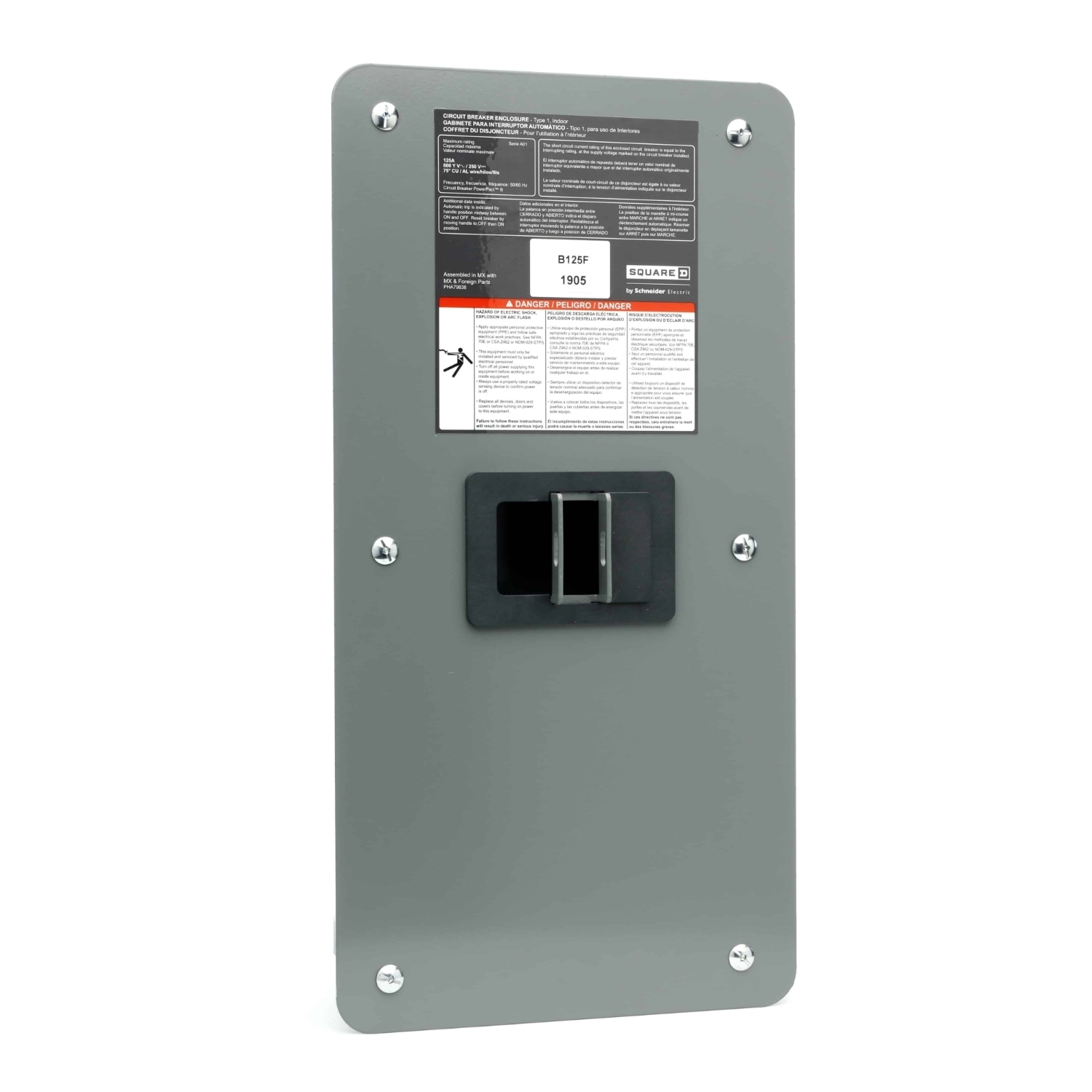

B125F PowerPact B-Frame Circuit Breaker Enclosure, Flush Mount, Nema 1

MFR:
Schneider Electric
MFR #:
B125F
UPC:
785901280507
Item #:
573188

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact B circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 100% and 80%% rated 2 or 3 poles 15A to 125A circuit breakers with different neutral assemly kits. The enclosures' maximum short circuit ratings are 65 kA at 600Y, 65 kA at 480 Vac, 100 kA at 240 Vac and 50 kA at 250 Vdc unless otherwise noted This NEMA 1 Flush has dimensions as Height of 19.5 inch, Width of 9.88 inch and Depth of 4.13 inch. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Manuals & Documentation
Catalog Number B125F
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=474470096&lang=en-us
UPC 785901280507
GTIN 00785901280507
Width 9.88190
Width UOM Inch
Depth 4.13390 IN
