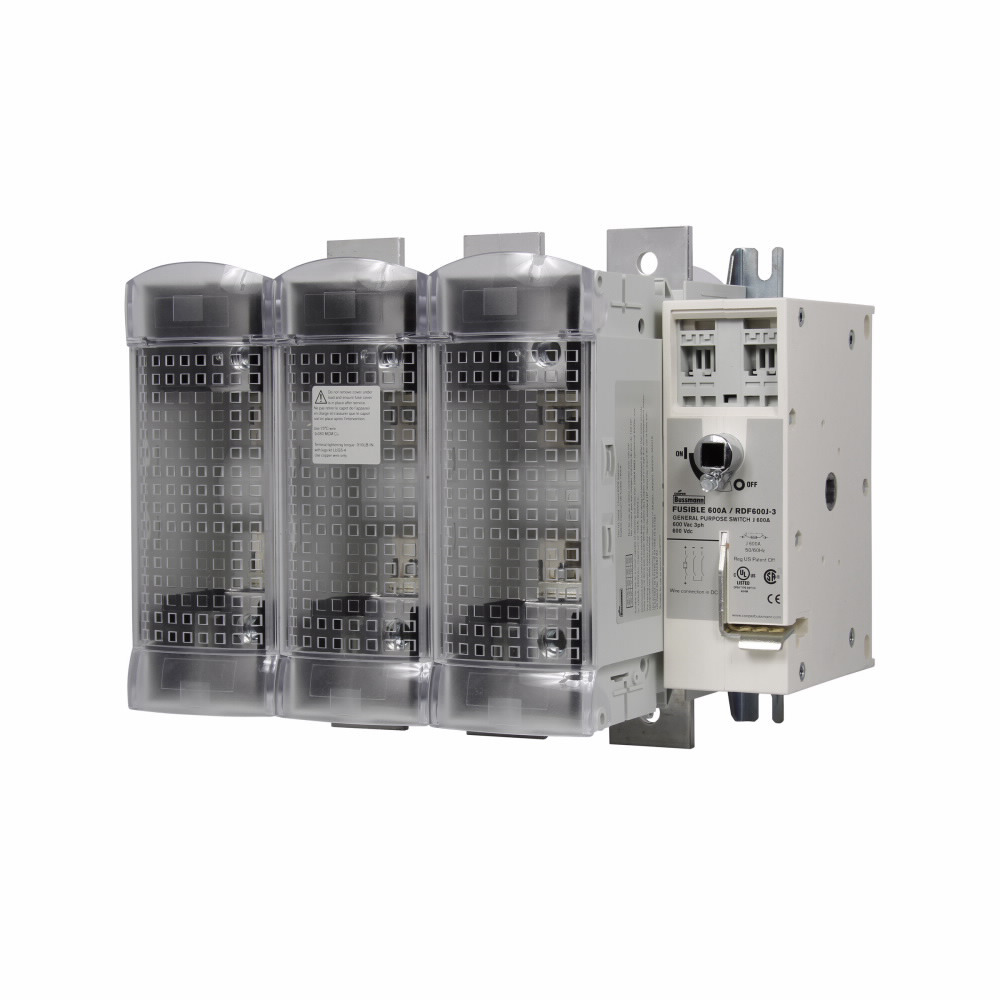

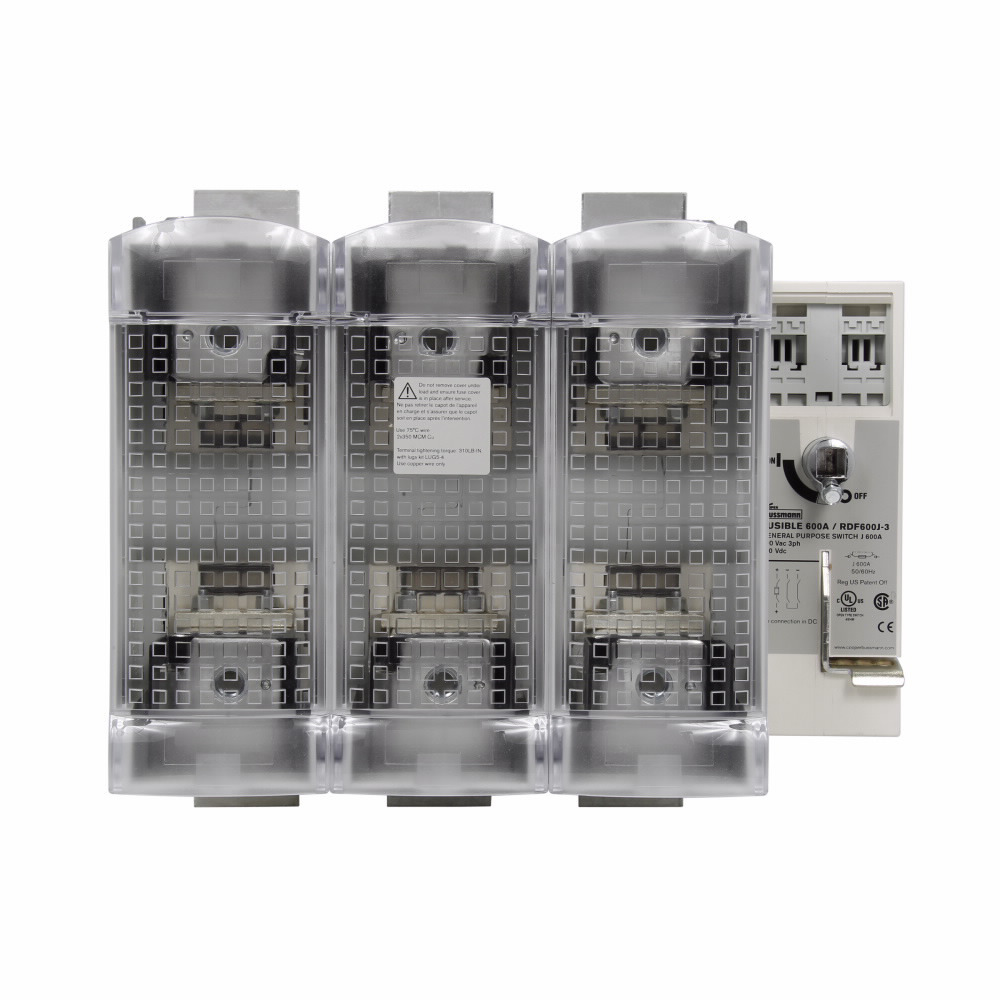

RDF600J-3 Class J Fused Standard Rotary Disconnect Switch, 600 V AC/DC, 600 A, 200 hp, 500 hp, 3 Poles
- MFR:
- Eaton Bussmann
- MFR #:
- RDF600J-3
- UPC:
- 051712402804
- Item #:
- 571841
RDF600J-3 Class J Fused Standard Rotary Disconnect Switch, 600 V AC/DC, 600 A, 200 hp, 500 hp, 3 Poles
- MFR #:
- RDF600J-3
- UPC:
- 051712402804
- Item #:
- 571841
Bussmann series enclosed rotary disconnects provide an easy to install solution for providing a switch for power. Enclosed compact circuit protectors (CCP) offer some of the smallest options in the market for increasing protection and panel SCCR, available for 30 amp Class CC fuses, and up to 60A for class CF fuses. Other UL 98 options include up to 1200A non-fused and up to 800A Class L fused options. UL 508 load break disconnects for control and disconnecting means for motor applications.
| Catalog Number | RDF600J-3 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 600 |
| Application | Stationary Mach Equip In Factory - Robotics |
| Special Features | Standard switch, Front handle operation |
| Standard | Not Applicable,RoHS Compliant |
| UPC | 051712402804 |
| GTIN | 00051712402804 |
| Item Type | Fused disconnect switch |
| Weight UOM | Pounds |
| Operating Temperature | 70 CEL |
| Voltage Rating | 600 Vac, 600 Vdc |
