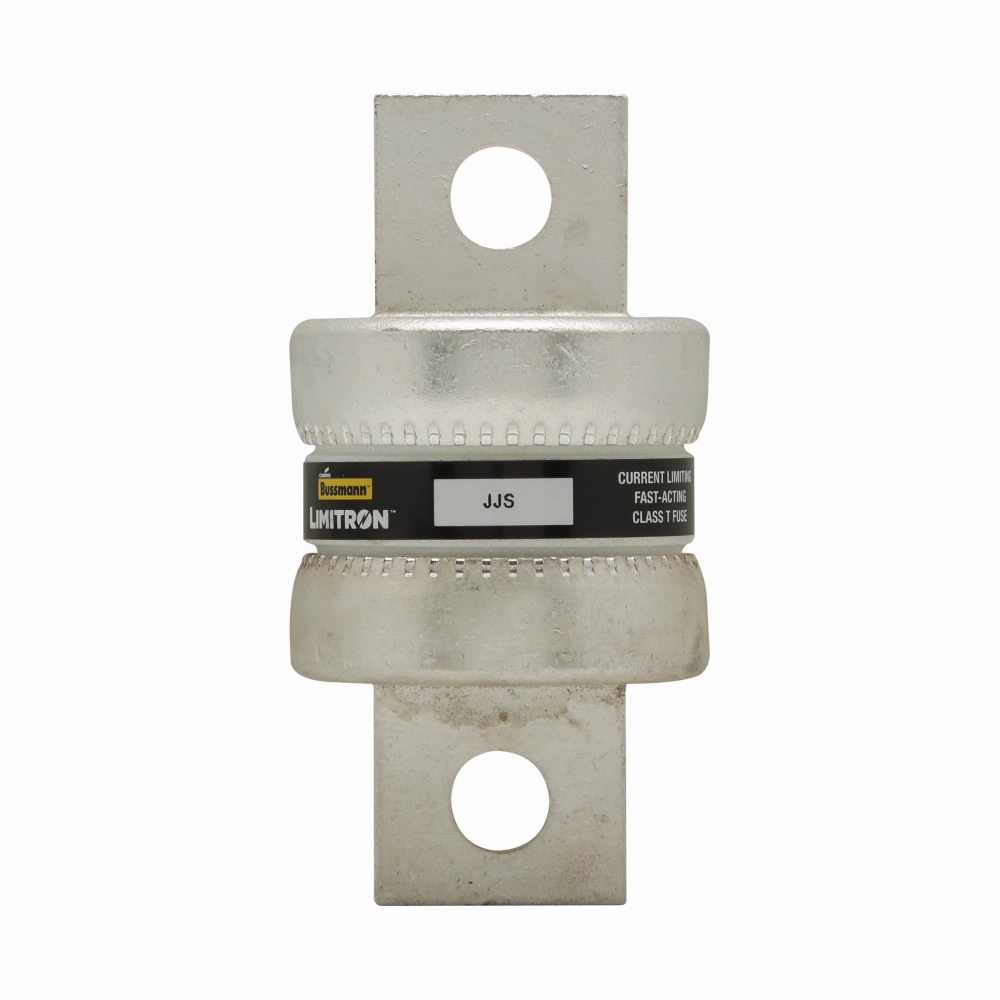

Eaton Bussmann series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 500 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V
- MFR:
- Eaton Bussmann
- MFR #:
- JJS-500
- UPC:
- 051712628556
- Item #:
- 571647
Eaton Bussmann series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 500 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V
- MFR #:
- JJS-500
- UPC:
- 051712628556
- Item #:
- 571647
Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for todays large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.
Manuals & Documentation
| Catalog Number | JJS-500 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 500 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Bolted blade end x bolted blade end |
| Interrupt Rating | 200 kAIC at 600 Vac |
| Special Features | Non-indicating |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712628556 |
| GTIN | 00051712628556 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 1.25 In Diameter X 3.98 In Length |
| Voltage Rating | 600 V |
